Blue Seas Ss Push Button Switch Off On - BSS-4181

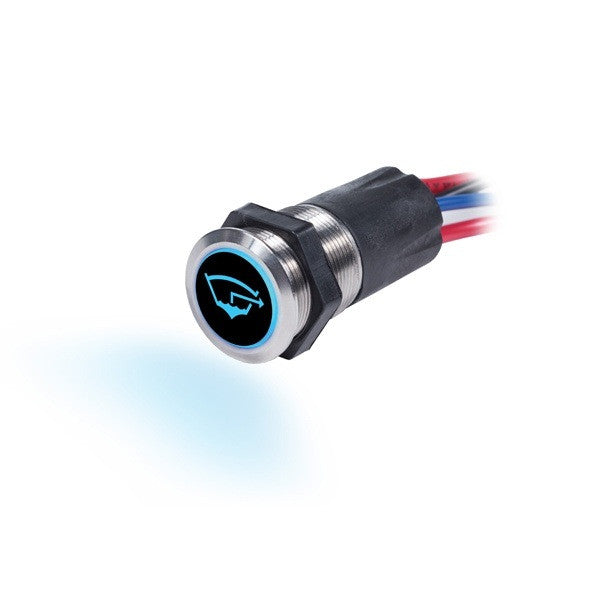

Blue Sea Momentary Push Button Backlit Switch - Off/On

This Blue Sea Momentary Push Button Backlit Switch - Off/On features five included ICON labels. The labels include: accessory, lights, anchor light, running light, and bilge pump. This momentary switch has a nominal voltage of 12V DC and a maximum voltage of 15V DC. The backlit button is blue when it is off and red when it is on.

Features:

Momentary

Five ICON Labels Included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump

Backlit Button Is Blue When OFF and Red When ON

Additional 50 ICON Label Kit Sold Separately

Specifications:

Action: OFF-(ON)

Weight: 0.35 lb (0.16 kg)

Nominal Voltage: 12V DC

Maximum Voltage: 15V DC

Temperature Range: -20°C to 55°C

Amperage: 15A @ 12V DC

Maximum LED Operating Current: 20mA

Switching Cycles: 10,000

Max Panel Thickness: 0.24in (6.1 mm)

Mounting Hole: 7/8" (22mm)

Termination: 3" - Bare Wire Pigtail

Wire Size: Black & Blue Wires 18 AWG, Red & Orange Wires 16 AWG
