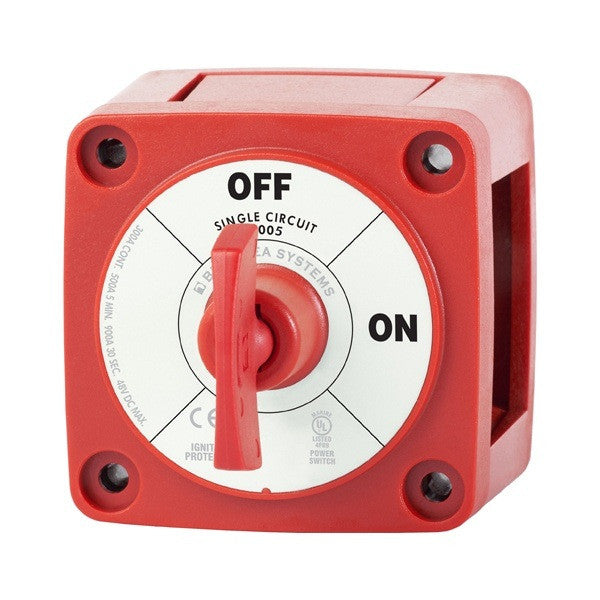

Blue Seas M BATTERY SWITCH W/KEY

Blue Sea M-Series Mini Single Circuit Switch w/ Key

The Blue Sea Mini Single Circuit Battery Switch switches a single battery to a single load group. This battery switch features a case design that allows surface, front panel, or rear panel mounting. The one-piece terminal stud design never loosens over time; studs are tin-plated copper for maximum conductivity and corrosion resistance. The isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction. This Battery switch meets all ABYC requirements for battery switches and is UL 1107 listed for electric power switches. Meets UL 1500 and SAE J1171 external ignition protection requirements

Features:

Switches single battery to single load group

Tin-plated copper studs

Studs accept 3/8" ring terminals

One-piece terminal stud design

Meets ABYC E-11 requirements

Meets SAE J1171 and UL 1500 requirements

Specifications:

Switch Type: Single Circuit ON-OFF

Switch Positions: 2

Maximum Voltage: 48V DC

Stud Size: 3/8"

Terminal Stud Torque: 120 in-lb

Continuous Rating: 300A

Intermittent Rating: 500A

Battery Inputs: 1

Cable Size to Meet Ratings: 4/0 AWG

Mounting Holes: Accepts #10 Screw

Weight: 0.62 lb.

Click to Download Blue Sea Mini Single Circuit Switch Instructions

Frequently Asked Questions

• What is the Blue Sea M-Series Mini Single Circuit Switch with Key used for? The Blue Sea M-Series Mini Single Circuit Switch with Key switches a single battery to a single load group. It is a single-circuit ON-OFF battery switch with two switch positions and one battery input.
• What is the maximum voltage and amperage rating of the Blue Sea M-Series Mini Single Circuit Switch? The Blue Sea M-Series Mini Single Circuit Switch is rated for a maximum of 48V DC. It has a continuous rating of 300 amps and an intermittent rating of 500 amps.
• How can the Blue Sea M-Series Mini Single Circuit Switch be mounted? The Blue Sea M-Series Mini Single Circuit Switch can be surface mounted or mounted on the front or rear of a panel. Its mounting holes accept #10 screws.
• What type of terminals does the Blue Sea M-Series Mini Single Circuit Switch use? The Blue Sea M-Series Mini Single Circuit Switch features tin-plated copper terminal studs that accept 3/8-inch ring terminals. The terminal stud torque specification is 120 in-lb, and 4/0 AWG cable is specified to meet the listed ratings.
• How does the isolating cover on the Blue Sea M-Series Mini Single Circuit Switch work? The isolating cover protects the rear contacts and has three snap-off side pieces. These removable pieces allow wire access in different directions while the cover remains part of the switch design.
• Does the Blue Sea M-Series Mini Single Circuit Switch meet marine and ignition protection requirements? Yes. The Blue Sea M-Series Mini Single Circuit Switch meets ABYC E-11 requirements and SAE J1171 and UL 1500 external ignition protection requirements. It is also UL 1107 listed for electric power switches.
