Blue Seas M-ACR AUTO CHARGING RELAY

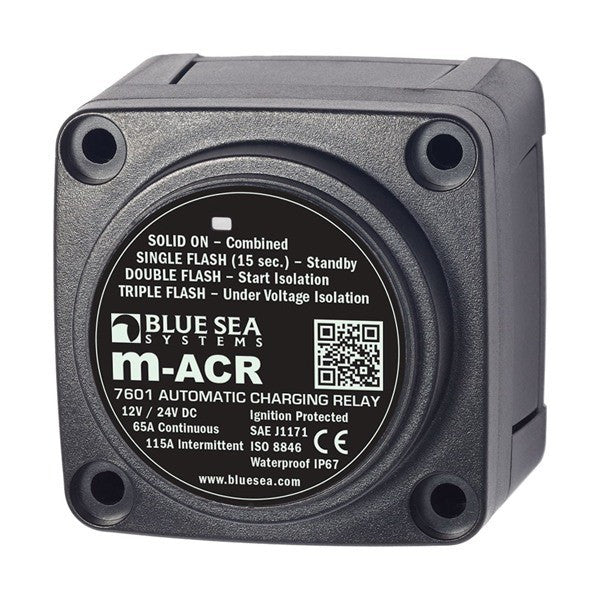

Blue Sea M-Series Mini Automatic Charging Relay 65A

The Blue Sea Mini Automatic Charging Relay is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines. The m-series charging relay features a compact design that allows for three mounting styles: surface, rear, or panel mount. The Start Isolation option protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes. This charging relay is ignition protected, making it safe for installation aboard gasoline powered boats.

Features:

Automatically combines batteries during charging, isolates batteries when discharging

Supports alternators up to 65 Amps

Senses charging on two battery banks

Pull off and snap on insulating cover

LED indicates ACR status

1/4" x 0.32" male quick connect terminal for ground

7/16" stud length to accept multiple cable terminals

Waterproof - rated IP67 for temporary immersion

CE marked for ignition protection

Meets ISO 8846 and SAE J1171 external ignition protection requirements

Specifications:

Nominal Voltage: 12V DC, 24V DC

Amperage Operating Current: 90mA (Combine), 15mA (Open)

Terminal Stud Torque: 60 in-lb

Continuous Rating: 65 A

Intermittent Rating: 115 A (5 mins)

Cable Size to Meet Ratings: 6 AWG

Terminal Stud Size: 1/4"-20 (M6)

Relay Contact Position:

Combine 30 Sec: 13.6V DC

Open 10 Sec: 12.35V DC

Open 30 Sec: 12.75V DC

Open High: 16.0V

Under Voltage Lockout: 9.5V
