Blue Seas SAFETY FUSE BLK MEGA AMG

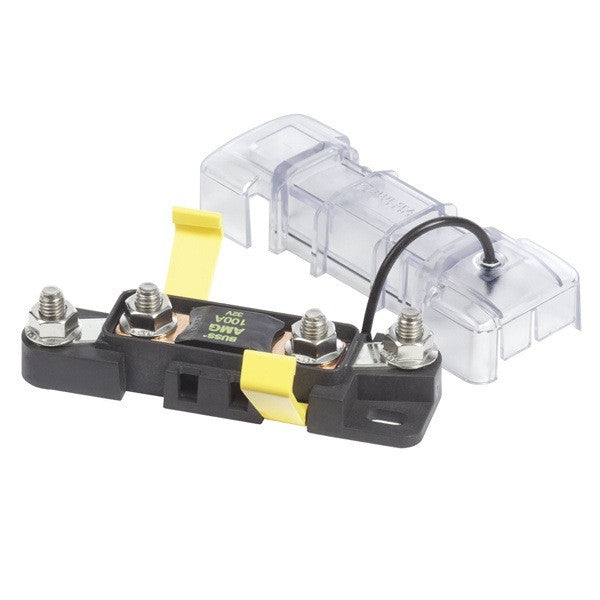

Blue Sea MEGA / AMG Safety Fuse Block

The Blue Sea MEGA/AMG Safety Fuse Block can be used on high amperage circuits on almost any boats, including gasoline and diesel powered boats. This fuse block is ignition protected and features a sealed cover to protect the fuses from harsh marine environments. The insulating cover satisfies ABYC and USCG insulation requirements. Accepts Blue Sea Systems square format standard or custom labels.

Features:

Ignition protected

Insulating cover meets ABYC/USCG insulation requirements

Cover breakouts allow wire access in any direction

Fuses sold separately

Specifications:

Maximum Amperage: 300 A

Maximum Voltage: 32V DC

Stud Size: M8 x 1.25

Recommended Stud Torque: 120 in-lb

Ring Terminal Size: M8

Weight: 0.15 lb.
