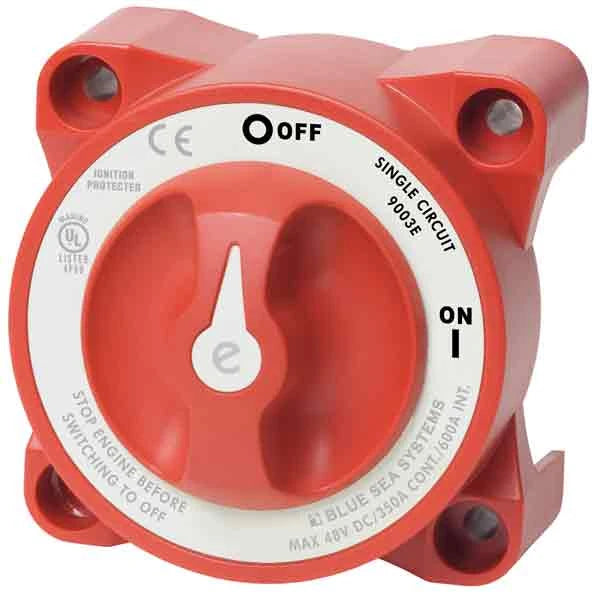

Blue Seas Battery Switch 'E' On-Off

Blue Sea Systems e-Series Single Circuit ON-OFF Switch

Features:

Ignition protected - safe for installation aboard gasoline powered boats

Case design allows surface or rear panel mounting

Meets American Boat and Yacht Council (ABYC) requirements for battery switches

Cranking Rating: 10 sec. 2,000 Amps

Intermittent Rating: 5 min. 600 Amps

Continuous Rating 350 Amps

Maximum Voltage Rating 48 Volts DC

Terminal Stud Size 3/8"-16 (M10)

Terminal Stud Torque 140 in-lb (15.82 Nm) max.

Mounting Holes Accept 1/4" (M6) Screw

Cable Size to Meet Ratings 4/0 AWG (95mm2)

Cable Clearance For 4/0 AWG Cables 1.10" (27.9mm)

Weight 0.95lb (0.43)

UL Listed - UL 1107 electric power switches

Meets American Boat and Yacht Council (ABYC) requirements

Meets UL 1500 and SAE J1171 external ignition protection requirements

Single Circuit ON/OFF
