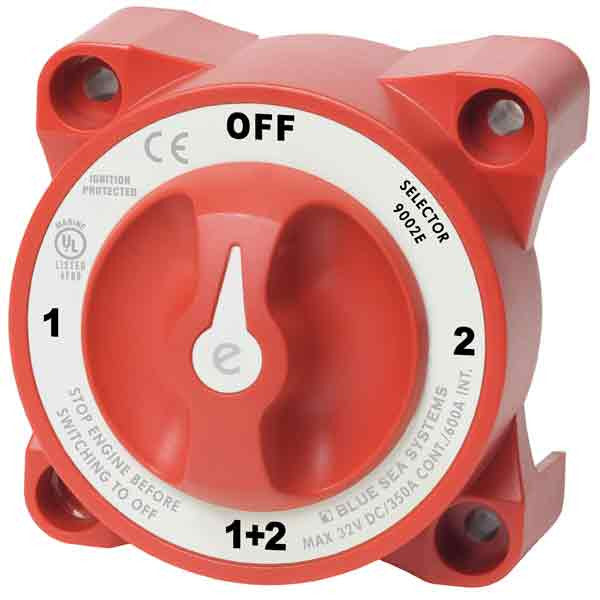

Blue Seas Battery Switch"E" 4 Pos W/Hfd

Blue Sea Systems e-Series Selector Battery Switch w/ AFD

Switches isolated battery banks to all loads or combines battery banks to all loads

Includes AFD (Alternator Field Disconnect)

Make-before-break contact design allows switching between battery banks without power interruption

Ignition protected—safe for installation aboard gasoline powered boats

Case design allows surface or rear panel mounting

Specifications:

Switch Type: Selector 4 Position

Color: Red

Switch Positions: 4

Battery Combine: Yes

Alternator Field Disconnect : Yes

Maximum Voltage: 32V DC

Continuous Rating:  350A

Intermittent Rating: 600A (5 min)

Cranking Rating 10 sec: 2000A

Cranking Rating 1 min: 1000A

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4" (M6) Screw

Terminal Stud Size: 3/8"-16 (M10)

Terminal Stud Torque: 140 in-lb (15.82 Nm)

Weight: 1.30lb (0.59 kg)

Click here to download Blue Sea Systems E-Series Selevtor Battery Switch Manual
