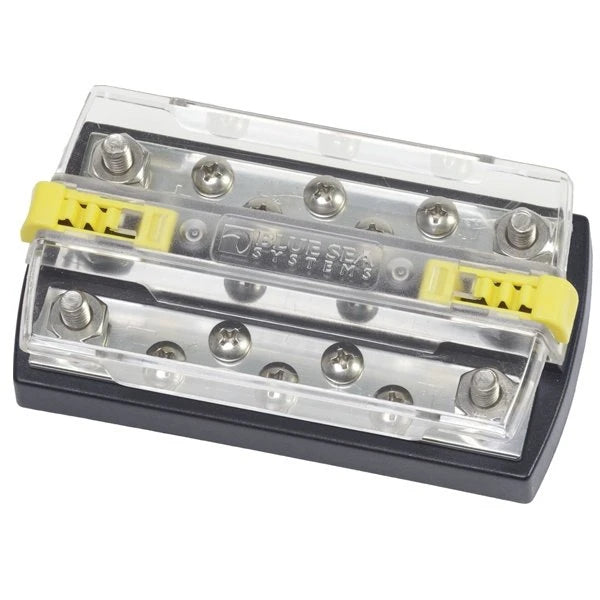

Blue Seas Dual Busbar Plus 1/4" Stud

Blue Sea DualBus Plus 150Amp Bus Bar - 5 Gang

The Blue Sea DualBus Plus Bus Bar combines negative and positive buses on one block. A clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements.

Maximum Voltage: 300V AC  |  48V DC

Number of Screw Terminals: 5 per bus

Number of Terminal Studs: 2 per bus

Terminal Type: #10-32 Screw  |  1/4" Stud

Continuous Rating: 130A AC  |  150A DC

Base Material: Reinforced Polycarbonate

Bus Material: Tin-Plated Copper CDA 110 / UNS 11000

Cover Matieral: Clear Polycarbonate

Mounting Screw: #10 (M5)

Weight: 0.61 lb (0.28 kg)
