Blue Seas DualBus 100A Common BusBars

Blue Sea Systems DualBus 100A Common BusBars

The Blue Sea Systems DualBus BusBar combines negative and positive buses on one block.

Features:

Combines negative and positive buses on one block

100 Amp continuous rating

CE Certified

Specifications:

Base Material: UL 94-V0 rated, glass reinforced thermoplastics

Bus Material: Tin-plated copper CDA 110 / UNS 11000

Screw terminal torque: 15 in-lb

Accepts #10 (M5) screws

Part Number

No. of Screw Terminals

Terminal Type

Dimensions

Weight

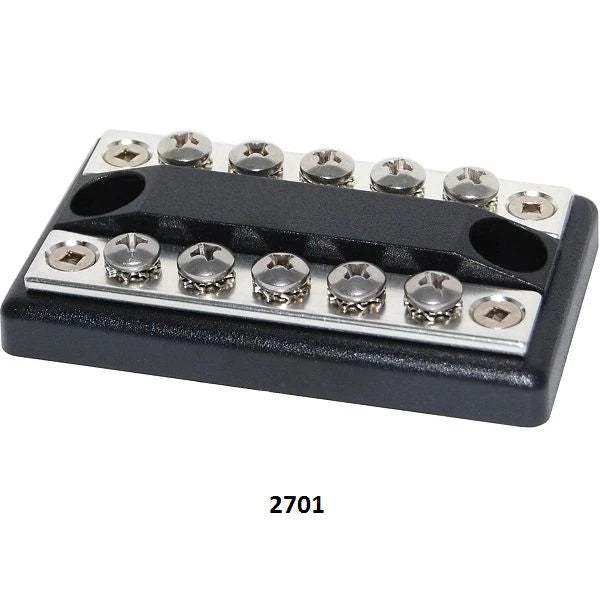

2701

5 per bus

#8-32 Screw

1.830" x 3.012"

0.17 lbs.

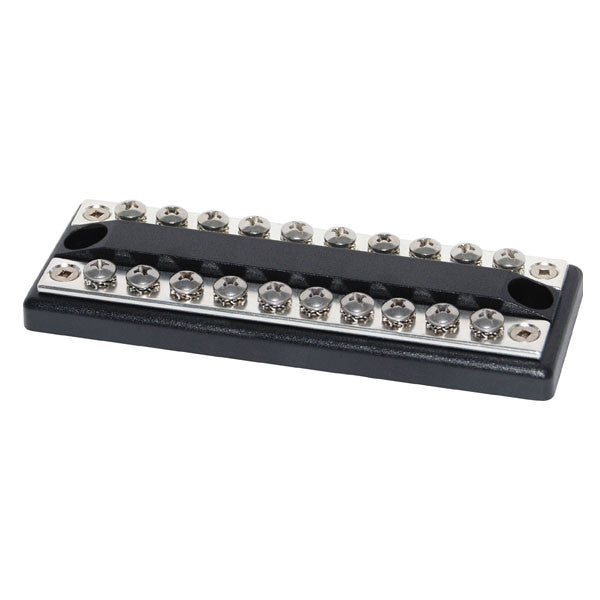

2702

10 per bus

#8-32 Screw

1.830" x 5.060"

0.27 lbs.
