Blue Seas Panel Dc 8 Pos

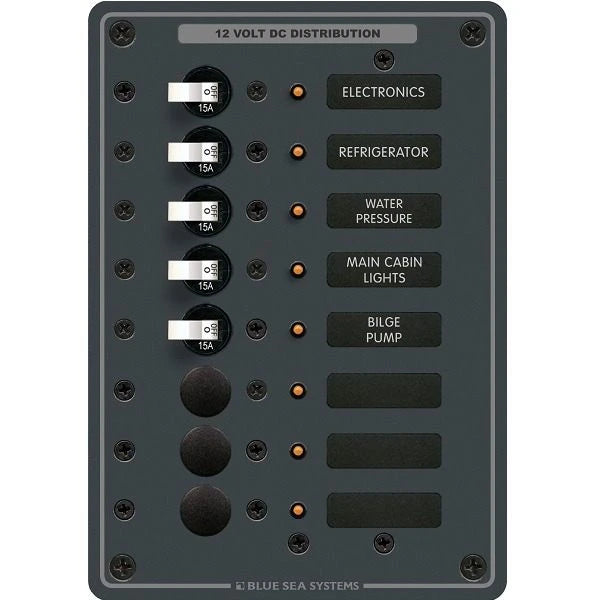

Blue Sea Systems DC 8 Position Circuit Panel

Features:

All positive, negative and grounding buses installed, fully pre-wired

Panels with meters include toggle switch for mounting up to 3 battery banks

All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

All circuit label positions are backlit on standard panels - No kit required

"ON" indicating LEDs installed in all circuit positions

Positions 8

Installed Single Pole Circuit Breakers 5 (15A)

Voltage 12 or 24 Volts DC

Width in" (mm) 5.25 (133.35)

Height in" (mm) 7.50 (190.50)

Weight Lb (Kg) 1.95 (0.88)

100 Amp

5 Installed 15A Single Pole Circuit Breakers

Included:

• 5  #7210 A-Series White Toggle Circuit Breakers - Single Pole 15A
• 1  #8030 Basic DC Panel Label Set - 30 Labels

Frequently Asked Questions

• What is the Blue Sea Systems DC 8 Position Circuit Panel used for? The Blue Sea Systems DC 8 Position Circuit Panel is a pre-wired DC electrical panel with installed positive, negative, and grounding buses. It provides eight circuit positions and is designed for 12 or 24 volt DC electrical systems.
• How many circuit positions does the Blue Sea Systems DC 8 Position Circuit Panel have? The panel has eight circuit positions and includes five installed 15A single-pole circuit breakers. The included breakers are Blue Sea Systems #7210 A-Series White Toggle Circuit Breakers.
• What voltage is the Blue Sea Systems DC 8 Position Circuit Panel designed for? The Blue Sea Systems DC 8 Position Circuit Panel is specified for 12 or 24 volts DC. Panels with analog meters can be upgraded to 24 volts using compatible 18-32V DC meters, as specified by the product description.
• What electrical components are pre-wired on the Blue Sea Systems DC 8 Position Circuit Panel? The panel comes fully pre-wired with positive, negative, and grounding buses installed. Standard panels also have backlit circuit label positions and ON-indicating LEDs installed in all circuit positions.
• What circuit breakers are included with the Blue Sea Systems DC 8 Position Circuit Panel? The panel includes five #7210 A-Series White Toggle Circuit Breakers. Each is a single-pole 15A circuit breaker, providing five installed 15-amp circuit breakers within the eight-position panel.
• What is included with the Blue Sea Systems DC 8 Position Circuit Panel? The panel includes five #7210 A-Series White Toggle Circuit Breakers - Single Pole 15A and one #8030 Basic DC Panel Label Set with 30 labels. The panel itself is fully pre-wired with positive, negative, and grounding buses.
