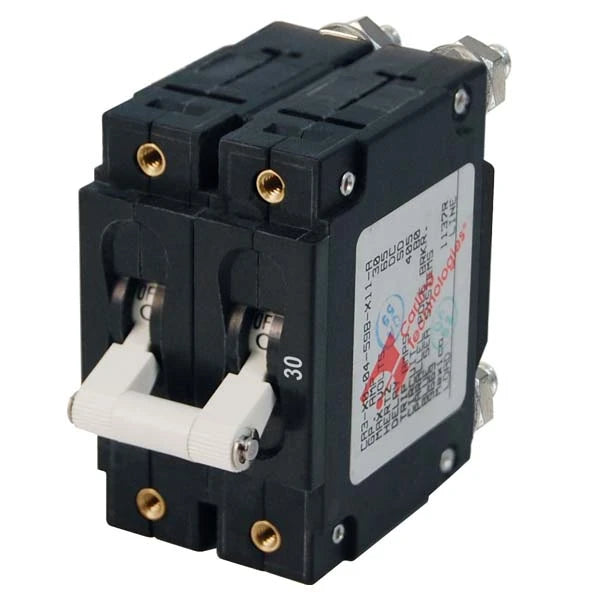

Blue Seas C Series Double Pole Toggle Circuit Breaker

Blue Sea Systems C-Series White Toggle Circuit Breaker - Double Pole

The Blue Sea Systems C Series Circuit Breakers provide overcurrent protection for inverters, bow thrusters, and windlasses.

Features:

Combines switching and circuit protection into a single device

"Trip Free" - cannot be held closed after trip

Double pole used as 120 volt AC main circuit breaker to switch hot and neutral

Double pole circuit breakers will trip all poles if any one pole trips

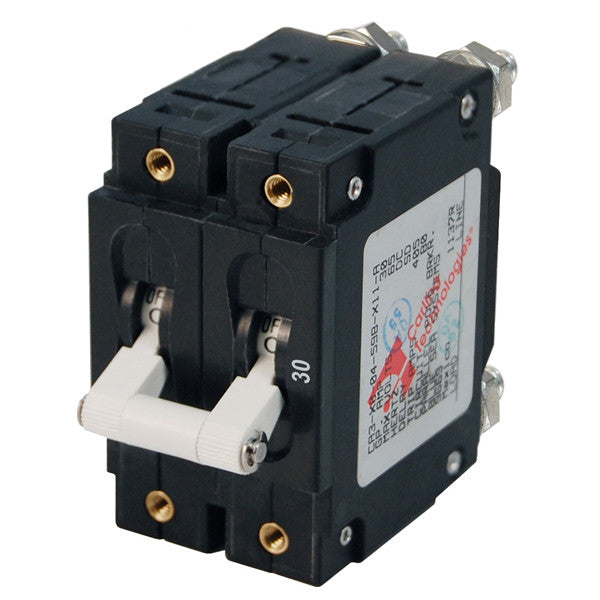

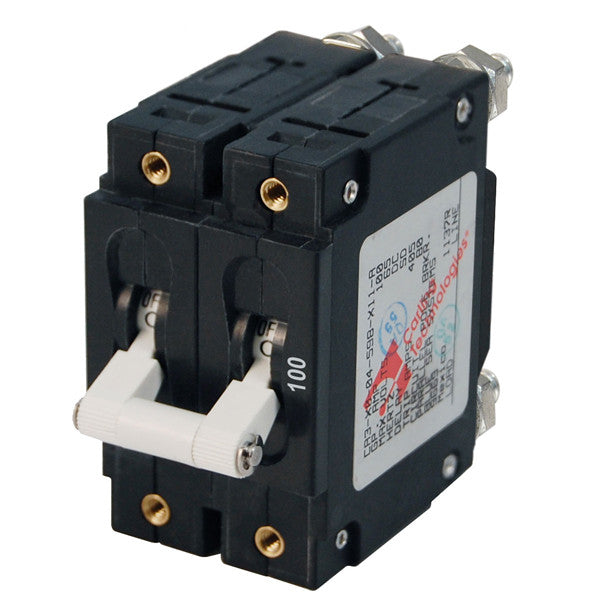

Available in 30, 50, 60, 80, & 100 Amp models

Specifications:

Maximum Voltage: 120V AC | 240V AC | 80V DC

Terminal Stud: 1/4-20 Tin-Plated Brass

Terminal Stud Torque: 35 in-lb

Interrupt Capacity: 5000A @ 240V AC

Minimum Operating Temperature: -40° C

Maximum Operating Temperature: 85° C

Mounting Screw: #6-32 Stainless Steel

Mounting Screw Torque: 6 in-lb

Frequently Asked Questions

• What is the Blue Sea Systems C-Series White Toggle Circuit Breaker - Double Pole used for? The Blue Sea Systems C-Series White Toggle Circuit Breaker - Double Pole provides overcurrent protection for applications such as inverters, bow thrusters, and windlasses. It combines circuit protection and switching in a single device.
• How does the double-pole design of the Blue Sea Systems C-Series Circuit Breaker work? The double-pole circuit breaker can be used as a 120-volt AC main circuit breaker to switch both hot and neutral. If one pole trips, the double-pole design trips all poles.
• What does trip-free mean on the Blue Sea Systems C-Series Circuit Breaker? The Blue Sea Systems C-Series Circuit Breaker has a trip-free design, meaning it cannot be held closed after a trip. This feature allows the circuit breaker to perform its overcurrent protection function.
• What voltage ratings are available for the Blue Sea Systems C-Series Double Pole Circuit Breaker? The Blue Sea Systems C-Series Double Pole Circuit Breaker has maximum voltage ratings of 120V AC, 240V AC, and 80V DC. Available amperage models include 30, 50, 60, 80, and 100 amps.
• What are the terminal and mounting specifications for the Blue Sea Systems C-Series Circuit Breaker? The circuit breaker uses 1/4-20 tin-plated brass terminal studs with a specified terminal stud torque of 35 in-lb. Mounting uses #6-32 stainless steel screws with a mounting screw torque specification of 6 in-lb.
• What are the operating temperature specifications for the Blue Sea Systems C-Series Circuit Breaker? The Blue Sea Systems C-Series Circuit Breaker has a minimum operating temperature of -40° C and a maximum operating temperature of 85° C. Its interrupt capacity is 5000A at 240V AC.
