Blue Seas BUS BAR 150 AMP

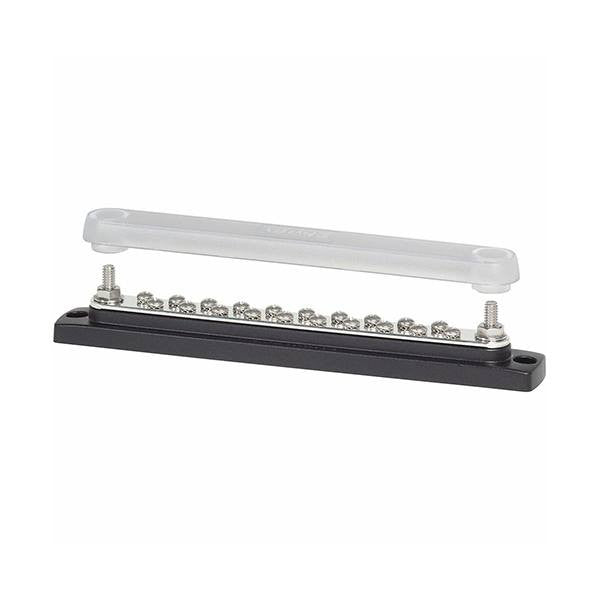

Blue Sea Busbar w/ Cover - 20 Gang 150 Amp

The Blue Sea Busbar features twenty screw terminals, two terminal studs, and includes a clear polycarbonate cover. This BusBar is the industry standard busbar for positive distribution. It is also the industry standard busbar for the collection of negative or AC ground circuits.

Specifications:

Maximum Voltage: 300V AC, 48V DC

Number of Screw Terminals: 20

Number of Terminal Studs: 2

Terminal Type: 1/4" Stud, #8-32 Screw

Continuous Rating: 130A AC, 150A DC

Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics

Bus Material: Tin-Plated Copper CDA 110 / UNS 11000

Screw Terminal Torque: 15 in-lb

Stud Torque: 60 in-lb

Weight: 0.57 lb.

Dimensions:
