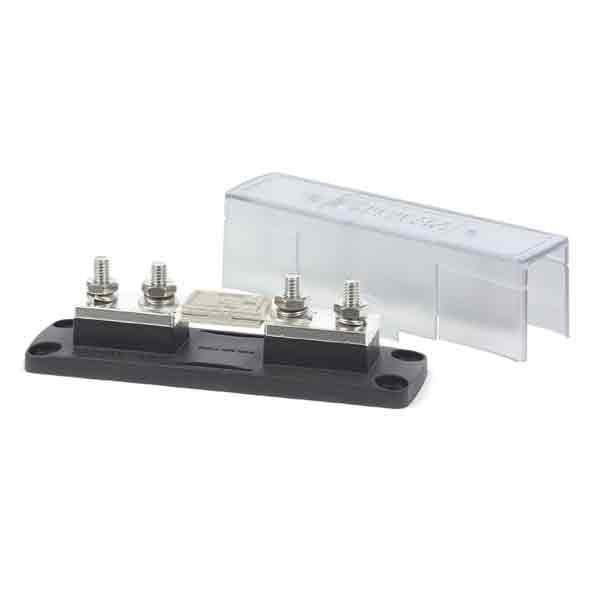

Blue Seas Fuse Block Anl 325-750A

Blue Sea Systems ANL Fuse Block w/ Insulating Cover - 350-750A

Cover included

Accepts 5/16" (M8) ring terminals

For use on systems up to 32 Volts DC

Swing out design allows replacement of the fuse without removing fasteners

Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact

UL 94-V0 base resists high heat

Insert molded studs ensure secure fuse mounting

Insulating cover satisfies ABYC/USCG requirements

Cover breakouts allow wire access in any direction

Fuse sold separately

Specifications:

Maximum Voltage: 32V DC

Base Material: Reinforced Polycarbonate

Fuse Mounting Blocks: Tin-Plated Copper

Maximum Cable Size: 4/0 AWG

Maximum Torque: 107 in-lb (12.09 Nm)

Terminal Stud Size: 5/16-18 (M8)

Weight: 1.06lb (0.48 kg)
