Blue Seas Vert Panel 120Vac 6 Pos W/Main

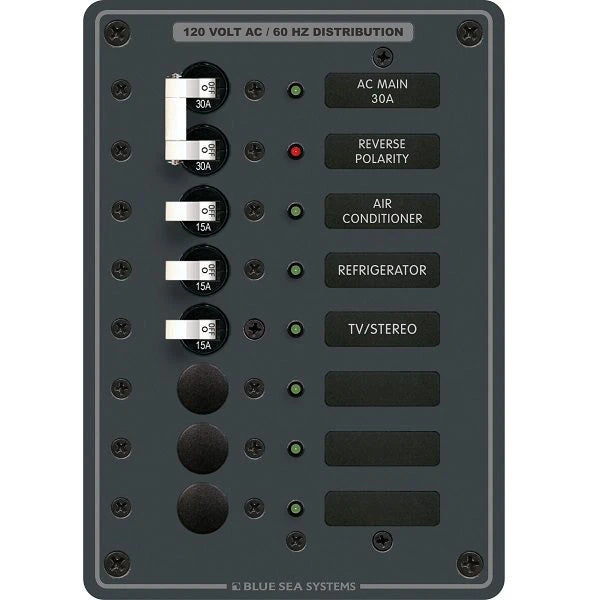

Blue Sea Systems AC Main and 6 Position Panel

Features:

Red reverse polarity indicating LED

All hot, neutral and safety ground buses installed, fully pre-wired

All circuit label positions are backlit on standard panels - No kit required

"ON" indicating LEDs installed in all circuit positions

Maximum panel amperage - 50 Amperes

Positions AC Main + 6

Installed Single Pole Circuit Breakers 3 (15A)

Width 5.25in (133.35)

Height 7.50in (190.50)

Weight 1.87lb (0.85kg)

Installed Double Pole Circuit Breakers - 1 (30A)

1 installed 30A Double Pole circuit breakers

3 installed 15A Single Pole circuit breakers

Frequently Asked Questions

• What is the Blue Sea Systems AC Main and 6 Position Panel used for? The Blue Sea Systems AC Main and 6 Position Panel provides an AC main plus six circuit positions for a boat's electrical system. It includes installed circuit breakers, pre-wired hot, neutral, and safety ground buses, and LED indicators for circuit status and reverse polarity.
• What circuit breakers are included with the Blue Sea Systems AC Main and 6 Position Panel? The panel includes one installed 30-amp double-pole circuit breaker and three installed 15-amp single-pole circuit breakers. These breakers are installed as part of the AC Main and 6 Position Panel.
• What electrical features are included with the Blue Sea Systems AC Main and 6 Position Panel? The panel has a red reverse polarity indicating LED, ON-indicating LEDs in all circuit positions, and backlit circuit label positions. The hot, neutral, and safety ground buses are installed and fully pre-wired, with no additional kit required for the standard panel.
• What is the maximum amperage of the Blue Sea Systems AC Main and 6 Position Panel? The Blue Sea Systems AC Main and 6 Position Panel has a maximum panel amperage of 50 amperes. The panel configuration is AC Main plus six positions.
• What are the dimensions and weight of the Blue Sea Systems AC Main and 6 Position Panel? The Blue Sea Systems AC Main and 6 Position Panel measures 5.25 inches wide by 7.50 inches high and weighs 1.87 pounds (0.85 kg).
