Blue Seas A Series Toggle Circuit Breaker
$40.69

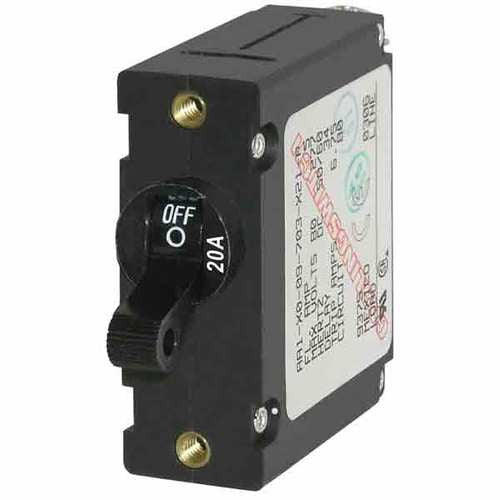

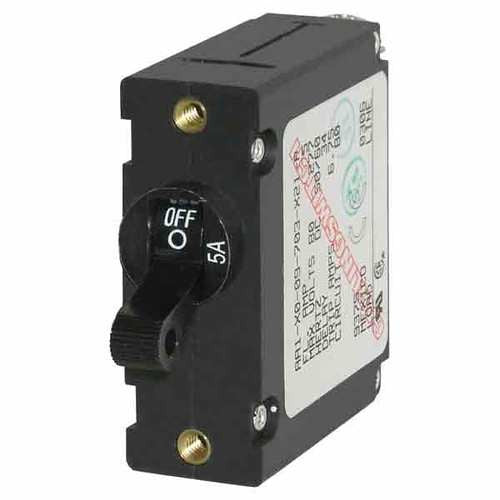

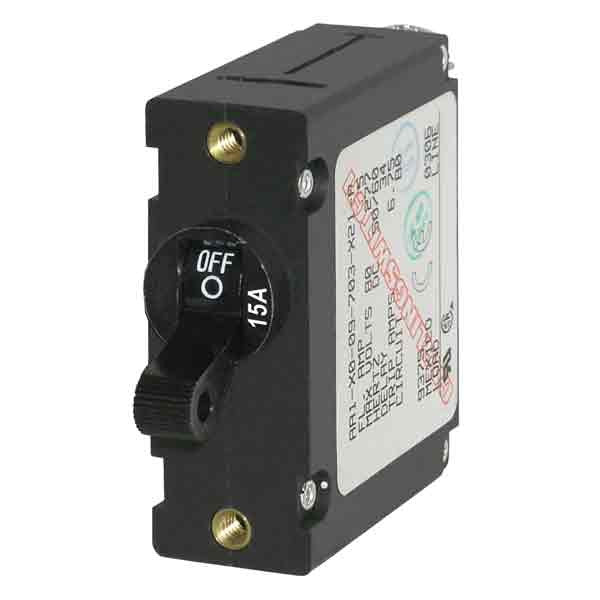

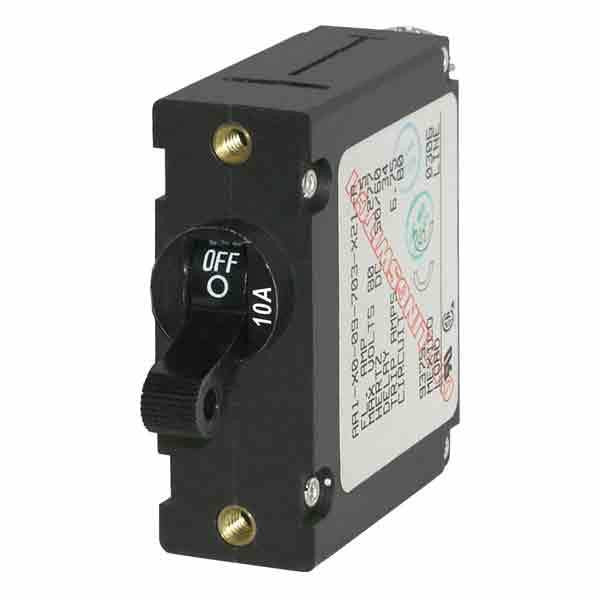

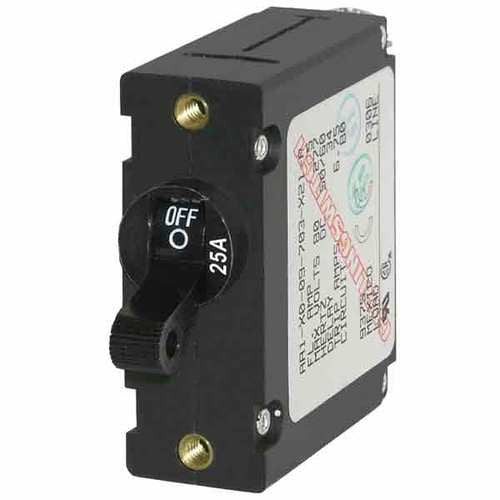

Blue Sea Systems A Series Toggle Circuit Breaker - Single Pole
The Blue Sea Systems A Series Circuit Breakers are the industry standard for Blue Sea Systems' electrical panels. These toggle circuit breakers combine switching and circuit protection into a single device.
Features:
Single Pole
Meets American Boat and Yacht Council (ABYC) standards
"Trip Free" design cannot be held "ON" during fault current condition
Available in 5, 10, 15, 20, & 30 Amp Models
Specifications:
Actuator Style: Toggle
Poles: 1
Maximum Voltage: 240V AC | 65V DC
Circuit Breaker Type: Magnetic Hydraulic
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Screw Terminal Torque: 14 in-lb
Interrupt Capacity: 3000A @ 120V AC | 1500A @ 240V AC [TUV] | 3000A @ 240V AC [UL 10477] | 7500A @ 65V DC
Cutout Template:
