Blue Seas Fuse Blk 6 Cir W/Cover

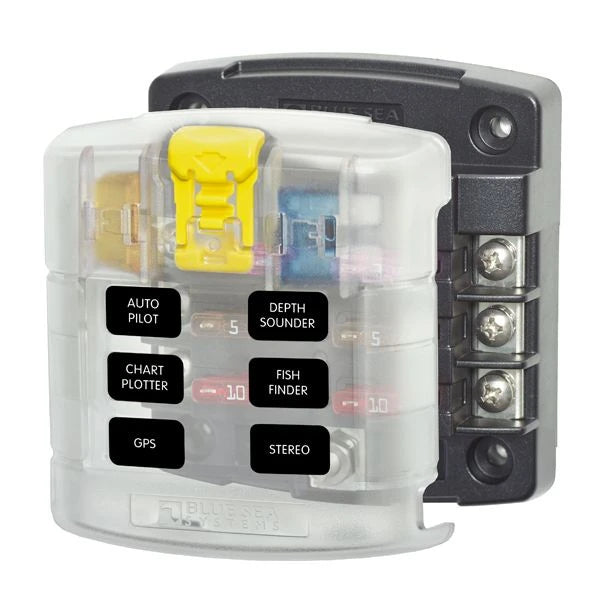

Blue Sea Systems ST Blade Fuse Block w/ Cover - 6 Circuit

The Blue Sea ST Blade Fuse Block consolidates branch circuits and in-line fuses. This fuse block can be used withj 24-hour circuits and has a positive distribution bus with #10-32 stud. Includes a cover, which satisfies ABYC/USCG requirements for insulation. The cover incorporates an easy to open push button latch, which provides easy access to fuses. Cover includes storage for two spare fuses, and label recesses that accept Blue Sea Systems' small format labels for circuit identification.

Features:

Positive distribution bus with #10-32 stud

Can be used for 24-hour circuits

Tin-plated copper buses and fuse clips

Accepts ring or snap fork type terminals

Accepts ATO® and ATC® fast acting blade fuses

Fuses sold separately

Specifications:

Circuits: 6

Maximum Amperage: 100A per block | 30A per circuit

Maximum Voltage: 32V DC

Mounting: #8 Screw

Positive Bus: #10-32 Stud

Recommended Torque: 24 in-lb

Screw Terminal Type: #8-32 Screws with captive star lock washer

Screw Terminal Torque: 15 in-lb

Weight: 0.42lb

Click to Download Blue Sea 6 Circuit ST Blade Fuse Block Wiring Diagram
