Blue Seas FUSE BLK 12 CIR W/GRD COVER

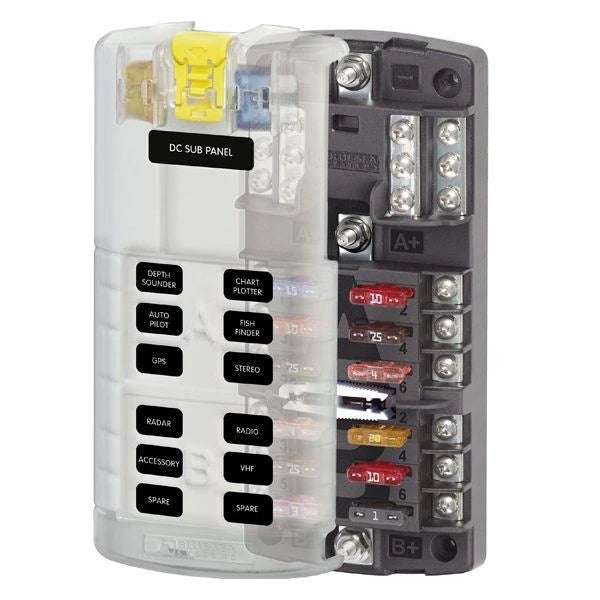

Blue Sea 12 Circuit ST Blade Split Bus Fuse Block

The Blue Sea ST Blade Split Bus Fuse Block is a great option when a mix of switched and 24-hour circuits are desired in the same block. This split bus block provides two isolated groups of six ATO/ATC circuits. Use this fuse block with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits. Fuse box includes a clear insulating cover with label recesses and storage for two fuses.

Features:

Provides two isolated groups of six ATO/ATC circuits

Screw terminals for securing wires accept ring terminals

One-piece stainless flange nuts ensure safe and secure connections

Clear insulating cover satisfies ABYC/USCG insulation requirements

Easy to open, push button latch for easy access to fuses

Tin-plated copper buses and fuse clips

Fuses sold separately

Specifications:

Circuits: 12

Maximum Amperage: 30A per circuit, 100A total

Maximum Voltage: 32V DC

Mounting: #8 Screw (M4)

Negative Bus: #10-32 Stud

Positive Bus: #10-32 Stud

Recommended Torque: 24 in-lb

Screw Terminal Torque: 18 in0lb

Screw Terminal Type: #8-32 screws with captive star lock washer

Weight: .75 lb.
