Bennett Marine Bolt Electric Actuator

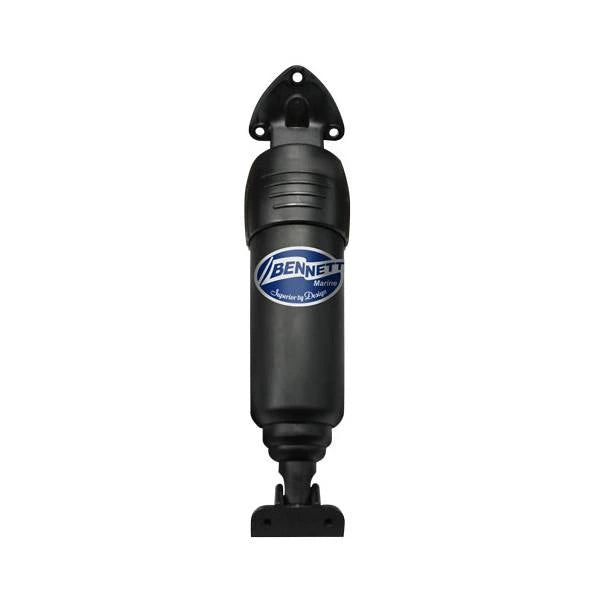

Bennett BEA2000 BOLT Electric Trim Tab Actuator

Bennett BOLT Electric Actuators feature superior seal design inspired by over 50 years of Bennett's proven success in hydraulic trimming techniques.

Robust, water-tight black nylon actuator provides trouble-free operation for years to come

Wires and seals completely protected from harsh marine environment, preventing problematic leakage and marine growth

Installation is fast and simple without the need to assemble the actuator yourself

How to Install Your Bennett BOLT Electric Actuator

Carefully insert the end of the electrical wires through the transom hole.

Apply 3M 5200 waterproof sealant on the mounting surface and around the wiring of the new actuator.

Mount the upper hinge of the new actuator to the transom using the supplied #14 x 1-1/2" screws with a #3 Phillips head screw driver.

Install the lower hinge to the actuator using the supplied stainless steel pin.

Mount the trim tab to the lower hinge of the new actuator using the (2) 1/4-20 x 3/4" supplied screws using a #2 Phillips head screw driver.

Install the wiring connector onto the wires.

Click to Download Bennett BOLT Electric Actuator Installation Instructions

Frequently Asked Questions

• What is the Bennett BEA2000 BOLT Electric Trim Tab Actuator used for? The Bennett BEA2000 BOLT Electric Trim Tab Actuator is designed for Bennett BOLT electric trim tab systems. Its robust, water-tight black nylon construction helps protect the actuator in the harsh marine environment, while its seal design helps prevent leakage and marine growth.
• How is the Bennett BEA2000 BOLT Electric Trim Tab Actuator installed? Installation involves routing the electrical wires through the transom hole, applying 3M 5200 waterproof sealant around the mounting surface and wiring, securing the upper hinge to the transom, attaching the lower hinge with the supplied stainless steel pin, and mounting the trim tab to the lower hinge.
• Does the Bennett BEA2000 require assembly before installation? No. The Bennett BEA2000 is designed for fast and simple installation without requiring the actuator to be assembled beforehand. The installation process includes mounting the hinges, attaching the trim tab, and installing the wiring connector.
• What hardware is included with the Bennett BEA2000 actuator? The installation instructions specify supplied #14 x 1-1/2" screws for mounting the upper hinge, a stainless steel pin for the lower hinge, and two 1/4-20 x 3/4" screws for attaching the trim tab to the lower hinge.
• How are the Bennett BEA2000 actuator wires and seals protected? The Bennett BEA2000 features a seal design that protects its wires and seals from the harsh marine environment. Its water-tight black nylon construction is designed to help prevent problematic leakage and marine growth.
