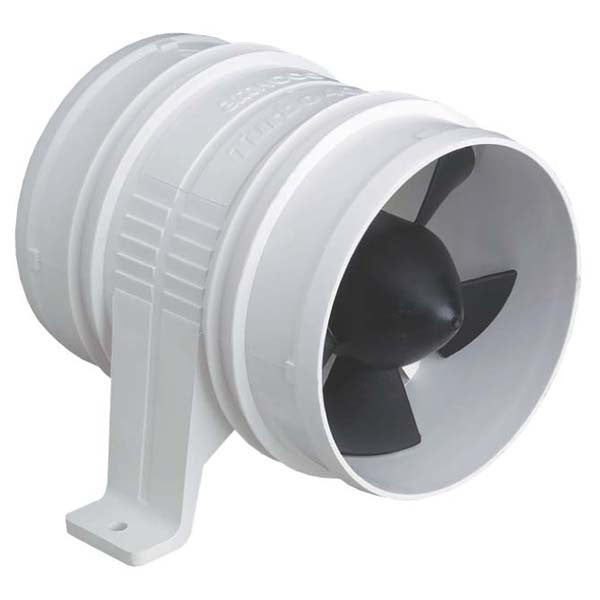

Attwood Water-Resistant Turbo In-Line Bilge Blower

Attwood Water-Resistant Turbo In-Line Bilge Blower

The first vane axial-flow fan bilge blowers designed using aerospace technology to maximize performance. No other bilge blowers in the industry provide such powerful system output at such a low power input in a compact size.

Patented in-line design – provides ventilation for engine compartments, galleys, bilges, and heads. Mounting feet allow vertical or horizontal installation in confined spaces. Install with #10 fasteners. Individual carton includes 2 tie straps. All are CE certified. 16-gauge tinned and caulked copper wire leads with optional MP1 molded rubber connectors. Improved 3" design includes:

Nickel-plated motor can for corrosion resistance

Stiffening ribs to reduce housing distortion

Motor cap to seal wires and motor for water resistance

Five-blade fan maximize airflow and efficiency

Tabs in intake and exhaust hold ventilation hose/ clamp firmly in place

Low amp draw motor for longer blower and battery life

Built-in mounting feet allow easy vertical or horizontal install

Model #

Rated Voltage

CFM Open Flow

CFM In System

Current Draw (Amps)

Fuse Size

Turbo 3000

12V Nominal

120

90

2.6

4-Amp

13.6V Design

145

100

3.1

4-Amp

Turbo 4000

12V Nominal

200

100

2.5

5-Amp

13.6V Deisgn

230

125

2.9

5-Amp

3 Year Warranty

Owners Manual

Frequently Asked Questions

• What is the Attwood Water-Resistant Turbo In-Line Bilge Blower used for? The Attwood Water-Resistant Turbo In-Line Bilge Blower provides ventilation for engine compartments, galleys, bilges, and heads. Its patented in-line design and built-in mounting feet allow installation in confined spaces with either vertical or horizontal positioning.
• What features make the Attwood Turbo In-Line Bilge Blower water resistant? The Attwood Turbo In-Line Bilge Blower has a nickel-plated motor can for corrosion resistance and a motor cap that seals the wires and motor for water resistance. The improved 3-inch design also includes stiffening ribs to reduce housing distortion.
• What are the airflow ratings for the Attwood Turbo 3000 and Turbo 4000 blowers? The Turbo 3000 provides 120 CFM open flow and 90 CFM in system at 12V nominal, while the Turbo 4000 provides 200 CFM open flow and 100 CFM in system. At the listed 13.6V design rating, the Turbo 3000 provides 145 CFM open flow and 100 CFM in system, while the Turbo 4000 provides 230 CFM and 125 CFM respectively.
• What are the current draw and fuse requirements for the Attwood Turbo bilge blowers? At 12V nominal, the Turbo 3000 draws 2.6 amps and uses a 4-amp fuse, while the Turbo 4000 draws 2.5 amps and uses a 5-amp fuse. At 13.6V design, the Turbo 3000 draws 3.1 amps and the Turbo 4000 draws 2.9 amps, with the same listed fuse sizes.
• How can the Attwood Turbo In-Line Bilge Blower be mounted? The Attwood Turbo In-Line Bilge Blower has built-in mounting feet for vertical or horizontal installation. The product description specifies using #10 fasteners. Intake and exhaust tabs also help hold ventilation hose and clamps firmly in place.
• What airflow features are included in the Attwood Turbo In-Line Bilge Blower? The Attwood Turbo In-Line Bilge Blower uses a five-blade fan designed to maximize airflow and efficiency. Its low-amp-draw motor is designed to support longer blower and battery life, while the in-line design provides compact ventilation performance.
• Are the Attwood Turbo In-Line Bilge Blowers certified and covered by a warranty? The Attwood Turbo In-Line Bilge Blowers are CE certified and include a 3-year warranty. Individual cartons also include two tie straps.
