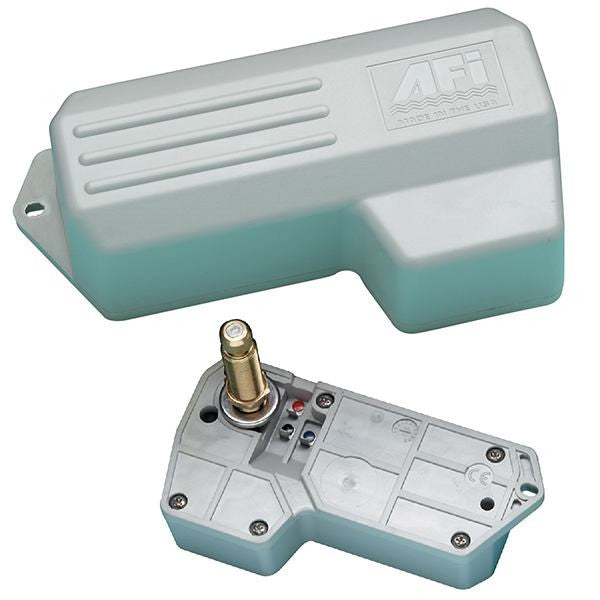

AFI 1000 Waterproof Wiper Motor w/ 1.5" Shaft

AFI 1000 Waterproof Wiper Motor w/ 1.5" Shaft

The AFI 1000 Waterproof Wiper Motor is a heavy-duty wiper motor capable of powering 18" deluxe arm and 18" deluxe combination at sweep sets of 80 degrees or less, or 16" deluxe arm and 16" deluxe blade combinations at a swwp set of 110 degrees. This motor features a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic.

Specifications:

12V

.625" diameter shaft

1.5" Shaft length

Stall torque: 55 in-lbs

Stall current: 9.8-10.0 amps

No load current: 0.8-1.2 amps

6.625" L x 3.375" W x 2" D

Features:

Heavy-duty motor with anti-rotation drive shaft

Knurled drive shaft and solid brass arm drive nut

Coast to park with adjustable right or left self parking

RF shielded circuitry

Options Available:

80° Sweep

110° Sweep
