Lewmar Marine Pro-Fish 700 Free Fall Windlass

$2,180.49

Lewmar Pro-Fish 700 Free Fall Windlass with Switch & Solenoid

The Lewmar Pro-Fish is the ultimate windlass for fishermen. This windlass has an automatic freefall that allows you to pull right up over a wreck or ledge and drop anchor with speed and precision. You can retrieve the anchor just as easily with a simple push of a button. The Pro-Fish 700 is perfectly suited for installation in the stern of the boat where it can be utilized for easy Scandinavian style stern anchoring. With the free fall mechanism, access to the windlass is not required for dropping or retrieving the anchor. The gypsy has been specially designed to suit leaded lines up to 16mm in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.

Features:

Automatic freefall

Powerful motor providing fast line speed

Manual emergency recovery equipped (all you need is a 1/2 socket wrench)

Strong 100% 316 stainless steel construction, including control arm and stripper

Convenient above-deck installation

For boats up to 35ft

5-year warranty

Specifications:

Maximum Pull: 700 lbs.

Maximum Line Speed: 105 ft/min

Normal Line Speed: 88 ft/min

Typical Working Load: 175 lbs.

Chain: 6mm DIN 766 / 7mm DIN 766 / 1/4" ISO G4 / 1/4" BBB

Rope: 12mm 3-strand and 8-plait

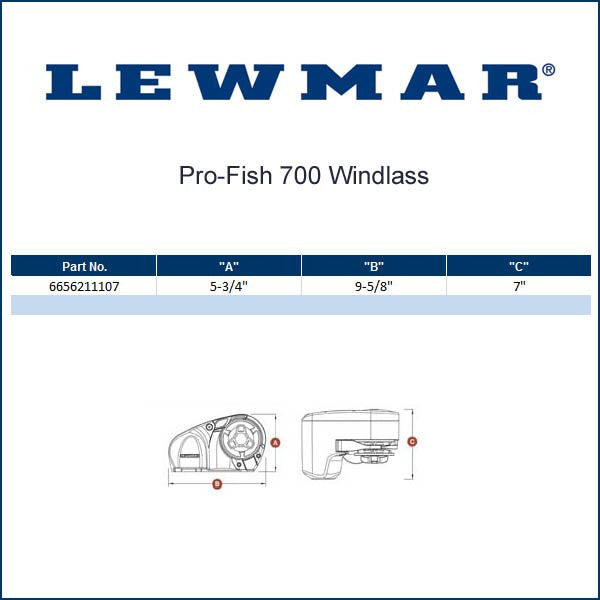

Dimensions: A: 5-3/4" B: 9-5/8" C: 7"

Includes:

Windlass

Base gasket seal

Fast mounting studs

Installation wrench

Circuit breaker

Dual-direction solenoid

Control switch

Click to Download Lewmar Pro-Fish 700 Free Fall Windlass Owners Manual

Frequently Asked Questions

What is the Lewmar Pro-Fish 700 Free Fall Windlass with Switch & Solenoid used for? The Lewmar Pro-Fish 700 Free Fall Windlass is designed for fishermen who need quick anchor deployment and retrieval. Its automatic freefall allows the anchor to drop without accessing the windlass, while push-button operation provides convenient retrieval. It is also suited for stern anchoring applications and boats up to 35 feet.
What chain and rope sizes are compatible with the Lewmar Pro-Fish 700? The Pro-Fish 700 gypsy is designed for leaded lines up to 16mm in diameter. Specified chain options include 6mm DIN 766, 7mm DIN 766, 1/4" ISO G4, and 1/4" BBB. Compatible rope sizes are 12mm 3-strand and 8-plait.
How much pulling power does the Lewmar Pro-Fish 700 Windlass provide? The Lewmar Pro-Fish 700 has a maximum pull of 700 lbs. Its typical working load is 175 lbs. The maximum line speed is 105 ft/min, while its normal line speed is 88 ft/min.
Does the Lewmar Pro-Fish 700 have a manual emergency recovery feature? Yes. The Lewmar Pro-Fish 700 includes manual emergency recovery. A 1/2" socket wrench is all that is required for manual recovery according to the supplied product information.
What is included with the Lewmar Pro-Fish 700 Free Fall Windlass? The package includes the windlass, base gasket seal, fast mounting studs, installation wrench, circuit breaker, dual-direction solenoid, and control switch. These components provide the specified hardware and controls for the windlass installation.
What are the main construction and installation features of the Lewmar Pro-Fish 700? The Pro-Fish 700 features 100% 316 stainless steel construction, including the control arm and stripper. It is designed for convenient above-deck installation and includes a revised control arm and Pro-Guard plate to help prevent rope jumping or snagging during operation.

Low in stock

Lewmar Marine

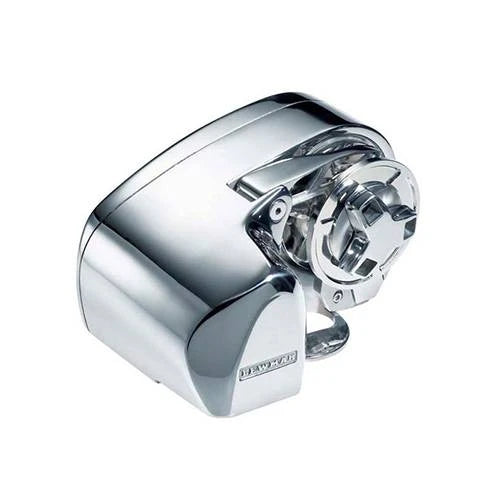

Lewmar Marine Pro 700 Windlass

$1,958.49

Lewmar Pro-Series 700 Horizontal Windlass Kit w/ Switch & Solenoid

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmars commitment to provide quality products for boats from 6m-11.5m (20-38ft). Its DIY-ready, easy to install and housed in 100% 316 stainless steel, making it well protected and durable. And with push-button control and a built-in manual emergency recovery system, anchoring has never been easier.

Features:

Powerful motor providing fast line speed

Manual emergency recovery equipped all you need is a common 1/2 socket wrench

Strong 100% 316 stainless steel, including control arm and stripper

Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000

Convenient above-deck installation

5-year warranty

For boats up to 12m (38ft)

Free Fall conversion kits

Line Size:

3 Strand - 1/2"

8 Plait - 9/16"

Includes:

Windlass

Base gasket seal

Fast mounting studs

Installation wrench

Circuit breaker

Dual-direction solenoid and rocker switch

Frequently Asked Questions

What is the Lewmar Pro-Series 700 Horizontal Windlass Kit with Switch & Solenoid used for? The Lewmar Pro-Series 700 Horizontal Windlass is designed to make boat anchoring easier with a powerful motor, push-button control, and built-in manual emergency recovery. It is designed for boats from 6m to 11.5m (20 to 38ft) and features a durable 100% 316 stainless steel construction.
What rope sizes are compatible with the Lewmar Pro-Series 700? The Lewmar Pro-Series 700 is specified for 3-strand rope measuring 1/2" and 8-plait rope measuring 9/16". Verify your existing anchor rode matches the specified line size before installation.
Does the Lewmar Pro-Series 700 have a manual emergency recovery system? Yes. The Pro-Series 700 includes a built-in manual emergency recovery system. A common 1/2" socket wrench is all that is required for manual recovery according to the product description.
What is the maximum pulling power of the Lewmar Pro-Series 700 Horizontal Windlass? The Pro-Series 700 has a maximum pulling power of 320kg (700 lb). The product series also includes a 1000 model with a maximum pulling power of 454kg (1,000 lb).
What is included with the Lewmar Pro-Series 700 Horizontal Windlass Kit? The kit includes the windlass, base gasket seal, fast mounting studs, installation wrench, circuit breaker, dual-direction solenoid, and rocker switch. It is designed for convenient above-deck installation.
What are the main construction features of the Lewmar Pro-Series 700? The Lewmar Pro-Series 700 features 100% 316 stainless steel construction, including the control arm and stripper. It also provides a powerful motor for fast line speed and is designed for DIY-ready installation.

Low in stock

Lewmar Marine

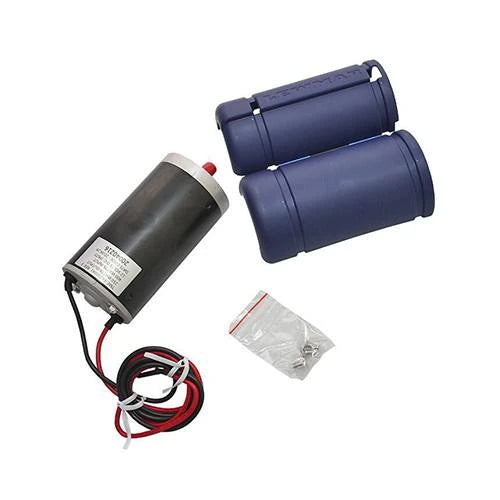

Lewmar Marine V700 MOTOR KIT

$231.49

Out of stock

Lewmar Marine

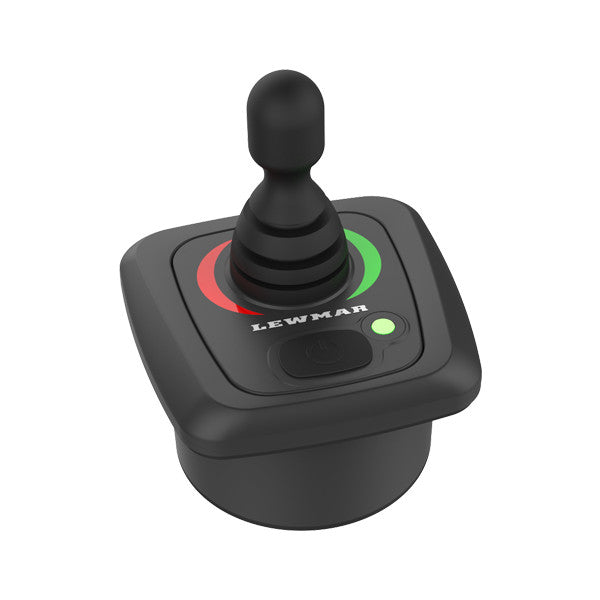

Lewmar Marine Joystick Controller Upgrade

$761.99

Lewmar Joystick Thruster Controller Upgrade Kit

The Lewmar Single Pad Controller Upgrade kit allows the retrofit of the new generation Lewmar controller with original black box systems. Upgrade kit includes a single thruster joystick controller and a controller converter.

Upgrade kit is easy-fitting; existing boat wiring can be used

Controller converter needs to be installed next to the controller

The Lewmar Single Thruster Control Joystick is designed for all Lewmar TT, RT, SRT, and VRT thrusters. This controller is installed without the need for rear access and features a snap-on bezel to neatly hide the mounting screws.

Control Pad Features:

Ergonomic control pad gives tactile feedback

Membrane switch panel sealed from dust and moisture ingress

Single control

12-24V dual voltage supply

Multi-function LED indicator displays system deployment, thruster operation, low voltage, motor temperature warnings & fault conditions

Fits existing cut-out of Lewmar joysticks

Frequently Asked Questions

What is the Lewmar Joystick Thruster Controller Upgrade Kit used for? The Lewmar Joystick Thruster Controller Upgrade Kit allows compatible original black box systems to be retrofitted with a new-generation single thruster joystick controller. The kit includes the joystick controller and a controller converter, providing an upgrade while allowing the existing boat wiring to be used.
Which Lewmar thrusters are compatible with the Single Thruster Control Joystick? The Lewmar Single Thruster Control Joystick is designed for Lewmar TT, RT, SRT, and VRT thrusters. Verify that your thruster system is one of these models before purchasing or installing the controller upgrade kit.
Does the Lewmar thruster controller upgrade require new boat wiring? No. The upgrade kit is designed to use the existing boat wiring, which can simplify installation. The controller converter must be installed next to the controller as part of the retrofit.
What features does the Lewmar Single Thruster Control Joystick provide? The control pad has an ergonomic design with tactile feedback, a sealed membrane switch panel, and a multi-function LED indicator. The indicator displays system deployment, thruster operation, low voltage, motor temperature warnings, and fault conditions.
What voltage does the Lewmar thruster joystick controller support? The Lewmar Single Thruster Control Joystick uses a 12-24V dual-voltage supply. This controller also fits the existing cut-out of Lewmar joysticks and installs without requiring rear access.
What is included with the Lewmar Joystick Thruster Controller Upgrade Kit? The kit includes one single thruster joystick controller and one controller converter. The converter is installed next to the controller, and the existing boat wiring can be used for the upgrade.

Low in stock

Lewmar Marine

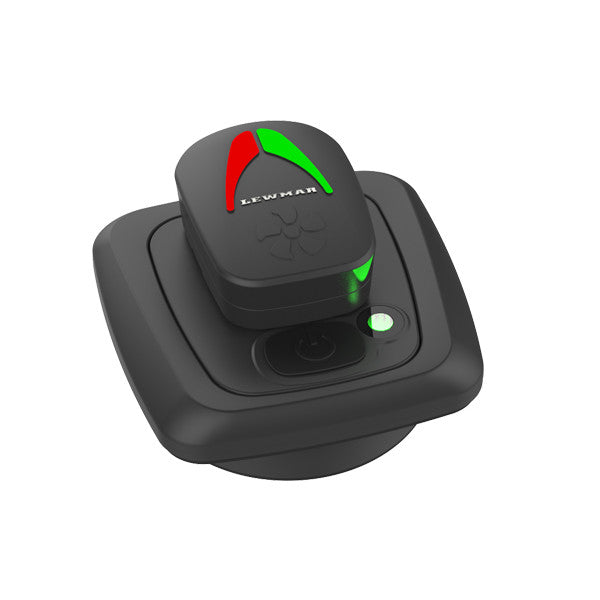

Lewmar Marine Single Pad Controller Upgrade

$568.99

Lewmar Single Pad Thruster Controller Upgrade Kit

The Lewmar Single Pad Controller Upgrade kit allows the retrofit of the new generation Lewmar controller with original black box systems. Upgrade kit includes a single thruster control pad and a controller converter.

Upgrade kit is easy-fitting; existing boat wiring can be used

Controller converter needs to be installed next to the controller

The Lewmar Single Thruster Control Pad is designed for all Lewmar TT, RT, SRT, and VRT thrusters. This controller is installed without the need for rear access and features a snap-on bezel to neatly hide the mounting screws.

Control Pad Features:

Ergonomic control pad gives tactile feedback

Membrane switch panel sealed from dust and moisture ingress

Single control

12-24V dual voltage supply

Multi-function LED indicator displays system deployment, thruster operation, low voltage, motor temperature warnings & fault conditions

Fits existing cut-out of Lewmar joysticks

Frequently Asked Questions

What is the Lewmar Single Pad Thruster Controller Upgrade Kit used for? The Lewmar Single Pad Thruster Controller Upgrade Kit allows the new-generation Lewmar controller to be retrofitted to original black box systems. The kit includes a single thruster control pad and controller converter, while allowing the use of existing boat wiring.
What is included with the Lewmar Single Pad Thruster Controller Upgrade Kit? The upgrade kit includes one single thruster control pad and one controller converter. The converter needs to be installed next to the controller as part of the upgrade.
Which Lewmar thrusters are compatible with the Single Thruster Control Pad? The Lewmar Single Thruster Control Pad is designed for Lewmar TT, RT, SRT, and VRT thrusters. Verify that your existing thruster system is one of these models before using the controller pad.
Can the Lewmar Single Pad Thruster Controller Upgrade Kit use existing boat wiring? Yes. The upgrade kit is designed for easy fitting and can use the existing boat wiring. The controller converter must be installed next to the controller.
What features does the Lewmar Single Thruster Control Pad have? The control pad features an ergonomic design with tactile feedback, a membrane switch panel sealed against dust and moisture ingress, and a multi-function LED indicator. The indicator displays system deployment, thruster operation, low voltage, motor temperature warnings, and fault conditions.
What voltage does the Lewmar Single Thruster Control Pad support? The Lewmar Single Thruster Control Pad supports a 12-24V dual voltage supply. It also fits the existing cut-out used by Lewmar joysticks and installs without requiring rear access, with a snap-on bezel covering the mounting screws.

Low in stock

Lewmar Marine

Lewmar Marine 185Tt Bow Thruster Anode Kit

$27.49

Out of stock

Lewmar Marine

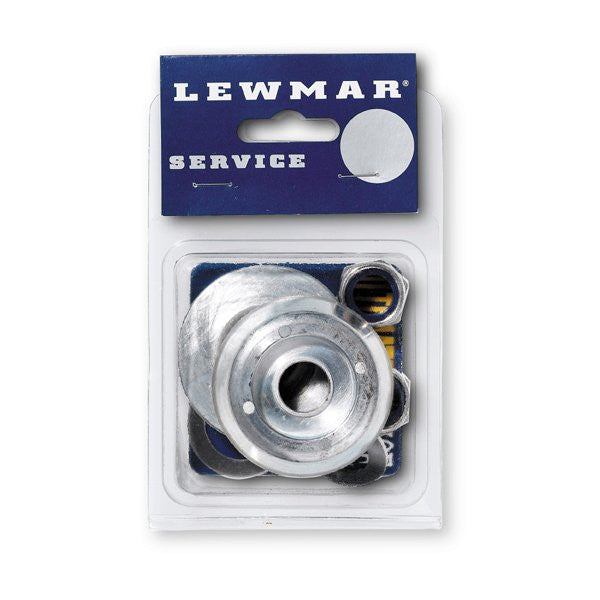

Lewmar Marine 140 Tt Bow Thruster Anode Kit

$23.99

Low in stock

Lewmar Marine

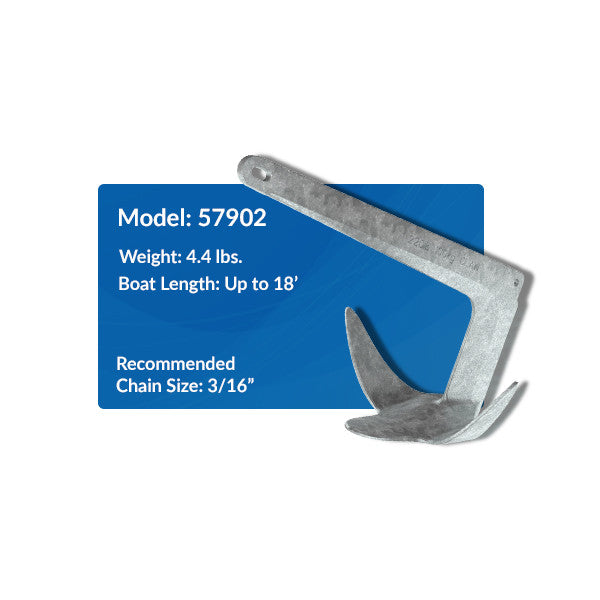

Lewmar Marine Claw Anchor Galvanized

From $43.49

Lewmar Galvanized Claw Anchor

Lewmar Galvanized Claw Anchors are a durable, economical choice for boaters anchoring in mud, sand, and rocky bottoms. Modeled after anchors used to secure oil rigs in the North Sea, Lewmar's Claw anchors set effortlessly and hold in a variety of seabeds. These anchors are constructed of high-grade steel cast in a single piece for maximum durability. Claw anchors can easily be stowed on the bow roller of most boats.

Features:

Manufactured from high grade steel

Galvanized, Single piece cast

Suitable for use on various sea beds

Sets effortlessly

Bow roller storable

Sizes Available:

57902 - 4.4 Lb. - 14 3/16" L x 7 3/16" W

57905 - 11 Lb. - 18 7/16" L x 8 5/16" W

57907 - 16.5 Lb. - 19 5/8" L x 10 3/8" W

57910 - 22 Lb. - 21 1/4" L x 11 1/8"W

57915 - 33 Lb - 24 13/16" L x 13 7/16" W

57920 - 44 Lb - 27 11/16" L x 13 1/2" W

Frequently Asked Questions

What type of bottom is the Lewmar Galvanized Claw Anchor designed for? The Lewmar Galvanized Claw Anchor is designed for use in mud, sand, and rocky bottoms. Its claw-style design helps it set easily and hold across a variety of seabed conditions.
What is the Lewmar Claw Anchor made from? This anchor is manufactured from high-grade steel and cast in a single piece for durability. It also features a galvanized finish to help resist corrosion in marine environments.
Does the Lewmar Galvanized Claw Anchor set easily? Yes. The Lewmar Galvanized Claw Anchor is designed to set effortlessly, making it a dependable option for boaters looking for reliable holding performance in a variety of bottom conditions.
Can this anchor be stored on a bow roller? Yes. The Lewmar Galvanized Claw Anchor can be easily stowed on the bow roller of most boats, helping simplify storage and anchor handling.
What sizes are available for the Lewmar Galvanized Claw Anchor? Available sizes range from 4.4 lbs. to 44 lbs. with multiple length and width options depending on the model selected. Review the product specifications to choose the right anchor size for your boat and application.

In stock

Lewmar Marine

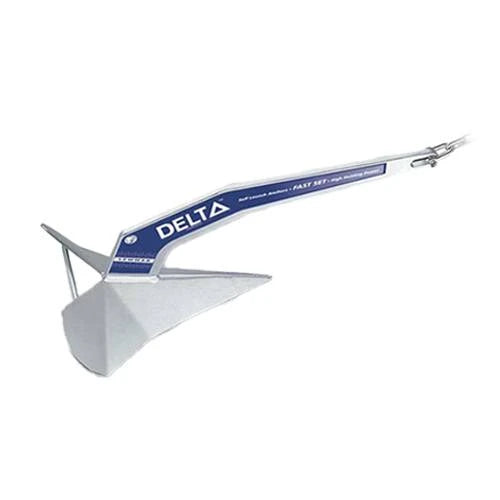

Lewmar Marine Galvanized Delta Anchor

From $181.99

Lewmar Galvanized Delta Anchor

Tough, efficient, and ready for anything, the Lewmar Galvanized Delta Anchor is a favorite among boaters for good reason. Its hot-dip galvanized steel build resists corrosion, while the self-launching design makes deployment smooth and hassle-free. A low center of gravity and balanced fluke angle help it dig in fast and stay put, whether you’re anchoring in sand, mud, or rocky terrain. The hollow shank boosts strength without unnecessary weight, and a range of sizes makes it easy to match to your vessel. Built on decades of marine know-how, the Delta is a dependable choice for everything from day trips to overnight stays.

Features:

Proven top performance

High-grade manganese steel construction

Lead ballasted tip allows for fast bottom setting

Guaranteed against breakage for life

Performs well on a wide range of sea beds

Offers excellent holding power

Lewmar Galvanized Delta Anchor self-launches for safety and convenience

Lloyd's register type approval- certification available upon request.

*Lloyd's Register provides quality assurance and certification for marine products and construction.

Specifications:

Part Number

Anchor Weight

Length

Width

Boat Length

Recommended Chain Size

57404

9lbs.

20-1/4"

9"

Up to 22'

1/4"

57406

14 lbs.

23-3/8"

10-3/8"

Up to 33'

1/4"

57410

22 lbs.

27-3/8"

12-1/8"

Up to 40'

5/16"

57416

35 lbs.

32"

14-1/8"

Up to 45'

5/16"

57420

44 lbs.

34-1/2"

15-1/4"

Up to 55'

3/8"

Frequently Asked Questions

What material is the Lewmar Galvanized Delta Anchor made from? The Lewmar Galvanized Delta Anchor is made from high-grade manganese steel and finished with a hot-dip galvanized coating for corrosion-resistant durability in marine environments.
What helps the Lewmar Delta Anchor set quickly? The Lewmar Delta Anchor is designed with a lead ballasted tip, low center of gravity, and balanced fluke angle to help it dig in quickly and achieve a secure set across a variety of bottom conditions.
What types of bottom is this anchor designed for? The Lewmar Galvanized Delta Anchor is designed to perform well on a wide range of sea beds, including sand, mud, and rocky terrain. Its design helps provide reliable holding power in varied anchoring conditions.
Is the Lewmar Delta Anchor self-launching? Yes. The Lewmar Galvanized Delta Anchor features a self-launching design for easier deployment and added convenience during anchor handling.
What boat sizes and chain sizes are recommended for the Lewmar Delta Anchor? Available models are recommended for boats up to 22 feet, 33 feet, 40 feet, 45 feet, or 55 feet depending on anchor weight. Recommended chain sizes range from 1/4" to 3/8", so review the product specifications to choose the correct anchor and chain size for your boat.

In stock

Lewmar Marine

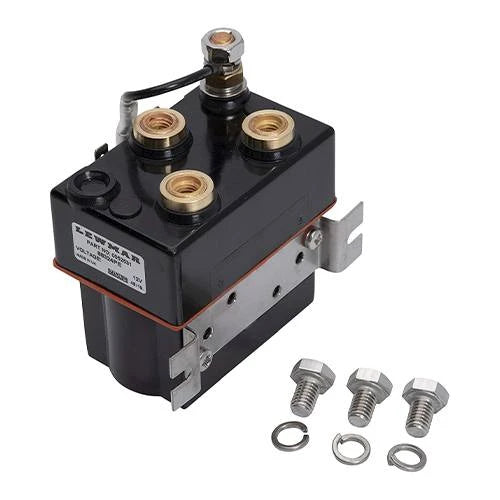

Lewmar Marine Dual Direction Solenoid 12V

$284.49

In stock

Lewmar Marine

Lewmar Marine Dual Direction Control Box 12V

$328.99

Low in stock

Lewmar Marine

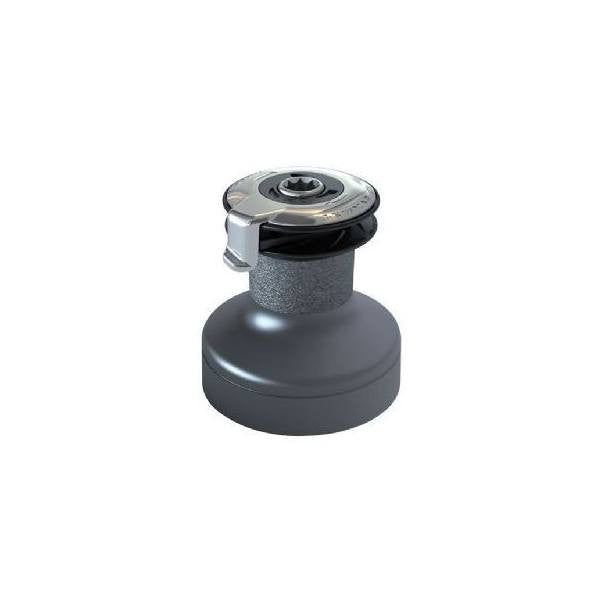

Lewmar Marine 30St Evo 2 Speed Winch Grey Alloy

$1,841.49

Low in stock

Lewmar Marine

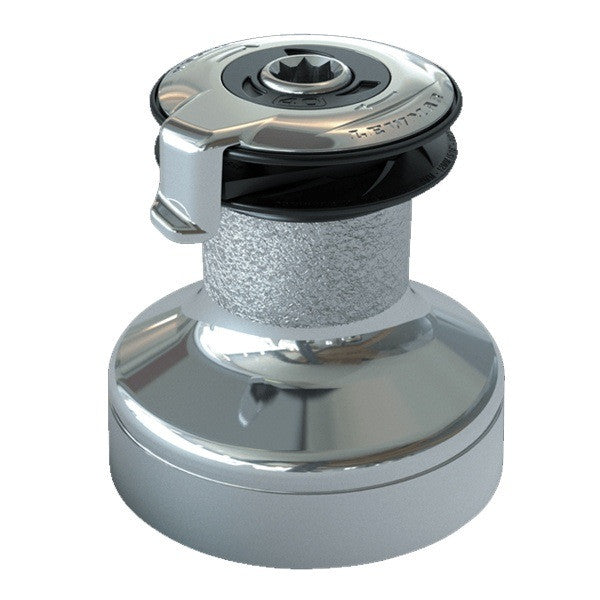

Lewmar Marine 15St Evo 1 Speed Winch Chrome

$1,327.49

Low in stock

Lewmar Marine

Lewmar Marine Ocean Series 40 Cst Winch

$2,688.99

Low in stock

Lewmar Marine

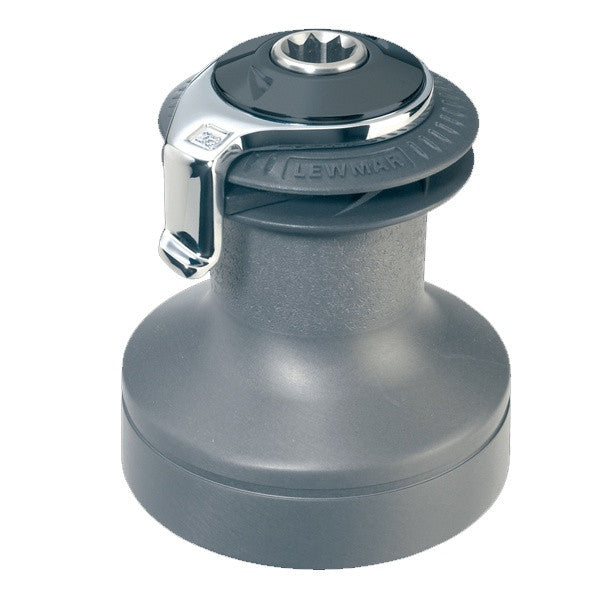

Lewmar Marine 16Ast Ocean Winch 1 Speed Alum

$1,297.49

Out of stock

Lewmar Marine

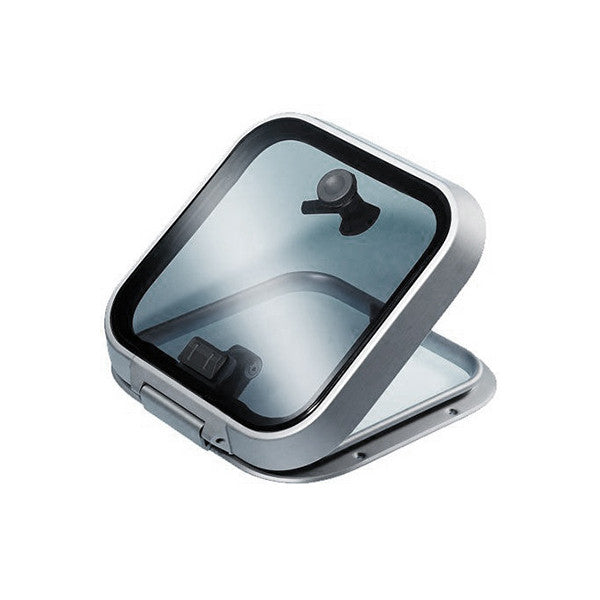

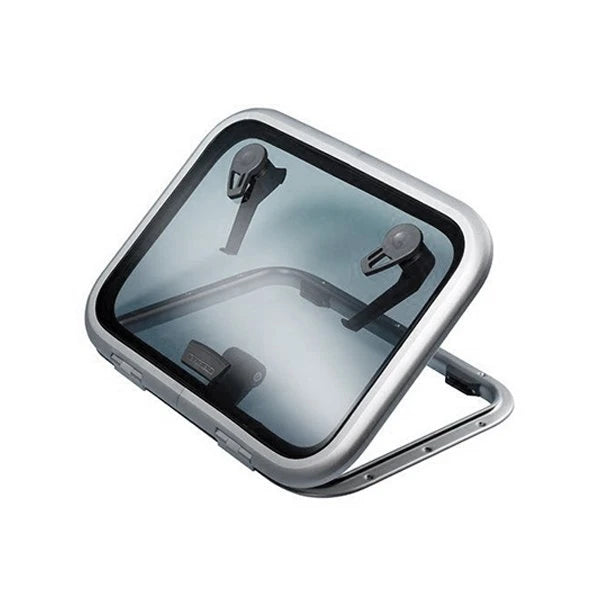

Lewmar Marine Medium Profile Hatch

From $987.99

Lewmar Medium Profile Hatch

This Lewmar Medium Profile Hatch features thick acrylic frame sections allowing for greater strength and durability. The internal and external handles provide added security while the self-supporting friction levers hold the lid open in any position up to 95°. With a corrosion-resistant clear anodized aluminum frame with flange bases, inset hinges and snag-resistant rounded edges, this hatch is ideal for larger offshore yachts. The unique sealing system allows for easy replacement of the acrylic lens.

Features:

Curved Upper Frame Section For Strength and Modern Styling

Hatch With Thicker Acrylic and Deeper Frame Sections (Compared To Low Profile Hatch) For Greater Strength and Durability

Ideal As Foredeck Hatch On Larger Offshore Yachts

Corrosion-Resistant Clear Anodized Aluminum Frame With Flange Bases, Inset Hinges and Snag-Resistant Rounded Edges

Locking Handles With Exterior Lever, Vent Position

Outside Handles Allow Hatch To Be Opened From On Deck If Not Locked

Self-Supporting - Friction Levers Hold Lid Open In Any Position Up To 95°

Full Range Of Spare Parts Available

Unique Sealing System Allows Easy Replacement Of Acrylic Lens

CE Approved For Design Category A / Area 2A

3 Year Warranty

Specifications:

Size

Lower Frame

Acrylic Colour

Acrylic Window Thickness

Hatch Weight

Length

Width

Height

Radii

Cut-Out Length

Cut-Out Width

Cut-Out Radii

60

9/16"

Smoke Grey

1/2"

17.2 lb

22-3/4"

1-1/4"

2-7/8"

19-15/16"

1-11/16"

70

9/16"

Smoke Grey

1/2"

23.4 lb

27-1/2"

1-1/4"

2-7/8"

24-11/16"

1-11/16"

Click here to download Lewmar Hatch Installation Instructions

Frequently Asked Questions

What is the Lewmar Medium Profile Hatch designed for? The Lewmar Medium Profile Hatch is designed for marine applications where strength and durability are important. It is ideal as a foredeck hatch on larger offshore yachts and features a corrosion-resistant clear anodized aluminum frame, thick acrylic, inset hinges, and snag-resistant rounded edges.
How far can the Lewmar Medium Profile Hatch be opened? The hatch uses self-supporting friction levers that hold the lid open in any position up to 95°. This allows the opening angle to be adjusted within that range without requiring the lid to remain fully open.
What features provide security and ventilation on the Lewmar Medium Profile Hatch? The hatch has locking handles with an exterior lever and a vent position. When the hatch is not locked, the outside handles also allow it to be opened from on deck. These features provide access and ventilation options while supporting the hatch's security functions.
What are the available sizes and specifications for the Lewmar Medium Profile Hatch? The Lewmar Medium Profile Hatch is available in sizes 60 and 70. Both have smoke grey acrylic with a 1/2-inch acrylic window thickness and a 1-1/4-inch height. Size 60 weighs 17.2 lb, while size 70 weighs 23.4 lb. The two sizes also have different overall and cut-out dimensions.
Can the acrylic lens be replaced on the Lewmar Medium Profile Hatch? Yes. The Lewmar Medium Profile Hatch uses a unique sealing system that allows the acrylic lens to be replaced easily. The hatch also has a full range of spare parts available, which supports maintenance and replacement of components.
What should I verify before installing a Lewmar Medium Profile Hatch? Verify the hatch size and required cut-out dimensions before installation. Size 60 requires a 19-15/16-inch cut-out length and width, while size 70 requires a 24-11/16-inch cut-out length and width. Both have a 1-11/16-inch cut-out radius and a 9/16-inch lower frame.

Low in stock

Lewmar Marine

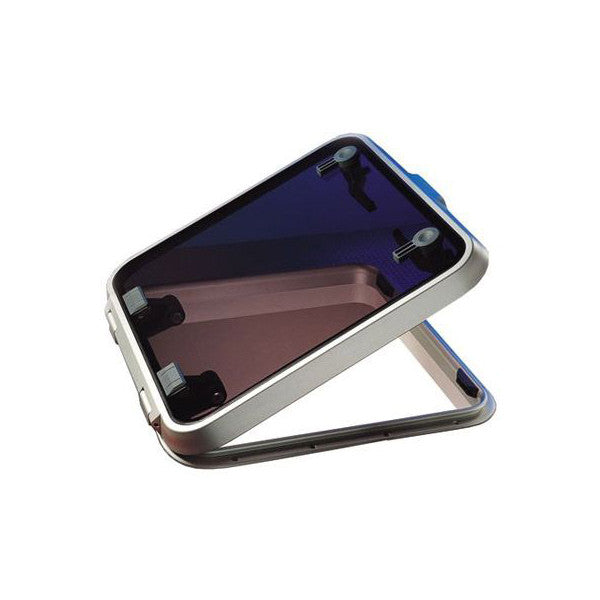

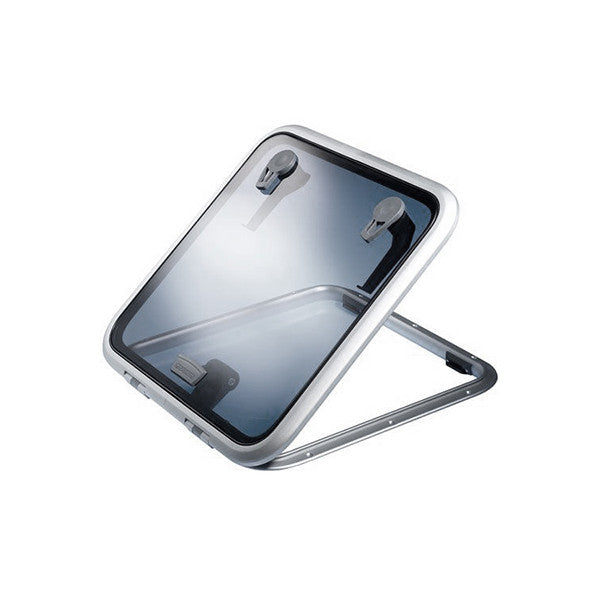

Lewmar Marine Low Profile Deck Hatch

From $520.99

Lewmar Low Profile Deck Hatch

This Lewmar Low Profile Deck Hatch features smaller ventilation hatches suitable for any deck location on sailboats and larger sizes that can be used as foredeck hatches on smaller to mid-size yachts. With a low frame section and 8mm acrylic windows, this hatch is available in multiple sizes making it a good choice for installation on a variety of boats. The lockable internal and external handles provide added security. Composed of corrosion-resistant clear anodized aluminum, this deck hatch features self-supporting friction levers that will hold the lid open in any position up to 95°.

Features:

Low Profile Hatches Open Up To 180° (Round Hatches Open To 170°)

Outside Handles Allow Hatch To Be Opened From On Deck If Not Locked

Full Range Of Spare Parts Available

Corrosion-Resistant Clear Anodized Aluminum Frame With Flange Bases, Inset Hinges and Snag-Resistant Rounded Edges

Hinges Flush With Upper Frame

Curved Upper Frame Section For Strength and Modern Styling

Self-Supporting - Friction Levers Hold Lid Open In Any Position Up To 95°

Unique Sealing System Allows Easy Replacement Of Acrylic Lens

Locking Handles With Exterior Lever, Vent Position

Improved Stronger Lower Frame Design With Higher Breakwater

CE Approved For Design Category A / Area 2A*

3 Year Warranty

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm.

Fastening size at hinge section use (M6 / 1/4").

Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications:

Size

Lower Frame

Acrylic Colour

Acrylic Window Thickness

Hatch Weight

Length

Width

Height

Radii

Cut-Out Length

Cut-Out Width

Cut-Out Radii

10

9/16"

Smoke Grey

5/16"

4.9 lb

13"

1"

2-7/8"

10-1/4"

1-11/16"

30

9/16"

Smoke Grey

5/16"

8.6 lb

15-5/8"

20-3/4"

1"

2-7/8"

12-7/8"

18"

1-11/16"

40

9/16"

Smoke Grey

5/16"

10.1 lb

19-5/16"

1"

2-7/8"

16-9/16"

1-11/16"

44

9/16"

Smoke Grey

5/16"

10.6 lb

20-3/16"

1"

2-7/8"

17-3/8"

1-11/16"

54

9/16"

Smoke Grey

5/16"

10.8 lb

18-3/16"

22-11/16"

1"

2-7/8"

15-7/16"

19-15/16"

1-11/16"

60

9/16"

Smoke Grey

5/16"

14.1 lb

22-11/16"

1"

2-7/8"

19-15/16"

1-11/16"

Click here to download Lewmar Hatch Installation Instructions

Frequently Asked Questions

What is the Lewmar Low Profile Deck Hatch used for? The Lewmar Low Profile Deck Hatch is designed for deck locations on sailboats, with larger sizes suitable for foredeck use on smaller to mid-size yachts. It features an 8mm acrylic window, corrosion-resistant clear anodized aluminum frame, and self-supporting friction levers.
How far does the Lewmar Low Profile Deck Hatch open? The Lewmar Low Profile Deck Hatch opens up to 180°, while the round hatch versions open up to 170°. Its self-supporting friction levers hold the lid open in any position up to 95°.
Does the Lewmar Low Profile Deck Hatch have locking handles? Yes. The Lewmar Low Profile Deck Hatch features locking handles with an exterior lever and vent position. The outside handles also allow the hatch to be opened from on deck when it is not locked.
What is the Lewmar Low Profile Deck Hatch made from? The hatch features a corrosion-resistant clear anodized aluminum frame with flange bases, inset hinges, flush-mounted hinges, and rounded snag-resistant edges. It also has an 8mm acrylic window with a sealing system designed to allow the acrylic lens to be replaced easily.
What are the mounting requirements for the Lewmar Low Profile Deck Hatch? The Lewmar Low Profile Deck Hatch should be fitted to a flat surface with a maximum tolerance of +/- 1mm. The hinge section uses M6 or 1/4" fastening, while the lower frame uses a 5mm CSK screw No.10 UNC 2 BA. Verify the selected hatch's cut-out dimensions before installation. What sizes are available for the …

In stock

Lewmar Marine

Lewmar Marine Ocean Series Flange Base Hatch

From $1,319.49

Lewmar Ocean Series Flange Base Hatch

This Lewmar Ocean Series Flange Base Hatch features a shock resistant acrylic lens. With a rugged construction build and attached hinges on the outside the frame, it provides ultimate protection against the elements and prevents leakage. This hatch also features a corrosion-resistant anodized aluminum frame with inset hinges, snag-resistant rounded corners and a flange base. The self supporting friction levers hold the lid open in any position up to 95° while the hatch opens 180° for easy access.

Features:

Shock Resistant Acrylic Lens

Rugged Construction For The Ultimate Protection Against The Elements

Full Range Of Spare Parts Available

Hatch Vent Position

Hinges Are Attached Outside The Frame To Prevent Leakage

Corrosion-Resistant Anodized Aluminum Frame With Inset Hinges, Snag-Resistant Rounded Corners and Flange Base

Hatch opens 180° for easy access

Unique Sealing System

Self-Supporting – Friction Levers Hold Lid Open In Any Position Up To 95°

Friction Hinge Allows For Any Open Position Without The Need For Support Arms

Internal/External Lockable Handle Assemblies

Simple Maintenance

Conforms To CE Area 2: Deck, Coach Roof, Cockpit Or Transom Use (Tested To 2 psi)

Fits Other Lewmar Standard Cut-Outs

3 Year Limited Warranty

Mounting Instructions:

Fit To A Flat Surface With A Maximum Tolerance Of +/- 1mm.

Fastening Size At Hinge Section Use (M6 / 1/4").

Fastening Size For Lower Frame Use 5mm CSK Screw No.10 UNC 2 BA.

Specifications:

Size

Acrylic Colour

Acrylic Window Thickness

Lower Frame

Hatch Weight

Radii

Length

Width

Height

Hinge Length

Hinge Width

Cut-Out Length Flat

Cut-Out Width Flat

Cut-Out Radii

10

Smoke Grey

3/8"

1" FLange

5.77 lb

2-15/16"

12-3/4"

1-9/16"

3/16"

5-7/16"

10-1/4"

1-11/16"

40

Smoke Grey

3/8"

1" Flange

10.5 lb

2-15/16"

19-1/8"

1-9/16"

3/16"

11-3/4"

16-9/16"

1-11/16"

60

Smoke Grey

1/2"

1" Flange

17.6 lb

3"

22-5/8"

1-11/16"

3/16"

14-7/16"

19-15/16"

1-11/16"

70

Smoke Grey

1/2"

1" Flange

23.8 lb

3"

27-5/16"

1-11/16"

3/16"

19-3/16"

24-1/2"

1-11/16"

Click here to download Lewmar Hatch Installation Instructions

Frequently Asked Questions

What is the Lewmar Ocean Series Flange Base Hatch designed for? The Lewmar Ocean Series Flange Base Hatch is designed for deck, coach roof, cockpit, or transom use. It features a corrosion-resistant anodized aluminum frame, shock-resistant acrylic lens, and rugged construction. The hatch conforms to CE Area 2 requirements and opens 180° for easy access.
How far does the Lewmar Ocean Series Flange Base Hatch open? The Lewmar Ocean Series Flange Base Hatch opens 180° for easy access. Its self-supporting friction levers hold the lid open in any position up to 95°, while the friction hinge allows the hatch to remain open without support arms.
What features help protect the Lewmar Ocean Series Flange Base Hatch from water and the elements? The hatch has a corrosion-resistant anodized aluminum frame, a unique sealing system, and hinges attached outside the frame to help prevent leakage. Its rugged construction and shock-resistant acrylic lens provide protection against the elements.
What mounting requirements apply to the Lewmar Ocean Series Flange Base Hatch? The Lewmar Ocean Series Flange Base Hatch should be fitted to a flat surface with a maximum tolerance of +/- 1mm. The hinge section uses M6 / 1/4" fasteners, while the lower frame uses 5mm CSK Screw No.10 UNC 2 BA.
What sizes are available for the Lewmar Ocean Series Flange Base Hatch? The Lewmar Ocean Series Flange Base Hatch is available in sizes 10, 40, 60, and 70. Depending on the size, the hatch has a 3/8" or 1/2" smoke grey acrylic lens and a 1" flange base. Cut-out dimensions vary by size, so verify the required dimensions before installation…

Low in stock

Lewmar Marine

Lewmar Marine Ocean Series Flat Base Hatch

From $1,316.49

Lewmar Ocean Series Flat Base Hatch

This Lewmar Ocean Series Flat Base Hatch features a corrosion-resistant anodized aluminum frame with inset hinges, snag resistant rounded corners and a flat base and it is also composed of rugged construction for ultimate protection against the elements. The friction hinge allows for any open position without the need for support arms while the self-supporting friction levers hold the lid open in any position of up to 95°. This ocean hatch will work on vessel decks, coach roofs, cockpits and transoms as defined by CE Area 2.

Features:

Corrosion-Resistant Anodized Aluminum Frame With Inset Hinges, Snag-Resistant Rounded Corners and Flat Base

Unique Sealing System

Full Range Of Spare Parts Available

Internal/External Lockable Handle Assemblies

Bonded Acrylic Lens, External Hinges and High-Lower Frame Breakwater

Hatch Vent Position

Simple Maintenance

Ideal for Transoms, Cockpits, Coachroofs, and Decks

Shock Resistant Acrylic Lens

Rugged Construction For The Ultimate Protection Against The Elements

Friction Hinge Allows For Any Open Position Without The Need For Support Arms

Self-Supporting - Friction Levers Hold Lid Open In Any Position Up To 95°

Suitable for Design Category CE Area 2

3 Year Limited Warranty

Mounting Instructions:

Fit To A Flat Surface With A Maximum Tolerance Of +/- 1mm.

Fastening Size At Hinge Section Use (M6 / 1/4").

Fastening Size For Lower Frame Use 5mm CSK Screw No.10 UNC 2 BA.

Flat Base Hatches Cannot Be Used With Trim Kits Or Roller Shades

Specifications:

Size

Acrylic Colour

Acrylic Window Thickness

Lower Frame

Hatch Weight

Radii

Length

Width

Height

Hinge Length

Hinge Width

Cut-Out Length Flat

Cut-Out Width Flat

Cut-Out Radii Flat

10

Smoke Grey

3/8"

Flat Base

5.77 lb

2-15/16"

12-3/4"

1-9/16"

3/16"

5-7/16"

10-1/16"

1-9/16"

60

Smoke Grey

1/2"

Flat Base

17.6 lb

3"

22-5/8"

1-11/16"

3/16"

14-7/16"

19-3/4"

1-9/16"

70

Smoke Grey

1/2"

Flat Base

23.8 lb

3"

27-5/16"

1-11/16"

3/16"

19-3/16"

24-1/2"

1-9/16"

Click here for Lewmar Hatch Installation Instructions

Frequently Asked Questions

What is the Lewmar Ocean Series Flat Base Hatch designed for? The Lewmar Ocean Series Flat Base Hatch is designed for vessel decks, coach roofs, cockpits, and transoms as defined by CE Area 2. It features a corrosion-resistant anodized aluminum frame, rugged construction, and a shock-resistant acrylic lens for protection against the elements.
How far can the Lewmar Ocean Series Flat Base Hatch open? The Lewmar Ocean Series Flat Base Hatch can be held open in any position up to 95°. Its friction hinge allows the hatch to remain open without support arms, while the self-supporting friction levers hold the lid in the desired position.
What sizes are available for the Lewmar Ocean Series Flat Base Hatch? The Lewmar Ocean Series Flat Base Hatch is available in sizes 10, 60, and 70. The size 10 measures 12-3/4" x 12-3/4", size 60 measures 22-5/8" x 22-5/8", and size 70 measures 27-5/16" x 27-5/16".
What type of surface is required to install the Lewmar Ocean Series Flat Base Hatch? The Lewmar Ocean Series Flat Base Hatch must be fitted to a flat surface with a maximum tolerance of +/- 1mm. The mounting instructions specify M6 / 1/4" fastening at the hinge section and a 5mm CSK Screw No.10 UNC 2 BA for the lower frame.
Does the Lewmar Ocean Series Flat Base Hatch have a lockable handle? Yes. The Lewmar Ocean Series Flat Base Hatch features internal and external lockable handle assemblies. It also includes a hatch vent position for ventilation.
Can the Lewmar Ocean Series Flat Base Hatch be used with trim kits or roller shades? No. The mounting instructions specifically state that flat base hatches cannot be used with trim kits or roller shades.

Low in stock

Lewmar Marine

Lewmar Marine OCEAN HATCH SZ10 FLANGE BASE

$703.99

Lewmar Ocean 10 Hatch 12-3/4" x 12-3/4"

The Lewmar Ocean series hatch features a classic style that is fitted to countless boats around the world. The rugged construction provides a tight seal to keep the elements out. This boat hatch is constructed with an anodized aluminum frame for excellent corrosion resistance in marine environments. Whether for ventilation or to cool off, the hatch friction levers can hold the lid open in any position up to 95°. Lewmar's Ocean hatch is suitable for CE area 2, including decks, coachroofs, cockpits, and transoms.

Product Feature:

Smoke Gray Acrylic

Anodized Aluminum Frame

Suitable for CE Area 2

Friction Levers

Ocean Series - Flat Base

NOTE: Flat base hatches cannot be used with Trim kits or Roller shades

Specifications:

Length: 12-3/4"

Width: 12-3/4"

Height: 1-9/16"

Radii: 2-15/16"

Hinge Length: 3/16"

Hinge Width: 5-7/16"

Cut-Out Length: 10-1/16"

Cut-Out Width: 10-1/16"

Cur-Out-Radii - 1-9/16"

Ocean Series - Flange Base

Specifications:

Lower Frame: 1" Flange

Length: 12-3/4"

Width: 12-3/4"

Height: 1-9/16"

Radii: 2-15/16"

Hinge Length: 3/16"

Hinge Width: 5-7/16"

Cut-Out Length: 10-1/4"

Cut-Out Width: 10-1/4"

Cut-Out Radii: 1-11/16"

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm

Fastening size at hinge section use M6 / 1/4"

Lower frame fastening size 5mm CSK No. 10 UNC 2 BA

Click here for Lewmar Ocean Series Hatch Fitting & Adjustment Instructions

Frequently Asked Questions

What is the Lewmar Ocean 10 Hatch 12-3/4" x 12-3/4" designed for? The Lewmar Ocean 10 Hatch 12-3/4" x 12-3/4" is a boat hatch suitable for CE Area 2 applications, including decks, coachroofs, cockpits, and transoms. It features a smoke gray acrylic lens, anodized aluminum frame, and friction levers that hold the lid open in any position up to 95°.
What are the dimensions of the Lewmar Ocean 10 Hatch? The Lewmar Ocean 10 Hatch measures 12-3/4" long by 12-3/4" wide and 1-9/16" high. The hatch has a 2-15/16" radius and a hinge measuring 3/16" by 5-7/16".
What are the cut-out dimensions for the Lewmar Ocean 10 Hatch? The required cut-out depends on the base style. The flat base version has a 10-1/16" x 10-1/16" cut-out with a 1-9/16" cut-out radius. The flange base version has a 10-1/4" x 10-1/4" cut-out with a 1-11/16" cut-out radius.
What is the difference between the flat base and flange base versions? The flat base version has a flat lower frame, while the flange base version has a 1" lower frame flange. Both versions have the same 12-3/4" x 12-3/4" overall dimensions and 1-9/16" height, but their cut-out dimensions differ.
Can the Lewmar Ocean 10 Hatch be used with trim kits or roller shades? No. The supplied product information specifically states that flat base hatches cannot be used with trim kits or roller shades. Verify the base style and installation requirements before selecting accessories.
What are the mounting requirements for the Lewmar Ocean 10 Hatch? The hatch should be fitted to a flat surface with a maximum tolerance of +/- 1mm. The hinge section uses M6 / 1/4" fasteners, while the lower frame uses 5mm CSK No. 10 UNC 2 BA fasteners.
