Johnson Pump Ultima Automatic Bilge Pump

Johnson Ultima Automatic Submersible Bilge Pump w/ Integrated Switch

The Johnson Ultima Bilge Pump is a sleek, reliable and compact unit with an integrated switch ready to install and run for years. Ultima Bilge Pumps can be manually operated via the bilge control panel. Available in 600, 800, 1000 and 1250 GPH versions. For Ultima Bilge 600 GPH to 1000 GPH, there are easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. Pumps include both a straight and a 90° smooth elbow Dura-Port and a removable check valve.

**1250 GPH unit does not include Dura-Port Connection

Compact, all-in-one unit

Integrated Ultima Switch sensing right into the pump body

No Mercury

Removable clip on basket design

Removable impeller cover allows for easy clean out

3-wire device can be run in auto or manual override mode

No tools needed for maintenance

Extremely energy efficient

Water-cooled motor for long service intervals

Meets the international standard, ISO 8849 marine

Specifications:

600 GPH

Amperage: 2.5 A

Fuse Size: 5 A

Connection: 3/4"

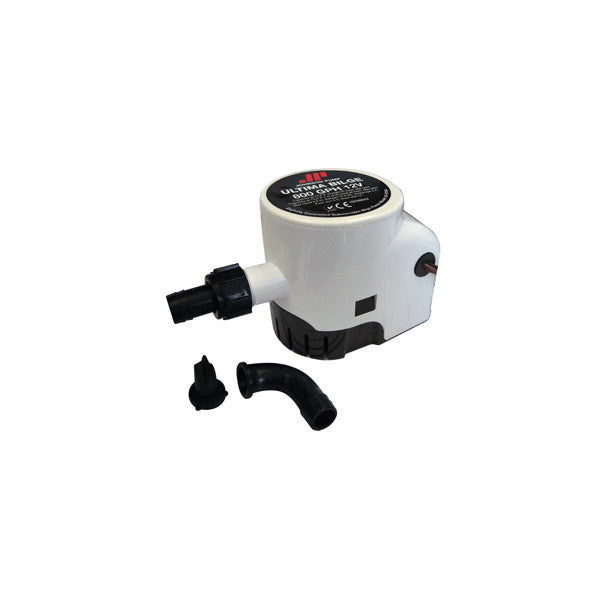

800 GPH

Amperage: 3 A

Fuse Size: 5 A

Connection: 3/4"

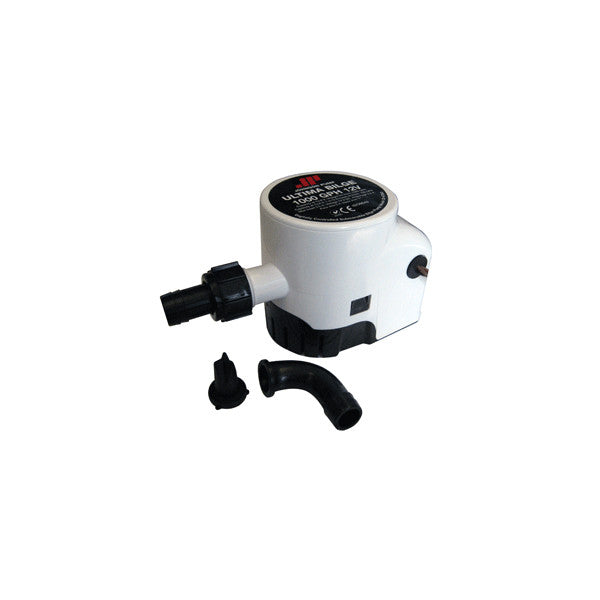

1000 GPH

Amperage: 3.2 A

Fuse Size: 5 A

Connection: 3/4"

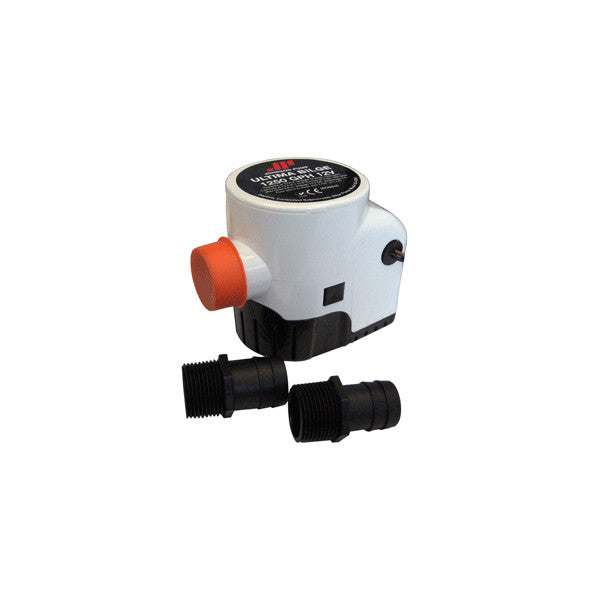

1250 GPH

Amperage: 3 A

Fuse Size: 5 A

Connection: 1-1/8" and 1-1/4"

Dimensions:

600, 800 & 1000 GPH

6" L x 3.2" W x 4.1" H

1250 GPH

6" L x 3.2" W x 4.6" H

Click to Download Johnson Ultima Auto Bulge Pump Manual

Frequently Asked Questions

• What is the Johnson Ultima Automatic Submersible Bilge Pump with Integrated Switch used for? The Johnson Ultima Automatic Submersible Bilge Pump with Integrated Switch is a compact bilge pump with an integrated Ultima Switch built into the pump body. It can operate automatically or be manually operated through a bilge control panel. The pump is available in 600, 800, 1000, and 1250 GPH versions.
• How does the integrated Ultima Switch work on the Johnson Ultima Bilge Pump? The integrated Ultima Switch provides automatic operation without a separate switch mounted externally. The pump uses a 3-wire design that can operate in automatic mode or manual override mode. The integrated switch is built directly into the pump body, providing an all-in-one bilge pump and switch assembly.
• What discharge connections are included with the Johnson Ultima Bilge Pump? The 600, 800, and 1000 GPH versions include both a straight and 90° smooth elbow Dura-Port discharge port along with a removable check valve. The 1250 GPH version does not include a Dura-Port connection and uses 1-1/8" and 1-1/4" connections.
• What are the capacity and electrical specifications for the Johnson Ultima Bilge Pump? The 600 GPH model draws 2.5 A and uses a 5 A fuse, while the 800 GPH model draws 3 A and the 1000 GPH model draws 3.2 A; both also use a 5 A fuse. The 1250 GPH model draws 3 A and uses a 5 A fuse. The 600 through 1000 GPH models have 3/4" connections.
• How is the Johnson Ultima Bilge Pump maintained? The Johnson Ultima Bilge Pump is designed for tool-free maintenance. Its removable clip-on basket and removable impeller cover provide access for cleaning, while the water-cooled motor is designed for long service intervals. The compact unit is also extremely energy efficient and contains no mercury.
• What are the dimensions of the Johnson Ultima Automatic Bilge Pump? The 600, 800, and 1000 GPH versions measure 6 inches long by 3.2 inches wide by 4.1 inches high. The 1250 GPH version measures 6 inches long by 3.2 inches wide by 4.6 inches high. Verify the available mounting space and selected model specifications before installation.
