Jabsco

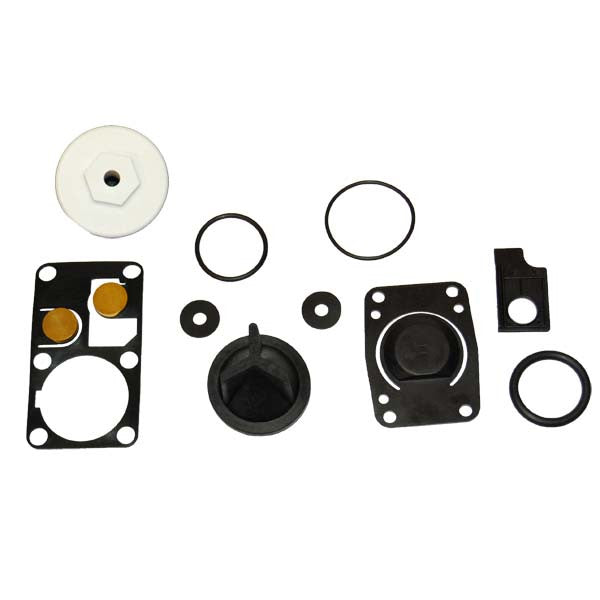

This major service kit for 1998-2007 manual toilets includes: 2 - screw caps 1 - base valve gasket 1 - seal assembly 1 - top valve seat 1 - top valve gasket 1 - o-ring (flush lever) 1 - screw (flush lever) 1 - buffer 1 - screw (valve cover) 1 - o-ring (piston) 1 - screw (pump cylinder) 1 - joker valve 1 - valve spring

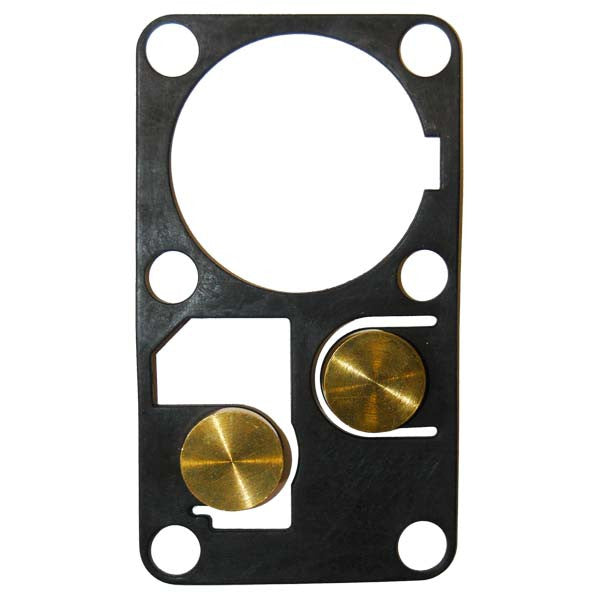

Replacement gasket for 29090-2 and 29120-2 series manual toilet 1998 and newer.

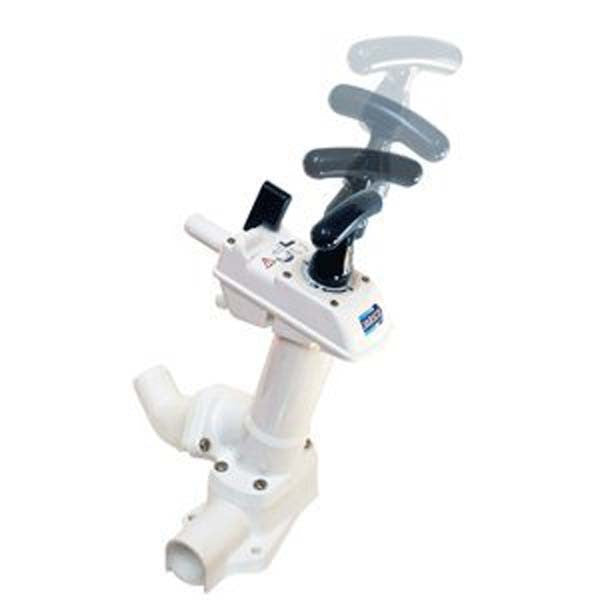

Jabsco Manual Pump Assembly 29040-3000

Replacement manual pump assembly for the 29090 and 29120 series toilet. Just unscrew your old and replace the entire unit with the new replacement. Saves time and money!

Frequently Asked Questions

• What is the Manual Pump Assembly used for? The Manual Pump Assembly is a replacement pump assembly for 29090 and 29120 series toilets. It allows you to replace the entire existing manual pump unit rather than replacing individual components.
• Which toilets is the Manual Pump Assembly compatible with? This replacement manual pump assembly is designed specifically for 29090 and 29120 series toilets. Verify your toilet series before ordering to ensure the replacement assembly is appropriate for your application.
• How do you install the Manual Pump Assembly? Installation involves unscrewing the old manual pump assembly and replacing it with the new unit. The product is designed as a complete replacement assembly to simplify the replacement process.
• Does the Manual Pump Assembly replace the entire pump unit? Yes. The Manual Pump Assembly is supplied as a complete replacement unit for the existing manual pump on compatible 29090 and 29120 series toilets, eliminating the need to replace the pump components individually.

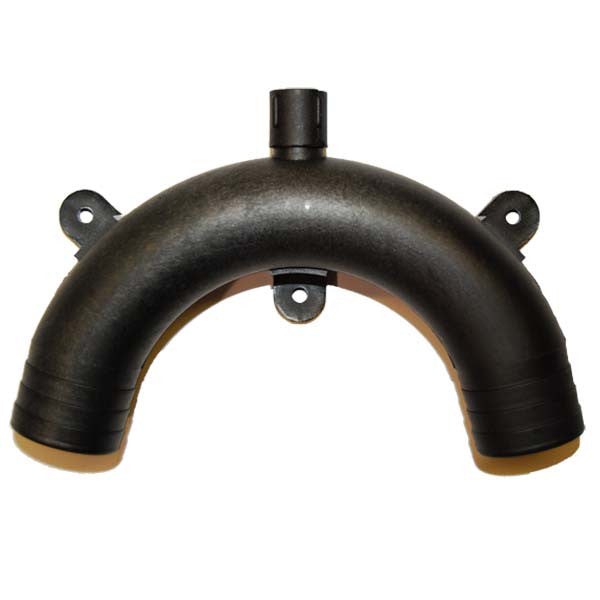

Vented Loop for 1.5" hose. An essential safty component on all inlet and discharge plumbing of toilets installed below the static or heeled waterline. Simple valve system ensures that water cannot siphon over pipe loops Moulded in tough plastic For waste discharge loop

Jabsco Replacement Impeller Used for Volvo, Johnson, and Ancor Pumps Made of Neoprene Number of Blades: 6 Shaft Size: 15/32 in Insert Material: Brass Impeller Depth: 3/4 in Impeller Diamter: 2 in Fits: Slotted Shaft Pin Drives

Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps. Sherwood type 10615.

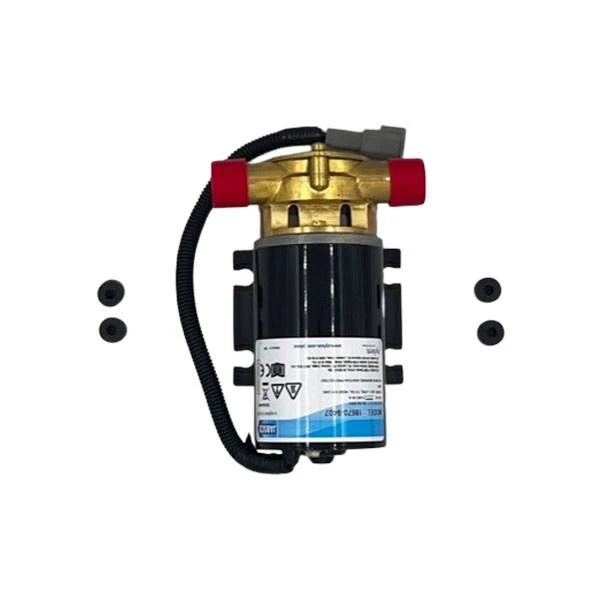

Jabsco 18670-9407 Mastercraft Ballast Pump

This ballast pump from Jabsco is a reversible pump, meaning that it can both fill and empty your ballast tank. This pump can add approximately 80 pounds of ballast water every minute, with a flow rate of 9 GPM. It is self priming up to 3 ft. This pump acts in accordance with USCG 183.410 and ISO 8846 Marine (ignition protection).

Engineered with a bronze pump head and oil-resistant nitrile impeller for a long lasting life in marine environments. This high-pressure and high flow pump is ideal for bilge pumping, livewell circulation, draining bait tanks, engine oil changing and washdown applications.

Ballast Pump Specifications:

9 GPM (34 LPM) Flow Rate

Nominal Voltage 12 VDC

Maximum Current 12A - Fuse 20A

Self Priming to 3'

1" Hose Barb or 1/2" NPT Internal

Replacement:

Mastercraft 300249

Frequently Asked Questions

• What is the Jabsco 18670-9407 Mastercraft Ballast Pump used for? The Jabsco 18670-9407 Mastercraft Ballast Pump is a reversible pump designed to both fill and empty ballast tanks. It provides a 9 GPM flow rate and is also described for bilge pumping, livewell circulation, bait tank draining, engine oil changing, and washdown applications.
• How does the Jabsco 18670-9407 Mastercraft Ballast Pump fill and empty a ballast tank? The Jabsco 18670-9407 is reversible, allowing the pump to move water in either direction for filling or emptying a ballast tank. The product description states that it can add approximately 80 pounds of ballast water per minute with its 9 GPM flow rate.
• What are the specifications of the Jabsco 18670-9407 Mastercraft Ballast Pump? The pump has a 9 GPM (34 LPM) flow rate and operates at a nominal 12 VDC. It has a maximum current draw of 12A and requires a 20A fuse. The pump is self-priming to 3 feet.
• What type of connections does the Jabsco 18670-9407 Mastercraft Ballast Pump use? The Jabsco 18670-9407 Mastercraft Ballast Pump has a 1-inch hose barb or 1/2-inch NPT internal connection. Verify your existing plumbing connection before installation to ensure the pump matches your system.
• Is the Jabsco 18670-9407 Mastercraft Ballast Pump ignition protected? Yes. The Jabsco 18670-9407 Mastercraft Ballast Pump is described as complying with USCG 183.410 and ISO 8846 Marine ignition protection requirements.
• What materials are used in the Jabsco 18670-9407 Mastercraft Ballast Pump? The pump features a bronze pump head and an oil-resistant nitrile impeller. These components are specified as part of the pump's construction for marine applications.

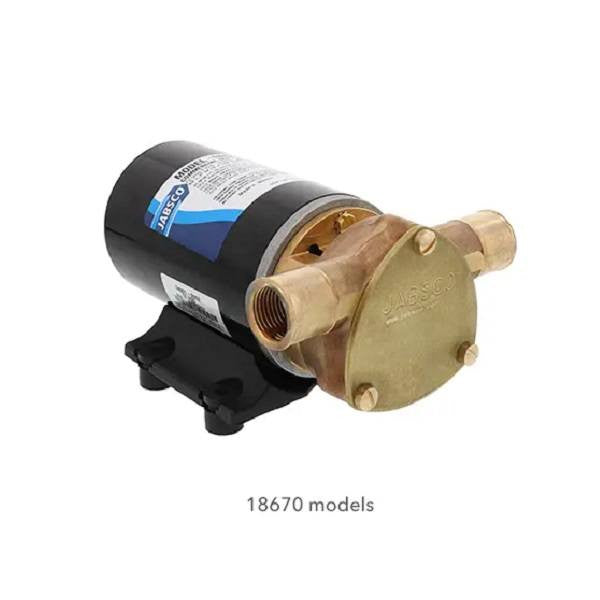

Jabsco 18670-0943 Commercial Duty 24V Water Puppy Pump

The Jabsco Puppy series pump feature flexible impellers and are ideal for livewell circulation, draining bait tanks, engine oil changing, washdown, bilge, or even general pumping applications. Constructed with a bronze pump head and an oil resistant nitrile impeller this Jabsco pump offers a long service life. This self-priming pump offers high pressure with a 6GPM flow rate.

Due to its self priming capabilities, this Jabsco pump can be located up to 3' above the water source and can be mounted in any position. Fasten the pump to a solid surface using four screws through the rubber mounting grommets in the base. Then connect the plumbing to the pump ports using one of the three alternative methods provided. Attach the motor lead wires to the electrical power sources and the pump is ready to get to work.

Product Features:

6GPM Flow Rate

Bronze Pump Head

Ignition Protected

Self-Priming

Click here for Jabsco 18670-0943 Water Puppy Pump

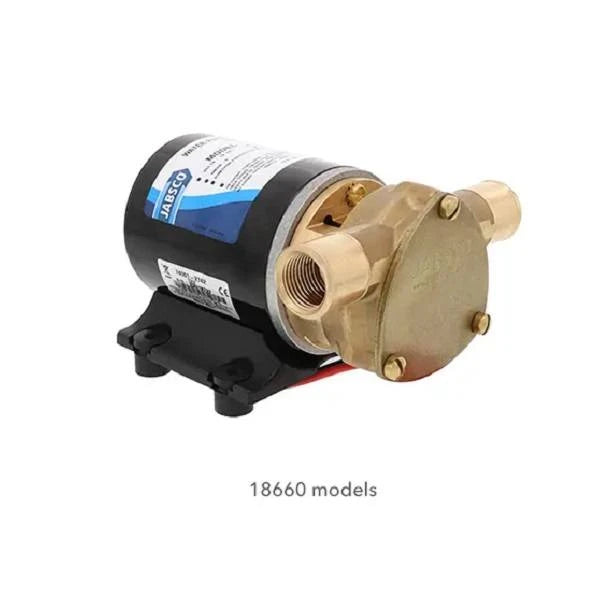

Jabsco 18660-0121 Heavy Duty Commercial 12V Water Puppy Pump

The Jabsco Puppy series pump feature flexible impellers and are ideal for livewell circulation, draining bait tanks, engine oil changing, washdown, bilge, or even general pumping applications. Constructed with a bronze pump head and an oil resistant nitrile impeller this Jabsco pump offers a long service life. This self-priming pump offers high pressure with a 6GPM flow rate.

Due to its self priming capabilities, this Jabsco pump can be located up to 3' above the water source and can be mounted in any position. Fasten the pump to a solid surface using four screws through the rubber mounting grommets in the base. Then connect the plumbing to the pump ports using one of the three alternative methods provided. Attach the motor lead wires to the electrical power sources and the pump is ready to get to work.

Product Features:

6GPM Flow Rate

Bronze Pump Head

Ignition Protected

Self-Priming

Click here for Jabsco 18660-0121 12V Water Puppy Pump Technical Datasheet

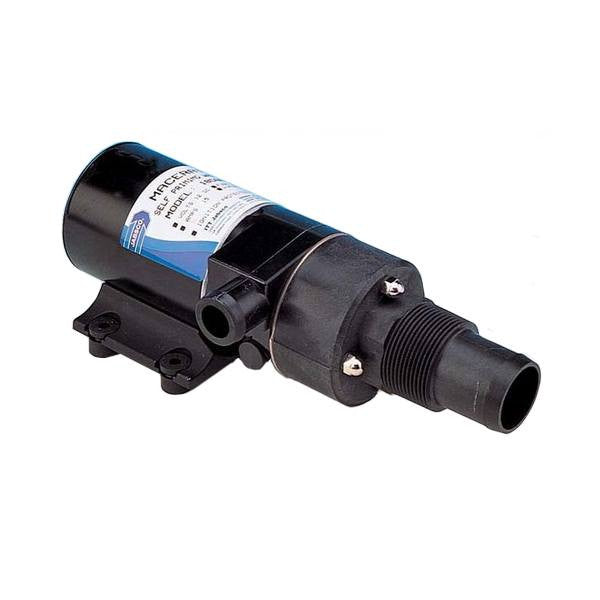

Jabsco Run Dry Macerator Waste Pump

The Jabsco 18590 Series Macerator Waste Pump is the ideal solution for emptying marine holding tanks when not in a discharge restricted area. Self priming to 5 feet, this pump will empty atypical 30 gallon holding tank in less than 3 minutes. Duty cycle of the pump is 15 minutes continuous which means a 180 gallon can be emptied in a single operation. The Jabsco Macerator Pump is also an ideal pump for the emptying of fish box and livewell receptacles. This waste tank-emptying macerator pump grinds solids into small particles that easily pass through the 1" discharge port. The Jabsco Macerator is equipped with a protection device that eliminates accidental run dry.

Features:

Impeller: Jabsco Nitrile compound

Macerator: Stainless steel cutter reduces particle size to 1/8" maximum. 4 Blade design

Seal: Lip Type

Inlet Port: 1-1/2" Hose Barb & 1-1/2" NPT (Male)

Outlet Port: 1" Hose Barb

Priming: 5' When Wet, 4' When Dry

Complies with USCG regulation 183.410 and ISO 8846 MARINE for Ignition Protection

Frequently Asked Questions

• What is the Jabsco Run Dry Macerator Waste Pump used for? The Jabsco Run Dry Macerator Waste Pump is designed for emptying marine holding tanks when operating outside a discharge-restricted area. It can also be used to empty fish boxes and livewell receptacles. Its stainless steel four-blade cutter reduces solids to a maximum particle size of 1/8 inch so they can pass through the 1-inch discharge port.
• How quickly can the Jabsco Run Dry Macerator Waste Pump empty a holding tank? The pump can empty a typical 30-gallon marine holding tank in less than 3 minutes. Its 15-minute continuous duty cycle allows up to 180 gallons to be emptied in a single operation, according to the supplied product description.
• Can the Jabsco Run Dry Macerator Waste Pump operate without liquid at the pump? Yes. The pump is self-priming to 5 feet when wet and 4 feet when dry. It also includes a protection device designed to eliminate accidental run-dry operation, providing protection when the pump is operated without sufficient liquid.
• What are the inlet and outlet connections on the Jabsco Run Dry Macerator Waste Pump? The pump has a 1-1/2-inch inlet that accepts either a hose barb connection or a 1-1/2-inch NPT male connection. The outlet uses a 1-inch hose barb. Verify that your existing marine waste or receptacle plumbing matches these specified connection sizes before installation.
• What type of macerator cutter does the Jabsco Run Dry Macerator Waste Pump use? The Jabsco macerator uses a stainless steel, four-blade cutter designed to reduce particle size to a maximum of 1/8 inch. This helps solids pass through the pump's 1-inch discharge port during waste tank, fish box, or livewell emptying applications.
• Is the Jabsco Run Dry Macerator Waste Pump ignition protected? Yes. The Jabsco Run Dry Macerator Waste Pump complies with USCG regulation 183.410 and ISO 8846 MARINE for ignition protection. The pump uses a Jabsco nitrile compound impeller and a lip-type seal as part of its specified construction.

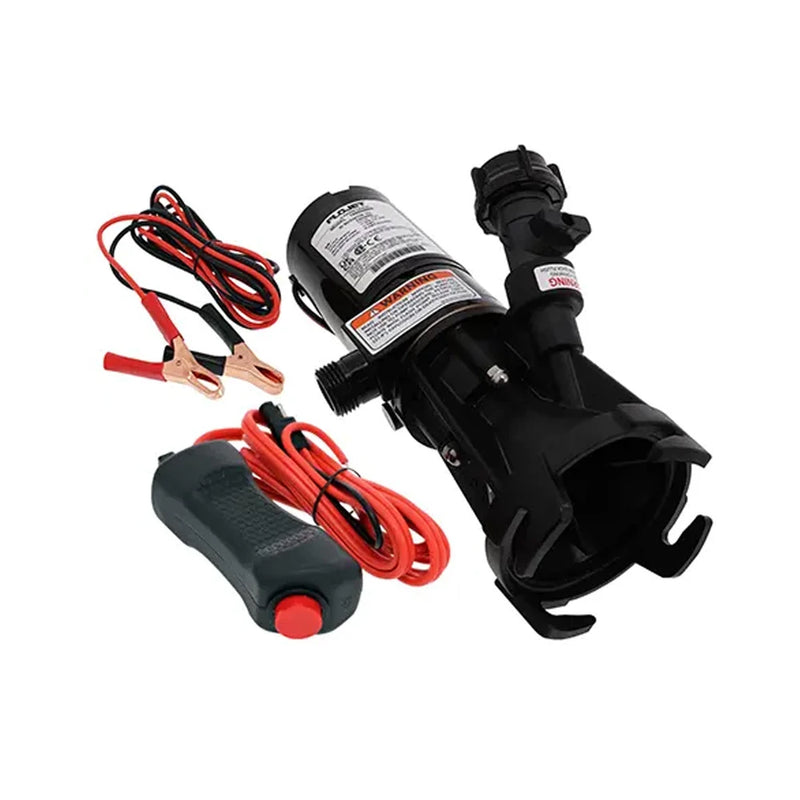

Flojet Portable RV Macerator Kit - 12v

Flojet Portable RV Macerator Pump provides a convenient way to empty RV black and gray water holding tanks without relying on traditional dump station setups. Its self-priming, high-torque motor connects directly to a standard 3-inch RV waste outlet and macerates waste into particles no larger than 1/8 inch, allowing it to be pumped through a garden hose.

The pump can move waste up to 150 feet horizontally through a 3/4-inch ID reinforced garden hose, making it useful for draining holding tanks at home or into a portable tank, toilet, sewer clean-out, or septic tank. A fresh water inlet allows the pump to be rinsed after use, while run-dry protection helps protect the pump during operation.

For convenient operation, the unit includes a remote handheld on/off switch with a 6-foot wire harness and 20-amp fuse. The included portable storage case makes transportation and storage easier. The Flojet Portable RV Macerator Pump is also ISO 8846 ignition protected, CE certified, and CSA certified.

Important: This pump is designed to handle normal waste and tissue found in RV waste systems. It will not handle hard solid objects, sanitary napkins, or rags.

Product Features

Connects directly to a standard RV 3-inch waste outlet

Eliminates the need for a traditional 3-inch sewer hose

Powerful, high-torque motor provides effective waste pumping

Pumps up to 150 feet horizontally through 3/4-inch ID reinforced garden hose

Standard garden hose connection provides convenient discharge

Fresh water inlet allows the pump to be rinsed after use

Remote handheld on/off switch with 6-foot wire harness and 20-amp fuse

Includes 6-foot wire harness with connector and alligator clips

Allows RV holding tanks to be drained at home

Portable storage case provides convenient transport and storage

Self-priming design

Run-dry protection helps protect the pump

Macerates waste to a maximum particle size of 1/8 inch

ISO 8846 ignition protected

CE and CSA certified

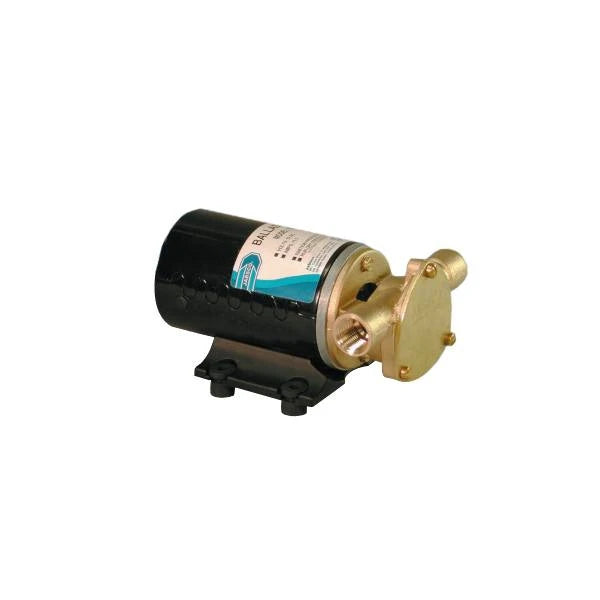

Jabsco Ballast Puppy Boat Ballast Pump

The Jabsco Ballast Puppy Ballast Pump is designed to pump water into Wakeboard Liquid Ballast Tanks, and when reversed will also pump water out of them. This pump has a flow rate of 9 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a run-dry protection device to automatically shut off the pump and protect the impeller from run-dry damage.

Features:

Includes run-dry impeller

Includes reversing switch

Adds approximately 80 lbs. of ballast water per minute

Reversible pump both fills and empties ballast tanks

Self-priming to 3 ft.

Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protected)

Specifications:

9 GPM

Self-priming to 3 ft.

Ports: 1" hose barb & 1-2" NPT internal port

Dimensions: 7 1-8" x 4 3-4" x 3 5-8"

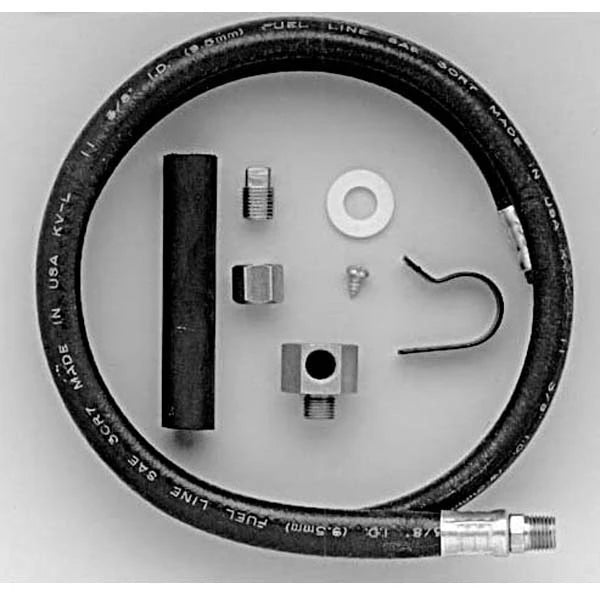

Jabsco Permanent Marine Oil Drain Hose Kit

The Jabsco Permanent Marine Oil Drain Hose Kit will provide an easy method of connecting to several pump types for neat and easy oil removal. This kit includes a reinforced flexible oil rated drain hose, a drain plug fitting with two hose connection points, hose hanger and a cap. The cap is threaded to seal the hose end. Once installed, future oil changes can be done either by gravity or with the use of one of the Jabsco oil changers.

Features:

Threaded Cap To Seal Hose End

Reinforced Flexible Oil Rated Drain Hose

Hose Hanger Secures Hose End Above Oil

1/2" - 20 Threaded Oil Drain Fitting With Two Hose Connection Points

Includes A Drain Plug Fitting, Oil Drain Hose Assembly, Hose Hanger, and A Cap

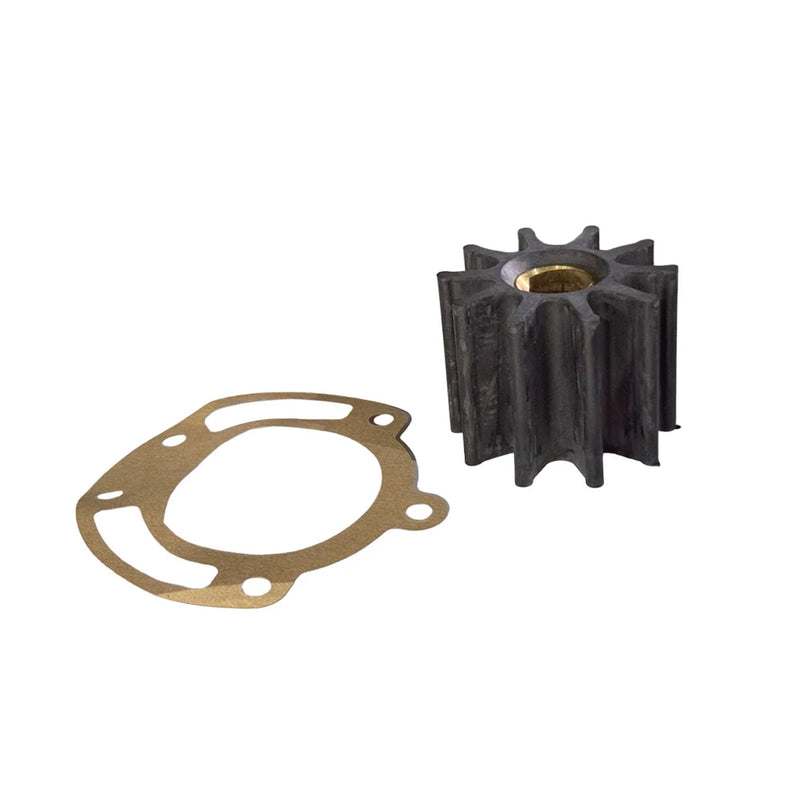

Jabsco 17954-0001-P Impeller replaces Mercruiser 47-59362

This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, a gasket and instructions for easy installation. This impeller is designed for use with Jabsco 43210-0001 marine engine cooling pump.

Replaces:

Mercruiser

47-59362

Specifications:

Diameter: 2-9/16"

Width: 2"

Shaft Diameter: 3/4"

Drive Type: Single Flat

Material: Neoprene

Blades: 10

Jabsco 17954-0001-P Impeller Installation Instructions

Remove screws, endcover, and gasket

Remove old impeller using Jabsco removal tool

Remove any debris from pump chamber

Lubricate inside pump wall and grease

Insert replacement impeller into impeller bore with a twisting motion

Fit replacement gasket and endcover

Tighten endcover

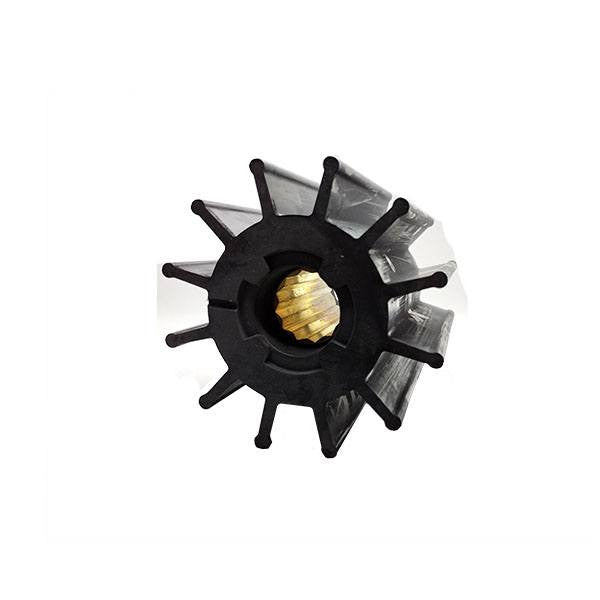

Jabsco 17938-0001-P Impeller replaces Volvo D12/D13/D16

This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, 2 O-rings and instructions for easy installation.

Replaces:

Volvo

D12 3830663

D12 3830459

D13 3830459

D16 3830459

Specifications:

Diameter: 3-3/4"

Width: 3-3/4"

Shaft Diameter: 1"

Drive Type: Spline Drive

Material: Neoprene

Blades: 12

Jabsco 17954-0001-P Impeller Installation Instructions

Remove screws, endcover, and gasket

Remove old impeller using Jabsco removal tool

Remove any debris from pump chamber

Lubricate inside pump wall and grease

Insert replacement impeller into impeller bore with a twisting motion

Fit replacement gasket and endcover

Tighten endcover screws

Frequently Asked Questions

• What is the Jabsco 17938-0001-P Impeller used for? The Jabsco 17938-0001-P Impeller is a replacement water pump impeller made from neoprene. It is listed as a replacement for Volvo D12, D13, and D16 applications and features a 12-blade design with a spline drive.
• Which Volvo engines does the Jabsco 17938-0001-P Impeller replace? The Jabsco 17938-0001-P Impeller replaces Volvo D12 part numbers 3830663 and 3830459, Volvo D13 part number 3830459, and Volvo D16 part number 3830459. Verify the existing impeller part number before ordering to confirm it matches your application.
• What are the dimensions and specifications of the Jabsco 17938-0001-P Impeller? The Jabsco 17938-0001-P Impeller has a 3-3/4" diameter, 3-3/4" width, and 1" shaft diameter. It uses a spline drive, is made from neoprene, and has 12 blades.
• What is included with the Jabsco 17938-0001-P Impeller? The Jabsco 17938-0001-P Impeller comes with lubricant, two O-rings, and installation instructions. These components are included with the impeller for the replacement procedure provided in the product description.
• How do you install the Jabsco replacement impeller? Remove the screws, endcover, and gasket, then remove the old impeller using a Jabsco removal tool. Clean debris from the pump chamber, lubricate and grease the inside pump wall, and insert the replacement impeller into the impeller bore with a twisting motion. Install the replacement gasket and endcover, then tighten the endcover screws.

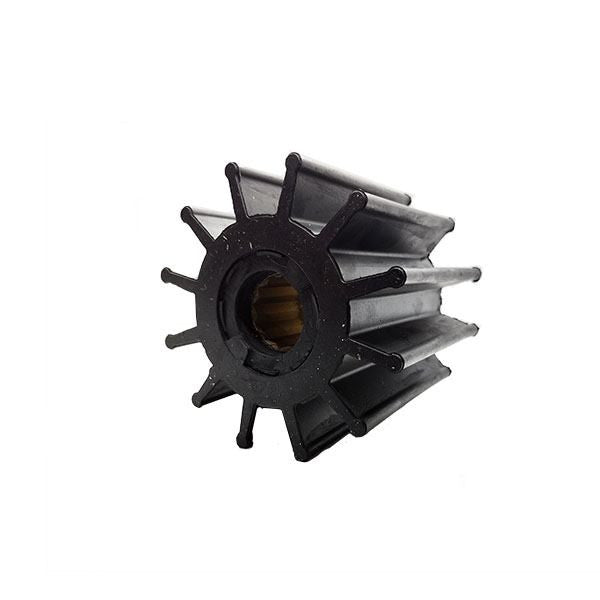

Jabsco 17936-0001-P Impeller replaces Volvo/Johnson

This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, a gasket and instructions for easy installation. This impeller is designed for use with CAT, DDA, MAN, Volvo, Perkins, and Johnson Systems

Replaces:

CAT

4L8470

DDA

5196168

5198550

8924839

Johnson

09-814B

Specifications:

Diameter: 3-3/4"

Width: 3-1/2"

Shaft Diameter: 1"

Drive Type: Spline Drive

Material: Neoprene

Blades: 12

Jabsco 17936-0001-P Impeller Installation Instructions

Remove screws, endcover, and gasket

Remove old impeller using Jabsco removal tool

Remove any debris from pump chamber

Lubricate inside pump wall and grease

Insert replacement impeller into impeller bore with a twisting motion

Fit replacement gasket and endcover

Tighten endcover

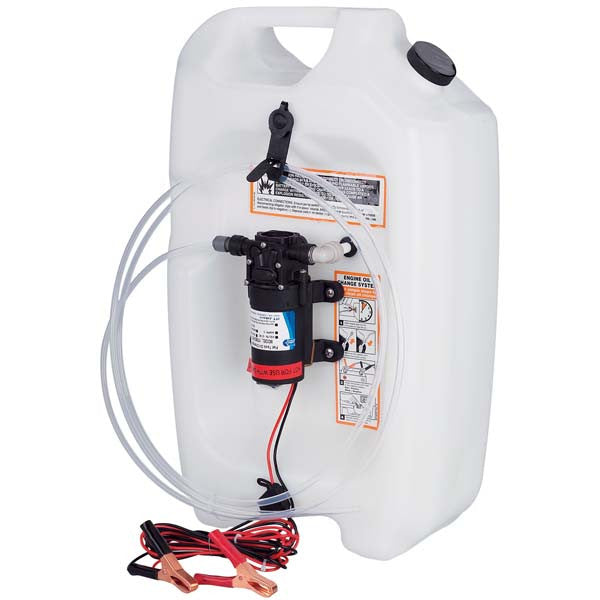

Jabsco Flat Tank Economy Premium Marine Oil Change System

This Jabsco Premium Marine Oil Change System simplifies the engine oil changing process. This compact self-contained unit has a self-priming diaphragm pump with a easy-pour spout and cap for emptying.  This marine oil change system draws oil through the dipstick using 12V of power. The unit stores easily and stands upright or lies flat. It works best when the oil is at operating temperature.

Features:

Self-Contained Unit

Self-Priming Run Dry Capable Diaphragm Pump

Easy-Pour Spout With Screw Cap

On-Off Switch For Easier Operation

Compact and Robust Tank Design

Easy Carry Handle

Stores Easily

0.4 Gallons Per Minute Output

3.5 Gallon (13 Liter) Capacity

12 Volt Only

Includes Dipstick Suction Tube, Battery Clamp Leads and An On/Off Switch and Handle

Frequently Asked Questions

• What is the Jabsco Flat Tank Economy Premium Marine Oil Change System used for? The Jabsco Flat Tank Economy Premium Marine Oil Change System is designed to simplify engine oil changes by drawing oil through the dipstick tube. Its self-contained design uses a 12V self-priming diaphragm pump and includes a tank for collecting the removed oil.
• How does the Jabsco Flat Tank Marine Oil Change System remove engine oil? The system draws engine oil through the dipstick using its 12V diaphragm pump. It works best when the oil is at operating temperature. The self-priming pump is also capable of running dry.
• What is the capacity of the Jabsco Flat Tank Marine Oil Change System? The tank has a 3.5-gallon (13-liter) capacity. Once the oil has been collected, the easy-pour spout with screw cap can be used to empty the tank.
• What is included with the Jabsco Flat Tank Economy Premium Marine Oil Change System? The system includes a dipstick suction tube, battery clamp leads, an on/off switch, and a carry handle. The unit also incorporates a self-priming diaphragm pump and an easy-pour spout with screw cap.
• What are the power and flow specifications of the Jabsco Flat Tank Marine Oil Change System? The Jabsco system operates on 12 volts and has an output of 0.4 gallons per minute. It includes an on/off switch for easier operation and uses a self-priming diaphragm pump.
• How can the Jabsco Flat Tank Marine Oil Change System be stored? The compact tank design is made for convenient storage. The unit can stand upright or lie flat, allowing it to be stored in different positions when not in use.

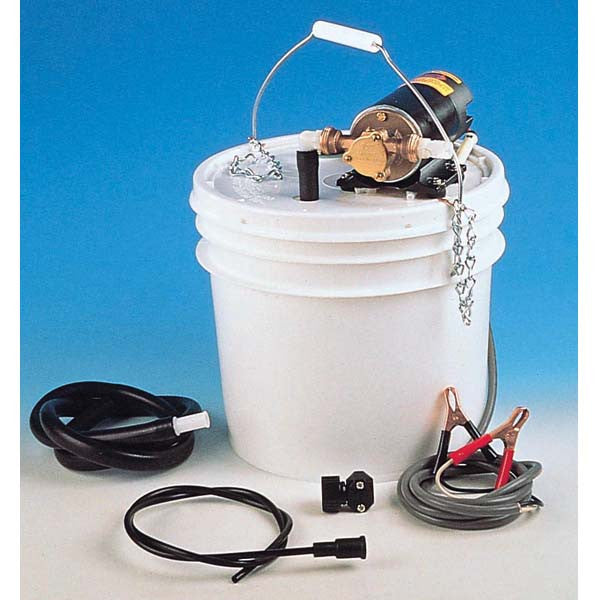

Jabsco 17800 Porta-Quick Portable Marine Oil Changer

The Jabsco Porta-Quick Portable Marine Oil Changer will provide quick and easy oil changes on board any boat. It will remove oil and sludge through the dip stick tube, eliminating the need to crawl under the engine. The reversible pump allows the container to be emptied neatly and easily by reversing the flow direction and pumping the container dry. This marine oil changer will drain the oil into the 14 quart holding container.

Features:

12V Power Supply

Sturdy Bronze Pump Head

14 Quart Capacity for 2 Engines

Reversible Pump

Retractable Pouring Spout 8' Cord

1/4" x 40" Dipstick Probe

Female Garden Hose Connector

One year limited warranty

Specifications:

Dimensions: 13-1/2" Diameter x 13-5/8" high

Weight: 9 lbs. (4.1 kg)

How to Use Jabsco Porta Quick Oil Changer

Run the engine approximately 5 minutes to heat oil (minimum oil temperature 140 Deg. F; maximum 185 Deg. F). Shut off engine prior to oil removal.

Push the 1/2" suction hose onto the pump inlet hose fitting. Position one hose clamp on the end and tighten to secure the hose to the hose barb.

If using the 1/4" dipstick probe (instead of the Female Garden Hose Connector):

Insert the probe into the 1/4" x 1/2" (approximately 1" long) rubber bushing until the end of the probe and the bushing are flush with each other.

Slide the hose clamp over the end of the 1/2" hose and position the end of the plastic probe, with bushing attached, in the end of the suction hose.

Slide the hose clamp so it will be approximately centered over the probe/hose bushing.

With pliers, squeeze it together very tightly to affect a positive airtight seal.

If using the Female Garden Hose Fitting:

Install it onto the end of the 1/2" suction hose by inserting the 1/2" barb fitting into the hose.

Secure it by screwing together the two halves of the plastic clamp on the hose at the position of the barb

Clamp the power cord alligator clips (red to positive and black to negative) to the terminals of an appropriate voltage battery.

Note: Failure to use proper size fuse in power cord fuse holder may cause motor damage and void warranty

If using the 1/4" dipstick probe, insert it into the dipstick tube until it hits the bottom of the pan. If it is not obvious when the probe hits the bottom of the pan, it may be helpful to measure the distance from the top of the dipstick tube to the bottom of the pan and mark this length on the probe with a piece of tape. Once the probe has hit the bottom of the pan, pull it back up about 1/8" - 1/4" and hold the probe in that position or secure it with some tape during the oil removal process.

The pump is reversible so it can pump oil in either direction. The switch (at rear of motor) has two "on" positions when it is moved to either side of center with the center position being the "off" position. To remove oil from the engine, move the switch in the direction of required flow. If using the 1/4" probe, watch for oil flowing through it. If oil does not appear in about 10 seconds, check the probe for possible sediment blockage and remove if present.

The motor will overspeed when the oil has been pumped out of the engine. Switch off the pump immediately to avoid impeller damage. Do not leave the pump unattended while pumping oil from the engine. Normal 6 quart pump-out takes less than 3 minutes.

After all the oil has been removed from the engine, disconnect the alligator clips from the battery and carefully remove the dipstick probe from the dipstick tube.

Click to Download Jabsco Porta Quick Oil Changer User Manual

Frequently Asked Questions

• What is the Jabsco 17800 Porta-Quick Portable Marine Oil Changer used for? The Jabsco 17800 Porta-Quick Portable Marine Oil Changer is designed to remove oil and sludge from boat engines through the dipstick tube. Its 12V reversible pump transfers used oil into the 14-quart holding container, helping simplify on…

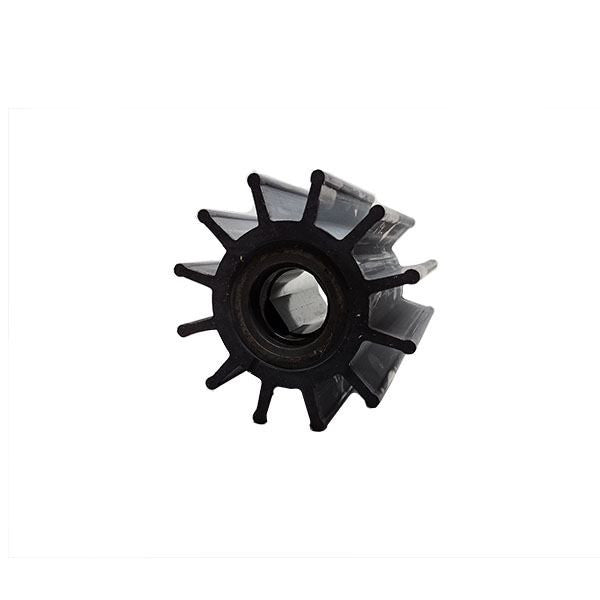

Jabsco 17370-0001-P Impeller replaces Cummins 3008503

This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, a gasket and instructions for easy installation.

Replaces:

DDA

8927570

Cummins

3008503

CAT

3N-4859

Specifications:

Diameter: 3-3/4"

Width: 3-1/2"

Shaft Diameter: 1"

Drive Type: Double Flat

Material: Neoprene

Blades: 12

Jabsco 17370-0001-P Impeller Installation Instructions

Remove screws, endcover, and gasket

Remove old impeller using Jabsco removal tool

Remove any debris from pump chamber

Lubricate inside pump wall and grease

Insert replacement impeller into impeller bore with a twisting motion

Fit replacement gasket and endcover

Tighten endcover

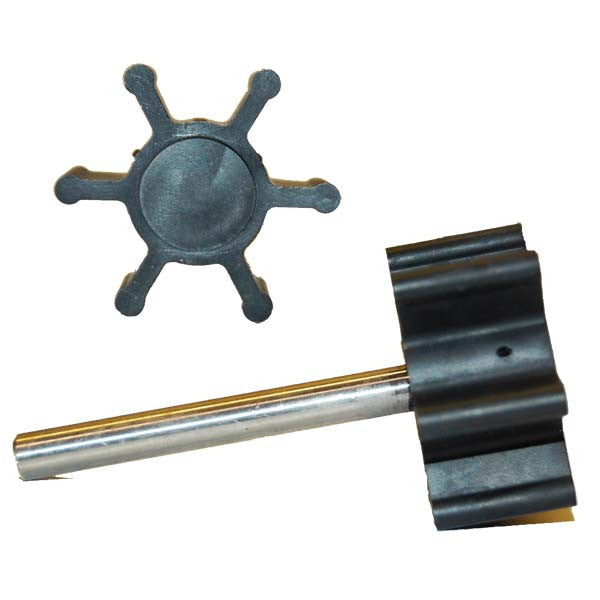

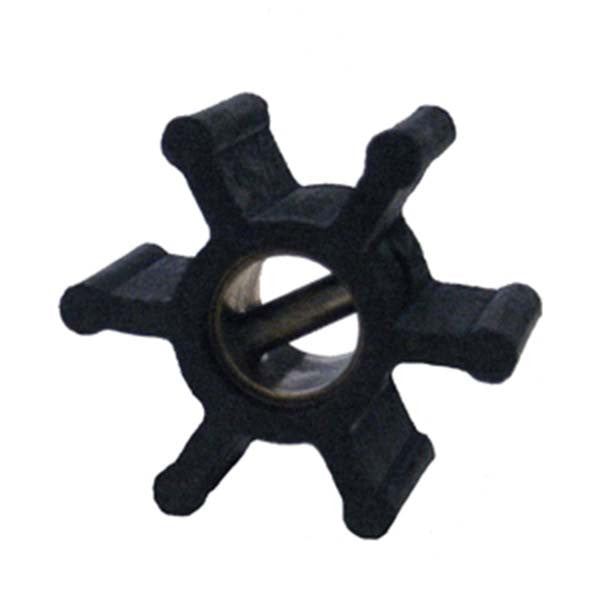

Jabsco Drill Pump Impeller

This Jabsco Drill Pump Impeller is a profile D replacement nitrile impeller with a molded on shaft. With 6 blades, this impeller is expertly crafted from premium materials and is designed to match rigorous quality standards. Its nitrile material construction allows for extreme durability and long lasting use.

Features:

Molded On Shaft

6 Blades

Nitrile Material Construction

Expertly Crafted From Premium Materials

Designed To Match Rigorous Quality Standards

Specifications:

Width: 3/4" (19mm)

Overall Diameter: 1-9/16"

Shaft Diameter: 1/4"

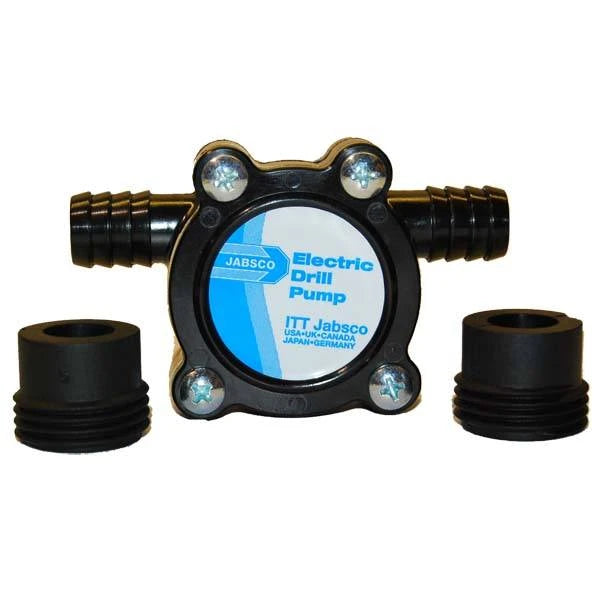

Jabsco Electric Drill Pump

This Jabsco electric drill pump provides an extremely versatile means of transferring fluid almost anywhere an electric drill can be operated. It will provide easy powered pumping anywhere a hand utility pump might be used. This drill pump includes two 3/4" garden hose thread port adapters and can be used for general utility pumping, scavenging jobs and many uses around boats, homes, plants, shops or farms.

Features:

Self-Priming To 3'

1/4" Diameter Shaft

Pumps Up To 3-1/2 gpm

Versatile

Easy Power Pumping

Used With Either 1/4" or 3/8" Chuck

Includes Two 3/4" Garden Hose Thread Port Adapters

Specifications:

Dimensions: 3-5/16" L x 3-1/2" W x 2-3/16" H

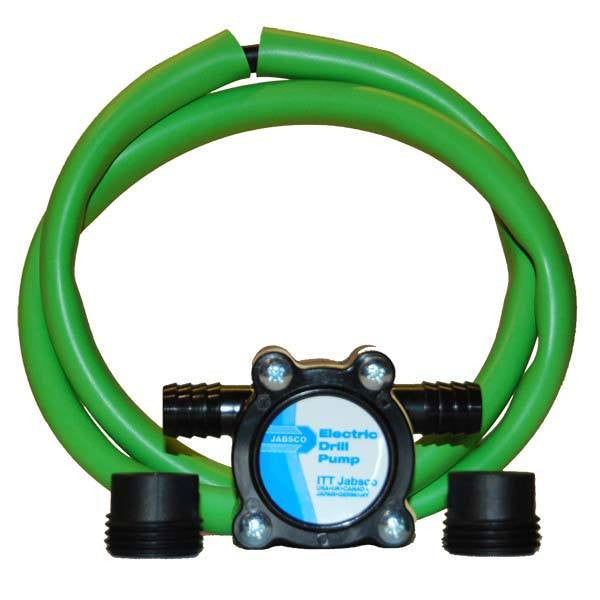

Jabsco Marine Oil Change Drill Pump Kit

This Jabsco marine oil change drill pump kit will provide a means of transferring fluid anywhere an electric drill with 1/4" to 3/8" chuck can be operated. This kit can be used to remove standing water, fill a bucket or basin, or change the oil in your boat. This self-priming, efficient and versatile drill pump kit includes a drain hose, a suction tube and garden hose thread port adapters.

Features:

Easy Powered Pumping Almost Anywhere A Hand Utility Pump Might Be Used

Self Priming To 3'

Supplied With 3/4" Garden Hose Thread Port Adapters

1/4" Diameter Shaft

Provides Means Of Transferring Fluid Anywhere An Electric Drill With 1/4" To 3/8" Chuck Can Be Operated

Pumps Up To 3-1/2 GPM

Includes Drain Hose and Suction Tube

Specifications:

Drill Pump Size:

Length: 3-5/16"

Width: 3-1/2"

Height: 2-3/16"

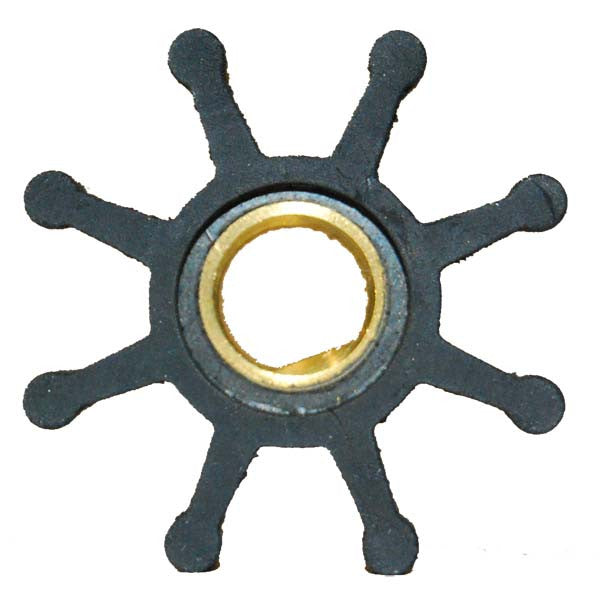

Jabsco 8-Blade Impeller

This Jabsco 8-Blade Impeller will fit a variety of pumps in marine applications including marine engine water pumps and bilge pumps and will offer compatibility with oil products. It handles a wide range of oils, oil and water emulsions, diesel fuel, lower fraction hydrocarbons, kerosene, lubricating and machine cutting oil. Spare water pump impellers for the engine coolant system should be kept on board.

It is common practice to inspect and replace flexible impellers annually as preventative maintenance against pump failure. Neoprene construction is suitable for engine cooling pumps and nitrile for bilge pumps or transfer duties where water is heavily contaminated with oil or diesel.

Features:

Nitrile Impeller Material For Pumping Oil Or Transferring Heavily Contaminated Water

Insert/Hub Material Brass

Single Flat Drive

8 Blade

Includes Gasket, O-Rings, and Glycerin Lubricating Packet

Specifications:

Width: 15-32" (12mm)

Shaft Diameter of 5/16" (8mm)

Overall Diameter of 1-1/4" (32mm)

Frequently Asked Questions

• What is the Jabsco 8-Blade Impeller used for? The Jabsco 8-Blade Impeller is designed for a variety of marine pump applications, including marine engine water pumps and bilge pumps. Its nitrile construction is suitable for pumping oil or transferring water that is heavily contaminated with oil or diesel.
• What fluids can the Jabsco 8-Blade Impeller handle? This impeller is compatible with a range of fluids, including oils, oil and water emulsions, diesel fuel, lower fraction hydrocarbons, kerosene, lubricating oil, and machine cutting oil.
• What are the dimensions of the Jabsco 8-Blade Impeller? The Jabsco 8-Blade Impeller has an overall diameter of 1-1/4 inches (32 mm), a shaft diameter of 5/16 inch (8 mm), and a width listed as 15-32 inch (12 mm).
• What material is the Jabsco 8-Blade Impeller made from? The Jabsco 8-Blade Impeller uses nitrile material and has a brass insert or hub. Its single flat drive and 8-blade design are intended for the specified marine pump applications.
• What is included with the Jabsco 8-Blade Impeller? The Jabsco 8-Blade Impeller includes a gasket, O-rings, and a glycerin lubricating packet, providing the listed components needed with the impeller.
• How often should flexible pump impellers be inspected or replaced? It is common practice to inspect and replace flexible impellers annually as preventative maintenance against pump failure. The product description also recommends keeping spare water pump impellers on board for engine coolant system applications.

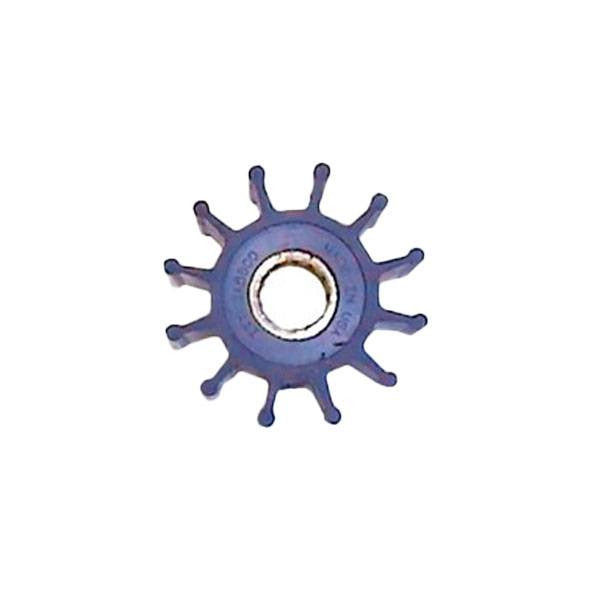

Jabsco Impeller and Gasket Kit

This impeller and gasket kit from Jabsco comes included with a spline plug.
