Jabsco Electric Toilet/12V Small Bowl

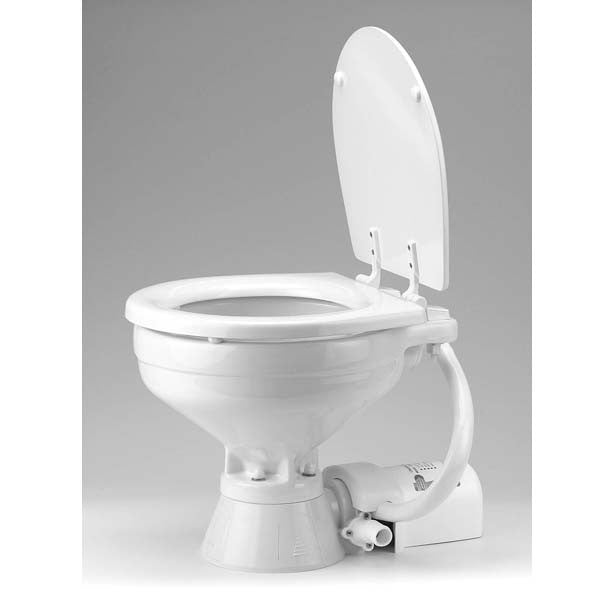

Jabsco Compact 12V Electric Marine Toilet

The Jabsco Compact Electric Marine Toilet is a traditional-style electric toilet with a compact white vitreous china bowl. This toilet is hygienic and easy to clean. Features an ergonomically designed seat lid and baked enamel seat. Stainless steel and bronze fastenings deliver reliable service and are corrosion resistant. The permanent magnet type motor is fully enclosed with a stainless steel shaft. The Jabsco toilet may be installed above or below the waterline and the flush pump is self-priming.

Features:

Flexible impeller flush pump

Permanent magnet type motor, fully enclosed, with stainless steel shaft

Flushing pump self-priming up to 6ft (1.9m) vertical lift.

High-capacity macerator and bowl scavenger pump

May be mounted 3ft (1m) below the waterline.

Built-in back flow preventer

Equally suitable for overboard or holding tank discharge.

All corrosion resistant material for marine use

Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection).

Base assembly may be moved 90° to accommodate connections and provide accessibility for servicing.

Specifications:

13 7/8" wide x 17 5/8" deep x 14" high

Voltage: 12 VDC

Frequently Asked Questions

• What is the Jabsco Compact 12V Electric Marine Toilet designed for? The Jabsco Compact 12V Electric Marine Toilet is a traditional-style electric marine toilet with a compact white vitreous china bowl. It is designed for marine use and can discharge either overboard or to a holding tank.
• How does the Jabsco Compact Electric Marine Toilet flush? The Jabsco Compact Electric Marine Toilet uses a flexible impeller flush pump and a high-capacity macerator and bowl scavenger pump. The flushing pump is self-priming up to 6 feet (1.9m) of vertical lift.
• Can the Jabsco Compact Electric Marine Toilet be installed below the waterline? Yes. The Jabsco Compact Electric Marine Toilet may be mounted 3 feet (1m) below the waterline. The product description also states that the toilet may be installed above or below the waterline.
• What materials and construction features does the Jabsco Compact Electric Marine Toilet have? The toilet has a compact white vitreous china bowl, an ergonomically designed seat lid, and a baked enamel seat. Stainless steel and bronze fastenings provide corrosion-resistant construction, while the fully enclosed permanent magnet motor has a stainless steel shaft.
• Does the Jabsco Compact Electric Marine Toilet have backflow protection? Yes. The Jabsco Compact Electric Marine Toilet includes a built-in backflow preventer. Its flushing pump is also self-priming, with a listed vertical lift capability of up to 6 feet (1.9m).
• What are the dimensions and voltage of the Jabsco Compact Electric Marine Toilet? The Jabsco Compact Electric Marine Toilet measures 13 7/8 inches wide, 17 5/8 inches deep, and 14 inches high. It operates on 12 VDC.
• Can the base assembly of the Jabsco Compact Electric Marine Toilet be repositioned? Yes. The base assembly can be moved 90 degrees to accommodate connections and provide accessibility for servicing. The toilet is also made with corrosion-resistant materials for marine use.
