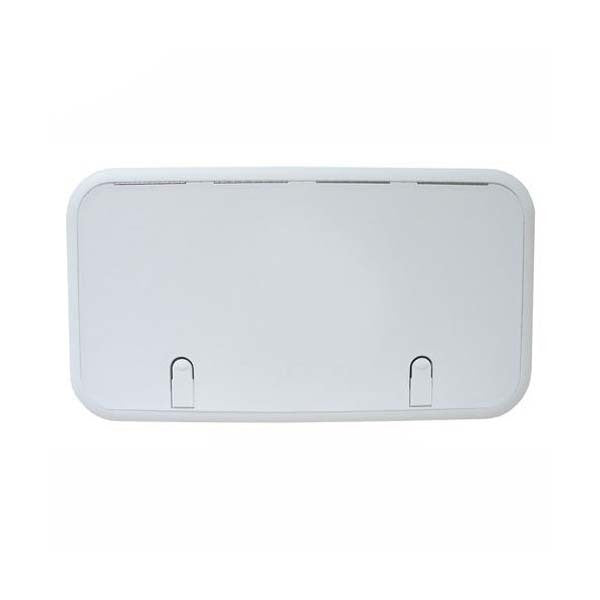

T-H Marine Designer Series Access Hatches

T-H Marine Designer Series Non-Locking Access Hatches - Polar White

Designer Series is T-H Marine's most attractive, strongest, and most functional hatch design ever. Features tapered edges and hidden fasteners for that finished look.

Cam Style Locks hold Lid Securely

Positive Lid Seal for Water Tight Fit

Hidden Fasteners in Frame

Stainless Steel Hinges allow Full 180 Degree opening

Structurally Engineered "Walk On" Lids

Sizes for All Uses - Vertical or Horizontal

Height Above Deck: 5/8"

Color: Polar White

Dimensions:

• HDS-0714-2DP

Outside Dimensions: 7-1/2" x 14-1/4"

Inside Dimensions: 4-5/8" x 11-1/4"

Cut-Out: 5-1/8" x 11-7/8"

HDS-1115-2DP

Outside Dimensions: 11" x 15"

Inside Dimensions: 7-5/8" x 11-5/8"

Cut-Out: 8-1/4" x 12-1/8"

HDS-1119-2DP

Outside Dimensions: 10-7/8" x 18-7/8"

Inside Dimensions: 7-5/8" x 15-1/2"

Cut-Out: 8-1/4" x 16-1/8"

HDS-1324-2DP

Outside Dimensions: 12-7/8" x 23-3/4"

Inside Dimensions: 9-5/8" x 20-1/2"

Cut-Out: 10-1/8" x 21-1/8"

Frequently Asked Questions

• What are T-H Marine Designer Series Non-Locking Access Hatches used for? T-H Marine Designer Series Non-Locking Access Hatches provide access through boat decks and can be installed vertically or horizontally. They feature structurally engineered "walk on" lids, positive lid seals, hidden fasteners, and stainless steel hinges that allow the lid to open 180 degrees.
• Do T-H Marine Designer Series Access Hatches have a watertight seal? Yes. These access hatches feature a positive lid seal designed to provide a water tight fit. Cam style locks also hold the lid securely closed.
• Can you walk on the lid of a T-H Marine Designer Series Access Hatch? Yes. The lids are structurally engineered as "walk on" lids. The hatches are available in multiple sizes for different uses and can be installed vertically or horizontally.
• What sizes are available for T-H Marine Designer Series Access Hatches? The available models include HDS-0714-2DP, HDS-1115-2DP, HDS-1119-2DP, and HDS-1324-2DP. Outside dimensions range from 7-1/2" x 14-1/4" to 12-7/8" x 23-3/4", depending on the model.
• What are the cut-out dimensions for T-H Marine Designer Series Access Hatches? Cut-out dimensions vary by model. The HDS-0714-2DP requires a 5-1/8" x 11-7/8" cut-out, while the HDS-1115-2DP, HDS-1119-2DP, and HDS-1324-2DP require cut-outs of 8-1/4" x 12-1/8", 8-1/4" x 16-1/8", and 10-1/8" x 21-1/8", respectively.
• What color and height above deck are these T-H Marine access hatches? The T-H Marine Designer Series Non-Locking Access Hatches are Polar White and have a height above deck of 5/8".
