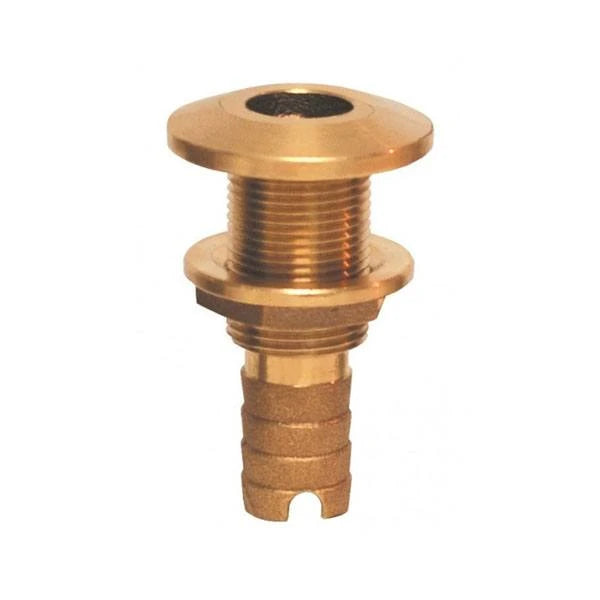

Groco Bronze Thru-Hull Fitting

Groco Bronze Hose Thru-Hull Fitting

Groco bronze thru-hull fittings are constructed of durable C83600 bronze and are available in a range of sizes.

NPS thread with hose connection

UL Listed 647B

Specifications:

Part Number

Thread NPS

Hose ID

A

B

C

D

E

Weight

HTH-500

1/2"

1/2"

2.7"

0.3"

1.7"

1.1"

1.3"

0.4 lbs.

HTH-625

3/4"

5/8"

2.7'"

0.3"

1.9"

1.1"

1.3"

0.6 lbs.

HTH-1000

1"

1"

2.8"

0.3"

2.3"

1.2"

1.3"

1.1 lbs.

HTH-1250

1-1/4"

1-1/4"

2.8"

0.3"

2.6"

1.1"

1.3"

1.2 lbs.

HTH-1500

1-1/2"

1-1/2"

2.8"

0.3"

2.9"

1.1"

1.3"

1.5 lbs.

Frequently Asked Questions

• What is the Groco Bronze Hose Thru-Hull Fitting used for? The Groco Bronze Hose Thru-Hull Fitting is a bronze thru-hull fitting with an NPS thread and hose connection. It is constructed from C83600 bronze and is available in multiple sizes to accommodate different NPS thread and hose ID requirements.
• What material is the Groco Bronze Hose Thru-Hull Fitting made from? The Groco Bronze Hose Thru-Hull Fitting is constructed from durable C83600 bronze. The fitting is also UL Listed 647B, as specified in the product description.
• What sizes are available for the Groco Bronze Hose Thru-Hull Fitting? The Groco Bronze Hose Thru-Hull Fitting is available with NPS thread sizes from 1/2" through 1-1/2". Hose ID options range from 1/2" to 1-1/2", depending on the specific part number.
• Which Groco Bronze Hose Thru-Hull Fitting has a 3/4" NPS thread? The Groco HTH-625 has a 3/4" NPS thread and a 5/8" hose ID. It has a listed weight of 0.6 lbs. and dimensions of 2.7" for A, 0.3" for B, 1.9" for C, 1.1" for D, and 1.3" for E.
• What are the thread and hose sizes for the Groco HTH-1000? The Groco HTH-1000 has a 1" NPS thread and a 1" hose ID. Its listed dimensions are 2.8" for A, 0.3" for B, 2.3" for C, 1.2" for D, and 1.3" for E, with a listed weight of 1.1 lbs.
• What should I verify before selecting a Groco Bronze Hose Thru-Hull Fitting? Verify the required NPS thread size and hose ID before selecting a fitting. Available combinations include 1/2" thread with 1/2" hose ID, 3/4" with 5/8", 1" with 1", 1-1/4" with 1-1/4", and 1-1/2" with 1-1/2".
