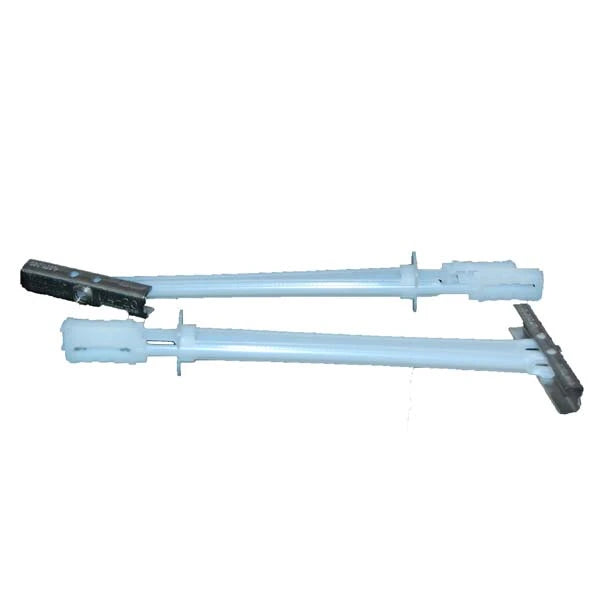

Garelick Stainless Steel Toggle Bolt Anchors - Package of 2

Positively secures seats and table bases to decks or any accessory to cabin walls. Made of 304 Stainless Steel. Saves time and labor - Provides added strength. Add reinforced safety and comfort to pedestal installations. Works with all Garelick Seat Pedestal Bases.

Specifications:

For deck or cabin thickness from 3/8" to 3 5/8"

Requires 1/2" (13mm) holes

2 each, 1/4"-20 size screws/bolts

Frequently Asked Questions

• What are Garelick Stainless Steel Toggle Bolt Anchors used for? Garelick Stainless Steel Toggle Bolt Anchors are designed to secure seats and table bases to decks or accessories to cabin walls. They can also add reinforcement to pedestal installations and work with all Garelick Seat Pedestal Bases.
• What are Garelick Toggle Bolt Anchors made from? These toggle bolt anchors are made from 304 stainless steel and are designed to provide added strength for seat pedestal and accessory installations.
• What deck or cabin thickness can these Garelick Toggle Bolt Anchors accommodate? The anchors are designed for deck or cabin thicknesses from 3/8" to 3-5/8", providing a range of installation options for compatible applications.
• What size hole is required to install Garelick Stainless Steel Toggle Bolt Anchors? Installation requires 1/2" (13mm) holes. The package includes two 1/4"-20 size screws or bolts.
• How many Garelick Stainless Steel Toggle Bolt Anchors are included? The package contains two 304 stainless steel toggle bolt anchors with two 1/4"-20 size screws or bolts.

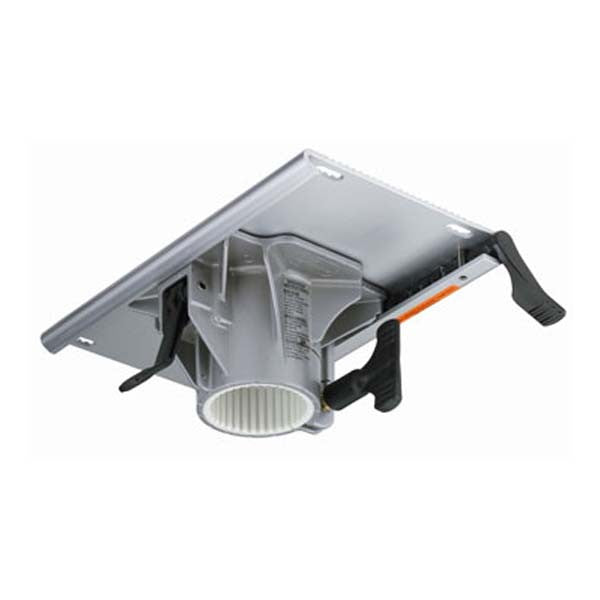

Garelick Millenium Series - Seat Slide System - Ribbed Series

Looking for a reliable seat slide system for your boat? The Garelick Millennium Series Ribbed Seat Slide delivers smooth, wobble-free performance with 6 inches of fore and aft travel. This low-profile design features heavy-duty anodized aluminum construction with a standard 5"x12" hole pattern for easy installation. The Positive Lock Spider rotates a full 360° with internal cup engagement at 10° increments, while the internal Delrin cup ensures gaul-free operation. Available in left- or right-hand operation with plain or powder coated finishes, this system meets ABYC-H31 Type A standards and includes all necessary retaining hardware.

Features:

Low profile design allows 360° of rotation and 6" of smooth, wobble-free fore and aft travel

Heavy duty anodized aluminum slide plate has standard 5"x12" hole pattern to accommodate standard seat mounting holes

Positive Lock Spider – rotates 360°, internal cup engages in 10° increments for positive stop lock (Secondary twist control offers variable drag adj. and can be tightened to lock in place)

Internal Delrin cup provides smooth, gaul-free operation.

Available in either left- or right-hand operation

Meets ABYC-H31, Type A Standards & Garelick performance standards

Includes retaining hardware (99302)

Plain or powder coated finish

Specifications:

20000 : Positive Lock Slider & Spider Combination Left Hand Lever Plain Finish

Installation Instructions

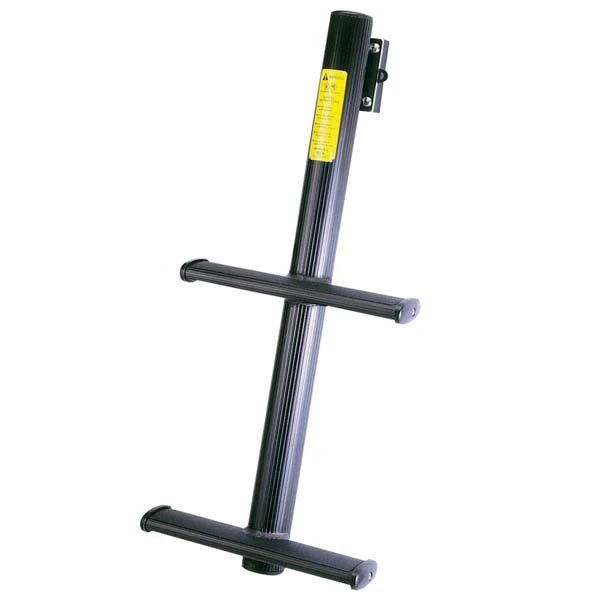

Garelick 2-Step Bass Boat Transom Ladder

Not only are bass boat ladders a convenience for boaters, it is also a great safety feature to have on your bass boat. Imagine an accident happening and you and your passengers ending up overboard. In the winter months, you are likely outfitted with foul weather gear that can weigh you down, trying to pull yourself back in the boat with no ladder would be nearly impossible. This is where a boat transom ladder could help. These ladders attach or hook to the stern of the boat and allow for easier re-entry back into the vessel.

The Garelick 2-Step Bass Boat Transom Ladder is a compact option with 2 steps and simply removed with its quick release mount. The steps are easy to climb and have textured treads for added safety. Installation is straightforward, and the bass boat ladder comes with hardware and brackets.

Features:

Compact 2-step for low transoms

Quick release mount for easy removal when fishing or underway

Easy to climb with textured treads

Measures 28" by 13" with 2.25" diameter center

Mounting hardware and bracket included

How to Mount a Garelick 2 Step Bass Boat Transom Ladder

Mounting Instructions

Choose the most suitable side of the  transom for mounting the bass boat ladder.

Locate a place on the transom where the ladder will mount and not interfere with the turning and lowering operation of your motor. Determine the actual waterline when the boat is at rest. Mark this location in both the horizontal and vertical direction

Locate the bass boat ladder on this mark and slide it up to the desired mounting height. It is optimal to have at least two steps in the water for ease of boarding.

Mark the ladder’s potion at the top of mounting bolt.

NOTE: This line will locate the top two holes for the mounting plate.

Check the inside of the transom where the mounting is proposed. Verify that there is ample space to install a backing plate (minimum size 4” x 5 ½”) that will support the ladder installation

A 4” x 5 ½” minimum flat area or the size of your backing plate is required for a secure installation.

NOTE: The backing plate should be made of either aluminum, marine plywood or some other suitable non-compressive material

Mark four mounting plate hole locations on your transom or transom extension bracket using the plate as your template.

NOTE: It may be necessary to make an external shim or modify the mounting substrate to achieve the proper ascent angle (5 to 10 degrees) for your ladder. Drill one 11/32” or 3/8” hole through your transom, noting the angle of the mounting substrate hole. These holes are perpendicular to the mounting face plate, not the transom. When drilling, this hole angle should be used to insure a proper installation. Place the mounting substrate and faceplate against the boat and loosely mount it with the hardware that you have selected for proper installation.

Level the bracket, mark and drill the next hole. Check the ladder for level, make adjustments if necessary and then drill the other two holes.

Loosen the mounting faceplate enough to install roll pin into the mounting substrate. Place the locking bar into the substrate.

NOTE: The notch in the bar faces down. Slide the locking bar’s operation to insure it slides back and stops.

Put a bead of adhesive caulk around the perimeter of the mounting holes and all edges of the mounting substrate, coat the bolt threads with anti-seize compound and secure the mounting substrate in place by tightening all four mounting bolts.

Mount securing clips at desired location with selected stainless steel hardware. This will insure that the ladder will not rotate or slide when boat is underway.

Safety:

Do not use when motor is running.

Information sourced from the Garelick Installation Instructions for Bass Boat Ladders Technical Data

Click to Download Garelick Bass Boat Transom Ladder Installati…

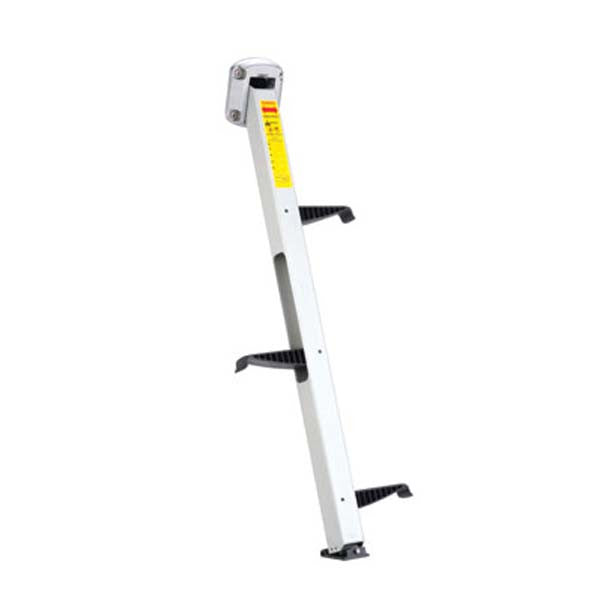

Garelick Compact EEz-In II Transom Ladder

Features:

Compact EEz-In II Transom Ladder

Helps provide Unassisted Re- boarding

Invisible, Quick & Easy and Readily Accessible

Complete ladder stows within transom and hull

3 steps open & close independently for ease of boarding

Quick release ring w/ self-locking latch deploys ladder from storage

Anodized aluminum channel body deploys out at 15 degree angle

Dimensions:

3 Step Compact Ladder - 32.5" (83 cm) length

2" (5cm) square channel body

transom mount plate 5"H x 4.5"W x 1" D (13 x 11 x 3 cm)

Mounting Instructions

HOW TO MOUNT GARELICK COMPACT EEZ-IN II TRANSOM LADDER

Mounting Instructions

Choose the most suitable side of your transom for mounting the ladder. Locate a flat surface (4 ½” wide x 5” high) where the ladder will not interfere with the turning of the motor or be excessively close to the propeller of your boat.

Make sure that the location will be a minimum of 4” ABOVE the waterline at the bottom of the faceplate/assembly and in an area where there are NO electrical wires, hydraulic hoses, water hoses or steering cables.

Check to see that the transom area is sufficiently strong enough to support the ladder while it is in use. If necessary, a backing plate may need to be installed to reinforce the area.

Drill a 3” diameter hole in the transom, making sure it is parallel to the waterline.

Place the ladder assembly into the hole and mark the four faceplate mounting hole’s locations.

Drill the holes for appropriate 5/16” diameter hardware (not included).

NOTE: It is preferred to through-bolt the assembly for a secure installation (use locknuts and backing washers)

Caulk the entire area to be mounted and insert the ladder. Secure in place with the selected mounting hardware.

Secure the far end of the ladder to the boat with a strap or some other means to keep the ladder tube in place (not provided as all installations may vary).

Maintenance:

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain lustre and help reduce corrosion.

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Safety:

Never operate your boat with the ladder in “down” position. Serious injury or damage to your boat or ladder may result.

Information sourced from the Garelick 19700 Series Invisible Ladder

Installation Instructions

Frequently Asked Questions

• What is the Garelick Compact EEz-In II Transom Ladder used for? The Garelick Compact EEz-In II Transom Ladder is designed to provide unassisted re-boarding from the water. Its three steps open and close independently, while the complete ladder stores within the transom and hull for quick access when boarding is needed.
• How does the Garelick Compact EEz-In II Transom Ladder deploy? A quick-release ring with a self-locking latch deploys the ladder from its stored position. The anodized aluminum channel body extends outward at a 15-degree angle, providing access to the three-step ladder for re-boarding.
• What are the dimensions of the Garelick Compact EEz-In II Transom Ladder? The three-step Compact EEz-In II ladder is 32.5 inches (83 cm) long and uses a 2-inch (5 cm) square channel body. The transom mount plate measures 5 inches high by 4.5 inches wide by 1 inch deep.
• What should I check before mounting the Garelick Compact EEz-In II Transom Ladder? Choose a flat transom surface measuring at least 4.5 inches wide by 5 inches high, with the bottom of the faceplate at least 4 inches above the waterline. Make sure the ladder will not interfere with motor turning or be excessively close to the propeller, and verify that the area contains no electrical wires, hydraulic hoses, water hoses, or steering cables.
• What mounting hardware is required for the Garelick Compact EEz-In II Transom Ladder? The mounting instructions call for holes sized for approp…

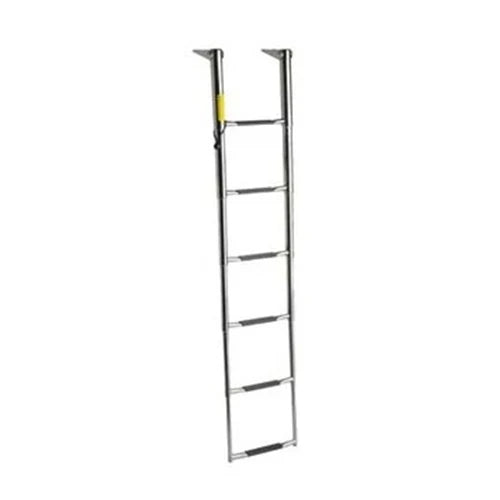

Garelick Over-Platform 6 Step Wide Telescoping Ladder

The Garelick Over-Platform 6 Step Wide Telescoping Ladder is designed with a wide body and extra length to make it easier and more comfortable to use. This ladder is for larger boat installations at the transom platform. The steps fold over onto the platform for compact stowing. Nylon brushings between ladder sections provide precision sliding and prevents inadvertent deployment when flipping ladder body into the water.

Features:

Two extra steps in the water adds 24" length

6 Steps fold out and over, telescope down easily

Flat poly treads for increased comfort and traction

Heavy duty 6" folding gudgeons for easy mounting

Bungee cord securing strap included

Specifications:

6 Steps

Length Deployed: 67.5"

Length Stowed: 19.75"

Overall Height: 2.25"

Length of Gudgeons: 6"

Weight Limit: 400 lbs.

Frequently Asked Questions

• What is the Garelick Over-Platform 6 Step Wide Telescoping Ladder designed for? The Garelick Over-Platform 6 Step Wide Telescoping Ladder is designed for larger boat installations at the transom platform. Its wide body and extra length provide a more comfortable boarding ladder, while the steps fold over onto the platform for compact stowing.
• How does the Garelick Over-Platform 6 Step Wide Telescoping Ladder telescope and stow? The six steps fold out and over the platform and telescope down easily when the ladder is deployed. When stowed, the steps fold back onto the platform, reducing the ladder to a 19.75" stowed length.
• How long is the Garelick Over-Platform 6 Step Wide Telescoping Ladder when deployed? The Garelick Over-Platform 6 Step Wide Telescoping Ladder has a deployed length of 67.5". Two extra steps in the water add 24" of length, providing additional reach for larger boat transom platform installations.
• What features help make the Garelick 6 Step Wide Telescoping Ladder easier to use? The ladder features flat poly treads for increased comfort and traction, along with heavy-duty 6" folding gudgeons for mounting. Nylon bushings between ladder sections provide precision sliding and help prevent inadvertent deployment when the ladder body is flipped into the water.
• What is the weight capacity of the Garelick Over-Platform 6 Step Wide Telescoping Ladder? The Garelick Over-Platform 6 Step Wide Telescoping Ladder has a weight limit of 400 lbs. It includes a bungee cord securing strap to help secure the ladder when it is stowed.
• What are the dimensions of the Garelick Over-Platform 6 Step Wide Telescoping Ladder? The ladder has six steps, a 67.5" deployed length, a 19.75" stowed length, and an overall height of 2.25". The folding gudgeons are 6" long, and the ladder has a 400-lb. weight limit.

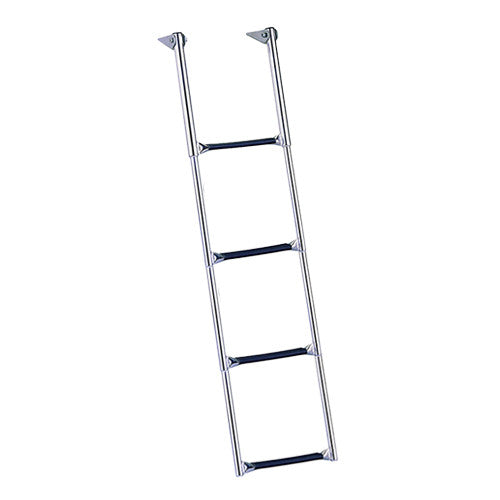

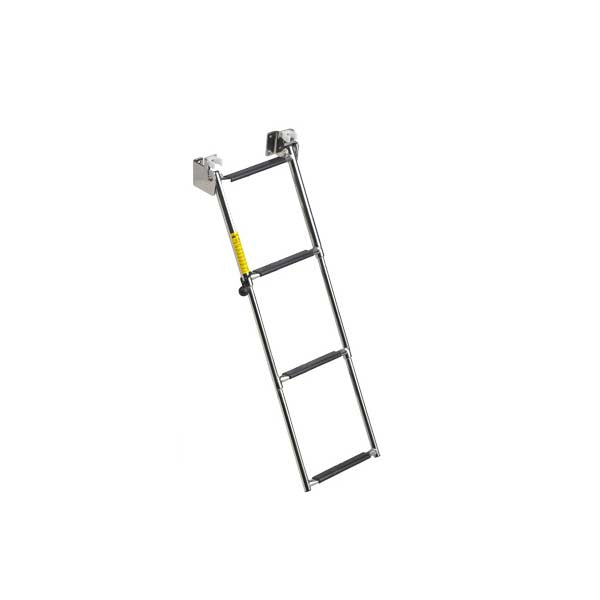

Garelick Telescoping 4-Step Transom Ladder

The Garelick Telescoping 4-Step Transom Ladder is designed to allow for boarding at transom. This ladder mounts directly on the transom and telescopes into the water.

Self-locking brackets hold ladder secure against transom

4 Steps allow for comfortable angled step up access under water line

Bungee cord securing strap included

Nylon bushings between ladder sections provide smooth deployment

Specifications:

304 stainless steel - rated to 400 lbs.

Length Deployed: 34.5"

Length Stowed: 14.5"

Overall Height: 1.5"

Overall Width: 12"

Installation Instructions

Frequently Asked Questions

• What is the Garelick Telescoping 4-Step Transom Ladder used for? The Garelick Telescoping 4-Step Transom Ladder is designed for boarding at the transom. It mounts directly to the transom and telescopes into the water, with four angled steps that provide access below the waterline.
• How does the Garelick Telescoping 4-Step Transom Ladder deploy? The ladder telescopes into the water from its transom-mounted position. Nylon bushings between the ladder sections provide smooth deployment, while self-locking brackets hold the ladder securely against the transom.
• What is the weight capacity of the Garelick Telescoping 4-Step Transom Ladder? The Garelick Telescoping 4-Step Transom Ladder is made from 304 stainless steel and is rated for a boarding weight of up to 400 pounds.
• Does the Garelick Telescoping 4-Step Transom Ladder include a securing strap? Yes. A bungee cord securing strap is included with the Garelick Telescoping 4-Step Transom Ladder. The ladder also features self-locking brackets that hold it securely against the transom.
• What are the dimensions of the Garelick Telescoping 4-Step Transom Ladder? The Garelick Telescoping 4-Step Transom Ladder measures 34.5 inches when deployed and 14.5 inches when stowed. It has an overall height of 1.5 inches and an overall width of 12 inches.
• How many steps does the Garelick Telescoping Transom Ladder have? The Garelick Telescoping Transom Ladder has four steps. The steps provide comfortable angled access below the waterline when the ladder is telescoped into the water.

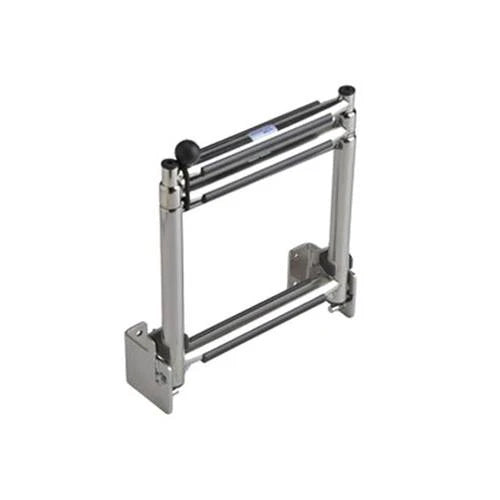

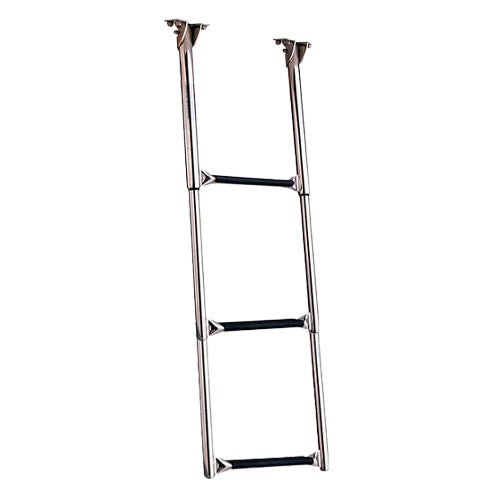

Garelick Telescoping 3-Step Transom Ladder

The Garelick Telescoping 3-Step Transom Ladder is designed to allow for boarding at transom. This ladder mounts directly on the transom and telescopes into the water.

Features:

Self-locking brackets hold ladder secure against transom

Bungee cord securing strap included

Nylon bushings between ladder sections provide smooth deployment

Specifications:

304 stainless steel - rated to 400 lbs.

Length Deployed: 23.5"

Length Stowed: 14.75"

Overall Height: 1.5"

Overall Width: 12"

Frequently Asked Questions

• What is the Garelick Telescoping 3-Step Transom Ladder used for? The Garelick Telescoping 3-Step Transom Ladder is designed for boarding at the transom. It mounts directly to the transom and telescopes into the water, providing three steps for access when boarding from the water.
• How does the Garelick Telescoping 3-Step Transom Ladder deploy? The ladder telescopes into the water from its transom-mounted position. Nylon bushings between the ladder sections provide smooth deployment, while self-locking brackets hold the ladder securely against the transom.
• What is the weight capacity of the Garelick Telescoping 3-Step Transom Ladder? The Garelick Telescoping 3-Step Transom Ladder is constructed from 304 stainless steel and is rated for a boarding weight of up to 400 pounds.
• Does the Garelick Telescoping 3-Step Transom Ladder include a securing strap? Yes. A bungee cord securing strap is included with the Garelick Telescoping 3-Step Transom Ladder. The ladder also features self-locking brackets that hold it securely against the transom.
• What are the dimensions of the Garelick Telescoping 3-Step Transom Ladder? The Garelick Telescoping 3-Step Transom Ladder measures 23.5 inches when deployed and 14.75 inches when stowed. It has an overall height of 1.5 inches and an overall width of 12 inches.
• How many steps does the Garelick Telescoping Transom Ladder have? The Garelick Telescoping Transom Ladder has three steps. The ladder mounts directly to the transom and telescopes into the water for boarding access.

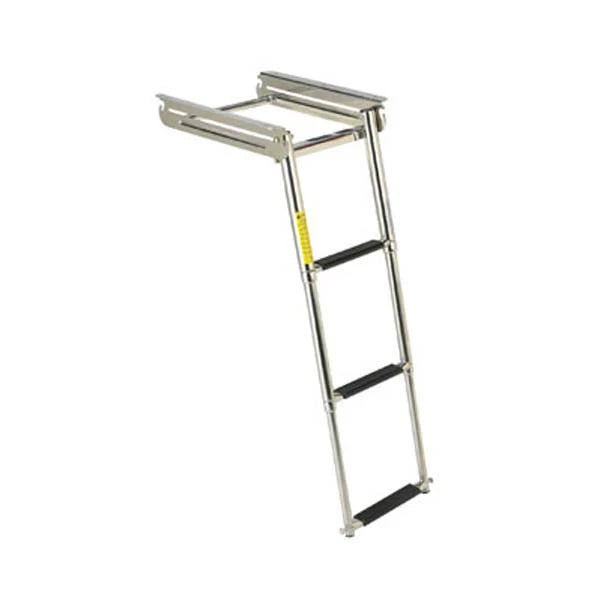

Garelick Under Platform Sliding Ladder

The Garelick Under Platform Sliding Ladder is a durable, convenient ladder that is designed for under platform use. This ladder stows easily and compactly within its own length when not in use. The spring-loaded locking mechanism secures the ladder when stowed. Constructed of stainless steel, the Garelick Sliding Ladder is rated for up to 400 lbs.

Features:

Ideal for under swim platforms or under the deck on bow or side of pontoon boats

Ladder stows compactly within its own length

Spring loaded self-locking for stowage

Flat poly treads for increased comfort

Stainless steel construction

Specifications:

Step Count: 3

Overall Height/Width: 3", 11.5"

Deployed Length: 33.5"

Stowed Length: 16"

Support Frame Dimensions: 15.85" L x 13.88" W

Mounting Holes: (3) 1/4" mount holes on each side; 6" spacing

Stainless Steel - rated to 400 lbs.

Click to Download Garelick Under Platform Sliding Ladder Installation Instructions

Frequently Asked Questions

• What is the Garelick Under Platform Sliding Ladder used for? The Garelick Under Platform Sliding Ladder is designed for under-platform applications, including under swim platforms or beneath the deck on the bow or side of pontoon boats. Its sliding design allows the ladder to stow compactly within its own length when not in use.
• How does the Garelick Under Platform Sliding Ladder stay secured when stowed? The Garelick Under Platform Sliding Ladder uses a spring-loaded, self-locking mechanism to secure the ladder in its stowed position. The ladder is designed to stow compactly within its own length for convenient storage.
• What is the Garelick Under Platform Sliding Ladder made of? The Garelick Under Platform Sliding Ladder is constructed of stainless steel and features flat poly treads designed for increased comfort.
• How much weight can the Garelick Under Platform Sliding Ladder support? The Garelick Under Platform Sliding Ladder is rated for up to 400 lbs.
• What are the dimensions of the Garelick Under Platform Sliding Ladder? The 3-step ladder has an overall height/width of 3" x 11.5", a deployed length of 33.5", and a stowed length of 16". The support frame measures 15.85" L x 13.88" W.
• What are the mounting hole specifications for the Garelick Under Platform Sliding Ladder? The Garelick Under Platform Sliding Ladder has three 1/4" mounting holes on each side, for a total of six mounting holes. The mounting holes have 6" spacing.

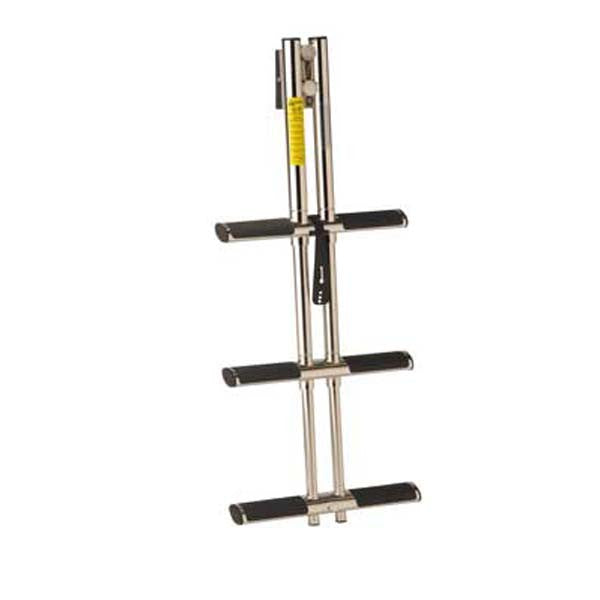

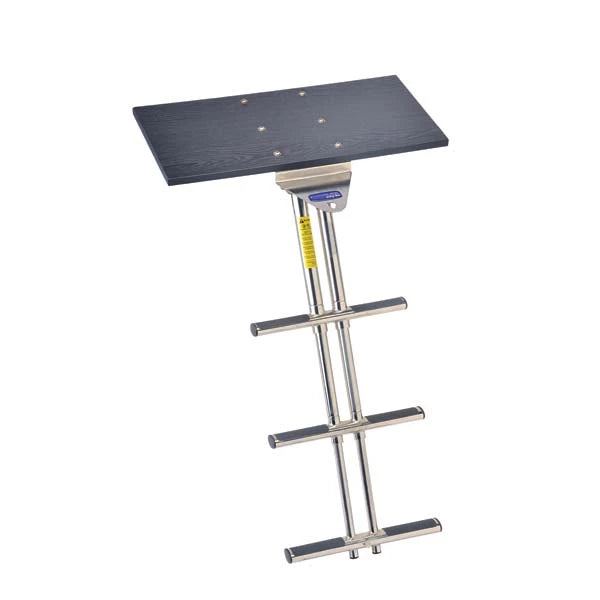

Garelick Under Platform Double Tube Telescoping Dive Ladder

Unique design - 30 degree angle for ease of use

Electropolished stainless steel

Dual vertical telescoping tube body

Smooth slide with nylon bushing between ladder sections prevent galling and inadvertent deployment

Oval shaped steps with non-skid surface for comfort

Made in the USA

Specifications:

• 3 step, 31 1/2" (80cm) deployed, 16 1/2" (42cm) stowed, platform sliding gudgeon: 11 1/4" (29cm), width: 7" (18cm) wide x 11 1/4" deep; Ladder step width: 13 1/4"
• Frequently Asked Questions
• What is the Garelick Under Platform Double Tube Telescoping Dive Ladder used for? The Garelick Under Platform Double Tube Telescoping Dive Ladder is designed to provide access from a boat platform into the water. Its 30-degree angle is designed for ease of use, while the telescoping design allows the ladder to extend when needed and stow under the platform.
• How does the Garelick Under Platform Double Tube Telescoping Dive Ladder telescope? The ladder features a dual vertical telescoping tube body with nylon bushings between the ladder sections. The bushings provide a smooth slide and help prevent galling and inadvertent deployment.
• What is the Garelick Under Platform Double Tube Telescoping Dive Ladder made from? The Garelick Under Platform Double Tube Telescoping Dive Ladder is made from electropolished stainless steel and manufactured in the USA. Its oval-shaped steps feature a non-skid surface for comfort.
• What are the dimensions of the Garelick Under Platform Double Tube Telescoping Dive Ladder? The 3-step ladder measures 31-1/2" when deployed and 16-1/2" when stowed. The platform sliding gudgeon measures 11-1/4", the mounting area is 7" wide by 11-1/4" deep, and the ladder step width is 13-1/4".

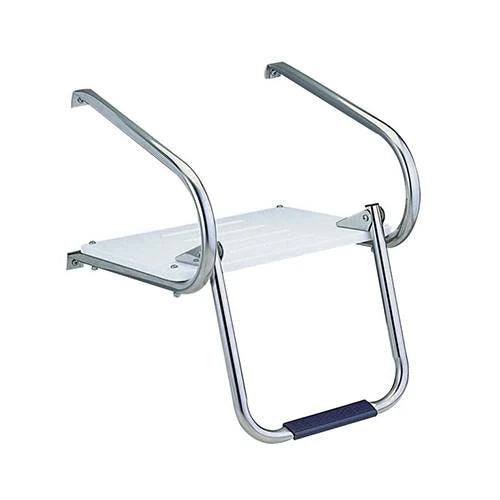

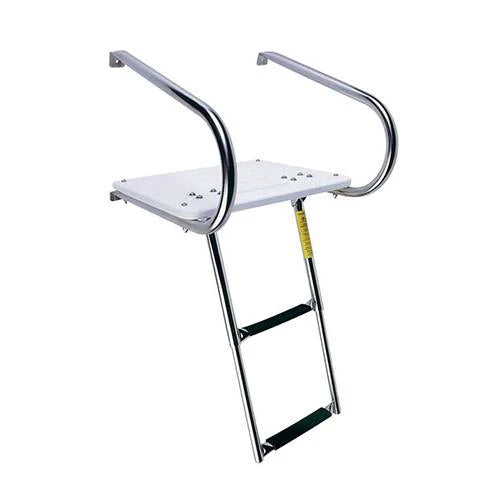

Garelick I-O Swim Platform with Telescope Ladder

Features:

For use on Inboard/Outboard transoms

Stainless steel wrap-around 1" diameter rails

Mounts at a 10° angle on transom

Durable, high density, white polyethylene platform (18"W X 15-1/2"D X 3/4"H)

Rail Height 12-1/2" above and below platform

Electropolished stainless steel 2 step ladder

Ladder steps telescope down easily

Poly comfort steps

Stainless steel hardware

Length deployed: 22-3/4"

Length stowed: 17" Overall height: 5" Width: 13.5"

Mounting Instructions:

Mount hand rails to platform by inserting 4 bolts through holes in platform. Secure with 4 locknuts.

Mount SS strut 22” by inserting bolt through hole and secure with locknut.

Mount SS strut 11” by inserting two bolts through holes and secure with 1 locknut.

Choose most suitable side of transom for mounting platform. Turn motor unit as far as possible to that side. Make a line on the transom indicating motor unit’s full extension to that side.

Position platform away from drawn line at desired mounting location, parallel to the water line, and mark 4 mounting holes through flattened ends of rails and/or struts onto the transom.

Drill four marked holes with a bit compatible with selected fasteners (fasteners not provided). Hold drill perpendicular to transom when drilling.

If transom is less than 2” thick, it is recommended that a backing plate be mounted on the inside of transom.

NOTE: The backing plate should be made of either aluminum, marine plywood or some other suitable non-compressive material.

Coat the mounting surfaces of the rails and/or struts with a marine grade adhesive/caulking compound; squeeze a small amount into mounting holes in transom. Insert selected bolts through holes and secure in position with suitable fasteners.

Maintenance:

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain luster and help prevent corrosion.

Information sourced from Garelick Assembly Instructions for Platforms Technical Data

Installation Instructions

Retaining Strap Installation Instructions

Frequently Asked Questions

• What is the Garelick I-O Swim Platform with Telescope Ladder designed for? The Garelick I-O Swim Platform with Telescope Ladder is designed for use on inboard/outboard transoms. It includes a durable white polyethylene platform, stainless steel wrap-around rails, and a two-step electropolished stainless steel ladder that telescopes down for use.
• What are the dimensions of the Garelick I-O Swim Platform? The white polyethylene platform measures 18" wide by 15-1/2" deep by 3/4" high. The platform mounts at a 10° angle on the transom, and the stainless steel rails extend 12-1/2" above and below the platform.
• How does the telescope ladder on the Garelick I-O Swim Platform work? The stainless steel two-step ladder telescopes down easily when needed. Its deployed length is 22-3/4", while its stowed length is 17". The ladder also features poly comfort steps.
• What hardware is included with the Garelick I-O Swim Platform? The swim platform includes stainless steel hardware for assembling the platform, rails, and struts. Fasteners for mounting the completed platform to the transom are not provided and must be selected to suit the installation.
• How should the Garelick I-O Swim Platform be mounted to an inboard/outboard transom? Position the platform at the desired location, parallel to the water line, and mark the four transom mounting holes. Drill the holes perpendicular to the transom, then use marine-grade adhesive or caulking on the mounting surfaces and holes before securing the platform with suitable fasteners. If the transom is less than 2" thick, a suitable non-compressive backing plate is recommended.
• How should the Garelick I-O Swim Platform be maintained? Periodically check the mou…

Garelick I-O Swim Platform with Fold Down Ladder

White polyethylene platform for use on inboard/outboard transom. Two, 1" diameter stainless steel wrap around rails. Durable platform is easy to clean. Mounts at 10° angle on transom. Includes stainless steel hardware. Dimensions: 18" wide x 15.5" deep x 1.5" thick. Rail height is 12.5" above platform. Comes with one step fold down ladder, 13"L x 14.5"W

Assembly Instructions:

Mount hand rails to platform by inserting 4 bolts through holes in platform. Secure with 4 locknuts.

Mount SS strut 22” by inserting bolt through hole and secure with locknut.

Mount SS strut 11” by inserting two bolts through holes and secure with 1 locknut.

Choose most suitable side of transom for mounting platform. Turn motor unit as far as possible to that side. Make a line on the transom indicating motor unit’s full extension to that side.

Position platform away from drawn line at desired mounting location, parallel to the water line, and mark 4 mounting holes through flattened ends of rails and/or struts onto the transom.

Drill four marked holes with a bit compatible with selected fasteners (fasteners not provided). Hold drill perpendicular to transom when drilling.

If transom is less than 2” thick, it is recommended that a backing plate be mounted on the inside of transom.

NOTE: The backing plate should be made of either aluminum, marine plywood or some other suitable non-compressive material.

Coat the mounting surfaces of the rails and/or struts with a marine grade adhesive/caulking compound; squeeze a small amount into mounting holes in transom. Insert selected bolts through holes and secure in position with suitable fasteners.

Maintenance:

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain luster and help prevent corrosion.

Information sourced from Garelick Assembly Instructions for Platforms Technical Data

Installation Instructions

Garelick Transom Platform w/ Telescoping Ladder

Features:

Durable HDPE platform is pre-drilled for easy assembly

Mounts at 10 degree angle on transom

Ladder steps telescope down easily

Ladder slides up and over platform for stowage

Flat poly treads for extra comfort

One stainless rail and one underside support rail (both 1" (3cm) diameter, reversible)

Dimensions:

18" W x 15.5" D x .75" T (46x39x2cm)

Height above platform: 12.5" (32cm)

2 steps Length deployed: 22.75" (58cm)

Length stowed: 17" (43cm)

Overall height: 5" (13cm)

Width: 13.5" (34cm)

Installation Instructions

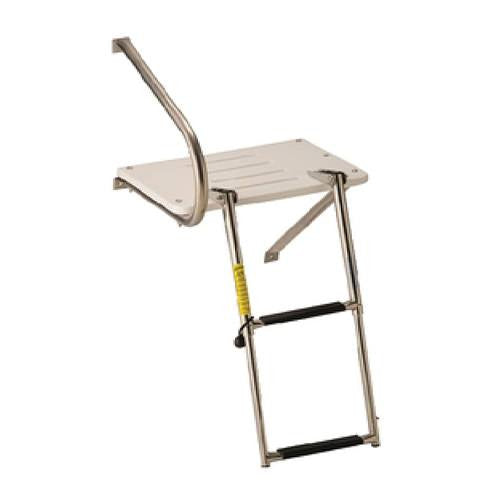

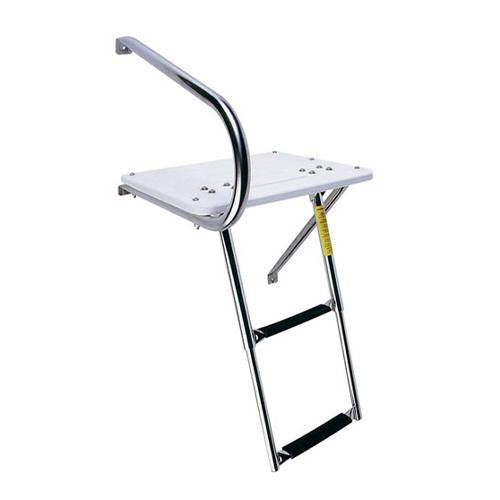

Garelick Outboard Transom Platform w/Telescoping Ladder

Features:

One stainless wraparound rail and one underside support rail (both 1" (3cm) diameter, Reversible)

Durable HDPE platform is pre-drilled for easy assembly

With 2 Step Telescoping Ladder. Overall: 18" Wide x 19" Deep. Height above and below platform: 11.5".

Ladder: Length deployed: 23.5", Length stowed: 13.5", Width: 11.25". Platform Only: 18" Wide x 15" Deep x .75" Tall

Mounts at 10 degree angle on transom

Ladder Steps telescope down easily

Ladder slides up and under platform for stowage

Flat Poly treads for extra comfort

Instructions:

After determining which side of the platform is most suitable for the handrail, mount it to the platform using 2 bolts through holes in platform. Secure with 2 locknuts.

Mount SS strut 22” by inserting bolt through hole and secure with locknut.

Mount SS strut 11” by inserting two bolts through holes and secure with 1 locknut.

Choose most suitable side of transom for mounting platform. Turn motor unit as far as possible to that side. Make a line on the transom indicating motor unit’s full extension to that side.

Position platform away from drawn line at desired mounting location, parallel to the water line, and mark 4 mounting holes through flattened ends of rails and/or struts onto the transom.

Drill four marked holes with a bit compatible with selected fasteners (fasteners not provided). Hold drill perpendicular to transom when drilling.

If transom is less than 2” thick, it is recommended that a backing plate be mounted on the inside of transom.

NOTE: The backing plate should be made of either aluminum, marine plywood or some other suitable non-compressive material.

Coat the mounting surfaces of the rails and/or struts with a marine grade adhesive/caulking compound; squeeze a small amount into mounting holes in transom. Insert selected bolts through holes and secure in position with suitable fasteners.

Maintenance:

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain luster and help prevent corrosion.

Information sourced from Garelick Assembly Instructions for Platforms Technical Data

Installation Instructions

Retaining Strap Installation Instructions

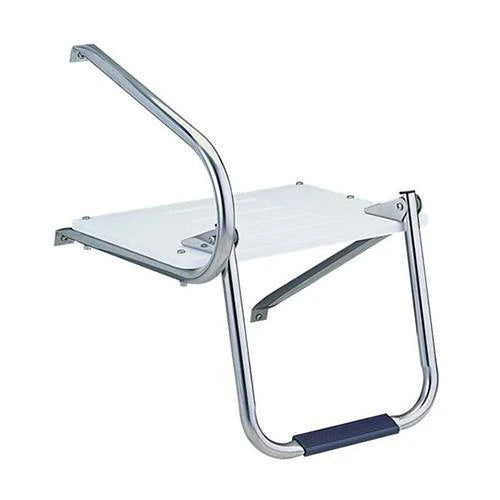

Garelick Outboard Swim Platform with Fold Down Ladder

Features:

For use on outboard transoms

One stainless wrap around rail and one underside support rail, reversible

Mounts at 10 degree angle on transom

Durable HDPE platform is pre-drilled for easy assembly

Stainless Steel hardware

1" (3cm) diameter stainless steel

Instructions:

After determining which side of the platform is most suitable for the handrail, mount it to the platform using 2 bolts through holes in platform. Secure with 2 locknuts.

Mount SS strut 22” by inserting bolt through hole and secure with locknut.

Mount SS strut 11” by inserting two bolts through holes and secure with 1 locknut.

Choose most suitable side of transom for mounting platform. Turn motor unit as far as possible to that side. Make a line on the transom indicating motor unit’s full extension to that side.

Position platform away from drawn line at desired mounting location, parallel to the water line, and mark 4 mounting holes through flattened ends of rails and/or struts onto the transom.

Drill four marked holes with a bit compatible with selected fasteners (fasteners not provided). Hold drill perpendicular to transom when drilling.

If transom is less than 2” thick, it is recommended that a backing plate be mounted on the inside of transom.

NOTE: The backing plate should be made of either aluminum, marine plywood or some other suitable non-compressive material.

Coat the mounting surfaces of the rails and/or struts with a marine grade adhesive/caulking compound; squeeze a small amount into mounting holes in transom. Insert selected bolts through holes and secure in position with suitable fasteners.

Maintenance:

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain luster and help prevent corrosion.

Information sourced from Garelick Assembly Instructions for Platforms Technical Data

Installation Instructions

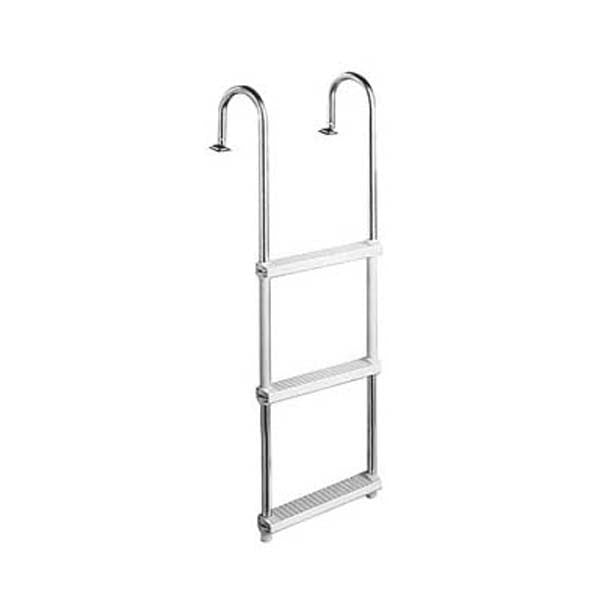

Garelick Pontoon Swim Ladder

Features:

For use at pontoon side gate or transom

Attaches easily to deck with included Shur-loc catches (76000)

Vinyl sleeves on verticals protect pontoon

Hooks fold flat for stowage

Durable 1" (3cm) diameter Anodized aluminum tube.

Comfortable white traction molded poly steps.

Shur-loc catch brackets (76000) allow for permanent or removable mounting.

Dimensions:

3 step, L 36” (91cm), W 15” (38cm)

4 step, L 50” (127cm), W 15” (38cm)

Mounting Instructions

HOW TO MOUNT GARELICK PONTOON SWIM LADDER

Mounting Instructions:

This ladder was designed to be mounted on the pontoon at the side gate.

Slip ladder catches onto ends of both ladder hooks. Position and mark four mounting holes on boat deck.

Secure ladder catches in position by drilling eight holes with a 9/64” drill bit and using screws.

Note: Larger opening must face away from ladder and rubber gasket must be inside catch for proper operation.

Attach ladder to boat by inserting hooks of ladder into large opening of catch slot. Slide ladder down.

Make certain that ladder hangs perpendicular to water surface.

Vinyl sleeves between first and second step on verticals are intended to abut pontoon and cushion ladder.

To remove ladder, slide up and then pull out of catch. Hooks fold flat for easy stowage.

Safety:

Do not use ladder when the boat’s motor is running.

Information sourced from Garelick Mounting Instructions for Swimming Ladder Model 15240

Installation Instructions

Garelick Premium Folding Pontoon Transom Boarding Ladder

Permanent mount at transom, ideally at stern gate door

Folds down for easy boarding

Comfortable black countour traction molded steps extra deep for added step surface (5" x 12")

Durable 1" (3 cm) diameter anodized aluminum tube

Includes securing clip, and second step abuts end of pontoon log

250 lb. capacity

Made in the USA

Specifications:

• 2 - 4 step, Fold Down L: 14" + 32" (36 + 81 cm), OL: 46" (117 cm), 16" (41 cm), Dimensions from deck to second step: 12" (30 cm)
• Frequently Asked Questions
• What is the Garelick Premium Folding Pontoon Transom Boarding Ladder used for? The Garelick Premium Folding Pontoon Transom Boarding Ladder is designed for permanent mounting at the transom of a pontoon boat, ideally near the stern gate door. It folds down to provide access for boarding and features extra-deep traction-molded steps for added step surface.
• How does the Garelick Premium Folding Pontoon Transom Boarding Ladder fold for storage? The Garelick Premium Folding Pontoon Transom Boarding Ladder folds down when boarding is needed. A securing clip is included, and the ladder's second step abuts the end of the pontoon log as part of its installation design.
• What are the steps like on the Garelick Premium Folding Pontoon Transom Boarding Ladder? The ladder features comfortable black contour traction-molded steps with an extra-deep 5" x 12" step surface. The design provides additional space on each step for boarding from the transom.
• What is the Garelick Premium Folding Pontoon Transom Boarding Ladder made from? The Garelick Premium Folding Pontoon Transom Boarding Ladder is constructed from durable 1" diameter anodized aluminum tubing. It is made in the USA and has a 250-pound capacity.
• What are the dimensions of the Garelick Premium Folding Pontoon Transom Boarding Ladder? The 2-4 step model has a fold-down length of 14" + 32", an overall length of 46", and a width of 16". The distance from the deck to the second step is 12".

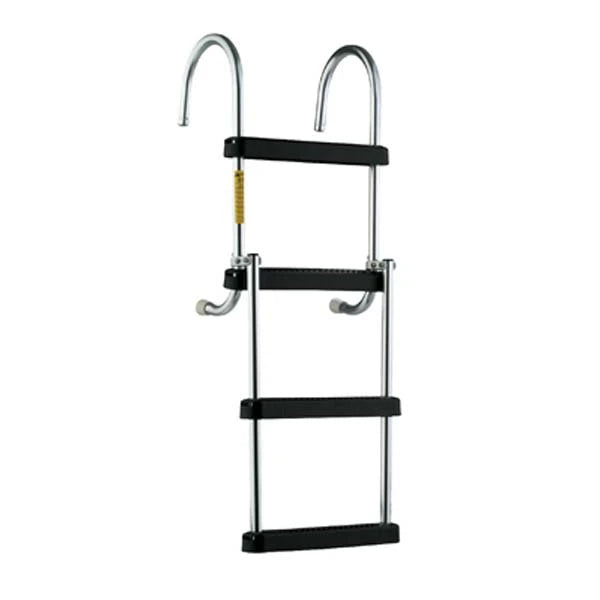

Garelick Removable Folding Pontoon Boarding Ladder w/ Deck Mounting Cups

Features:

Folds down to 4 steps; hooks fold and ladder stows in locker underneath furniture

Securing clip included

Sturdy design with overrail hooks for easy boarding

Lightweight anodized aluminum 1" (3cm) diameter resists corrosion

Attaches easily to deck at side gate for temporary or permanent mounting with black poly deck mounting cups

Comfortable contour black traction molded steps

250 lb. capacity

Includes deck mounting cups

Made in the U.S.A.

Deck Mounting Cups - For use with 12350-21 ladder

Deck Mounting Cups - UV resistant durable black poly

Dimensions:

4 step, Fold Down L: 30" + 13" (76cm + 33cm), W: 16" (4 1cm)

Mounting Instructions

HOW TO ASSEMBLE GARELICK REMOVABLE FOLDING PONTOON BOARDING LADDER W/ DECK MOUNTING CUPS

Assembly Instructions:

This ladder is designed to be mounted on the pontoon at the side gate.

Fold out hooks. Slip ladder catches onto ends of both ladder hooks.

Position and mark four mounting holes on deck surface.

NOTE: Make certain ladder standoffs are at or below the centerline of the pontoon floats.

Drill 8 marked holes with 1/8” diameter drill bit. Secure the ladder catch using the included screws.

NOTE: The rubber gasket must be inside catch for proper operation. Larger opening in catch must face away from the ladder and into the deck area.

Attach ladder to deck by inserting hooks into large opening in catch slot. Slide latch bolts down into slot.

Make certain ladder hands perpendicular to water surface. Ladder standoffs can be cut as necessary.

To cut standoffs, remove the rubber tips, cut to desired length, and reinstall tips.

Rubber tipped standoffs on ladder are intended to abut the pontoon float and cushion the ladder.

To remove ladder, slide up and then pull out of catches.

Maintenance:

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain luster and help prevent corrosion.

Safety:

This ladder is designed for boat use only

Never operate your boat with the ladder in positon. Serious injury or damage to your boat or ladder may result.

Information sourced from Garelick Pontoon Ladders Product Technical Information.

Frequently Asked Questions

• What is the Garelick Removable Folding Pontoon Boarding Ladder used for? The Garelick Removable Folding Pontoon Boarding Ladder is designed for boarding a pontoon boat at the side gate. It features overrail hooks and deck mounting cups that allow the ladder to be installed for temporary or permanent use.
• How does the Garelick Removable Folding Pontoon Boarding Ladder stow? The Garelick Removable Folding Pontoon Boarding Ladder folds down to four steps, while its hooks fold for compact storage. The ladder is designed to stow in a locker underneath the pontoon furniture, and a securing clip is included.
• What is the Garelick Removable Folding Pontoon Boarding Ladder made from? The Garelick Removable Folding Pontoon Boarding Ladder is constructed from lightweight anodized aluminum with a 1-inch diameter. It features contoured black traction-molded steps and has a 250-pound capacity.
• What are the deck mounting cups included with the Garelick Pontoon Ladder? The ladder includes black poly deck mounting cups designed for use with the 12350-21 ladder. The cups are made from durable, UV-resistant black poly and provide the deck mounting points for the removable ladder.
• How do you remove the Garelick Folding Pontoon Boarding Ladder? To remove the Garelick Removable Folding Pontoon Boarding Ladder, slide the ladder upward and then pull it out of the deck mounting catches. This allows the ladder to be removed when it is not needed.
• Are there any safety requirements for the Garelick Pontoon Boarding Ladder? The Garelick Removable Folding Pontoon Boarding Ladder is design…

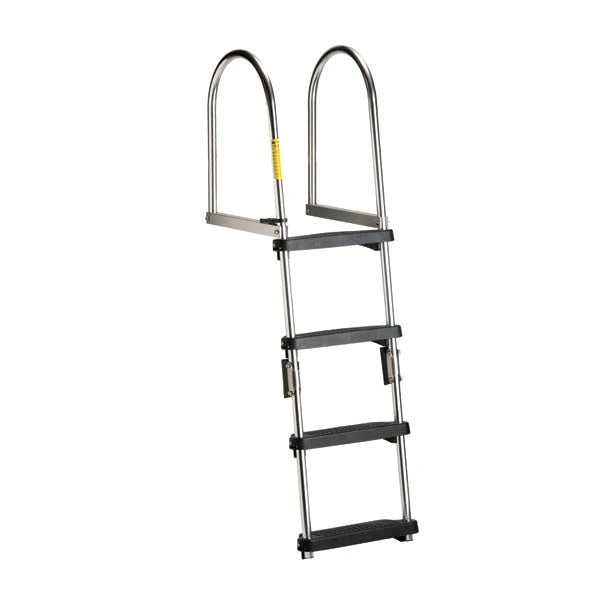

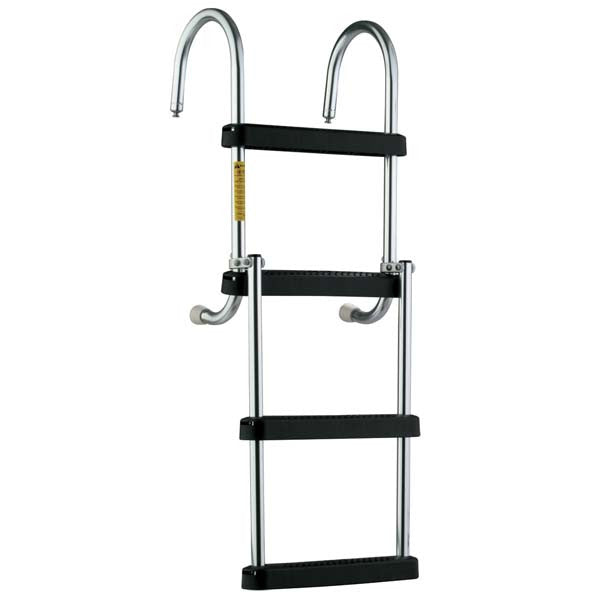

Garelick 2-4 Step Folding Pontoon Ladder

Folds down to 4 steps; hooks fold and ladder stows in locker underneath furniture

Securing strap included

Sturdy design with overrail hooks for easy boarding

Lightweight anodized aluminum 1" (3cm) diameter resists corrosion

Attaches easily to deck at Side Gate for temporary or permanent mounting with included Shur-Loc catches (76000)

Comfortable contour black traction molded steps

Mounting Instructions

HOW TO ASSEMBLE GARELICK 2-4 STEP FOLDING PONTOON LADDER

Assembly Instructions:

This ladder is designed to be mounted on the pontoon at the side gate.

Fold out hooks. Slip ladder catches onto ends of both ladder hooks.

Position and mark four mounting holes on deck surface.

NOTE: Make certain ladder standoffs are at or below the centerline of the pontoon floats.

Drill 8 marked holes with 1/8” diameter drill bit. Secure the ladder catch using the included screws.

NOTE: The rubber gasket must be inside catch for proper operation. Larger opening in catch must face away from the ladder and into the deck area.

Attach ladder to deck by inserting hooks into large opening in catch slot. Slide latch bolts down into slot.

Make certain ladder hands perpendicular to water surface. Ladder standoffs can be cut as necessary.

To cut standoffs, remove the rubber tips, cut to desired length, and reinstall tips.

Rubber tipped standoffs on ladder are intended to abut the pontoon float and cushion the ladder.

To remove ladder, slide up and then pull out of catches.

Maintenance:

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain luster and help prevent corrosion.

Safety:

This ladder is designed for boat use only

Never operate your boat with the ladder in positon. Serious injury or damage to your boat or ladder may result.

Information sourced from Garelick Pontoon Ladders Product Technical Information.

Frequently Asked Questions

• What is the Garelick 2-4 Step Folding Pontoon Ladder used for? The Garelick 2-4 Step Folding Pontoon Ladder is designed for boarding a pontoon boat at the side gate. It features overrail hooks and mounts to the deck with included Shur-Loc catches, allowing the ladder to be used for temporary or permanent installation.
• How does the Garelick 2-4 Step Folding Pontoon Ladder stow? The Garelick 2-4 Step Folding Pontoon Ladder folds down to four steps, and its hooks fold for compact storage. The ladder is designed to stow in the locker underneath pontoon furniture, with a securing strap included.
• What is the Garelick 2-4 Step Folding Pontoon Ladder made from? The Garelick 2-4 Step Folding Pontoon Ladder is made from lightweight anodized aluminum with a 1-inch diameter. It features contoured black traction-molded steps and rubber-tipped standoffs designed to cushion against the pontoon float.
• What is included with the Garelick 2-4 Step Folding Pontoon Ladder? The Garelick 2-4 Step Folding Pontoon Ladder includes Shur-Loc catches (76000), a securing strap, and mounting screws. The ladder also has overrail hooks and rubber-tipped standoffs for installation at the pontoon side gate.
• How do you install the Garelick Folding Pontoon Ladder? The ladder is mounted at the pontoon side gate by securing the included Shur-Loc catches to the deck and inserting the ladder hooks into the catch slots. The instructions specify using a 1/8-inch drill bit and positioning the ladder standoffs at or below the centerline of the pontoon floats.
• Are there any safety requirements for the Garelick Folding Pontoon Ladder? The Garelick 2-4 Step Folding Pontoon Ladder is designed for boat use only. The manufacturer instructions state that the boat should never be operated with the ladder in position because serious injury or damage to the boat or ladder may result.
