Sierra Fuel Lido Fog Resistant 2

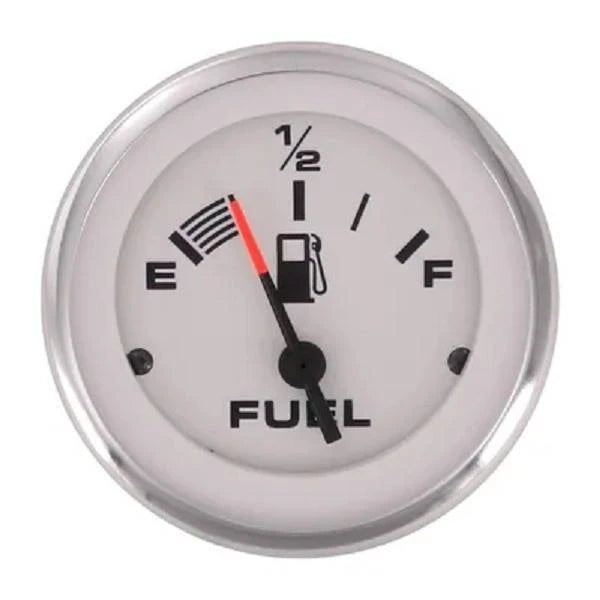

Sierra 59655P Lido Pro 2" Fuel Gauge

Features:

Size: 2"

Dial Range: E-1/2-F

Sender Code: Requires ''F''

White dial, black numerals, black pointer with fire-orange tip

Scratch resistant curved glass lens, with polished stainless steel, near-flush bezels

Optional add-on eyebrow or square bezels available (see Gauge Accessories for details)

White perimeter and red thru-dial lighting

Fog-Resistant Design! Complies with SAE J-1810

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP65

Bezel O.D.: 2.34

Housing O.D.: 2.08

Hole Size: 2.13

Frequently Asked Questions

• What is the Sierra 59655P Lido Pro 2" Fuel Gauge used for? The Sierra 59655P Lido Pro 2" Fuel Gauge is designed to display fuel level using an E-1/2-F dial range. It features a white dial, black numerals, and a black pointer with a fire-orange tip, along with white perimeter and red thru-dial lighting.
• What sender does the Sierra 59655P Lido Pro Fuel Gauge require? The Sierra 59655P requires a sender with an "F" sender code. Verify that the fuel sender in your application has the required "F" code before purchasing or installing this gauge.
• What are the mounting dimensions of the Sierra 59655P Fuel Gauge? The Sierra 59655P is a 2-inch gauge with a 2.34-inch bezel outside diameter, 2.08-inch housing outside diameter, and 2.13-inch hole size. Verify these dimensions against the available dash opening before installation.
• What are the electrical specifications for the Sierra 59655P Lido Pro Fuel Gauge? The Sierra 59655P operates at 12 VDC and has a current draw of 0.10-0.15 A. Its stated operating temperature range is -40C to +70C, and it has an IP65 ingress protection rating.
• Does the Sierra 59655P Fuel Gauge have a fog-resistant design? Yes. The Sierra 59655P features a fog-resistant design that complies with SAE J-1810. It also uses a scratch-resistant curved glass lens with a polished stainless steel, near-flush bezel.
• Can the Sierra 59655P Lido Pro Fuel Gauge use different bezel styles? Yes. Optional add-on eyebrow or square bezels are available for the Sierra 59655P. The product description directs customers to the Gauge Accessories for additional bezel details.
