Sierra Fuel Amega 2

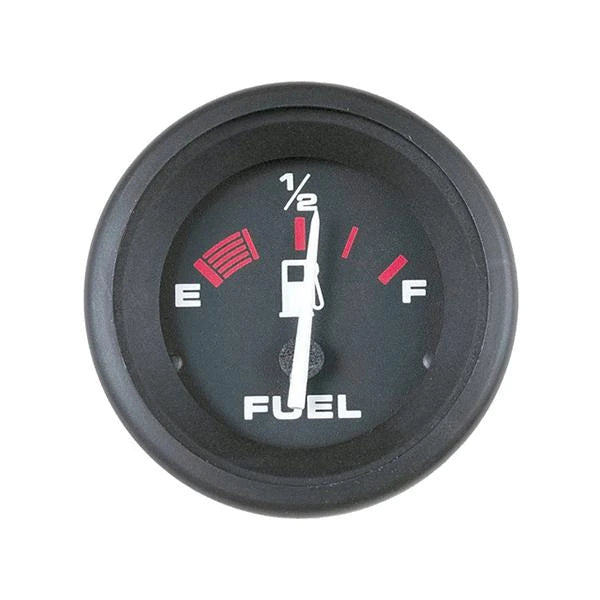

Sierra 57902P Amega Series Fuel Gauge

Hottest selling black dial line! Amega Domed has clean-looking black dials with white and red graphics plus through-dial and perimeter lighting for great readability. Amega has been very popular, available in several styles since its debut in 1986.

Features:

Black dial, red graduations, white numerals, vivid white pointer staff.

Scratch resistant curved glass lenses, with black, near-flush bezels.

U.S. and Metric Scales, with ISO symbols, where appropriate.

Perimeter and thru-dial lighting.

A comprehensive array of outboard water pressure instrument kits.

Optional add-on square bezels for modular appearance.

Specifications:

Dial Range: E-1/2-F

Size: 2"

Sender Code: Requires ''F''

Voltage: 12 VDC

Current Draw: 0.10 - 0.15 A

Operating Temperature: -40C to +70C

Ingress Protection: IP 65

Bezel O.D.: 2.39

Housing O.D.: 2.08

Hole Size: 2.13

Shop All Amega Series

Frequently Asked Questions

• What is the Sierra 57902P Amega Series Fuel Gauge used for? The Sierra 57902P Amega Series Fuel Gauge is a 2" fuel gauge with an E-1/2-F dial range. It features a black dial, white numerals, red graduations, and a vivid white pointer staff, along with perimeter and thru-dial lighting.
• What sender is required for the Sierra 57902P fuel gauge? The Sierra 57902P requires a sender with code "F". Verify that the sender in your application matches this specified sender code before using the fuel gauge.
• What are the dimensions of the Sierra 57902P Amega fuel gauge? The Sierra 57902P has a 2" size, a 2.39" bezel outside diameter, a 2.08" housing outside diameter, and a 2.13" required hole size. Verify these dimensions against your intended mounting location.
• Does the Sierra 57902P fuel gauge have lighting for nighttime readability? Yes. The Sierra 57902P features both perimeter and thru-dial lighting. Its black dial, white numerals, red graduations, and vivid white pointer staff are designed as part of the Amega Series appearance.
• What are the electrical requirements for the Sierra 57902P fuel gauge? The Sierra 57902P operates at 12 VDC and has a current draw of 0.10-0.15 A. Its specified operating temperature range is -40C to +70C, and its ingress protection rating is IP65.
• Does the Sierra 57902P fuel gauge use U.S. and metric scales? Yes. The Sierra 57902P features U.S. and metric scales, with ISO symbols where appropriate. It also has a scratch-resistant curved glass lens and a black, near-flush bezel.
