Dexter Axle A-60 Sgl Disc Inner Member Only

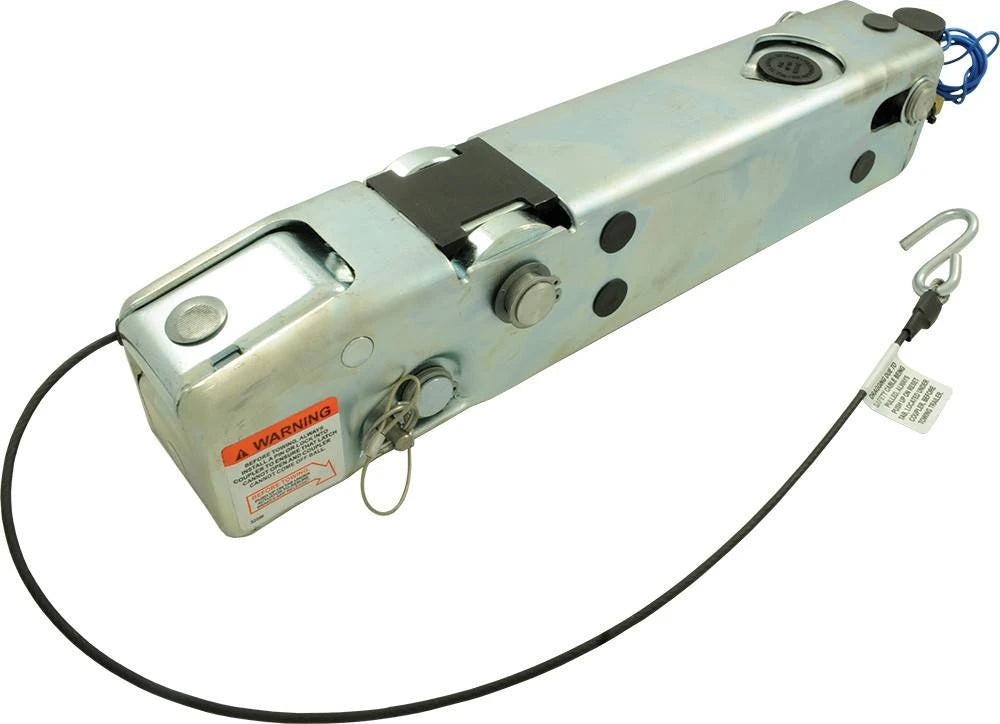

Dexter UFP DX7.5L A60 Disc Brake Surge Actuator - Single Axle Replaces UFP 47550

This UFP by Dexter disc brake surge actuator works by the "surge" or "push" of the trailer toward the tow vehicle. This automatically synchronizes the trailer brakes with the tow vehicle axle brakes. When the trailer pushes against the tow vehicle, the actuator telescopes together and applies the force to the master cylinder, supplying hydraulic pressure to the brakes.

Product Features:

UPF Model#: 34043

Capacity: 7,500 lbs

1 Axle Application

Fits 2" Hitch Balls

Aluminum Master Cylinder

Zinc Plated

Multiple Mounting Options

Integrated Reverse Solenoid

Frequently Asked Questions

• What is the Dexter UFP DX7.5L A60 Disc Brake Surge Actuator used for? The Dexter UFP DX7.5L A60 Disc Brake Surge Actuator is designed for single-axle trailer applications and automatically applies the trailer brakes when the trailer pushes against the tow vehicle. Its surge design transfers this force to the master cylinder to create hydraulic pressure for the brakes.
• What trailer capacity is the Dexter UFP DX7.5L A60 Disc Brake Surge Actuator rated for? The Dexter UFP DX7.5L A60 Disc Brake Surge Actuator has a 7,500-pound capacity and is designed for a 1-axle application. Verify that your trailer's requirements are within this specified capacity before installation.
• What size hitch ball does the Dexter UFP DX7.5L A60 Disc Brake Surge Actuator fit? This disc brake surge actuator is designed to fit 2-inch hitch balls. Confirm that your trailer coupler and tow vehicle setup use the specified hitch ball size before installation.
• How does the Dexter UFP DX7.5L A60 surge actuator operate? The actuator operates through the surge or push of the trailer toward the tow vehicle. When the trailer moves against the tow vehicle, the actuator telescopes together and applies force to the master cylinder, supplying hydraulic pressure to the trailer brakes.
• What features are included with the Dexter UFP DX7.5L A60 Disc Brake Surge Actuator? This actuator features an aluminum master cylinder, zinc-plated construction, multiple mounting options, and an integrated reverse solenoid. It is specified for a 7,500-pound, single-axle application and fits 2-inch hitch balls.
• Is the Dexter UFP DX7.5L A60 a replacement for UFP 47550? Yes. The Dexter UFP DX7.5L A60 Disc Brake Surge Actuator is identified as a replacement for UFP 47550. Its UFP model number is 34043. Verify the application and specifications before replacing an existing actuator.
