Dexter Axle Kit Disc Brake 1 Axl 3.5K-3.7K Dac Integ Kodiak

Dexter Kodiak Hub & Rotor 3,500lbs 10" One Axle Disc Brake Kit K71-2H-10-DDD

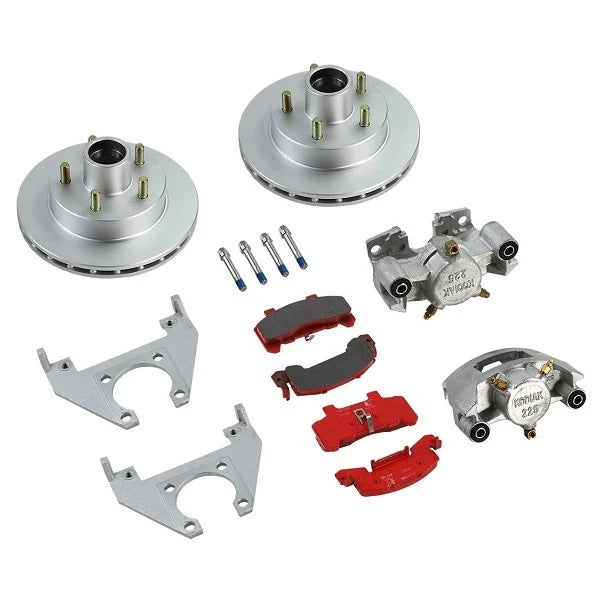

Upgrade your trailer’s braking system with this high-performance trailer disc brake kit. This complete kit includes two assemblies featuring Dacromet-plated rotors, cast iron calipers, and ductile iron mounting brackets, designed to provide superior braking power, reliability, and corrosion resistance. Perfect for trailers with 3,500 - 3,700lbs axles and wheels between 13" and larger, this disc brake kit is engineered to deliver more consistent and powerful stopping, even at highway speeds.

Replaces 2/H-10-DDD-K, 2/HRCM-10-DAC-KIT

Disc Brake Kit Features:

Easy Upgrade from Drum to Disc Brakes: Enhance your trailer's performance with consistent stopping power that offers dramatically shorter stopping distances, especially at highway speeds.

Lower Maintenance Costs: With fewer moving parts than drum brakes, disc brakes mean lower maintenance costs with infrequent repairs.

Dacromet Plating: Provides superior corrosion resistant and ensures rust protection from both fresh and saltwater uses.

Integral Hub & Rotor Assembly: The one piece design minimizes the lateral runout, while preventing warping and providing a smooth, balanced ride. The vented design effectively dissipates heat to prevent damage.

Industry Standard Bearings & Seals: Designed to work with standard bearings and seals, this assembly includes the necessary races for easy installation.

Cast Iron Calipers: Self-adjusting calipers ensure smooth and even braking, with a low-drag design for cooler operation.

Stainless Steel Piston: At 2-1/4" diameter, it is 30% larger than standard sizes to provide more braking torque and efficiency.

Hub & Rotor Specifications:

Axle Capacity: 3,500lbs

Spindle Type: #84

Wheel Size: 13" & Larger

Bolt Pattern: 5 on 4-1/2"

Rotor Diameter: 10"

Brake Flange: 4 Bolt

Wheel Stud Diameter: 1/2"

Bearing, Race, and Seal Information

Bearings

Inner bearing: L68149

Outer Bearing: L44649

Races

Inner race: L68111

Outer race: L44610

Seal: RG06-050

Inner diameter: 1.719"

Outer diameter: 2.565"

Dexter Bearing Kit Part Number DEX-K71-G02-53 - Listed Size 1-3/8" x 1-1/16"

This kit does NOT contain caps, bearings, or grease seals. They will need to be purchased separately.

Why Choose This Trailer Disc Brake Kit? If you need reliable, long-lasting, and high-performance trailer brakes, this Dacromet-plated disc brake kit offers everything you need for a smoother, more efficient ride. Ideal for trailers with 3,500 lb axles, this kit provides better braking performance, increased durability, and lower maintenance costs—making it the perfect upgrade for those who demand more from their trailer braking system.

Frequently Asked Questions

• What is the Dexter Kodiak Hub & Rotor 3,500lbs 10" One Axle Disc Brake Kit K71-2H-10-DDD used for? The Dexter Kodiak Hub & Rotor 3,500lbs 10" One Axle Disc Brake Kit K71-2H-10-DDD is designed to upgrade trailer braking systems from drum brakes to disc brakes. The kit includes two assemblies with Dacromet-plated rotors, cast iron calipers, and ductile iron mounting brackets for compatible 3,500- to 3,700-pound axles.
• What axle and wheel sizes does the Dexter K71-2H-10-DDD Disc Brake Kit fit? The Dexter K71-2H-10-DDD is specified for 3,500-pound axles with a #84 spindle and wheels measuring 13 inches or larger. It uses a 5-on-4-1/2-inch bolt pattern, a 10-inch rotor, a 4-bolt brake flange, and 1/2-inch wheel studs.
• What bearings and races are specified for the Dexter Kodiak Hub & Rotor Kit? The Dexter Kodiak Hub & Rotor Kit uses an L68149 inner bearing and L44649 outer bearing. The specified inner race is L68111 and the outer race is L44610. The listed seal is RG06-050, with a 1.719-inch inner diameter and 2.565-inch outer diameter.
• Are bearings, grease seals, and caps included with the Dexter K71-2H-10-DDD kit? No. The Dexter K71…
