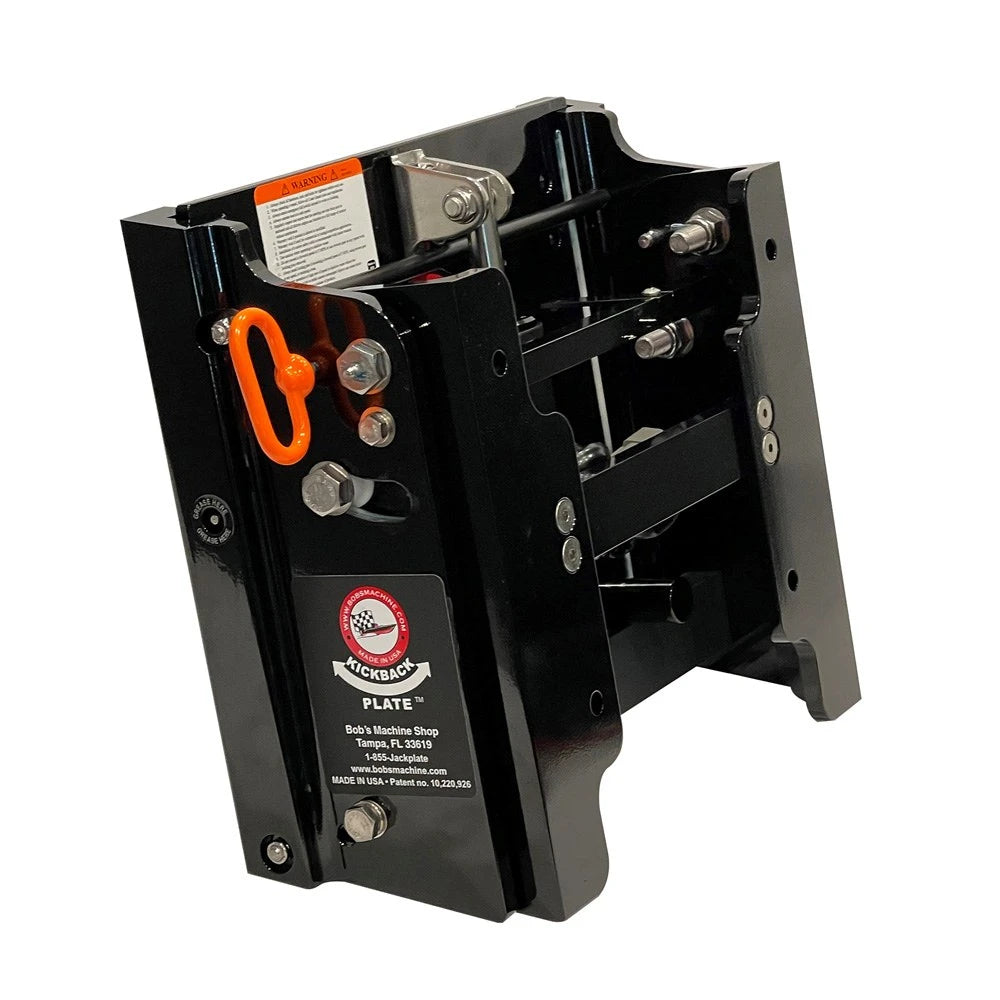

Bob's Machine Shop 6" Kick Back Black

Bob's Machine 6" Action Series Hydraulic Kick-Back Jac – Powder-Coated Black

Bob’s Kick-Back Plate 6" Action Series Hydraulic Kick-Back Jac – Powder-Coated Black is designed to deliver reliable hydraulic performance with enhanced shallow water protection. Built for durability and smooth operation, this jack plate helps improve boat handling while reducing the risk of lower unit damage when navigating changing water conditions.

Its patented Kick-Back design allows the motor to react when encountering submerged obstacles, helping protect vital components while maintaining control. The powder-coated black finish adds corrosion resistance and a clean, professional appearance suited for marine environments.

Key Features:

Patented Hydraulic Kick-Back Jac design

Action Series construction for dependable performance

Powder-coated black finish for corrosion resistance

No chains or springs required for operation

Built-in Kick-Back protection for submerged impact situations

Designed for smooth hydraulic motor adjustment

Specifications:

Setback: 6"

Hydraulic stroke: 6"

Built-in structure lift: 1.5"

Total lift: 7.5"

Tilt: 30°

Motor compatibility: Up to 150 HP

Bolt pattern: BIA

Weight: 48 lbs

Pivot points: Greaseable with automotive zerk fittings

Bearing system: Delrin bushings, rollers, and bearings

Safety: Motor tether attachment point included

Locking system: Pins for reverse and trailering

Warranty: Limited lifetime structure warranty + 3-year Action Pump warranty
