Blue Seas Contura Switch Pnl-3 Vert

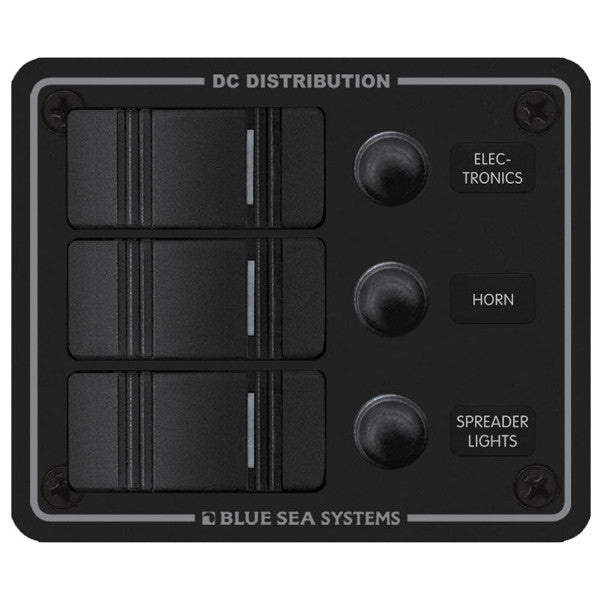

Blue Sea 8374 Water Resistant Circuit Breaker Panel - 3 Position

The Blue Sea 8374 Circuit Breaker Panel is designed for flybridge and open cockpit applications. The panel front is rated IP66 and is protected against powerful water jets. This circuit breaker panel is ignition protected, so it is safe for installation aboard gasoline powered boats.

Features:

ON-OFF Contura Switches

ON indicating LEDs embedded in switch

Watertight mounting gasket

Push Button Reset - only circuit breakers with waterproof boots

Specifications:

Positions: 3

Nominal Voltage: 12V DC | 24V DC

Panel Cumulative Rating: 45A

Switch Rating: 20A @ 12V DC | 15A @ 24V DC

Dimensions: 3.75" Height x 4.50" Width x 3.25" Depth

Click to Download Blue Sea 8374 Circuit Breaker Panel Instructions

Click to Download Blue Sea 8374 Circuit Breaker Panel Cutout Template
