Blue Seas Momentary Push Button Switch Off On

Blue Sea Momentary Push Button Switch - Off/On

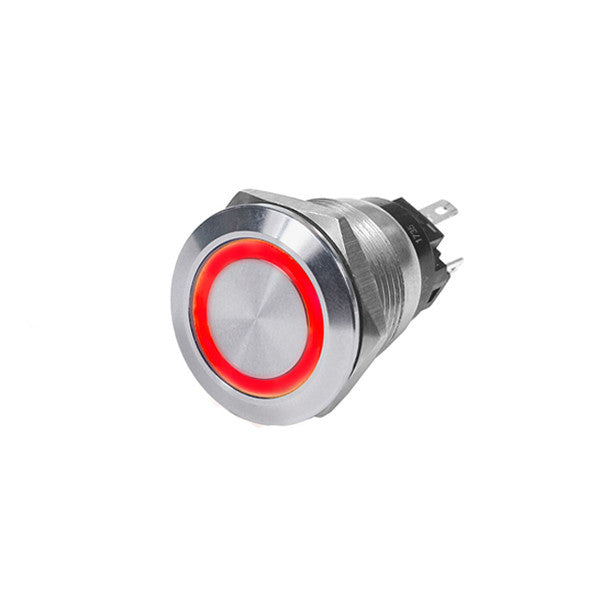

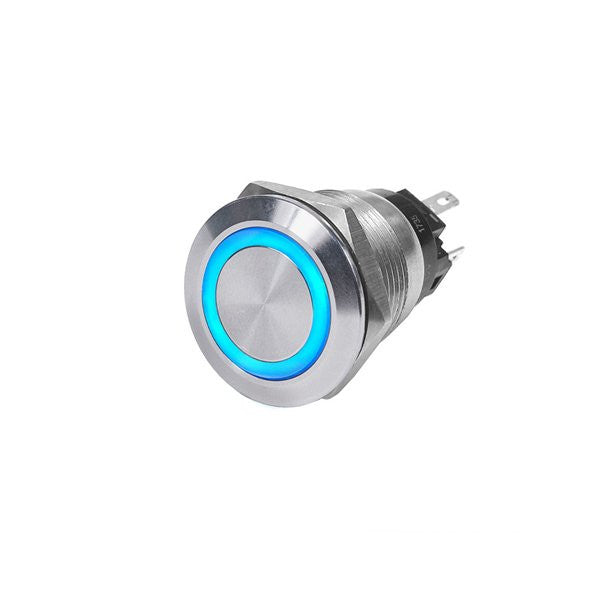

The Blue Sea Momentary Push Button Switch - Off/On can be wired normally either open or closed. The installs with .110 inch quick connects and the option of single pole double throw or single pole single throw make this push button switch an ideal choice among many buyers. This switch is available in blue or red.

Features:

Single Pole Double Throw Or Single Pole Single Throw

Can Be Wired For Normally Open Or Normally Closed

10A Continuous

Installs With .110 Inch Quick Connects

Available In Momentary and Non-Momentary

Available In Blue & Red

Specifications:

Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs

Action: OFF-(ON)

Amperage: 10A @ 12V DC

Nominal Voltage: 12V DC

Minimum Storage Temperature: -55° C

Minimum Operating Temperature: -10° C

Maximum Storage Temperature: 85° C

Maximum Operating Temperature: 70° C

Maximum LED Operating Current: 20mA

Switching Cycles: 18,000

Mounting Hole: 19mm

Illumination: Independent – Separate Contacts For LED Power

Termination: 5 – 0.110inch Quick Connect Terminals
