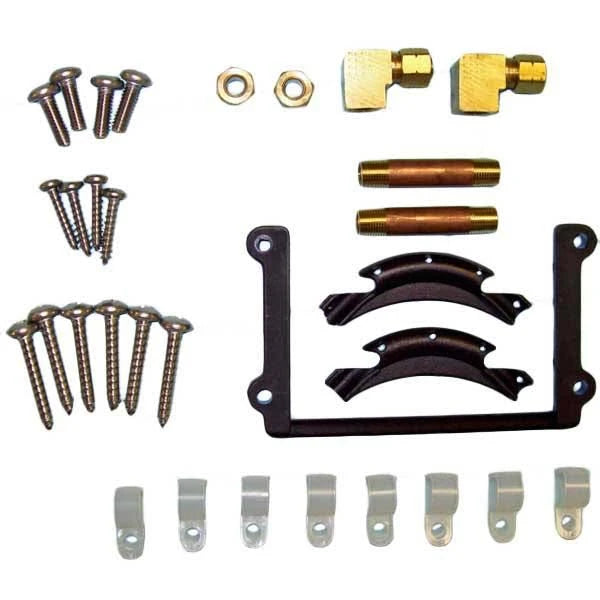

Bennett H1170A Hydraulic Trim Tab Hardware Pack

Bennett trim tab hydraulic hardware. Includes two 3" brass pipe nipples, two brass female elbows, two tube bending clips, six #14 x 1 1/2" full threaded screws, four 1/4-20 x 3/4" machine screws, eight nylon hangers, one mounting bracket with four #10 x 1" full-threaded screws, and two nuts with ferrules.

Bennett ES2000A Euro Style Trim Tab Rocker Switch Second Station Control

This control is ergonomically designed, water resistant and provides a positive “click” when the trim tabs are engaged. Its lock-out feature prevents user from pressing down on opposite directions at the same time. The control is easy to install, fitting into any existing Bennett 2 ½-inch Rocker Switch hole. Bridge control comes with a 20' wire harness.

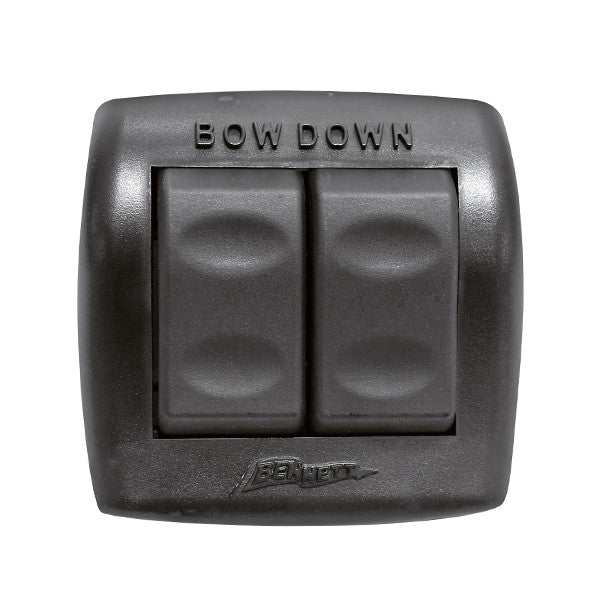

Bennett ES2000 Euro Style Hydraulic Trim Tab Rocker Switch

This control is ergonomically designed, water resistant and provides a positive “click” when the trim tabs are engaged. Its lock-out feature prevents user from pressing down on opposite directions at the same time. The control is easy to install, fitting into any existing Bennett 2 ½-inch Rocker Switch hole.

Have a second station? Check out the ES2000A trim tab switch that comes with 20' of harness for bridge applications.

Bennett ES 2000 Euro Style Rocker Switch Installation Instructions

Frequently Asked Questions

• What is the Bennett ES2000 Euro Style Hydraulic Trim Tab Rocker Switch? The Bennett ES2000 Euro Style Hydraulic Trim Tab Rocker Switch is a water-resistant trim tab control designed for ergonomic operation. It provides a positive click when the trim tabs are engaged and includes a lock-out feature to prevent pressing opposite directions at the same time.
• Is the Bennett ES2000 compatible with existing Bennett trim tab switch openings? Yes. The Bennett ES2000 is designed to fit into any existing Bennett 2 1/2-inch rocker switch hole, making it suitable for replacing a compatible existing Bennett rocker switch.
• Does the Bennett ES2000 have a lock-out feature? Yes. The Bennett ES2000 includes a lock-out feature that prevents the user from pressing the controls for opposite directions at the same time. This feature is part of the switch's control design.
• Is the Bennett ES2000 trim tab switch water resistant? Yes. The Bennett ES2000 Euro Style Hydraulic Trim Tab Rocker Switch is designed to be water resistant for marine trim tab control applications.
• What switch is available for a second station or bridge application? For a second station, the Bennett ES2000A trim tab switch is available with a 20-foot harness for bridge applications. The supplied product description identifies the ES2000A as the option for this type of installation.

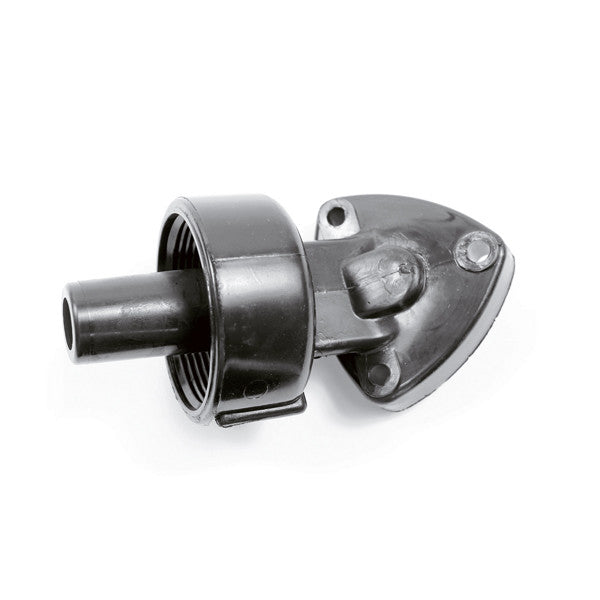

Bennett CC3003P Trim Tab Actuator Hinge w/ Coil - Port Red

Bennett Actuator upper hinge for use with Bennett Trim Tabs.

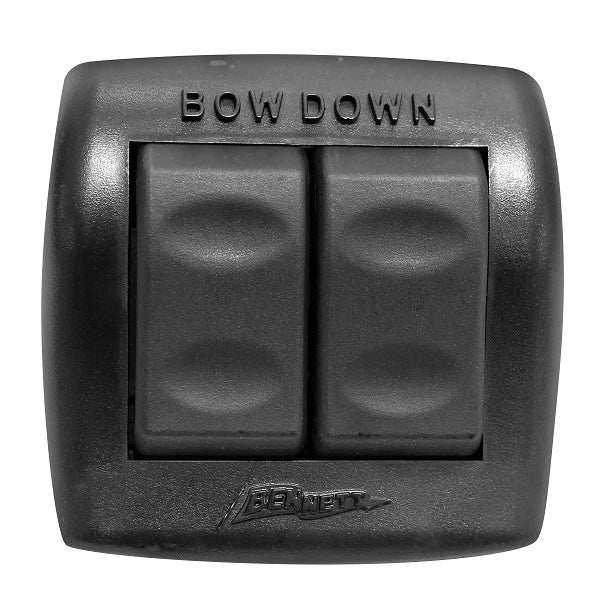

Bennett BRC4000 BOLT Trim Tab Rocker Switch

The Bennett BOLT Rocker Switch is ergonomically designed, water resistant and provides a positive "click" when the trim tabs are engaged. Its lock-out feature prevents user from pressing down on opposite directions at the same time. The control is easy to install, fitting into any existing Bennett 2 +-inch Rocker Switch hole. Bridge control comes with a 20' wire harness.

Features:

Attractive, ergonomic design

Positive click action

Economical and easy installation

Click to Download Bennett BOLT Trim Tab Rocker Switch Installation Instructions

Frequently Asked Questions

• What is the Bennett BRC4000 BOLT Trim Tab Rocker Switch designed for? The Bennett BRC4000 BOLT Trim Tab Rocker Switch is designed to control trim tabs. It features an ergonomic design, water-resistant construction, and positive click action when the trim tabs are engaged.
• Does the Bennett BRC4000 have a lock-out feature? Yes. The Bennett BRC4000 includes a lock-out feature that prevents the user from pressing controls for opposite directions at the same time.
• Is the Bennett BRC4000 Trim Tab Rocker Switch water resistant? Yes. The Bennett BRC4000 BOLT Trim Tab Rocker Switch is designed with water-resistant construction for its marine application.
• Is the Bennett BRC4000 easy to install? Yes. The Bennett BRC4000 is designed for economical and easy installation and fits into an existing Bennett 2 1/2-inch rocker switch hole.
• Does the Bennett BRC4000 bridge control include a wire harness? Yes. The bridge control version of the Bennett BRC4000 comes with a 20-foot wire harness.

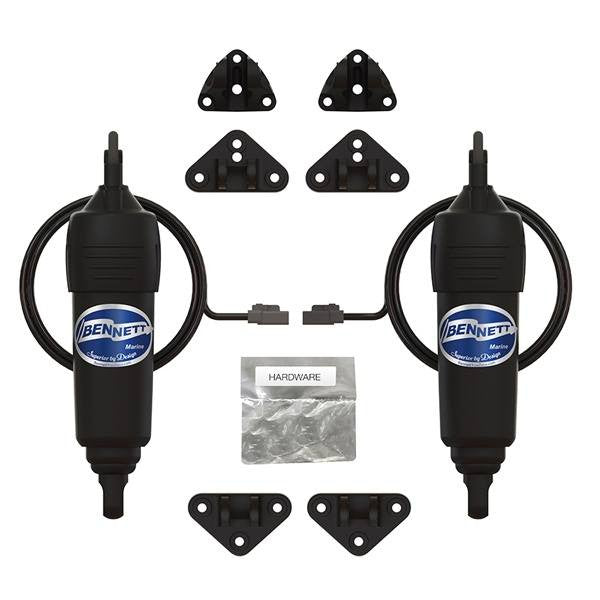

Bennett BOLTLKCON Lenco to BOLT Trim Tab Conversion Kit

This Lenco to BOLT conversion kit includes everything you need for a cost effective, quick, and easy conversion from Lenco actuators to Bennett's actuators. So why switch? Bennett electric actuators are exceptionally durable and dependable, and are backed by a lifetime limited warranty.

Works with Lenco "Standard Mount", "Standard Performance", and "Edge Mount" Systems.

Plug-n-play connection to your existing standard Lenco controls.

Simply replace the Lenco actuators with Bennett Bolt actuators using the existing holes.

Easy installation with no new holes to drill.

Keep your existing trim tabs.

Lifetime Limited Warranty

Click to Download Bennett Lenco to BOLT Conversion Kit Instructions

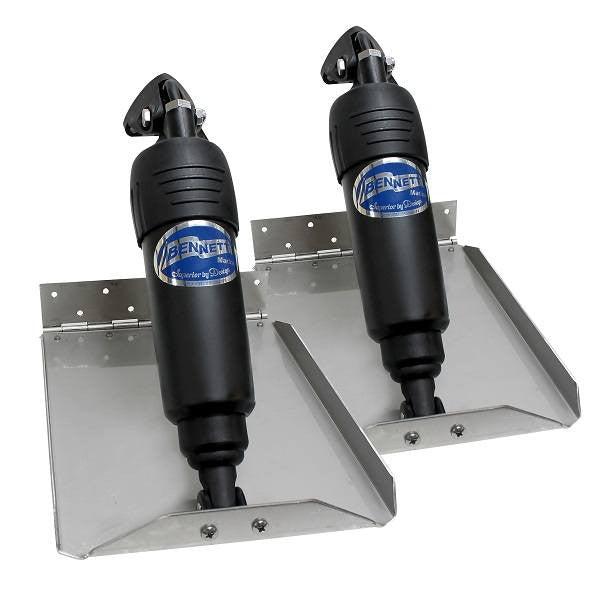

Bennett BOLT912ED 9" x 12" BOLT Electric Trim Tab Kit - Edge Mount Bennett Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement. The Bennett BOLT Edge Mount Trim Tab Set is designed with an adjustable upper hinge for transoms with limited vertical space. Tabs turn up for added strength and feature piano-hinged backing plates. Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "superior by design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth. Electric trim tab systems are suitable for: Trailered boats 17-28 ft. Single actuator use, due to the inability to synchronize two electric actuators on the same tab. Trim Tab Dimensions: Width: 9" Depth: 12" Features: Requires less than 6.5" of vertical transom space to install. Wires are concealed and protected through the upper hinge = there are no exposed wires to the marine environment. Robust, water-tight black nylon actuator provides trouble-free operation. Main seal located high to protect against marine growth and water intrusion failures. Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator. 5 Year Manufacturer's Warranty Bennett Part#: BOLT912ED Yamaha Part#: 6BT-50013-54-00 What's Included: (2) BEA2000 12-volt trim tab actuators (2) Stainless steel trim planes and mounting plates. (2) 20 ft harnesses with waterproof connectors. 6ft. wire harnesses and waterproof connectors. SWITCH SOLD SEPARATELY   Click here for Bennett BOLT912ED 9" x 12" BOLT Electric Trim Tab Kit Installation InstructionsFrequently Asked Questions

• What is the Bennett BOLT912ED Edge Mount Electric Trim Tab Kit designed for? The Bennett BOLT912ED Edge Mount Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance on trailered boats from 17 to 28 feet. Its edge mount design is especially useful for boats with limited vertical transom space.
• What makes the Edge Mount design different? The Edge Mount design uses an adjustable upper hinge for transoms with limited vertical space and requires less than 6.5" of vertical transom space to install. The tabs also turn up for added strength and feature piano-hinged backing plates.
• What is included with the Bennett BOLT912ED trim tab kit? This kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20’ harnesses with waterproof connectors, and 6’ wire harnesses with waterproof connectors.
• Is a trim tab switch included with this kit? No. The Bennett BOLT912ED trim tab kit is sold without a switch, and the switch is sold separately.
• What size are the trim tabs in the Bennett BOLT912ED kit? The trim tabs in this kit measure 9" wide by 12" deep. Bennett trim tab sizing is listed as span by chord, where span is the side-to-side measurement and chord is the fore-to-aft measurement. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett BOLT912ED Edge Mount Electric Trim Tab Kit designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett BOLT912ED Edge Mount Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance on trailered boats from 17 to 28 feet. Its edge mount design is especially useful for boats with limited vertical transom space." } }, { "@type": "Question", "name": "What makes the Edge Mount design different?", "acceptedAnswer": { "@type": "Answer", "text": "The Edge Mount design uses an adjustable upper hinge for transoms with limited v…

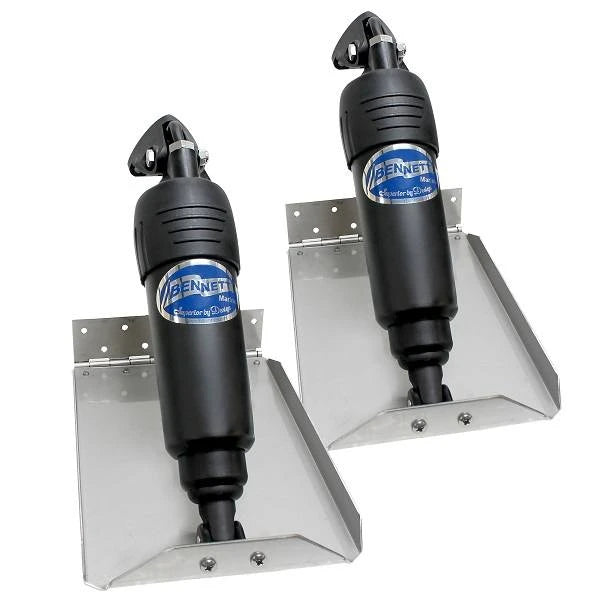

Bennett BOLT612ED 6" x 12" BOLT Electric Trim Tab Kit - Edge Mount

Bennett Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement.

The Bennett BOLT Edge Mount Trim Tab Set is designed with an adjustable upper hinge for transoms with limited vertical space. Tabs turn up for added strength and feature piano-hinged backing plates.

Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "superior by design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.

Electric trim tab systems are suitable for:

Trailered boats 17-28 ft.

Single actuator use, due to the inability to synchronize two electric actuators on the same tab.

Trim Tab Dimensions:

Width: 6"

Depth: 12"

Features:

Requires less than 6.5" of vertical transom space to install.

Wires are concealed and protected through the upper hinge = there are no exposed wires to the marine environment.

Robust, water-tight black nylon actuator provides trouble-free operation.

Main seal located high to protect against marine growth and water intrusion failures.

Quieter than any other system on the market - No more scaring the fish away!

Installation is fast - no need to disassemble parts of the actuator.

5 Year Manufacturer's Warranty

Bennett Part#: BOLT612ED

Yamaha Part#: 6BT-50013-53-00

What's Included:

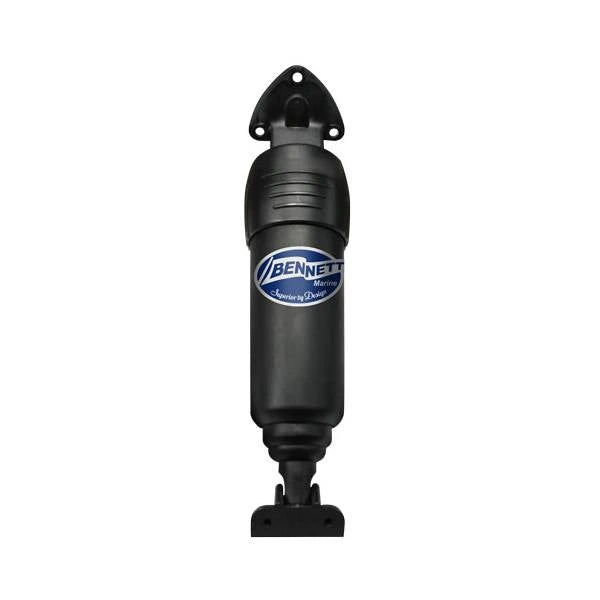

(2) BEA2000 12-volt trim tab actuators

(2) Stainless steel trim planes and mounting plates.

(2) 20 ft harnesses with waterproof connectors.

6ft. wire harnesses and waterproof connectors.

SWITCH SOLD SEPARATELY

Click here for Bennett BOLT1212ED 12" x 12" BOLT Electric Trim Tab Kit Installation Instructions

Frequently Asked Questions

• What is the Bennett BOLT612ED 6" x 12" BOLT Electric Trim Tab Kit designed for? The Bennett BOLT612ED BOLT Electric Trim Tab Kit is designed for trailered boats 17 to 28 feet long and transoms with limited vertical space. The edge-mount design requires less than 6.5 inches of vertical transom space and uses adjustable upper hinges for installation.
• What are the trim tab dimensions of the Bennett BOLT612ED? The Bennett BOLT612ED includes 6-inch wide by 12-inch deep trim tabs. Bennett specifies trim tab dimensions using span by chord, with span referring to the side-to-side measurement and chord referring to the fore-to-aft measurement.
• What is included with the Bennett BOLT612ED Electric Trim Tab Kit? The kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20-foot harnesses with waterproof connectors, and 6-foot wire harnesses with waterproof connectors. The switch is sold separately.
• How are the wires protected on the Bennett BOLT612ED trim tab system? The Bennett BOLT612ED routes its wires through the upper hinge, keeping them concealed and protected from the marine environment. The actuator also features a main seal positioned high to help protect against marine growth and water intrusion failures.
• Can the Bennett BOLT612ED use two electric actuators on the same trim tab? No. Bennett specifies single actuator use for electric trim tab systems because two electric actuators cannot be synchronized on the same tab. The BOLT612ED kit includes two actuators for its trim tab set.
• Does the Bennett BOLT612ED include the control switch? No. The control switch is sold separately. The kit includes the electric trim tab actuators, stainless steel trim planes and mounting plates, wiring harnesses, and waterproof connectors needed as specified in the product description.

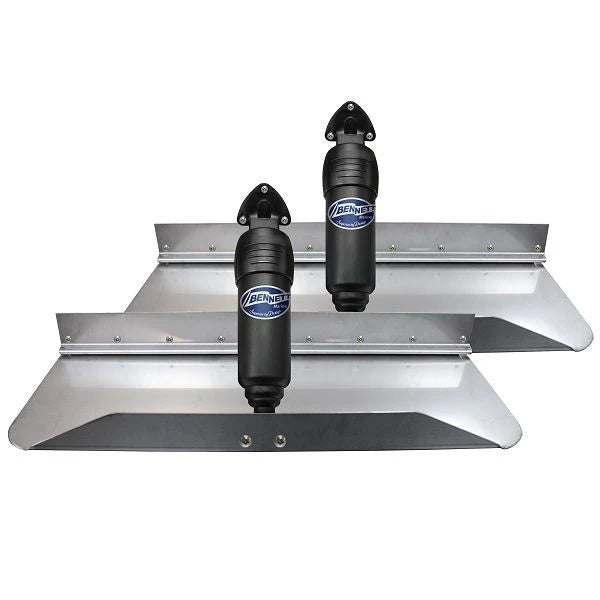

Bennett BOLT249 24" x 9" BOLT Electric Trim Tab Kit

Bennett Marine has been leading the way in electric trim tabs since 1960 and is trusted by the leading boat builders for over half a century. Founded on the principles of quality and service Bennett electric trim tab systems are some of the best on the market today.

The Bennett Bolt trim tabs have been designed to outperform and outlast any other trim tab system on the market. The Bolt system uses states of the art technology and cutting-edge advances to manufacture a superior system. Common in outdated technology, the Bennett BOLT electric trim tab sets have developed technology that reduces water intrusion and common part malfunctions.

Bennett electric trim tab systems are designed for flatboats, center console, dual console, deck boats, bowriders, bass boats, and runabouts and are more suitable for single actuator use and for trailered boats 22 to 27 feet. When selecting the right size Bennett BOLT trim tab system, keep in mind the span is the side-to-side measurement and the chord is the fore-to-aft measurement.

NOTE: Bennett Electric Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement.

Trim Tab Dimensions:

Width: 24"

Depth: 9"

Features:

Wires are threaded through the upper hinge so no wires are exposed to the marine environment. This adds protection and safety.

Water-tight black nylon actuator offers trouble-free operation.

Main seal has been placed high to protect against marine growth and water intrusion failures.

Runs quieter than competitors’ products.

Installation is fast- the actuator does not require disassembly.

Lifetime warranty for electric actuators

Solidly constructed for a long service lifespan

Bennett Part#: BOLT249

Yamaha Part#: 6BT-50013-52-00

What's Included:

(2) BEA2000 12-volt trim tab actuators

(2) Stainless steel trim planes and mounting plates.

(2) 20 ft harnesses with waterproof connectors.

6ft. wire harnesses and waterproof connectors.

SWITCH SOLD SEPARATELY

Click here to download Bennett BOLT249 24" x 9" BOLT Electric Trim Tab Kit Installation Instructions

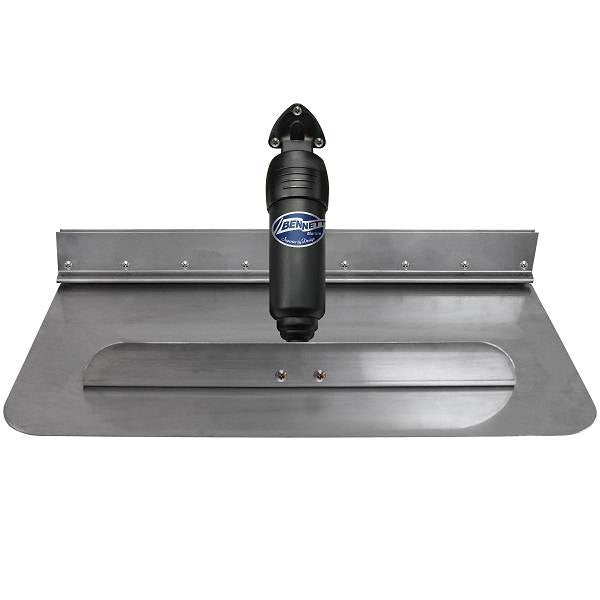

Bennett BOLT2412 24" x 12" BOLT Electric Trim Tab Kit

Bennett Marine has been leading the way in electric trim tabs since 1960 and is trusted by the leading boat builders for over half a century. Founded on the principles of quality and service Bennett electric trim tab systems are some of the best on the market today.

The Bennett Bolt trim tabs have been designed to outperform and outlast any other trim tab system on the market. The Bolt system uses states of the art technology and cutting-edge advances to manufacture a superior system. Common in outdated technology, the Bennett BOLT electric trim tab sets have developed technology that reduces water intrusion and common part malfunctions.

Bennett electric trim tab systems are designed for flatboats, center console, dual console, deck boats, bowriders, bass boats, and runabouts and are more suitable for single actuator use and for trailered boats 25 to 31 feet. When selecting the right size Bennett BOLT trim tab system, keep in mind the span is the side-to-side measurement and the chord is the fore-to-aft measurement.

NOTE: Bennett Electric Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement.

Trim Tab Dimensions:

Width: 24"

Depth: 12"

Features:

Wires are threaded through the upper hinge so no wires are exposed to the marine environment. This adds protection and safety.

Water-tight black nylon actuator offers trouble-free operation.

Main seal has been placed high to protect against marine growth and water intrusion failures.

Runs quieter than competitors’ products.

Installation is fast- the actuator does not require disassembly.

Lifetime warranty for electric actuators

Solidly constructed for a long service lifespan

Bennett Part#: BOLT2412

Yamaha Part#: 6BT-50013-51-00

What's Included:

(2) BEA2000 12-volt trim tab actuators

(2) Stainless steel trim planes and mounting plates.

(2) 20 ft harnesses with waterproof connectors.

6ft. wire harnesses and waterproof connectors.

SWITCH SOLD SEPARATELY

Click here to download Bennett BOLT2412 24" x 12" BOLT Electric Trim Tab Kit Installation Instructions

Frequently Asked Questions

• What is the Bennett BOLT2412 24" x 12" BOLT Electric Trim Tab Kit designed for? The Bennett BOLT2412 electric trim tab kit is designed for flatboats, center consoles, dual consoles, deck boats, bowriders, bass boats, and runabouts. It is more suitable for single actuator use and trailered boats 25 to 31 feet long.
• What are the trim tab dimensions of the Bennett BOLT2412? The Bennett BOLT2412 features trim tabs measuring 24 inches wide by 12 inches deep. Bennett specifies electric trim tab sizes using span by chord, with span referring to the side-to-side measurement and chord referring to the fore-to-aft measurement.
• What is included with the Bennett BOLT2412 Electric Trim Tab Kit? The kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20-foot harnesses with waterproof connectors, and 6-foot wire harnesses with waterproof connectors. The control switch is sold separately.
• How are the wires protected on the Bennett BOLT2412 trim tabs? The Bennett BOLT2412 routes its wires through the upper hinge, keeping them protected from exposure to the marine environment. Its water-tight black nylon actuators also feature a main seal positioned high to help protect against marine growth and water intrusion failures.
• Are the Bennett BOLT2412 electric actuators covered by a warranty? Yes. The Bennett BOLT2412 includes a lifetime warranty for its electric actuators. The trim tab system is also solidly constructed for a long service lifespan.
• Does the Bennett BOLT2412 kit include a control switch? No. The control switch is sold separately. The kit includes the two 12-volt electric actuators, stainless steel trim planes and mounting plates, 20-foot harnesses with waterproof connectors, and 6-foot wire ha…

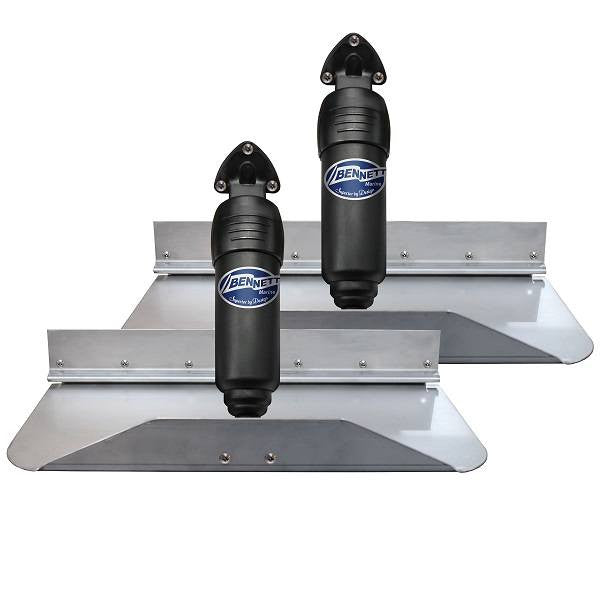

Bennett BOLT189 18" x 9" BOLT Electric Trim Tab Kit Bennett Marine has been leading the way in electric trim tabs since 1960 and is trusted by the leading boat builders for over half a century. Founded on the principles of quality and service Bennett electric trim tab systems are some of the best on the market today. The Bennett Bolt trim tabs have been designed to outperform and outlast any other trim tab system on the market. The Bolt system uses states of the art technology and cutting-edge advances to manufacture a superior system. Common in outdated technology, the Bennett BOLT electric trim tab sets have developed technology that reduces water intrusion and common part malfunctions. Bennett electric trim tab systems are designed for flatboats, center console, dual console, deck boats, bowriders, bass boats, and runabouts and are more suitable for single actuator use and for trailered boats 20 to 23 feet. When selecting the right size Bennett BOLT trim tab system, keep in mind the span is the side-to-side measurement and the chord is the fore-to-aft measurement. NOTE: Bennett Electric Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement. Trim Tab Dimensions: Width: 18" Depth: 9" Features: Wires are threaded through the upper hinge so no wires are exposed to the marine environment. This adds protection and safety. Water-tight black nylon actuator offers trouble-free operation. Main seal has been placed high to protect against marine growth and water intrusion failures. Runs quieter than competitors’ products. Installation is fast- the actuator does not require disassembly. Lifetime warranty for electric actuators Solidly constructed for a long service lifespan Bennett Part#: BOLT189 Yamaha Part#: 6BT-50013-49-00 What's Included: (2) BEA2000 12-volt trim tab actuators (2) Stainless steel trim planes and mounting plates. (2) 20 ft harnesses with waterproof connectors. 6ft. wire harnesses and waterproof connectors. SWITCH SOLD SEPARATELY Click here to download Bennett BOLT189 18" x 9" BOLT Electric Trim Tab Kit Installation InstructionsFrequently Asked Questions

• What is the Bennett BOLT189 Electric Trim Tab Kit designed for? The Bennett BOLT189 Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance. It is well suited for flatboats, center consoles, dual consoles, deck boats, bowriders, bass boats, and runabouts, and is recommended for trailered boats from 20 to 23 feet.
• What is included with the Bennett BOLT189 trim tab kit? This kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20’ harnesses with waterproof connectors, and 6’ wire harnesses with waterproof connectors.
• Is a trim tab switch included with this kit? No. The Bennett BOLT189 trim tab kit is sold without a switch, and the switch is sold separately.
• What features help protect the Bennett BOLT system in marine environments? The Bennett BOLT system routes wires through the upper hinge so they are not exposed to the marine environment. It also features a water-tight black nylon actuator and a main seal positioned high to help protect against marine growth and water intrusion.
• What size are the trim tabs in the Bennett BOLT189 kit? The trim tabs in this kit measure 18" wide by 9" deep. Bennett trim tab sizing is listed as span by chord, where span is the side-to-side measurement and chord is the fore-to-aft measurement. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett BOLT189 Electric Trim Tab Kit designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett BOLT189 Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance. It is well suited for flatboats, center consoles, dual consoles, deck boats, bow…

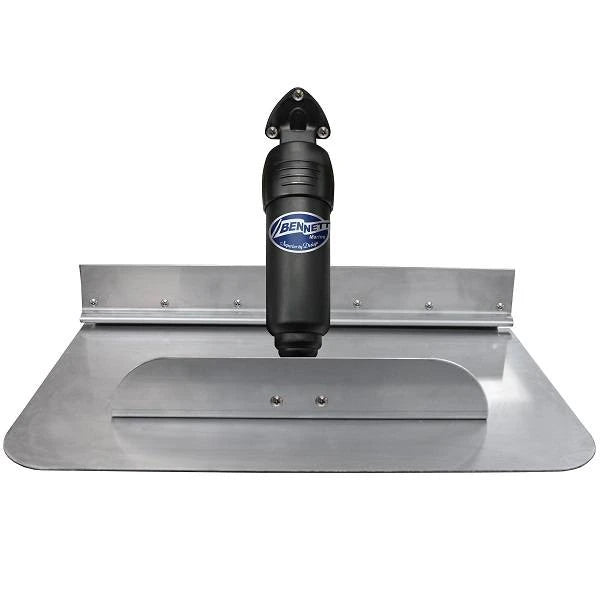

Bennett BOLT1812 18" x 12" BOLT Electric Trim Tab Kit

Bennett Marine has been leading the way in electric trim tabs since 1960 and is trusted by the leading boat builders for over half a century. Founded on the principles of quality and service Bennett electric trim tab systems are some of the best on the market today.

The Bennett Bolt trim tabs have been designed to outperform and outlast any other trim tab system on the market. The Bolt system uses states of the art technology and cutting-edge advances to manufacture a superior system. Common in outdated technology, the Bennett BOLT electric trim tab sets have developed technology that reduces water intrusion and common part malfunctions.

Bennett electric trim tab systems are designed for flatboats, center console, dual console, deck boats, bowriders, bass boats, and runabouts and are more suitable for single actuator use and for trailered boats 26 to 36 feet. When selecting the right size Bennett BOLT trim tab system, keep in mind the span is the side-to-side measurement and the chord is the fore-to-aft measurement.

NOTE: Bennett Electric Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement.

Trim Tab Dimensions:

Width: 18"

Depth: 12"

Features:

Wires are threaded through the upper hinge so no wires are exposed to the marine environment. This adds protection and safety.

Water-tight black nylon actuator offers trouble-free operation.

Main seal has been placed high to protect against marine growth and water intrusion failures.

Runs quieter than competitors’ products.

Installation is fast- the actuator does not require disassembly.

Lifetime warranty for electric actuators

Solidly constructed for a long service lifespan

Bennett Part#: BOLT1812

Yamaha Part#: 6BT-50013-47-00

What's Included:

(2) BEA2000 12-volt trim tab actuators

(2) Stainless steel trim planes and mounting plates.

(2) 20 ft harnesses with waterproof connectors.

6ft. wire harnesses and waterproof connectors.

SWITCH SOLD SEPARATELY

Click here to download Bennett BOLT1812 18" x 12" BOLT Electric Trim Tab Kit Installation Instructions

Frequently Asked Questions

• What is the Bennett BOLT1812 18" x 12" BOLT Electric Trim Tab Kit designed for? The Bennett BOLT1812 Electric Trim Tab Kit is designed for flatboats, center consoles, dual consoles, deck boats, bowriders, bass boats, and runabouts. This 18" x 12" system is intended for trailered boats 26 to 36 feet in length.
• What are the trim tab dimensions of the Bennett BOLT1812? The Bennett BOLT1812 trim tabs measure 18 inches wide by 12 inches deep. Bennett defines span as the side-to-side measurement and chord as the fore-to-aft measurement when specifying electric trim tab sizes.
• What is included with the Bennett BOLT1812 Electric Trim Tab Kit? The kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20-foot harnesses with waterproof connectors, and 6-foot wire harnesses with waterproof connectors. The trim tab switch is sold separately.
• How are the wires protected on the Bennett BOLT1812 trim tab actuators? The actuator wires are threaded through the upper hinge, keeping them concealed and protected from the marine environment. The water-tight black nylon actuators also feature a main seal positioned high to help protect against marine growth and water intrusion failures.
• Does the Bennett BOLT1812 require actuator disassembly during installation? No. The Bennett BOLT1812 is designed for fast installation without requiring the actuator to be disassembled. The supplied system includes the trim planes, mounting plates, actuators, and wiring harnesses, while the switch is sold separately.

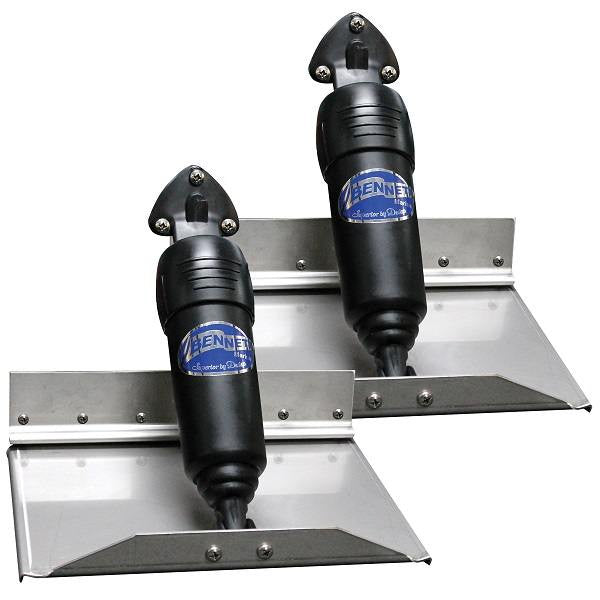

Bennett BOLT129 12" x 9" BOLT Electric Trim Tab Kit Bennett Marine has been leading the way in electric trim tabs since 1960 and is trusted by the leading boat builders for over half a century. Founded on the principles of quality and service Bennett electric trim tab systems are some of the best on the market today. The Bennett Bolt trim tabs have been designed to outperform and outlast any other trim tab system on the market. The Bolt system uses states of the art technology and cutting-edge advances to manufacture a superior system. Common in outdated technology, the Bennett BOLT electric trim tab sets have developed technology that reduces water intrusion and common part malfunctions. Bennett electric trim tab systems are designed for flatboats, center console, dual console, deck boats, bowriders, bass boats, and runabouts and are more suitable for single actuator use and for trailered boats 14 to 18 feet. When selecting the right size Bennett BOLT trim tab system, keep in mind the span is the side-to-side measurement and the chord is the fore-to-aft measurement. NOTE: Bennett Electric Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement. Trim Tab Dimensions: Width: 12" Depth: 9" Features: Wires are threaded through the upper hinge so no wires are exposed to the marine environment. This adds protection and safety. Water-tight black nylon actuator offers trouble-free operation. Main seal has been placed high to protect against marine growth and water intrusion failures. Runs quieter than competitors’ products. Installation is fast- the actuator does not require disassembly. Lifetime warranty for electric actuators Solidly constructed for a long service lifespan Bennett Part#: BOLT129 Yamaha Part#: 6BT-50013-44-00 What's Included: (2) BEA2000 12-volt trim tab actuators (2) Stainless steel trim planes and mounting plates. (2) 20 ft harnesses with waterproof connectors. 6ft. wire harnesses and waterproof connectors. SWITCH SOLD SEPARATELY Click here to download Bennett BOLT129 12" x 9" BOLT Electric Trim Tab Kit Installation InstructionsFrequently Asked Questions

• What is the Bennett BOLT129 Electric Trim Tab Kit designed for? The Bennett BOLT129 Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance. It is well suited for flatboats, center consoles, dual consoles, deck boats, bowriders, bass boats, and runabouts, and is recommended for trailered boats from 14 to 18 feet.
• What is included with the Bennett BOLT129 trim tab kit? This kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20’ harnesses with waterproof connectors, and 6’ wire harnesses with waterproof connectors.
• Is a trim tab switch included with this kit? No. The Bennett BOLT129 trim tab kit is sold without a switch, and the switch is sold separately.
• What features help protect the Bennett BOLT system in marine environments? The Bennett BOLT system routes wires through the upper hinge so they are not exposed to the marine environment. It also features a water-tight black nylon actuator and a main seal positioned high to help protect against marine growth and water intrusion.
• What size are the trim tabs in the Bennett BOLT129 kit? The trim tabs in this kit measure 12" wide by 9" deep. Bennett trim tab sizing is listed as span by chord, where span is the side-to-side measurement and chord is the fore-to-aft measurement. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett BOLT129 Electric Trim Tab Kit designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett BOLT129 Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance. It is well suited for flatboats, center consoles, dual consoles, deck boats, bow…

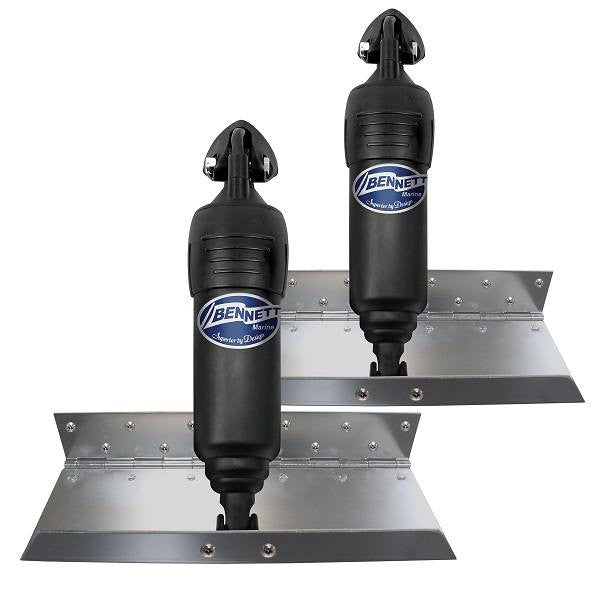

Bennett BOLT124 12" x 4" BOLT Electric Trim Tab Kit

Bennett Marine has been leading the way in electric trim tabs since 1960 and is trusted by the leading boat builders for over half a century. Founded on the principles of quality and service Bennett electric trim tab systems are some of the best on the market today.

The Bennett Bolt trim tabs have been designed to outperform and outlast any other trim tab system on the market. The Bolt system uses states of the art technology and cutting-edge advances to manufacture a superior system. Common in outdated technology, the Bennett BOLT electric trim tab sets have developed technology that reduces water intrusion and common part malfunctions.

Bennett electric trim tab systems are designed for flatboats, center console, dual console, deck boats, bowriders, bass boats, and runabouts and are more suitable for single actuator use and for trailered boats 12 to 17 feet. When selecting the right size Bennett BOLT trim tab system, keep in mind the span is the side-to-side measurement and the chord is the fore-to-aft measurement.

NOTE: Bennett Electric Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement.

Trim Tab Dimensions:

Width: 12"

Depth: 4"

Features:

Wires are threaded through the upper hinge so no wires are exposed to the marine environment. This adds protection and safety.

Water-tight black nylon actuator offers trouble-free operation.

Main seal has been placed high to protect against marine growth and water intrusion failures.

Runs quieter than competitors’ products.

Installation is fast- the actuator does not require disassembly.

Lifetime warranty for electric actuators

Solidly constructed for a long service lifespan

Bennett Part#: BOLT124

Yamaha Part#: 6BT-50013-43-00

What's Included:

(2) BEA2000 12-volt trim tab actuators

(2) Stainless steel trim planes and mounting plates.

(2) 20 ft harnesses with waterproof connectors.

6ft. wire harnesses and waterproof connectors.

SWITCH SOLD SEPARATELY

Click here to download Bennett BOLT124 12" x 4" BOLT Electric Trim Tab Kit Installation Instructions

Frequently Asked Questions

• What is the Bennett BOLT124 12" x 4" BOLT Electric Trim Tab Kit designed for? The Bennett BOLT124 electric trim tab kit is designed for boats such as flatboats, center consoles, dual consoles, deck boats, bowriders, bass boats, and runabouts. It is more suitable for single actuator use and trailered boats 12 to 17 feet long.
• What are the trim tab dimensions of the Bennett BOLT124? The Bennett BOLT124 features trim tabs measuring 12 inches wide by 4 inches deep. Bennett specifies trim tab sizes using span by chord, with span being the side-to-side measurement and chord being the fore-to-aft measurement.
• What is included with the Bennett BOLT124 Electric Trim Tab Kit? The Bennett BOLT124 kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20-foot harnesses with waterproof connectors, and 6-foot wire harnesses with waterproof connectors. The switch is sold separately.
• How are the wires protected on the Bennett BOLT124 trim tabs? The Bennett BOLT124 routes the wires through the upper hinge so they are not exposed to the marine environment. The kit also uses water-tight black nylon actuators, with the main seal positioned high to help protect against marine growth and water intrusion failures.
• Are the Bennett BOLT124 actuators covered by a warranty? Yes. The Bennett BOLT124 includes a lifetime warranty for its electric actuators. The trim tab system is also designed with solid construction for a long service lifespan.
• Does the Bennett BOLT124 kit include a control switch? No. The control switch is sold separately. The kit includes the two electric actuators, stainless steel trim planes and mounting plates, 20-foot harnesses with waterproof connectors, and 6-foot wire harnesses with waterproof conn…

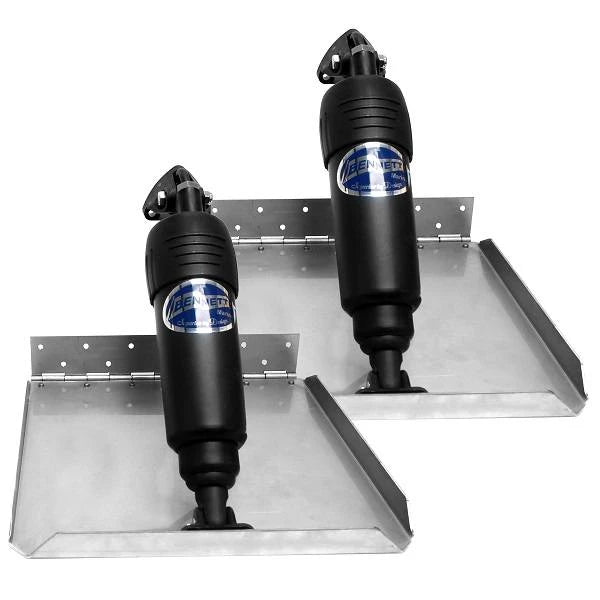

Bennett BOLT1212ED 12" x 12" BOLT Electric Trim Tab Kit - Edge Mount Bennett Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement. The Bennett BOLT Edge Mount Trim Tab Set is designed with an adjustable upper hinge for transoms with limited vertical space. Tabs turn up for added strength and feature piano-hinged backing plates. Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "superior by design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth. Electric trim tab systems are suitable for: Trailered boats 17-28 ft. Single actuator use, due to the inability to synchronize two electric actuators on the same tab. Trim Tab Dimensions: Width: 12" Depth: 12" Features: Requires less than 6.5" of vertical transom space to install. Wires are concealed and protected through the upper hinge = there are no exposed wires to the marine environment. Robust, water-tight black nylon actuator provides trouble-free operation. Main seal located high to protect against marine growth and water intrusion failures. Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator. 5 Year Manufacturer's Warranty Bennett Part#: BOLT1212ED Yamaha Part#: 6BT-50013-41-00 What's Included: (2) BEA2000 12-volt trim tab actuators (2) Stainless steel trim planes and mounting plates. (2) 20 ft harnesses with waterproof connectors. 6ft. wire harnesses and waterproof connectors. SWITCH SOLD SEPARATELY   Click here for Bennett BOLT1212ED 12" x 12" BOLT Electric Trim Tab Kit Installation InstructionsFrequently Asked Questions

• What is the Bennett BOLT1212ED Edge Mount Electric Trim Tab Kit designed for? The Bennett BOLT1212ED Edge Mount Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance on trailered boats from 17 to 28 feet. Its edge mount design is especially useful for boats with limited vertical transom space.
• What makes the Edge Mount design different? The Edge Mount design uses an adjustable upper hinge for transoms with limited vertical space and requires less than 6.5" of vertical transom space to install. The tabs also turn up for added strength and feature piano-hinged backing plates.
• What is included with the Bennett BOLT1212ED trim tab kit? This kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20’ harnesses with waterproof connectors, and 6’ wire harnesses with waterproof connectors.
• Is a trim tab switch included with this kit? No. The Bennett BOLT1212ED trim tab kit is sold without a switch, and the switch is sold separately.
• What size are the trim tabs in the Bennett BOLT1212ED kit? The trim tabs in this kit measure 12" wide by 12" deep. Bennett trim tab sizing is listed as span by chord, where span is the side-to-side measurement and chord is the fore-to-aft measurement. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett BOLT1212ED Edge Mount Electric Trim Tab Kit designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett BOLT1212ED Edge Mount Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance on trailered boats from 17 to 28 feet. Its edge mount design is especially useful for boats with limited vertical transom space." } }, { "@type": "Question", "name": "What makes the Edge Mount design different?", "acceptedAnswer": { "@type": "Answer", "text": "The Edge Mount design uses an adjustable upper hinge for transoms …

Bennett BOLT1212 12" x 12" BOLT Electric Trim Tab Kit Bennett Marine has been leading the way in electric trim tabs since 1960 and is trusted by the leading boat builders for over half a century. Founded on the principles of quality and service Bennett electric trim tab systems are some of the best on the market today. The Bennett Bolt trim tabs have been designed to outperform and outlast any other trim tab system on the market. The Bolt system uses states of the art technology and cutting-edge advances to manufacture a superior system. Common in outdated technology, the Bennett BOLT electric trim tab sets have developed technology that reduces water intrusion and common part malfunctions. Bennett electric trim tab systems are designed for flatboats, center console, dual console, deck boats, bowriders, bass boats, and runabouts and are more suitable for single actuator use and for trailered boats 17 to 30 feet. When selecting the right size Bennett BOLT trim tab system, keep in mind the span is the side-to-side measurement and the chord is the fore-to-aft measurement. NOTE: Bennett Electric Trim Tab sizes are in format span x chord. Span is the side to side measurement, chord is the fore to aft measurement. Trim Tab Dimensions: Width: 12" Depth: 12" Features: Wires are threaded through the upper hinge so no wires are exposed to the marine environment. This adds protection and safety. Water-tight black nylon actuator offers trouble-free operation. Main seal has been placed high to protect against marine growth and water intrusion failures. Runs quieter than competitors’ products. Installation is fast- the actuator does not require disassembly. Lifetime warranty for electric actuators Solidly constructed for a long service lifespan Bennett Part#: BOLT1212 Yamaha Part#: 6BT-50013-38-00 What's Included: (2) BEA2000 12-volt trim tab actuators (2) Stainless steel trim planes and mounting plates. (2) 20 ft harnesses with waterproof connectors. 6ft. wire harnesses and waterproof connectors. SWITCH SOLD SEPARATELY Click here to download Bennett BOLT1212 12" x 12" BOLT Electric Trim Tab Kit Installation InstructionsFrequently Asked Questions

• What is the Bennett BOLT1212 Electric Trim Tab Kit designed for? The Bennett BOLT1212 Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance. It is well suited for flatboats, center consoles, dual consoles, deck boats, bowriders, bass boats, and runabouts, and is recommended for trailered boats from 17 to 30 feet.
• What is included with the Bennett BOLT1212 trim tab kit? This kit includes two BEA2000 12-volt trim tab actuators, two stainless steel trim planes and mounting plates, two 20’ harnesses with waterproof connectors, and 6’ wire harnesses with waterproof connectors.
• Is a trim tab switch included with this kit? No. The Bennett BOLT1212 trim tab kit is sold without a switch, and the switch is sold separately.
• What features help protect the Bennett BOLT system in marine environments? The Bennett BOLT system routes wires through the upper hinge so they are not exposed to the marine environment. It also features a water-tight black nylon actuator and a main seal positioned high to help protect against marine growth and water intrusion.
• What size are the trim tabs in the Bennett BOLT1212 kit? The trim tabs in this kit measure 12" wide by 12" deep. Bennett trim tab sizing is listed as span by chord, where span is the side-to-side measurement and chord is the fore-to-aft measurement. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett BOLT1212 Electric Trim Tab Kit designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett BOLT1212 Electric Trim Tab Kit is designed to help improve boat ride quality, handling, and performance. It is well suited for flatboats, center consoles, dual consoles, d…

Bennett BEA2000 BOLT Electric Trim Tab Actuator

Bennett BOLT Electric Actuators feature superior seal design inspired by over 50 years of Bennett's proven success in hydraulic trimming techniques.

Robust, water-tight black nylon actuator provides trouble-free operation for years to come

Wires and seals completely protected from harsh marine environment, preventing problematic leakage and marine growth

Installation is fast and simple without the need to assemble the actuator yourself

How to Install Your Bennett BOLT Electric Actuator

Carefully insert the end of the electrical wires through the transom hole.

Apply 3M 5200 waterproof sealant on the mounting surface and around the wiring of the new actuator.

Mount the upper hinge of the new actuator to the transom using the supplied #14 x 1-1/2" screws with a #3 Phillips head screw driver.

Install the lower hinge to the actuator using the supplied stainless steel pin.

Mount the trim tab to the lower hinge of the new actuator using the (2) 1/4-20 x 3/4" supplied screws using a #2 Phillips head screw driver.

Install the wiring connector onto the wires.

Click to Download Bennett BOLT Electric Actuator Installation Instructions

Frequently Asked Questions

• What is the Bennett BEA2000 BOLT Electric Trim Tab Actuator used for? The Bennett BEA2000 BOLT Electric Trim Tab Actuator is designed for Bennett BOLT electric trim tab systems. Its robust, water-tight black nylon construction helps protect the actuator in the harsh marine environment, while its seal design helps prevent leakage and marine growth.
• How is the Bennett BEA2000 BOLT Electric Trim Tab Actuator installed? Installation involves routing the electrical wires through the transom hole, applying 3M 5200 waterproof sealant around the mounting surface and wiring, securing the upper hinge to the transom, attaching the lower hinge with the supplied stainless steel pin, and mounting the trim tab to the lower hinge.
• Does the Bennett BEA2000 require assembly before installation? No. The Bennett BEA2000 is designed for fast and simple installation without requiring the actuator to be assembled beforehand. The installation process includes mounting the hinges, attaching the trim tab, and installing the wiring connector.
• What hardware is included with the Bennett BEA2000 actuator? The installation instructions specify supplied #14 x 1-1/2" screws for mounting the upper hinge, a stainless steel pin for the lower hinge, and two 1/4-20 x 3/4" screws for attaching the trim tab to the lower hinge.
• How are the Bennett BEA2000 actuator wires and seals protected? The Bennett BEA2000 features a seal design that protects its wires and seals from the harsh marine environment. Its water-tight black nylon construction is designed to help prevent problematic leakage and marine growth.

Bennett AR512 Auto Trim Tab Retractor

The Bennett Auto Tab Retractor is an add-on for hydraulic trim tab systems with a rocker switch that automatically retracts tabs when the boat's ignition is turned off. This retractor helps prevent trim tab damage on trailered or dry storage boats by ensuring the tabs are fully up during hauling and storage. It also ensures trim tabs are all the way up every time the boat is started if the boat is not equipped with trim tab indicators. Easily installed under the instrument panel, the ATR connectors to the trim tab control and engine ignition switch.

Features:

Reduces the risk of trim tab damage from fork lifts, trailers, and dry storage racks

Relieves hydraulic pressure when the trim tabs are not in use

Avoids unnecessary marine growth on actuating cylinder

Ensures your trim tabs are fully retracted every time you start up

Click to Download Bennett Auto Tab Retractor Installation Instructions

Bennett AP000A1HA Hydraulic Pro Auto Trim Tab Switch

An all-in-one trim tab control system combining a myriad of essential features: Automatic Trim Tab Control, Manual Trim Tab Control, and Trim Tab Position Indication; all combined into an easy-use, space-saving keypad. It’s like cruise control for your tabs AutoTrim Pro automatically levels the pitch and roll of your boat, adjusting your trim tabs to changes in vessel speed, sea conditions and shifting weight. You can take full manual control anytime with the touch of a button.

This affordable solution can be added to most existing trim tab systems – electric or hydraulic. It’s fully compatible with all Bennett systems, and most others. Installation is simple and straightforward.

Features:

• Auto Trim Tab ControlEasily store 2 favorite automatic running attitudes in memory. See real-time AutoTrim Pro adjustments with LED indication
• Manual Tab Control with Automatic OverrideJust push anywhere on the bow up or down buttons and you’re in full manual command of the trim tabs
• OEM Customizable Response TimeConfigure response time to engine power, hull type, actuator type or trim tab size
• Trim Tab Position IndicationL.E.D. indicators equipped with adjustable light intensity
• One-touch Manual Full Up and Full Down ButtonsDown for hole-shot, up for running in a following sea, or coming into the beach
• Automatic Tab Retraction Retract trim tabs to full up position when the boat’s ignition is switched off, protecting tabs during storage and trailering

Click to Download Bennett Auto Trim Pro - Hydraulic Systems Installation Instructions

Frequently Asked Questions

• What is the Bennett AP000A1HA Hydraulic Pro Auto Trim Tab Switch? The Bennett AP000A1HA combines automatic trim tab control, manual trim tab control, and trim tab position indication in a space-saving keypad. AutoTrim Pro can automatically adjust trim tabs based on vessel speed, sea conditions, and shifting weight while allowing manual control whenever needed.
• Can the Bennett AP000A1HA be added to an existing trim tab system? Yes. The Bennett AP000A1HA can be added to most existing electric or hydraulic trim tab systems. It is fully compatible with Bennett systems and most other trim tab systems, with an installation designed to be simple and straightforward.
• Can I manually control the trim tabs with the Bennett AP000A1HA? Yes. The Bennett AP000A1HA provides manual trim tab control with automatic override. Pressing anywhere on the bow-up or bow-down buttons gives you full manual control of the trim tabs, allowing you to override automatic operation whenever desired.
• Can the Bennett AP000A1HA store automatic trim tab settings? Yes. AutoTrim Pro allows two favorite automatic running attitudes to be stored in memory. LED indication also lets you see real-time AutoTrim Pro adjustments while the system is operating.
• Does the Bennett AP000A1HA indicate trim tab position? Yes. The Bennett AP000A1HA includes LED trim tab position indicators with adjustable light intensity. The system also provides LED indication of real-time AutoTrim Pro adjustments.
• Does the Bennett AP000A1HA automatically retract the trim tabs? Yes. The automatic tab retraction feature moves the trim tabs to the full-up position when the boat's ignition is switched off. This feature is designed to protect the trim tabs during storage and trailering.

Bennett AP000A1BC Pro Auto Trim Tab Switch for BOLT Trim Tab Systems Bennett's Auto Trim Pro is an all-in-one trim tab control system combining a myriad of essential features: Automatic Trim Tab Control, Manual Trim Tab Control, and Trim Tab Position Indication; all combined into an easy-use, space-saving keypad. AutoTrim Pro automatically levels the pitch and roll of your boat, adjusting your trim tabs to changes in vessel speed, sea conditions and shifting weight. You can take full manual control anytime with the touch of a button. This affordable solution can be added to most existing electric trim tab systems. It’s fully compatible with all Bennett systems, and most others. With plug and play waterproof snap-on connectors, assembly is easy and straightforward. The Bennett Auto Trim Pro comes with an ATP control unit, ATP helm display, and plug and play waterproof connectors. Trim Tab Switch Features: Auto Trim Tab Control Easily store 2 favorite automatic running attitudes in memory. See real-time AutoTrim Pro adjustments with LED indication Manual Tab Control with Automatic Override Push anywhere on the bow up or down buttons for full manual command of the trim tabs OEM Customizable Response Time Configure response time to engine power, hull type, actuator type or trim tab size Trim Tab Position Indication L.E.D. indicators equipped with adjustable light intensity One-touch Manual Full Up and Full Down Buttons Down for hole-shot, up for running in a following sea, or coming into the beach Automatic Tab Retraction Retract trim tabs to full up position when the boat’s ignition is switched off Click to Download Bennett Auto Trim Pro Installation InstructionsFrequently Asked Questions

• What does the Bennett Auto Trim Pro switch do? The Bennett Auto Trim Pro is an all-in-one trim tab control system that combines automatic trim tab control, manual trim tab control, and trim tab position indication in a single space-saving keypad. It automatically adjusts trim tab position to help level your boat’s pitch and roll as operating conditions change.
• What trim tab systems is the Bennett Auto Trim Pro compatible with? The Bennett Auto Trim Pro is fully compatible with all Bennett systems and most other electric trim tab systems. Review your current trim tab setup before ordering to confirm compatibility.
• Can the Bennett Auto Trim Pro be operated manually? Yes. In addition to automatic trim tab control, the Bennett Auto Trim Pro allows full manual control at any time with the touch of a button. It also includes one-touch manual full up and full down buttons for quick adjustments.
• What features help improve trim tab control and visibility? The Bennett Auto Trim Pro includes trim tab position LEDs with adjustable light intensity, real-time adjustment indication, customizable response time, automatic tab retraction, and memory settings for two favorite automatic running attitudes.
• What is included with the Bennett Auto Trim Pro? The Bennett Auto Trim Pro includes the ATP control unit, ATP helm display, and plug-and-play waterproof connectors for installation. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Bennett Auto Trim Pro switch do?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett Auto Trim Pro is an all-in-one trim tab control system that combines automatic trim tab control, manual trim tab control, and trim tab position indication in a single space-saving keypad. It automatically adjusts trim tab position to help level your boat’s pitch and roll as operating conditions change." } }, { "@type": "Question", "name": "What trim tab systems is the Bennett Auto Trim Pro compatible with?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett Auto Trim Pro is fully compatible with all Bennett systems and most other elect…

Bennett A-1115 Actuator Lower Hinge Pin

Bennett actuators are strong but flexible nylon/fiberglass hydraulic cylinders. The piston-like arms push tabs into position. Fluid flows through a concealed hole in the upper hinge at the top of the actuator thus eliminating external hoses subject to damage. A1101A is the standardA1101EX is an external line connection used in cases of total inaccessibility inside the transomA1200S designed for installations where space is limited « less

Bennett A-1114 Actuator Lower Hinge W/Pin Bennett Actuator lower hinge with stainless steel lower hinge pin. Replacement part for Bennett Actuator.Frequently Asked Questions

• What is the Bennett A-1114 Actuator Lower Hinge with Pin used for? The Bennett A-1114 Actuator Lower Hinge with Pin is a replacement part used on Bennett trim tab actuators. It serves as the lower hinge connection point for the actuator assembly.
• Is this a replacement part or a complete actuator? This product is a replacement lower hinge with pin, not a complete actuator. Review your current trim tab setup and replacement needs before ordering.
• Does the Bennett A-1114 include the hinge pin? Yes. The Bennett A-1114 includes the lower hinge along with a stainless steel lower hinge pin.
• What material is the hinge pin made from? The lower hinge pin is made from stainless steel for corrosion-resistant performance in marine environments.
• What trim tab systems is this part designed for? The Bennett A-1114 is designed as a replacement part for Bennett actuators. Check your existing actuator model and trim tab setup to confirm compatibility before ordering. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett A-1114 Actuator Lower Hinge with Pin used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett A-1114 Actuator Lower Hinge with Pin is a replacement part used on Bennett trim tab actuators. It serves as the lower hinge connection point for the actuator assembly." } }, { "@type": "Question", "name": "Is this a replacement part or a complete actuator?", "acceptedAnswer": { "@type": "Answer", "text": "This product is a replacement lower hinge with pin, not a complete actuator. Review your current trim tab setup and replacement needs before ordering." } }, { "@type": "Question", "name": "Does the Bennett A-1114 include the hinge pin?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The Bennett A-1114 includes the lower hinge along with a stainless steel lower hinge pin." } }, { "@type": "Question", "name": "What material is the hinge pin made from?", "acceptedAnswer": { "@type": "Answer", "text": "The lower hinge pin is made from stainless steel for corrosion-resistant performance in marine environments." } }, { "@type": "Question", "name": "What trim tab systems is this part designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett A-1114 is designed as a replacement part for Bennett actuators. Check your existing actuator model and trim tab setup to confirm compatibility before ordering." } } ] }

Bennett A-1103 Actuator Upper Hinge

Replacement actuator upper hinge for Bennett Marine trim tab actuators.

How to Replace an Actuator Upper Hinge

With trim tabs in full up position, locate the trim tab hydraulic line inside the transom.

Detach the tubing from brass elbow. Note: Some oil will drip out.

While holding pipe nipple with vise grips, unscrew brass elbow.

Outside the transom, snap white plastic clip on shaft protruding from the bottom of the cylinder.

Grab the body of the cylinder with both hands and unscrew counter clockwise from actuator cap.

Screw new cap onto cylinder. Tighten cap hand tight. Remove plastic cap. The white plastic clip can now be discarded.

Detach old cap from transom. Remove pipe nipple.

Screw pipe nipple back into new actuator cap. Tighten hand tight.

Tighten on full turn past hand tight, but no more.

Cover end of pipe nipple with masking tape. Apply sealant on actuator cap surface around pipe nipple and screw holes.

Secure actuator cap to transom with mounting screws.

Grasp cylinder with both hands and tighten (clockwise) securely.

Inside transom, wrap Teflon around male thread of pipe nipple protruding from inside of transom.

Hold pipe nipples stationary with vise grips and attach 90 degree elbow.

Re-attach hydraulic tubing with a 1/2" wrench.

Test actuator before launching boat.

Information sourced from Bennett Marine.

Click to Download Bennett Actuator Upper Hinge Replacement Instructions

Bennett A1101A Replacement Hydraulic Trim Tab Actuator The Bennett A1101A is a 13.75-inch standard-size hydraulic actuator designed as a direct replacement for worn or malfunctioning trim tab cylinders on both standard and sport tab units. Working with your boat's hydraulic power unit, this actuator provides precise control over trim tabs, allowing you to adjust your vessel's pitch axis based on speed, weight distribution, and water conditions. It helps stabilize your boat by counteracting aerodynamic forces and maximizing engine efficiency. This replacement component delivers consistent performance for maintaining optimal boat operation and safety.Frequently Asked Questions

• What does the Bennett A1101A Replacement Hydraulic Trim Tab Actuator do? The Bennett A1101A is a replacement hydraulic trim tab actuator that works with your boat’s hydraulic power unit to control trim tab movement. It helps adjust your boat’s pitch based on speed, load distribution, and water conditions for improved handling and performance.
• Is the Bennett A1101A a replacement part or a complete trim tab system? The Bennett A1101A is a replacement hydraulic actuator, not a complete trim tab system. It is intended to replace worn or malfunctioning trim tab cylinders on compatible Bennett setups.
• What trim tab systems is the Bennett A1101A designed for? The Bennett A1101A is designed for standard and sport tab units. Review your current trim tab setup and actuator requirements to confirm compatibility before ordering.
• What size is the Bennett A1101A hydraulic actuator? The Bennett A1101A is a standard-size hydraulic actuator measuring 13.75" in length.
• How does this actuator help boat performance? This actuator helps provide precise trim tab control so you can better manage your boat’s running attitude. Proper trim tab adjustment can help improve stability, handling, ride quality, and overall engine efficiency. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Bennett A1101A Replacement Hydraulic Trim Tab Actuator do?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett A1101A is a replacement hydraulic trim tab actuator that works with your boat’s hydraulic power unit to control trim tab movement. It helps adjust your boat’s pitch based on speed, load distribution, and water conditions for improved handling and performance." } }, { "@type": "Question", "name": "Is the Bennett A1101A a replacement part or a complete trim tab system?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett A1101A is a replacement hydraulic actuator, not a complete trim tab system. It is intended to replace worn or malfunctioning trim tab cylinders on compatible Bennett setups." } }, { "@type": "Question", "name": "What trim tab systems is the Bennett A1101A designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett A1101A is designed for standard and sport tab units. Review your current trim tab setup and actuator requirements to confirm compatibility before ordering." } }, { "@type": "Question", "name": "What size is the Bennett A1101A hydraulic actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett A1101A is a standard-size hydraulic actuator measuring 13.75\" in length." } }, { "@type": "Question", "name": "How does this actuator help boat performance?", "acceptedAnswer": { "@type": "Answer", "text": "This actuator helps provide precise trim tab control so you can better manage your boat’s running attitude. Proper trim tab adjustment can help improve stability, handling, ride quality, and overall engine efficiency." } } ] }
