Bennett Marine

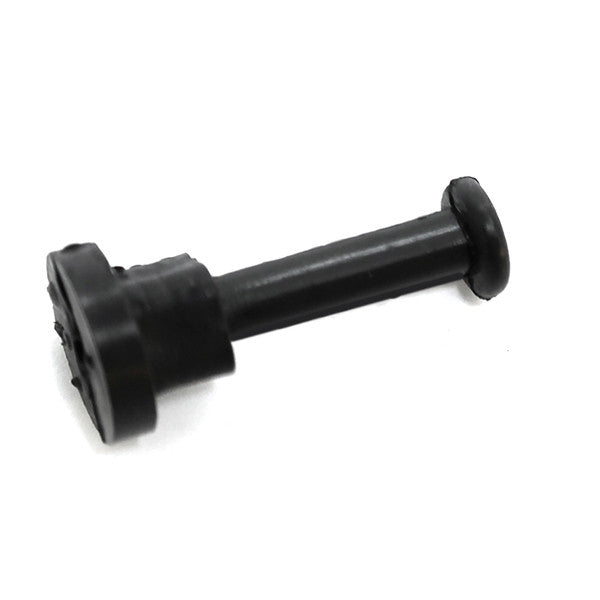

Bennett VP1140 Filler Plug

The VP1140 is a small black nylon replacement filler plug replacement that can be used with any Bennett Marine manufactured hydraulic power unit.

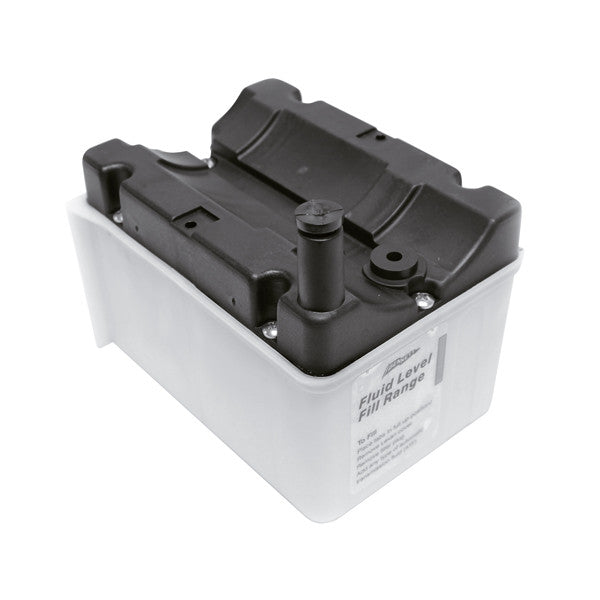

Bennett VP1139 Fluid Reservoir

Fluid Reservoir for Hydraulic Power Unit

Approximately 22 ounces of any type automatic transmission fluid (ATF) is required to fill the reservoir to proper level for single actuator installations. With the trim tabs fully retracted, proper fluid level is about 2" from the bottom of the reservoir.

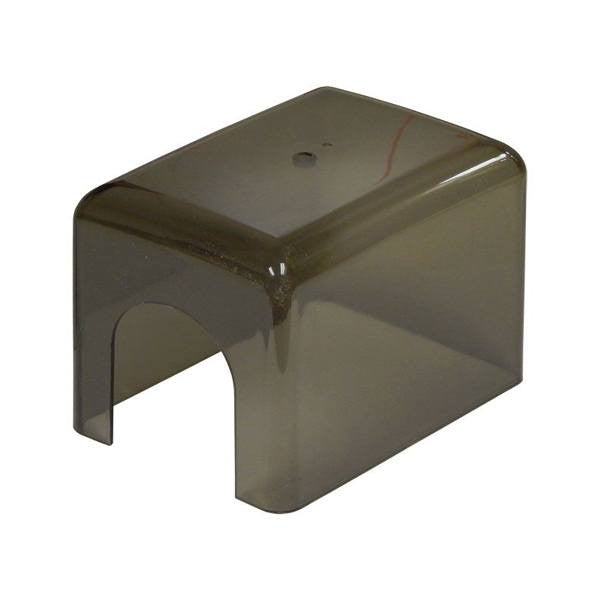

Bennett VP1138 Lexan Hydraulic Trim Motor Cover

This Bennett lexan cover is a replacement for the lexan hydraulic motor/pump cover. It can be used with V351HPU1, V351HPU2, DAHPU, & DAHPU2 Hydraulic Power Units.

Features:

Replacement for the Lexan Hydraulic Motor/Pump Cover

Can Be Used With:

V351HPU1

V351HPU2

DAHPU

DAHPU2

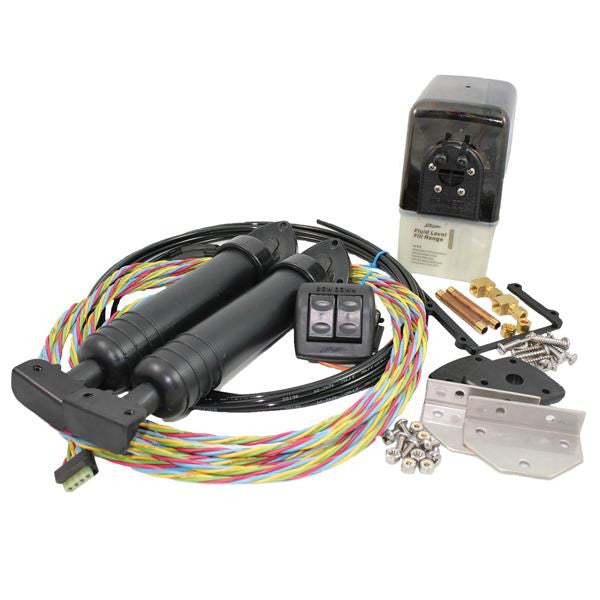

Bennett V351LK Lenco to Bennett Trim Tab Conversion Kit

Economical, easy installation alternative to replacing Lenco actuator or purchasing an entire trim tab system. Uses existing Lenco trim planes. No need to patch or re-drill mounting holes.

Lenco to Bennett Conversion Kit Includes:

Custom adapter plates for actuator and trim plane assembly

Bennett Hydraulic Power Unit

Two standard actuators

Water resistant Rocker Switch Control, hardware and all wiring

Frequently Asked Questions

• What is the Bennett V351LK Lenco to Bennett Trim Tab Conversion Kit designed to do? The Bennett V351LK Lenco to Bennett Trim Tab Conversion Kit provides an alternative to replacing a Lenco actuator or purchasing an entire trim tab system. It is designed to convert an existing Lenco trim tab setup while retaining the existing Lenco trim planes.
• Can the Bennett V351LK conversion kit use existing Lenco trim planes? Yes. The Bennett V351LK conversion kit is designed to use the existing Lenco trim planes. Custom adapter plates are included for the actuator and trim plane assembly, allowing the existing trim planes to be retained.
• Does the Bennett V351LK require patching or re-drilling mounting holes? No. The Bennett V351LK Lenco to Bennett Trim Tab Conversion Kit is designed to install without patching or re-drilling the existing mounting holes.
• What is included with the Bennett V351LK Lenco to Bennett Trim Tab Conversion Kit? The kit includes custom adapter plates for the actuator and trim plane assembly, a Bennett hydraulic power unit, two standard actuators, a water-resistant rocker switch control, hardware, and all required wiring included with the kit.
• What type of control is included with the Bennett V351LK conversion kit? The Bennett V351LK includes a water-resistant rocker switch control along with the hardware and wiring included in the conversion kit. The kit also includes a Bennett hydraulic power unit and two standard actuators.

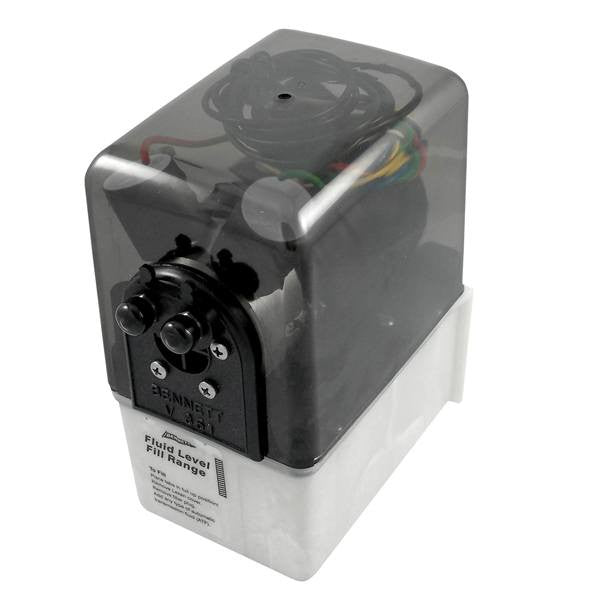

Bennett V351HPU2 Trim Tab Replacement Hydraulic Power Unit - 24 Volt

Includes pump, motor valves, reservoir and cover. Strength sufficient to lower and hold in place even the largest tabs.

Note: The 24V model has tan plotting at the end of the solenoid valves.

Frequently Asked Questions

• What is the Bennett V351HPU2 Trim Tab Replacement Hydraulic Power Unit designed for? The Bennett V351HPU2 is a 24-volt replacement hydraulic power unit for trim tab systems. It includes the pump, motor, valves, reservoir, and cover in one assembly.
• What components are included with the Bennett V351HPU2 hydraulic power unit? The Bennett V351HPU2 includes a pump, motor, valves, reservoir, and cover. The complete assembly is designed to provide the hydraulic power needed for the trim tab system.
• What voltage is the Bennett V351HPU2 Trim Tab Replacement Hydraulic Power Unit? The Bennett V351HPU2 is the 24-volt model. The product description notes that the 24V version has tan plating at the end of the solenoid valves.
• Can the Bennett V351HPU2 hydraulic power unit lower and hold large trim tabs? Yes. The Bennett V351HPU2 has sufficient strength to lower and hold even the largest trim tabs in place.
• How can the Bennett V351HPU2 be identified as the 24-volt model? The 24-volt Bennett V351HPU2 model has tan plating at the end of the solenoid valves, according to the product description.

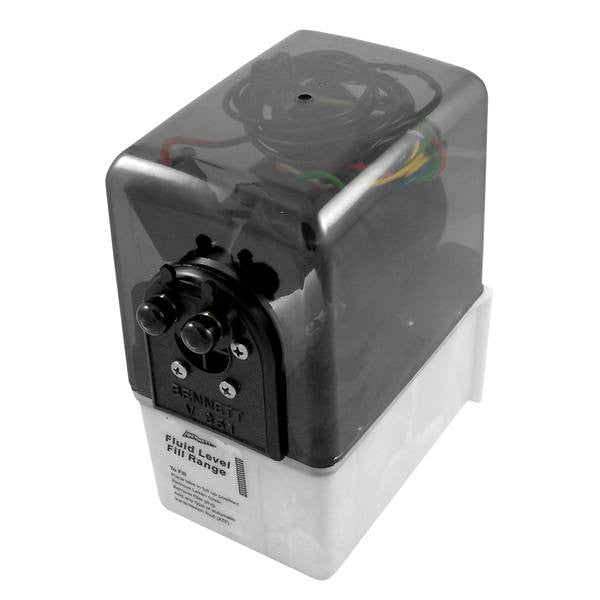

Bennett V351HPU1 Trim Tab Hydraulic Power Unit 12 Volt Hydraulic Power Unit Bennett 12V Trim Tab Hydraulic Power Unit. High-quality replacement Power Unit for your trim tab set-up! Super-strong to lower and hold firm even the largest of tabs. Strength sufficient to lower and hold in place even the largest tabs. Two solenoid valves lock tightly, thereby preventing water pressure from retracting the tabs. Sturdy lexan plastic covers protect the Unit from the occasional wash-down. Translucent fiberglass reservoir. 12V A compact powerhouse that creates hydraulic pressure to lower and raise the trim tabs. It employs two solenoid valves to direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place. Strength to lower and hold even the largest tabs in place. Lexan cover protects electro-hydraulic unit from occasional wash down and translucent reservoir allows fluid check at a glance. Measures 4 x 7 1/2 x 8 1/2"; Includes pump, motor, reservoir, and cover; Two solenoid valves lock tightly, preventing water pressure from retracting the tabs; Sturdy lexan plastic cover protects the Unit from the occasional wash-down; Translucent fiberglass reservoir lets you check fluids easily at a glance; Installs easily with sturdy mounting bracket. Order Yours Today! Bennett 12V Trim Tab Hydraulic Power Unit Features A compact powerhouse that creates hydraulic pressure to lower and raise the trim tabs Pump Dimensions: 4" x 7-1/2" x 5-1/2" It employs two solenoid valves to direct the flow of fluid to the actuators The solenoid valves lock tightly to secure the tabs in place It has the strength to lower and hold even the largest tabs in place Lexan cover protects electro-hydraulic unit from occasional wash down The Translucent reservoir allows fluid check at a glance Installs easily with sturdy mounting bracket (Sold Separately) Model H1179 Bracket Designed to use automatic transmission fluid Kit Includes : Pump (2) Internal Solenoid Valves Reservoir Cover Note: The 12V model has black plotting at the end of the solenoid valves.  Frequently Asked Questions

• What does the Bennett V351HPU1 Trim Tab Hydraulic Power Unit do? The Bennett V351HPU1 creates hydraulic pressure to raise and lower hydraulic trim tabs. It directs fluid to the actuators through two internal solenoid valves to help provide controlled trim tab operation.
• What is included with this hydraulic power unit? This kit includes the pump, two internal solenoid valves, and the reservoir cover. Review the product details to confirm any additional components needed for your trim tab setup.
• What helps this power unit hold trim tabs in position? Two solenoid valves lock tightly to help keep the trim tabs in place and prevent water pressure from retracting them. This design helps provide reliable holding power, even for larger trim tabs.
• What fluid does the Bennett V351HPU1 use? The Bennett V351HPU1 is designed to use automatic transmission fluid. Always review the manufacturer recommendations before filling or servicing your hydraulic trim tab system.
• What are the dimensions and mounting details for this hydraulic power unit? The pump dimensions are 4" x 7-1/2" x 5-1/2". A sturdy mounting bracket is sold separately, and the recommended bracket model is H1179. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Bennett V351HPU1 Trim Tab Hydraulic Power Unit do?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett V351HPU1 creates hydraulic pressure to raise and lower hydraulic trim tabs. It directs fluid to the actuators through two internal solenoid valves to help provide controlled trim tab operation." } }, { "@type": "Question", "name": "What is included with this hydraulic power unit?", "acceptedAnswer": { "@type": "Answer", "text": "This kit includes the pum…

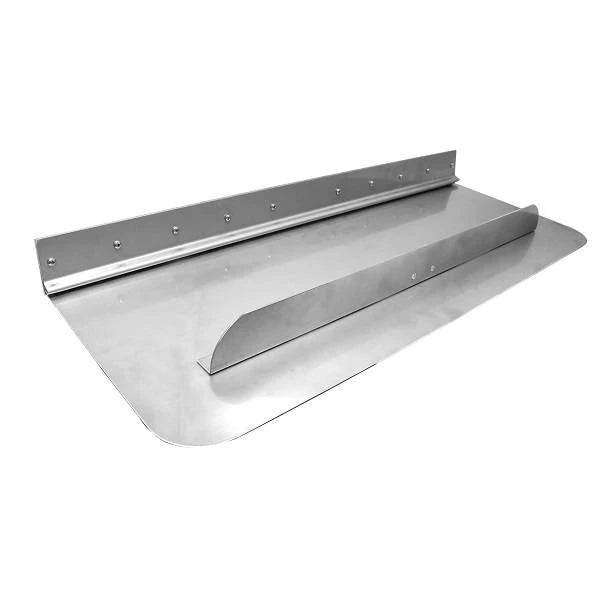

Bennett TPA3012 30" x 12" Trim Plane Assembly

Bennett trim planes are made of high quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.

Trim Tab Plane Features:

Standard Trim Assembly

30" Wide by 12" Deep

304 Stainless Steel

Bennett Part#: TPA3012

Yamaha Part#: 6BT500701800

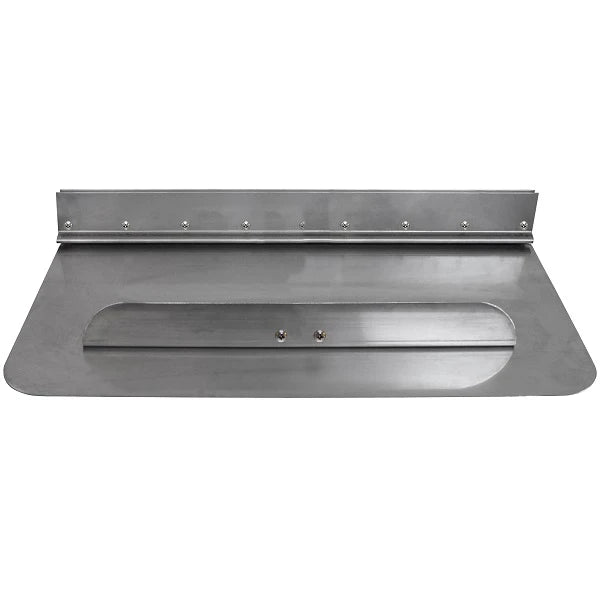

Bennett TPA2412 24" x 12" Trim Plane Assembly

Bennett trim planes are made of high quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.

Trim Tab Plane Features:

Standard Trim Assembly

24" Wide by 12" Deep

304 Stainless Steel

Bennett Part#: TPA2412

Yamaha Part#: 6BT500700100

Frequently Asked Questions

• What is the Bennett TPA2412 24" x 12" Trim Plane Assembly? The Bennett TPA2412 is a standard trim plane assembly made from 304 stainless steel. It includes a trim plane, backing plate, and hinge for one side of the boat.
• What are the dimensions of the Bennett TPA2412 trim plane? The Bennett TPA2412 trim plane measures 24 inches wide by 12 inches deep. These dimensions identify the size of the standard trim assembly.
• What is the Bennett TPA2412 trim plane assembly made from? The Bennett TPA2412 is constructed from 304 stainless steel. The product description states that the trim planes are designed to remain strong and rigid, including in challenging marine conditions.
• Does the Bennett TPA2412 include components for both sides of the boat? No. Each Bennett TPA2412 trim plane assembly includes a trim plane, backing plate, and hinge for one side of the boat. Verify the quantity needed for your particular trim tab system before purchasing.
• What are the part numbers for the Bennett TPA2412 trim plane assembly? The Bennett part number is TPA2412, and the corresponding Yamaha part number listed in the product description is 6BT500700100.

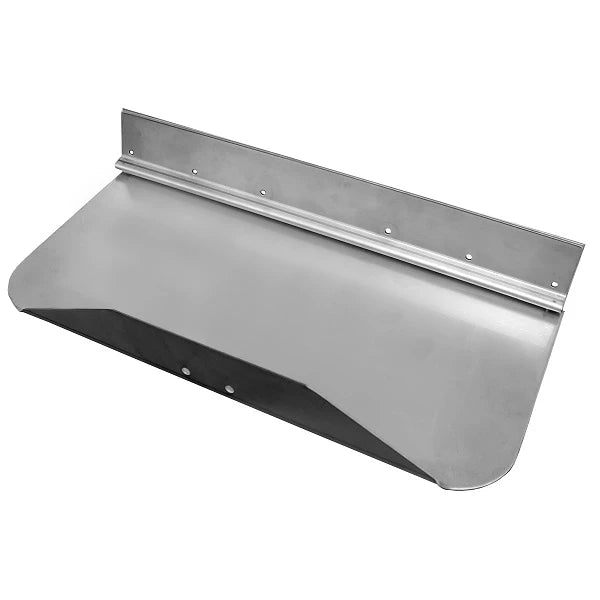

Bennett TPA189 18" x 9" Trim Plane Assembly

Bennett trim planes are made of high quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.

Trim Tab Plane Features:

Standard Trim Assembly

18" Wide by 9" Deep

304 Stainless Steel

Bennett Part#: TPA189

Yamaha Part#: 6BT500697000

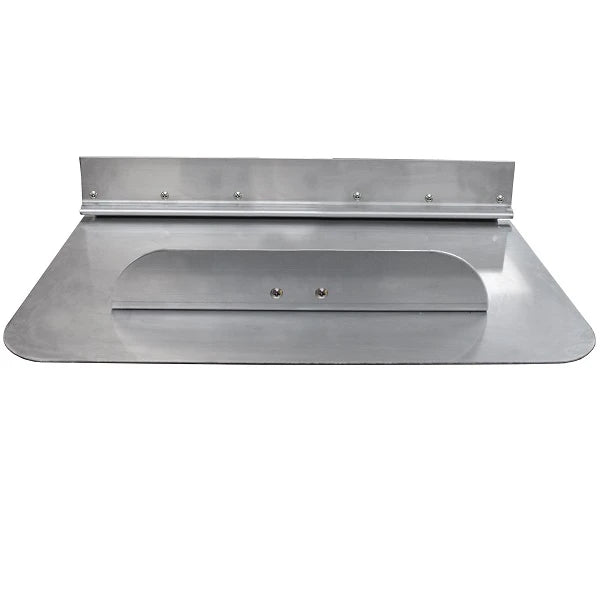

Bennett TPA1812 18" x 12" Trim Plane Assembly

Bennett trim planes are made of high quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.

Trim Tab Plane Features:

Standard Trim Assembly

18" Wide by 12" Deep

304 Stainless Steel

Bennett Part#: TPA1812

Yamaha Part#: 6BT500696200

Frequently Asked Questions

• What is the Bennett TPA1812 18" x 12" Trim Plane Assembly? The Bennett TPA1812 is a standard trim plane assembly measuring 18 inches wide by 12 inches deep. Each assembly includes a trim plane, backing plate, and hinge for one side of the boat.
• What is the Bennett TPA1812 trim plane made from? The Bennett TPA1812 trim plane assembly is made from 304 stainless steel. The material is designed to remain strong and rigid in challenging conditions.
• What is included with the Bennett TPA1812 Trim Plane Assembly? Each Bennett TPA1812 assembly includes one trim plane, one backing plate, and one hinge. The assembly is intended for one side of the boat.
• What size is the Bennett TPA1812 Trim Plane Assembly? The Bennett TPA1812 measures 18 inches wide by 12 inches deep. It is a standard trim assembly made from 304 stainless steel.
• Is the Bennett TPA1812 a complete set for both sides of a boat? No. Each Bennett TPA1812 Trim Plane Assembly is for one side of the boat and includes one trim plane, backing plate, and hinge. A single assembly does not provide trim planes for both sides.
• What are the part numbers for the Bennett TPA1812? The Bennett TPA1812 is identified by Bennett Part Number TPA1812 and Yamaha Part Number 6BT500696200.

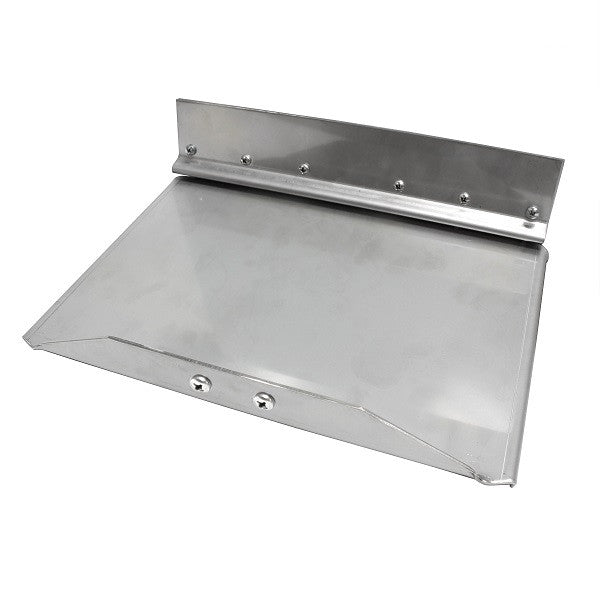

Bennett TPA129 12" x 9" Trim Plane Assembly

Bennett trim planes are made of high quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.

Trim Tab Plane Features:

Standard Trim Assembly

Fits boats 14' - 18'

12" Wide by 9" Deep

304 Stainless Steel

Bennett Part#: TPA129

Yamaha Part#: 6BT500692700

Frequently Asked Questions

• What is the Bennett TPA129 12" x 9" Trim Plane Assembly? The Bennett TPA129 is a standard trim plane assembly made from 304 stainless steel. Each assembly includes a trim plane, backing plate, and hinge for one side of the boat. It is specified for boats measuring 14 to 18 feet in length.
• What are the dimensions of the Bennett TPA129 trim plane? The Bennett TPA129 trim plane measures 12 inches wide by 9 inches deep. These dimensions apply to the standard trim plane assembly.
• What is the Bennett TPA129 trim plane assembly made from? The Bennett TPA129 is made from 304 stainless steel. Bennett trim planes are designed to remain strong and rigid, including in challenging marine conditions.
• Does the Bennett TPA129 include a trim plane assembly for both sides of the boat? No. Each Bennett TPA129 assembly includes the trim plane, backing plate, and hinge for one side of the boat. Verify how many assemblies are required for your trim tab system before purchasing.
• What boats is the Bennett TPA129 trim plane assembly designed for? The Bennett TPA129 is specified for boats measuring 14 to 18 feet in length. The assembly has a 12-inch-wide by 9-inch-deep trim plane made from 304 stainless steel.
• What are the part numbers for the Bennett TPA129 trim plane assembly? The Bennett part number is TPA129, and the Yamaha part number listed for this trim plane assembly is 6BT500692700.

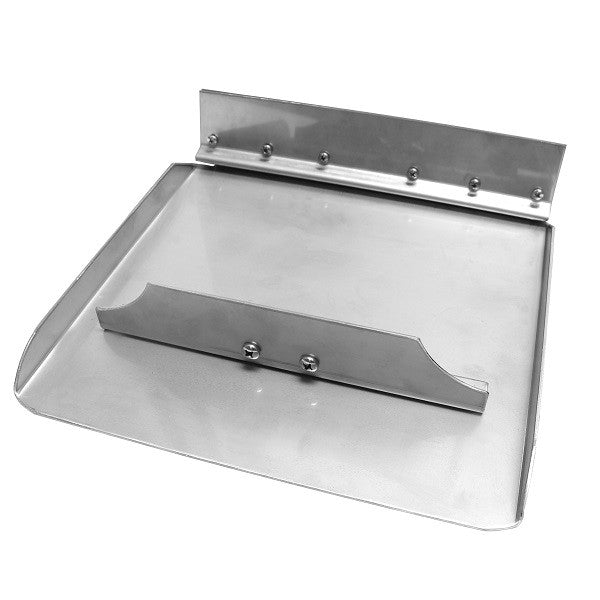

Bennett TPA1212 12" x 12" Trim Plane Assembly Bennett trim planes are made of high quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat. Trim Tab Plane Features: Standard Trim Assembly Fits boats 17' - 30' 12" Wide by 12" Deep 304 Stainless Steel Bennett Part#: TPA1212 Yamaha Part#: 6BT500689300  Frequently Asked Questions

• What is the Bennett TPA1212 Trim Plane Assembly? The Bennett TPA1212 is a standard trim plane assembly for one side of the boat. It is designed as a replacement trim tab plane assembly for compatible Bennett trim tab systems.
• What is included with the Bennett TPA1212 Trim Plane Assembly? Each trim plane assembly includes one trim plane, one backing plate, and one hinge for a single side of the boat.
• What material is the Bennett TPA1212 made from? The Bennett TPA1212 is made from high-quality 304 stainless steel for strength, rigidity, and corrosion resistance in marine environments.
• What size is the Bennett TPA1212 Trim Plane Assembly? This trim plane assembly measures 12" wide by 12" deep.
• What boat sizes is the Bennett TPA1212 recommended for? The Bennett TPA1212 is recommended for boats from 17 to 30 feet. Review your current trim tab setup and boat requirements to confirm compatibility before ordering. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett TPA1212 Trim Plane Assembly?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett TPA1212 is a standard trim plane assembly for one side of the boat. It is designed as a replacement trim tab plane assembly for compatible Bennett trim tab systems." } }, { "@type": "Question", "name": "What is included with the Bennett TPA1212 Trim Plane Assembly?", "acceptedAnswer": { "@type": "Answer", "text": "Each trim plane assembly includes one trim plane, one backing plate, and one hinge for a single side of the boat." } }, { "@type": "Question", "name": "What material is the Bennett TPA1212 made from?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett TPA1212 is made from high-quality 304 stainless steel for strength, rigidity, and corrosion resistance in marine environments." } }, { "@type": "Question", "name": "What size is the Bennett TPA1212 Trim Plane Assembly?", "acceptedAnswer": { "@type": "Answer", "text": "This trim plane assembly measures 12\" wide by 12\" deep." } }, { "@type": "Question", "name": "What boat sizes is the Bennett TPA1212 recommended for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett TPA1212 is recommended for boats from 17 to 30 feet. Review your current trim tab setup and boat requirements to confirm compatibility before ordering." } } ] }

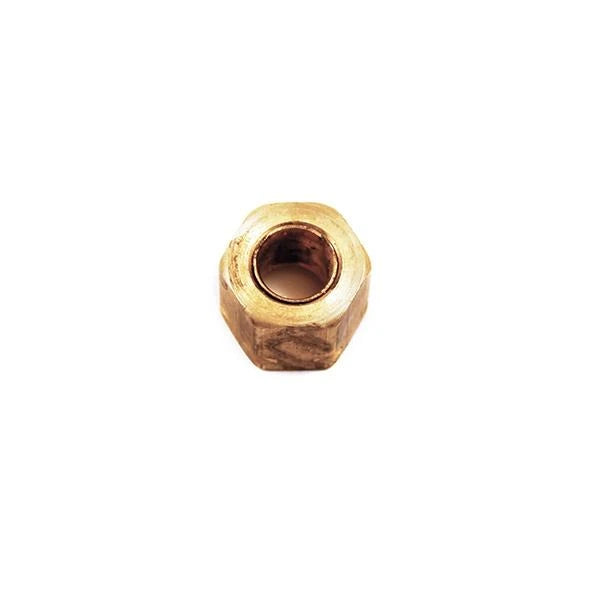

Bennett T1127SK Hydraulic Fitting Nut w/ Ferrule

This Bennett hydraulic fitting nut with a ferrule attaches hydraulic tubing to hydraulic power units.

Attaches Hydraulic Tubing to Hydraulic Power Unit

Sold Each

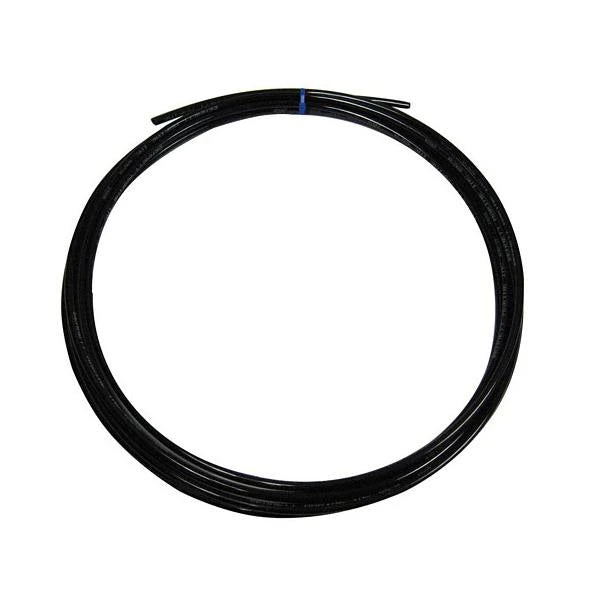

Bennett T1125-20 20ft Hydraulic Tubing

This Bennett 20ft hydraulic tubing replace a damaged hose in an existing system. Bennett offers the same hose used in their trim tab kits in coils for replacement of existing hydraulic lines or to match the needs more complicated installations that exceed the hose quantity included in trim tab kits.

Features:

Replaces damaged hose in an existing system

20' coil of OEM hydraulic hose

Additional hose for new installations that exceed hose supplied in the kit

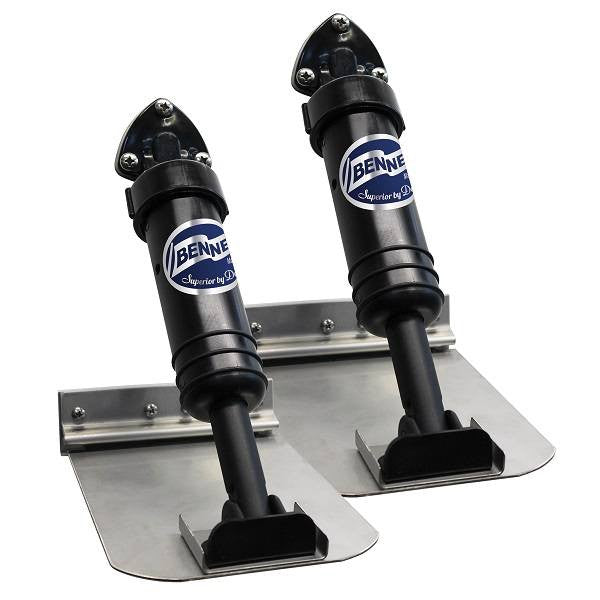

Bennett SLT6 6" x 8" Self Leveling Trim Tab System for boats Up to 16' Replacing trim tabs has come a long way from the once tedious task. Bennett Marine has developed cutting-edge technology that has revolutionized trim tabs systems. Their self-leveling trim tab systems are a great choice for smaller vessels. They are quick and easy to install and require no work on the inside of the boat. Whether a trained marine technician or a DIYer, Bennett self-leveling trim tabs can be installed with only a few tools in less than an hour. Bennett self leveling trim tabs are designed to change and react based on the boat's speed and water changes. The self leveling trim tabs adjust the trim automatically whenever necessary. When the boat is getting on the plane or traveling at slower speeds, the actuators hold the self-leveling trim tabs down to allow the stern to elevate. Once the boat is up to speed, the water pressure pushes the tabs up creating the most. The Bennett Self-Leveling Trim Tab System is recommended for use on ribs, skiffs, and runabouts. SLT6 6"x 8" Tabs - Recommended for boats Up to 16' Features: Enables boaters to get on planes faster Trim Tab Blades: 6" Wide by 8" Deep Improves your boat’s fuel efficiency Reduces pounding and engine laboring for extended service life Eliminates porpoising and “chine walking” Installs in under an hour - ideal for the DIYer or Marine Technician Features a durable spring-action system 5-Year limited warranty Yamaha Part#: 6BT501095100 Bennett SLT kit includes: (2) 14-gauge stainless steel trim tabs with Bennett's exclusive interlocking hinge. (2) strong and durable actuators. All stainless steel hardware – no plastic! Click to Download Bennett SLT6 Self-Leveling Trim Tabs Installation InstructionsFrequently Asked Questions

• What does the Bennett SLT6 Self-Leveling Trim Tab System do? The Bennett SLT6 Self-Leveling Trim Tab System automatically adjusts trim tab position based on boat speed and water conditions to help improve planing, ride quality, and overall performance. It is designed to help smaller boats get on plane faster while reducing porpoising and chine walking.
• What types of boats is the Bennett SLT6 recommended for? The Bennett SLT6 is recommended for boats up to 16 feet and is especially suited for ribs, skiffs, and runabouts. Review your boat size and transom setup to confirm compatibility before ordering.
• Is the Bennett SLT6 a complete trim tab system? Yes. The Bennett SLT6 is a complete self-leveling trim tab system that includes two 6" x 8" stainless steel trim tabs, two actuators, and stainless steel installation hardware.
• Is the Bennett SLT6 easy to install? Yes. The Bennett SLT6 is designed for quick installation with no work required inside the boat. It can typically be installed in less than an hour with only a few tools.
• What performance benefits does the Bennett SLT6 provide? The Bennett SLT6 helps boats get on plane faster, improves fuel efficiency, reduces pounding and engine laboring, and helps eliminate porpoising and chine walking. Its spring-action self-leveling design adjusts automatically as operating conditions change. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Bennett SLT6 Self-Leveling Trim Tab System do?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett SLT6 Self-Leveling Trim Tab System automatically adjusts trim tab position based on boat speed and water conditions to help improve planing, ride quality, and overall performance. It is designed to help smaller boats get on plane faster while reducing porpoising and chine walking." } }, { "@type": "Question", "name": "What types of boats is the Bennett SLT6 recommended for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett SLT6 is recommended for boats up to 16 feet and is …

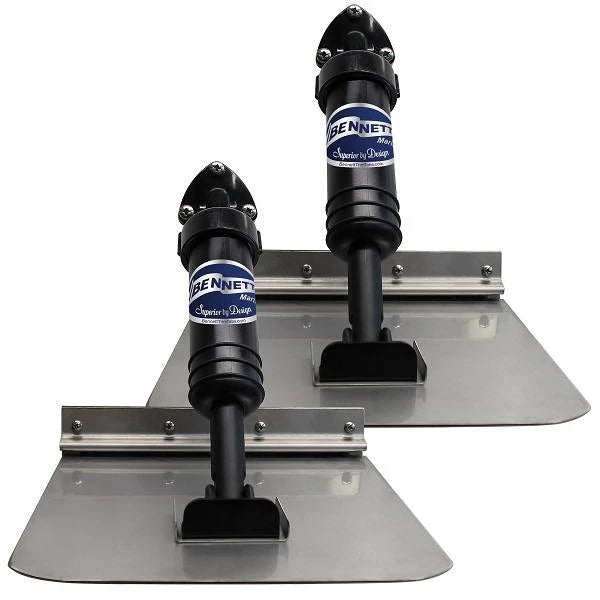

Bennett SLT10 10" x 10" Self Leveling Trim Tab System for boats 16' and Up Replacing trim tabs has come a long way from the once tedious task. Bennett Marine has developed cutting-edge technology that has revolutionized trim tabs systems. Their self-leveling trim tab systems are a great choice for smaller vessels. They are quick and easy to install and require no work on the inside of the boat. Whether a trained marine technician or a DIYer, Bennett self-leveling trim tabs can be installed with only a few tools in less than an hour. Bennett self leveling trim tabs are designed to change and react based on the boat's speed and water changes. The self leveling trim tabs adjust the trim automatically whenever necessary. When the boat is getting on the plane or traveling at slower speeds, the actuators hold the self-leveling trim tabs down to allow the stern to elevate. Once the boat is up to speed, the water pressure pushes the tabs up creating the most. The Bennett Self-Leveling Trim Tab System is recommended for use on ribs, skiffs, and runabouts. STL10 10"x 10" tabs - Recommended for boats 16' and up Features: Enables boaters to get on planes faster Improves your boat’s fuel efficiency Reduces pounding and engine laboring for extended service life Eliminates porpoising and “chine walking” Installs in under an hour - ideal for the DIYer or Marine Technician Features a durable spring-action system 5-Year limited warranty Yamaha Part#: 6BT501095200 Bennett SLT kit includes: (2) 14-gauge stainless steel trim tabs with Bennett's exclusive interlocking hinge. (2) strong and durable actuators. All stainless steel hardware – no plastic! Click to Download Bennett SLT10 Self-Leveling Trim Tabs Installation InstructionsFrequently Asked Questions

• What does the Bennett SLT10 Self-Leveling Trim Tab System do? The Bennett SLT10 Self-Leveling Trim Tab System automatically adjusts trim tab position based on boat speed and water conditions to help improve planing, ride quality, and overall performance. It is designed to help smaller boats get on plane faster while reducing porpoising and chine walking.
• What types of boats is the Bennett SLT10 recommended for? The Bennett SLT10 is recommended for boats 16 feet and up and is especially suited for ribs, skiffs, and runabouts. Review your boat size and transom setup to confirm compatibility before ordering.
• Is the Bennett SLT10 a complete trim tab system? Yes. The Bennett SLT10 is a complete self-leveling trim tab system that includes two 10" x 10" stainless steel trim tabs, two actuators, and stainless steel installation hardware.
• Is the Bennett SLT10 easy to install? Yes. The Bennett SLT10 is designed for quick installation with no work required inside the boat. It can typically be installed in less than an hour with only a few tools.
• What performance benefits does the Bennett SLT10 provide? The Bennett SLT10 helps boats get on plane faster, improves fuel efficiency, reduces pounding and engine laboring, and helps eliminate porpoising and chine walking. Its spring-action self-leveling design adjusts automatically as operating conditions change. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Bennett SLT10 Self-Leveling Trim Tab System do?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett SLT10 Self-Leveling Trim Tab System automatically adjusts trim tab position based on boat speed and water conditions to help improve planing, ride quality, and overall performance. It is designed to help smaller boats get on plane faster while reducing porpoising and chine walking." } }, { "@type": "Question", "name": "What types of boats is the Bennett SLT10 recommended for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett SLT10 is recommended for boats 16 feet and up and is especiall…

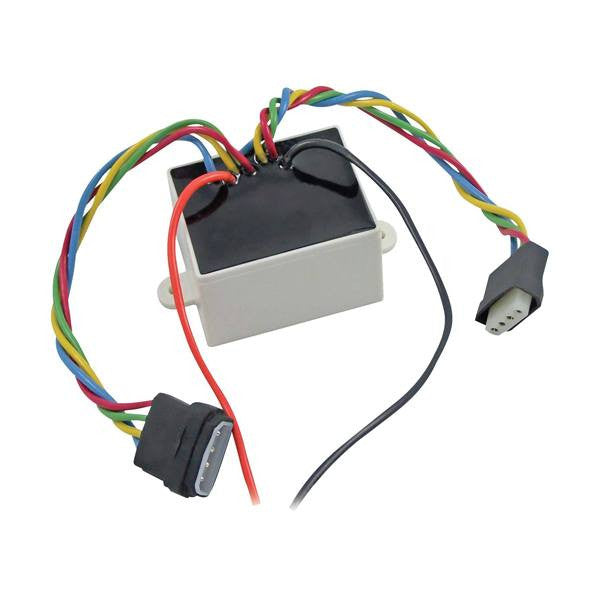

Bennett RM12 12V Relay Module

The Bennett Relay Module reduces voltage drop in Trim Tab Systems with longer wire runs. With the older trim tab controls, RT1000 and RS1000, the Relay Module also functions as an Interrupter Relay and will prevent a fuse from blowing if Bow Down and Bow Up are inadvertently pressed at the same time.

Click to Download Bennett RM12 Relay Module Wiring Instructions

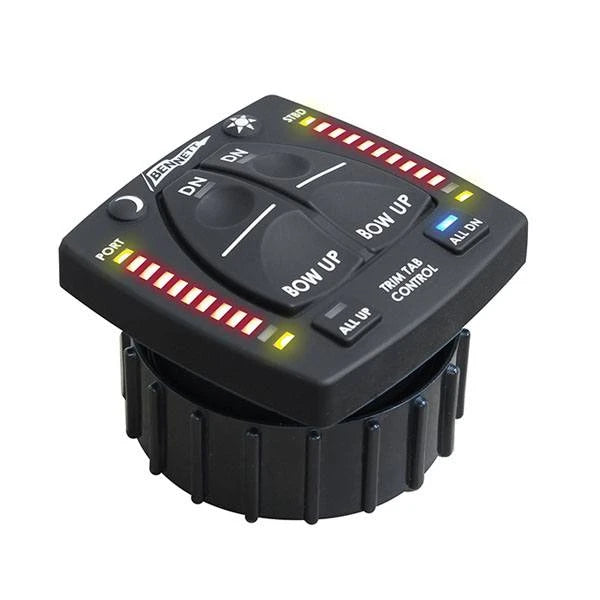

Bennett OBI9000E BOLT Electric Trim Tab Switch w/LED Control your electric trim tabs with ease with the Bennett BOLT Electric Trim Tab Integrated Helm Control.  This attractive and user-friendly unit is a stand-alone helm control that doesn't require an external control unit. The functionality and "brains" of the control unit are engineered directly into a single, space-saving, and simple-to-install keypad. Trim tab position LEDs make it easy to see exactly where your trim tabs are. An auto tab retraction feature makes your tabs retract up when the ignition is powered off. The Bennett Integrated Helm Control for electric trim tabs is compatible with other trim tab system brands. Includes: Helm control with 3' wire harness and waterproof plug-and-play connectors and backing fastener Features: For electric trim tab systems only User-friendly, stand-alone helm control Convenient "All Up" and "All Down" buttons Trim tab position LEDs show where your tabs are Auto tab retraction Compatible with other trim tab system brands Basic System Diagram:   Installing the Bennett OB190000E Integrated Helm Control is easy. A drilling template can be found on the installation instructions that come included. Installation instructions can also be downloaded below.    Click to Download Bennett BOLT Electric Trim Tab Integrated Helm Control Installation InstructionsFrequently Asked Questions

• What does the Bennett BOLT Electric Trim Tab Switch with LED do? The Bennett OBI9000E is an integrated helm control designed to operate electric trim tab systems. It provides user-friendly trim tab control from a compact stand-alone keypad with built-in functionality.
• What trim tab systems is the Bennett OBI9000E designed for? The Bennett OBI9000E is designed for electric trim tab systems only. It is also compatible with other trim tab system brands, making it a versatile replacement or upgrade option for supported electric setups.
• Does this trim tab switch show trim tab position? Yes. The Bennett OBI9000E features trim tab position LEDs so you can easily see where your trim tabs are while operating your boat.
• Does the Bennett OBI9000E include auto tab retraction? Yes. This helm control includes an auto tab retraction feature that raises the tabs when the ignition is powered off.
• What is included with the Bennett BOLT Electric Trim Tab Switch? The Bennett OBI9000E includes the helm control, a 3’ wire harness, waterproof plug-and-play connectors, and a backing fastener. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett OBI9000E is an integrated helm control designed to operate electric trim tab systems. It provides user-friendly trim tab control from a compact stand-alone keypad with built-in functionality." } }, { "@type": "Question", "name": "What trim tab systems is the Bennett OBI9000E designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett OBI9000E is designed for electric trim tab systems only. It is also compatible with other trim tab system brands, making it a versatile replacement or upgrade option for supported electric setups." } }, { "@type": "Question", "name": "Does this trim tab switch show trim tab position?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The Bennett OBI9000E features trim tab position LEDs so you can easily see where your trim tabs are while operating your boat." } }, { "@type": "Question", "name": "Does the Bennett OBI9000E include auto tab retraction?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. This helm control includes an auto tab retraction feature that raises the tabs when the ignition is powered off." } }, { "@type": "Question", "name": "What is in…

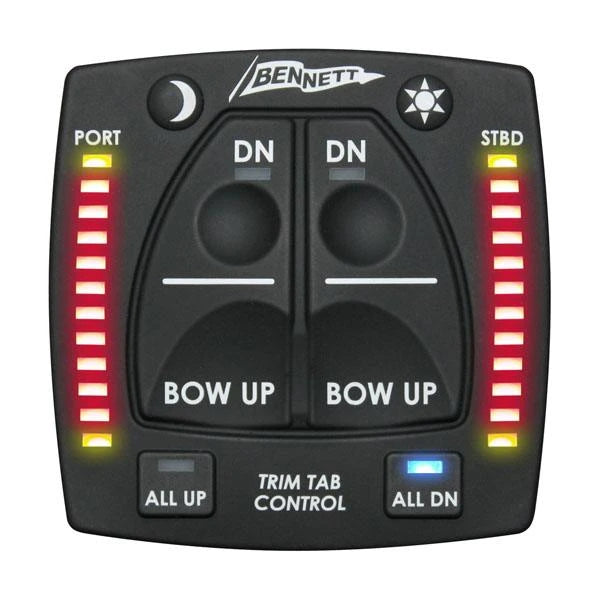

Bennett OBI9000-H All-in-One Hydraulic Trim Tab Switch

The Bennett All-in-One Trim Tab Indicator Control is an attractive and user-friendly stand-alone helm control. This helm control is an all-in-one unit that does not require an external control unit. The functionality and "brains" of the control unit are engineered directly into a single, space-saving, and simple-to-install keypad.

Included is (1) helm control with 3ft. cable, waterproof cables, and (2) upper hinge screw-on sensors.

Features:

Convenient "All Up" and "All Down" buttons

Trim tab position LEDs always show you where your tabs are

Auto tab retraction (tabs retract up when the ignition is powered off)

Easy-to-install single lock nut design

Compatible with other trim tab system brands

Basic System Diagram:

The Bennett OBI9000H All-in-One Indicator Control has been designed to accommodate new installations, as well as common retrofit installations. Be sure to read the full instructions to determine which items you will need.

Click to Download Bennett All-in-One Trim Tab Switch Installation Instructions

Frequently Asked Questions

• What is the Bennett OBI9000-H All-in-One Hydraulic Trim Tab Switch? The Bennett OBI9000-H All-in-One Hydraulic Trim Tab Switch is a stand-alone helm control that combines trim tab control and position indication in one space-saving keypad. Its control functionality is built directly into the unit, so an external control unit is not required.
• What is included with the Bennett OBI9000-H All-in-One Trim Tab Control? The Bennett OBI9000-H includes one helm control with a 3-foot cable, waterproof cables, and two upper hinge screw-on sensors. These components provide the control and sensing functions for the trim tab system.
• Does the Bennett OBI9000-H show trim tab position? Yes. The Bennett OBI9000-H uses trim tab position LEDs to continuously indicate where the tabs are positioned. This provides a visual indication of trim tab position directly from the helm control.
• Does the Bennett OBI9000-H automatically retract the trim tabs? Yes. The automatic tab retraction feature moves the trim tabs up when the boat's ignition is powered off. This allows the tabs to automatically return to the up position when the ignition is switched off.
• Can the Bennett OBI9000-H be used with other brands of trim tab systems? Yes. The Bennett OBI9000-H is compatible with other trim tab system brands. It is designed to accommodate both new installations and common retrofit installations, but the full instructions should be reviewed to determine which items are required for a specific installation.
• How is the Bennett OBI9000-H installed? The Bennett OBI9000-H features an easy-to-install single lock nut design. The unit is designed as a stand-alone helm control without requiring an external control unit, helping simplify installation in new and common retrofit applications.

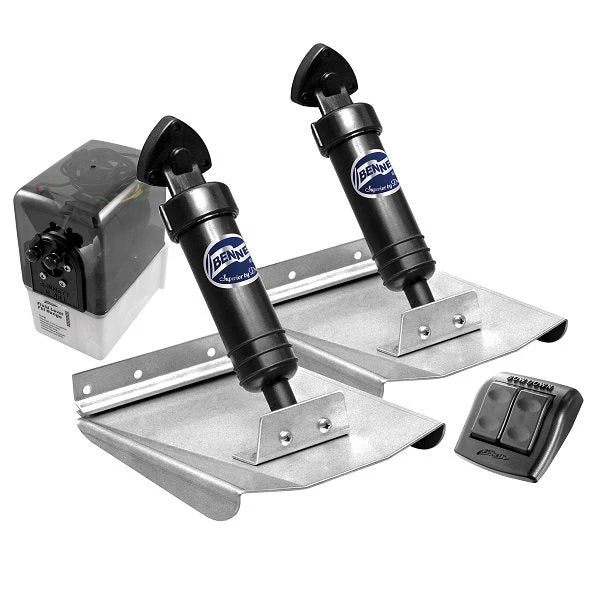

Bennett M80 Complete Sport 8" x 10" Hydraulic Trim Tab Kit

Bennett Sport Trim Tabs help your boat get on the plane fast and stay on the plane at intermediate speeds. By staying on the plane longer, your boat will have increased fuel efficiency and speed. If you find one side of your boat being weighed down more than the other, these sport trim tabs can correct uneven loads by providing lift on the opposite side. All Bennett Trim Tabs are easy to install and service, and will require minimal maintenance during their lifespan.

This Trim Tab Kit includes two hydraulic actuators. Bennett trim tab actuators are strong, flexible nylon/fiberglass hydraulic cylinders that push the trim tabs into position. All hydraulic lines and wires for the actuator are internal (concealed by the upper hinge), so they're not exposed to harsh environments.

Bennett Sport Trim Tabs are recommended for use on: flat boats, center consoles, trailered boats, cuddy cabins, dual consoles, deck boats, bowriders, bass boats, walkarounds, runabouts & ribs, and cruisers.

Benefits:

Increase speed

Improve visibility and safety

Improve fuel efficiency

5 Year No-Hassle Warranty

Trim Tab Kit Options:

M80

8" Wide x 10" Deep Trim Tabs

For boats 17-20 ft.

Trim Tab Kits Include:

(2) Trim Plane Assemblies

(2) A1200SRC Hydraulic Trim Tab Actuators

(1) V351HPU1 Hydraulic Power Unit

(1) Euro Style Rocker Control Unit including wiring

(1) Hardware Bag

(1) 20' Hydraulic tubing

Click to Download Bennett M80 Sport Hydraulic Trim Tabs Installation Instructions

Frequently Asked Questions

• What is the Bennett M80 Complete Sport 8" x 10" Hydraulic Trim Tab Kit designed for? The Bennett M80 Sport Trim Tab Kit is designed for boats 17 to 20 feet long. The 8-inch-wide by 10-inch-deep trim tabs are recommended for flat boats, center consoles, trailered boats, cuddy cabins, dual consoles, deck boats, bowriders, bass boats, walkarounds, runabouts, RIBs, and cruisers.
• What are the benefits of the Bennett M80 Sport Trim Tabs? Bennett Sport Trim Tabs help a boat get on plane quickly and stay on plane at intermediate speeds. They can help increase speed and fuel efficiency, improve visibility and safety, and provide lift to help correct uneven loads when one side of the boat is weighed down more than the other.
• What is included with the Bennett M80 Complete Sport Trim Tab Kit? The Bennett M80 kit includes two trim plane assemblies, two A1200SRC hydraulic trim tab actuators, one V351HPU1 hydraulic power unit, one Euro Style Rocker Control Unit with wiring, one hardware bag, and 20 feet of hydraulic tubing.
• How do the hydraulic actuators on the Bennett M80 Trim Tab Kit work? The kit uses two A1200SRC hydraulic trim tab actuators. These actuators are nylon/fiberglass hydraulic cylinders that push the trim tabs into position. The hydraulic lines and actuator wires are routed internally and concealed by the upper hinge, keeping them from exposure to harsh environments.
• What size trim tabs are included in the Bennett M80 kit? The Bennett M80 includes 8-inch-wide by 10-inch-deep trim tabs. This M80 configuration is specified for boats 17 to 20 feet in length.
• What warranty does the Bennett M80 Sport Trim Tab Kit include? The Bennett M80 Sport Trim Tab Kit includes a five-year no-hassle warranty. Bennett Sport Trim Tabs are also designed for easy installation and service with minimal maintenance during their lifespan.

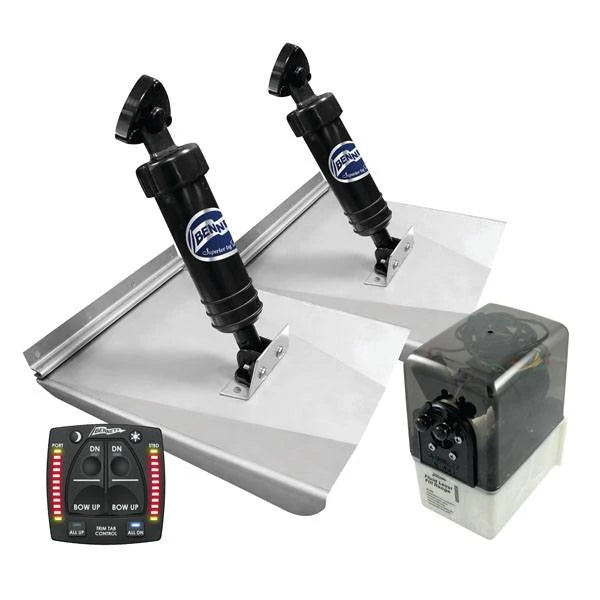

Bennett M120OBI Sport 10" x 12" Hydraulic Trim Tab Kit w/ All-in-One Control Get on plane fast with the Bennett M120 Hydraulic Sport Tabs. These trim tabs are ideal for boats wit limited transom space and feature a unique batwing tab design that provides 30% more lift than conventional trim tabs. Bennett's Hydraulic tabs eliminate porpoising, improve visibility, and increase efficiency and performance. This Trim Tab Kit includes two Bennett Hydraulic Actuators. These actuators are strong, flexible nylon/fiberglass hydraulic cylinders that push the tabs into position. All hydraulic lines and wires are internal, concealed by the upper hinge, so they're not exposed to harsh environments. Also included is Bennett's All-in-One Indicator Control. This user-friendly helm control is designed to be a stand-alone unit that's easy to install and operate. This control is equipped with convenient "All Up" and "All Down" buttons, and has auto tab retraction so your tabs retract up when the ignition is powered off. Trim Tab Size: Width: 10" Depth: 12" Features: Includes All-in-One Indicator Control Unit Sport batwing tab design provides 30% more lift Get on plane fast, and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value, and ease of service Bennett Part#: M120OBI Yamaha Part#: 6BT-50042-25-00 Complete Hydraulic Trim Tab Kit Includes: (2) 10" x 12" Trim tab plane assemblies (2) A1200SRC Hydraulic actuators (1) V351HPU1 Hydraulic power unit Hydraulic tubing and hardware All-in-One Indicator Control Bennett Hydraulic Trim Tabs are backed by a limited lifetime warranty. The All-in-One control is backed by a 3 year warranty. Basic System Diagram: The Bennett OBI9000H All-in-One Indicator Control has been designed to accommodate new installations, as well as common retrofit installations. Be sure to read the full instructions to determine which items you will need.  Click here for Bennett M120OBI Hydraulic Sport Trim Tab Kit Installation InstructionsFrequently Asked Questions

• What is the Bennett M120 Hydraulic Sport Trim Tab Kit designed to do? The Bennett M120 Hydraulic Sport Trim Tab Kit is designed to help improve boat performance, handling, and ride quality. It helps boats get on plane faster, reduce porpoising, improve visibility, and increase overall efficiency and performance.
• What makes the Bennett M120 Sport Tabs different from standard trim tabs? The Bennett M120 uses a sport batwing tab design that provides 30% more lift than conventional trim tabs. It is also ideal for boats with limited transom space.
• What is included with this hydraulic trim tab kit? This kit includes two 10" x 12" trim tab plane assemblies, two A1200SRC hydraulic actuators, one V351HPU1 hydraulic power unit, hydraulic tubing and hardware, and Bennett’s All-in-One Indicator Control.
• Does this kit include a trim tab control? Yes. This kit includes Bennett’s All-in-One Indicator Control, a stand-alone helm control designed for easy installation and operation. It also features convenient All Up and All Down buttons and auto tab retraction when the ignition is powered off.
• How are the hydraulic lines and wires protected in this trim tab system? The hydraulic lines and wires are routed internally and concealed by the upper hinge so they are not exposed to harsh marine environments. This design helps improve protection and long-term durability. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett M120 Hydraulic Sport Trim Tab Kit designed to do?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett M120 Hydraulic Sport Trim Tab Kit is designed to help improve boat performance, handling, and ride quality. It helps boats get on plane faster, reduce porpoising, improve visibility, and in…

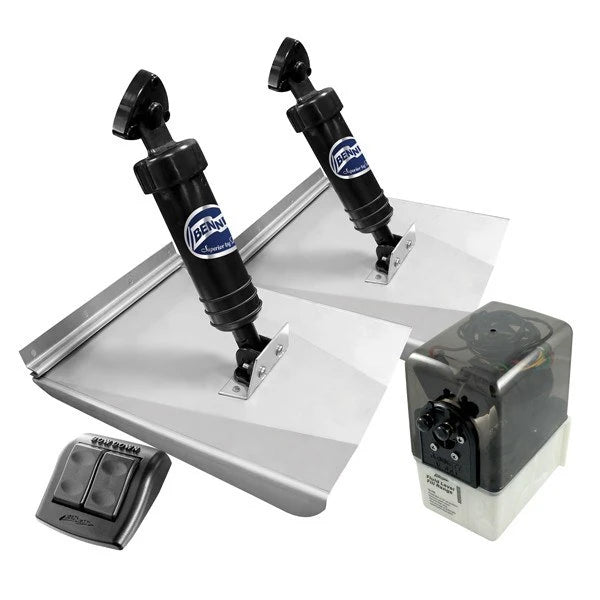

Bennett M120 Complete Sport 10" x 12" Hydraulic Trim Tab Kit

Bennett Sport Trim Tabs help your boat get on the plane fast and stay on the plane at intermediate speeds. By staying on the plane longer, your boat will have increased fuel efficiency and speed. If you find one side of your boat being weighed down more than the other, these sport trim tabs can correct uneven loads by providing lift on the opposite side. All Bennett Trim Tabs are easy to install and service, and will require minimal maintenance during their lifespan.

This Trim Tab Kit includes two hydraulic actuators. Bennett trim tab actuators are strong, flexible nylon/fiberglass hydraulic cylinders that push the trim tabs into position. All hydraulic lines and wires for the actuator are internal (concealed by the upper hinge), so they're not exposed to harsh environments.

Bennett Sport Trim Tabs are recommended for use on: flat boats, center consoles, trailered boats, cuddy cabins, dual consoles, deck boats, bowriders, bass boats, walkarounds, runabouts & ribs, and cruisers.

Benefits:

Increase speed

Improve visibility and safety

Improve fuel efficiency

5 Year No-Hassle Warranty

Trim Tab Kit Options:

M120

10"x12" Trim Tabs

For boats 20-23 ft.

Trim Tab Kits Include:

(2) Trim Plane Assemblies

(2) A1200SRC Hydraulic Trim Tab Actuators

(1) V351HPU1 Hydraulic Power Unit

(1) Euro Style Rocker Control Unit including wiring

(1) Hardware Bag

(1) 20' Hydraulic tubing

Click to Download Bennett M120 Sport Hydraulic Trim Tabs Installation Instructions

Frequently Asked Questions

• What is the Bennett M120 Complete Sport 10" x 12" Hydraulic Trim Tab Kit designed to do? The Bennett M120 Complete Sport 10" x 12" Hydraulic Trim Tab Kit helps your boat get on plane quickly and stay on plane at intermediate speeds. The trim tabs can also provide lift to help correct uneven loads, while improving speed and fuel efficiency.
• What size boats are compatible with the Bennett M120 Hydraulic Trim Tab Kit? The M120 kit features 10" x 12" trim tabs and is designed for boats 20 to 23 feet long. Bennett Sport Trim Tabs are recommended for flat boats, center consoles, trailered boats, cuddy cabins, dual consoles, deck boats, bowriders, bass boats, walkarounds, runabouts, RIBs, and cruisers.
• What is included with the Bennett M120 Complete Sport Hydraulic Trim Tab Kit? The kit includes two trim plane assemblies, two A1200SRC hydraulic trim tab actuators, one V351HPU1 hydraulic power unit, one Euro Style rocker control unit with wiring, one hardware bag, and 20 feet of hydraulic tubing.
• What type of hydraulic actuators are included with the Bennett M120 trim tab kit? The Bennett M120 kit includes two A1200SRC hydraulic trim tab actuators. These actuators are made from nylon and fiberglass and push the trim tabs into position. The hydraulic lines and actuator wires are internal and concealed by the upper hinge.
• Can the Bennett M120 Sport Trim Tabs help correct an uneven boat load? Yes. If one side of the boat is weighed down more than the other, the Sport Trim Tabs can provide lift on the opposite side to help correct the uneven load. The trim tabs also help the boat stay on plane longer at intermediate speeds.
• What warranty comes with the Bennett M120 Hydraulic Trim Tab Kit? The Bennett M120 Complete Sport Hydraulic Trim Tab Kit includes a 5-year no-hassle warranty. Bennett Sport Trim Tabs are also designed for easy installation and service with minimal maintenance during their lifespan.

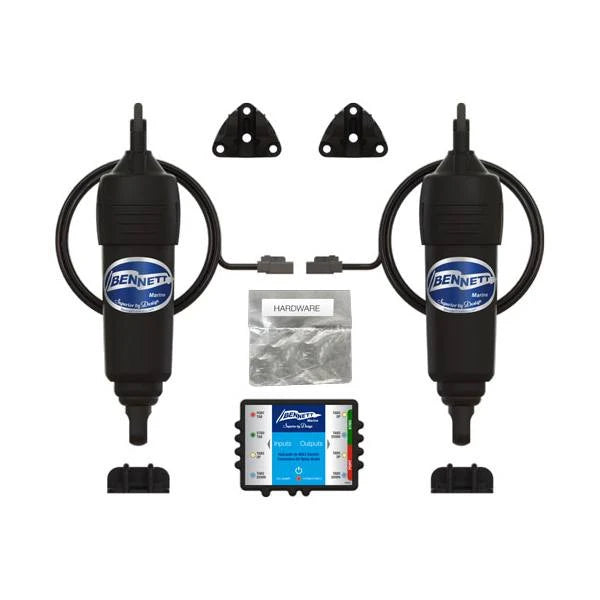

Bennett Hydraulic to BOLT Electric Trim Tab Conversion Kit The Bennett Hydraulic to BOLT Electric Conversion Kit is all you need for a quick and easy conversion from standard Bennett Hydraulic Actuators to Bennett's BOLT Electric actuators. This conversion kit uses your existing wiring, rocker switch and trim planes, so no rewiring or drilling of new holes is required. Why switch to BOLT? BOLT actuators are exceptionally durable and dependable, backed by a lifetime limited warranty. No rewiring or drilling of new holes required Plug 'n Play connection to your existing standard Bennett Rocker Switch Equipped with Auto Tab Retraction and Diagnostics Relay Module Lifetime limited warranty Click here for Bennett Hydraulic to BOLT electric trim tab conversion kit installation instructionsFrequently Asked Questions

• What does the Bennett Hydraulic to BOLT Electric Trim Tab Conversion Kit do? This conversion kit allows you to convert from standard Bennett hydraulic trim tab actuators to Bennett BOLT electric actuators. It is designed to simplify the upgrade process while allowing you to continue using key existing trim tab components.
• What existing components can be reused with this conversion kit? This conversion kit is designed to use your existing wiring, rocker switch, and trim planes. That helps make the conversion faster and avoids unnecessary replacement of compatible components.
• Does this conversion kit require rewiring or drilling new holes? No. The Bennett Hydraulic to BOLT Electric Trim Tab Conversion Kit is designed so no rewiring or drilling of new holes is required.
• What features are included with this conversion kit? This conversion kit includes plug-and-play connection to your existing standard Bennett rocker switch and is equipped with an Auto Tab Retraction and Diagnostics Relay Module.
• Does the Bennett Hydraulic to BOLT Electric Trim Tab Conversion Kit include a warranty? Yes. Bennett BOLT actuators included with the conversion are backed by a lifetime limited warranty. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Bennett Hydraulic to BOLT Electric Trim Tab Conversion Kit do?", "acceptedAnswer": { "@type": "Answer", "text": "This conversion kit allows you to convert from standard Bennett hydraulic trim tab actuators to Bennett BOLT electric actuators. It is designed to simplify the upgrade process while allowing you to continue using key existing trim tab components." } }, { "@type": "Question", "name": "What existing components can be reused with this conversion kit?", "acceptedAnswer": { "@type": "Answer", "text": "This conversion kit is designed to use your existing wiring, rocker switch, and trim planes. That helps make the conversion faster and avoids unnecessary replacement of compatible components." } }, { "@type": "Question", "name": "Does this conversion kit require rewiring or drilling new holes?", "acceptedAnswer": { "@type": "Answer", "text": "No. The Bennett Hydraulic to BOLT Electric Trim Tab Conversion Kit is designed so no rewiring or drilling of new holes is required." } }, { "@type": "Question", "name": "What features are included with this conversion kit?", "acceptedAnswer": { "@type": "Answer", "text": "This conversion kit includes plug-and-play connection to your existing standard Bennett rocker switch and is equipped with an Auto Tab Retraction and Diagnostics Relay Module." } }, { "@type": "Question", "name": "Does the Bennett Hydraulic to BOLT Electric Trim Tab Conversion Kit include a warranty?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. Bennett BOLT actuators included with the conversion are backed by a lifetime limited warranty." } } ] }
