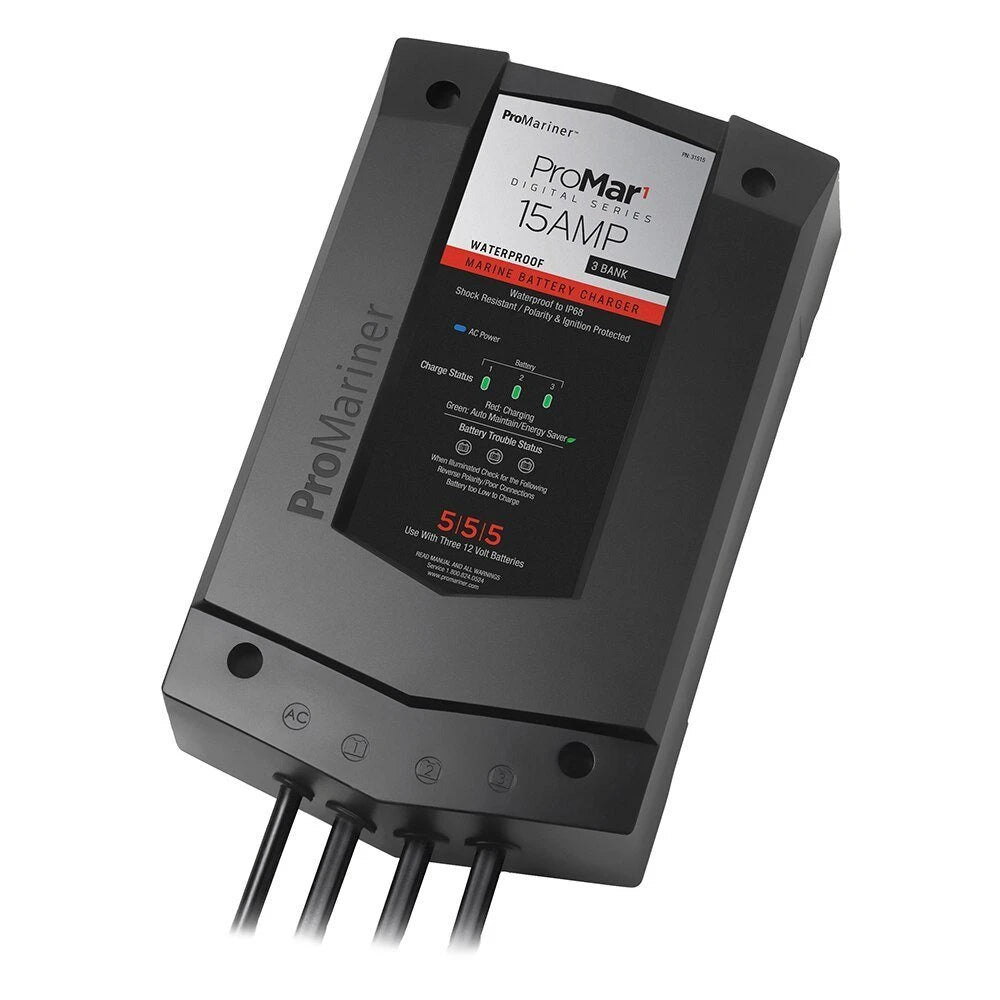

ProMariner ProMar 1 DS Digital 15 Amp 3 Bank

ProMariner ProMar1 DS Series Battery Charger 15 Amp - 3 Bank

ProMar1 DS Generation 3 reflects a new outward design taken to the next level in performance with its all Digital Charging Technology. Fully Automatic with a 4-Stage Digital Charging algorithm proven to extend battery life. Sequential modes of Analyzing, Charging, Conditioning and a built-in Auto Maintain mode, safe for short and long term storage periods ensures your batteries are fully charged and maintained. Intended for harsh marine environments, the ProMar1 DS is built with industrial-grade jacketed DC cables, JTOW rated AC cables, and is enclosed in a fully encapsulated IP68 waterproof and shock-proof housing. Integrated LED lights provide at-a-glance indication of charge status and wiring conditions for each individual output.

ProMar1 DS is designed and certified to UL Marine 1236, the new energy efficient CEC (California Energy Commission) and DOE (Department of Energy) requirements to ensure reliability and low-emission operation. The ProMariner ProMar1 DS is backed by a three year manufacturer's warranty.

Features:

Fully Automatic 4-Stage Charging

Dual Mode Charge Status Indicator

Battery & Wiring Fault Detection

Rugged Shockproof Construction

IP68 Waterproof housing

Auto Maintain/Energy Saver Mode Extends Battery Life

Safe for Long and Short Term Storage

Pre-Wired with Waterproof Inline DC Fuses and Nickel Plated Copper Ring Terminals

Built-in safety features

Meets US FCC emissions requirements and CEC compliance

3 Year Warranty

Specifications:

Charging Banks: 3 Bank

Charger Output - Amps: 15 Amp

Volts DC: 12/24/36

Charging: Up to 14.1V DC

Auto Maintain: 12.8-13.5V DC

DC Cable Length: 6'/6'/6'

Dimensions: 10.5" x 6.5" x 3.0"

AC In: 110-120V DC, 50/60Hz

AC Plug: NEMA 5-15

Frequently Asked Questions

• What is the ProMariner ProMar1 DS Series Battery Charger 15 Amp - 3 Bank used for? The ProMariner ProMar1 DS Series Battery Charger 15 Amp - 3 Bank is a fully automatic marine battery charger with three charging banks. Its four-stage digital charging system provides analyzing, charging, conditioning, and auto-maintain modes for battery charging and maintenance.
• How many batteries can the ProMariner ProMar1 DS 15 Amp battery charger charge? The ProMar1 DS is a 3-bank battery charger with a 15-amp charger output. It is specified for 12/24/36V DC systems and provides up to 14.1V DC during charging. The three-bank configuration allows the charger to provide charging outputs for three battery banks.
• What charging modes does the ProMariner ProMar1 DS battery charger have? The ProMar1 DS uses a fully automatic 4-stage digital charging algorithm with analyzing, charging, conditioning, and auto-maintain modes. Its auto-maintain mode operates from 12.8-13.5V DC and is designed for both short- and long-term storage periods.
• Is the ProMariner ProMar1 DS battery charger suitable for harsh marine environments? The ProMar1 DS is built for harsh marine environments with a fully encapsulated IP68 waterproof and shock-proof housing. It also includes industrial-grade jacketed DC cables and JTOW-rated AC cables for its marine-oriented construction.
• How does the ProMariner ProMar1 DS indicate charging and wiring status? The charger has integrated LED lights that provide at-a-glance charge status and wiring condition information for each individual output. It also includes battery and wiring fault detection and a dual-mode charge status indicator.
• What cables and connections are included with the ProMariner ProMar1 DS 15 Amp battery charger? The ProMar1 DS is pre-wired with waterproof inline DC fuses and nickel-plated copper ring terminals. The DC cable lengths are specified as 6 feet, 6 feet, and 6 feet. The AC input is 110-120V, 50/60Hz, and the charger uses a NEMA 5-15 AC plug.
