Johnson Pump
79 products
79 products
Sort by:
- Featured
- Most relevant
- Best selling
- Alphabetically, A-Z
- Alphabetically, Z-A
- Price, low to high
- Price, high to low
- Date, old to new
- Date, new to old
$150.09

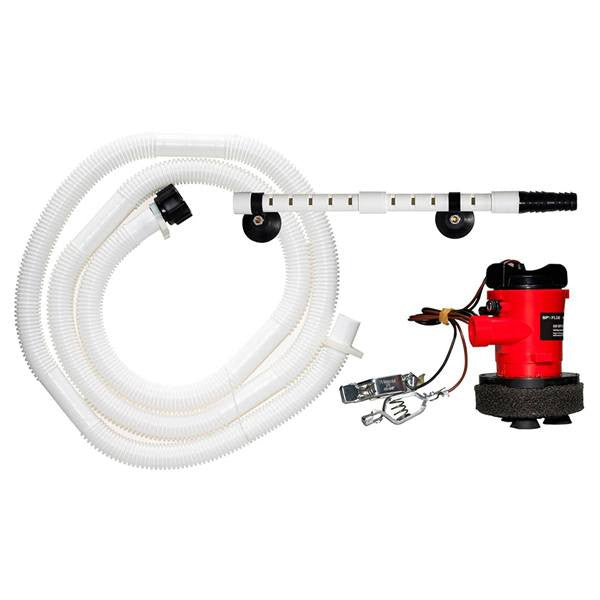

Johnson Pump Cartridge Aerator Kit
Johnson Pump offers an excellent product that empties, fills, and aerates live/baitwells. The Aeration Spray Bar features a split design to allow for flexible mounting. The Pump cna either be hard mounted with screw or you can use the supplied suction feet. The Cartridge aerator Pump offers a low current draw to help keep your battery healthy. Offers ease of convenience and years of reliable service that Johnson Pumps is known for.
Product Features:
Split design
Fills, aerates, and empties
Low current draw
Can be mounted with screws or suction feet
For fresh or saltwater
Product Specifications:
Amps : 3.4
Volts : 12
GPH : 1000
Kit Includes:
Mounting Brackets
5' flexible tubing
Battery clips
Suction Feet
Aeration Spray bar
10' of wire
Fish Foam Filter
$203.59

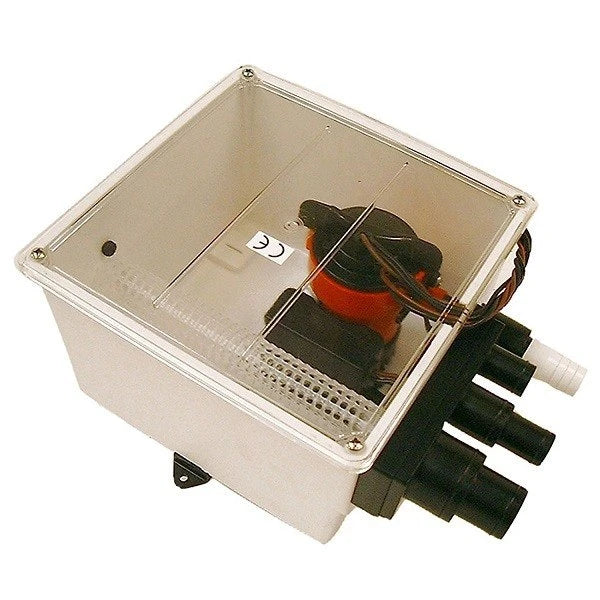

Johnson Pump Shower Sump Multiports - 1000 GPH
Johnson Pump offers a compact shower pump that offers multiple tapping points and can meet the higher demands from boats. The tight fitting lid minimizes odors and splashing. Can handle waste water from more than one tapping point. Features multiple inlet ports.
Product Features:
Check valve on outlet
Multiple inlet ports
Discharge hose: 3/4"
Intake Hoses: 1x 3/4" , 1 x 3/4" or 1 1/2" , 1 x 1-1/8 or 1 x 1-1/2
Handles waste water
Offers more than one tapping point
Multiple inlet ports
L650 Duo Pump and mesh filter offer easy cleaning
Design Features:
Voltage: 12 V DC
Shaft : Stainless Steel
Shaft Seal: Lip
Pump Body: Thermoplastic
Click here to download Johnson Pump Shower Sump Multiports Manual
Frequently Asked Questions
- What is the Johnson Pump Shower Sump Multiports 1000 GPH used for? The Johnson Pump Shower Sump Multiports 1000 GPH is a compact shower pump designed to handle wastewater from more than one tapping point. Its multiple inlet ports allow it to accommodate multiple intake connections, making it suitable for boats with higher wastewater demands.
- How many inlet ports does the Johnson Pump Shower Sump Multiports have? The Johnson Pump Shower Sump Multiports features multiple inlet ports for handling wastewater from more than one tapping point. The specified intake hose options include 1 x 3/4 inch, 1 x 3/4 inch or 1-1/2 inch, and 1 x 1-1/8 inch or 1 x 1-1/2 inch connections.
- What size discharge hose does the Johnson Pump Shower Sump Multiports use? The Johnson Pump Shower Sump Multiports uses a 3/4-inch discharge hose. The unit also features a check valve on the outlet. Verify that the planned plumbing connections match the specified discharge and intake hose sizes before installation.
- How is the Johnson Pump Shower Sump Multiports designed for easy cleaning? The Johnson Pump Shower Sump Multiports includes an L650 Duo Pump and mesh filter designed to offer easy cleaning. Its tight-fitting lid also helps minimize odors and splashing during operation.
- What are the key construction features of the Johnson Pump Shower Sump Multiports? The Johnson Pump Shower Sump Multiports operates on 12 V DC and has a stainless steel shaft, lip-type shaft seal, and thermoplastic pump body. These are the specified design materials and components for the shower sump system.
$100.29

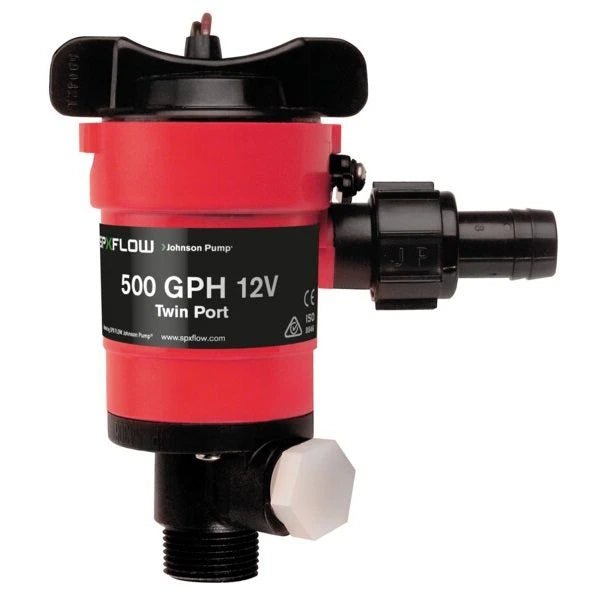

Johnson Pump 12V Twin Port Aerator Pumps
The Johnson Pump is a Twin Port Aerator Pump offers the convenience of using only one intake for both a livewell and raw water wash down pump. Comes with both a straight and 90° Dura-port discharge ports. 3/4" Tapered inlet with upper and lower discharge port. The housing is constructed of durable thermoplastic and is designed with a removeable motor cartridge.
Features:
Removeable motor cartridge
Thermoplastic housing
3/4" Tapered Inlet
Easy to clean and maintain
Water cooled motor
Specifications:
Voltage: 12
Hose sizes: 3/4" discharge (1/2" or 3/4" wash down)
Amp: 2.5
Shaft Seal: Lip Seal
Shaft: Stainless Steel (SS2343)
Fuse Size: 5A
Click here to download Johnson Twin Port Aerator Manual
$327.29

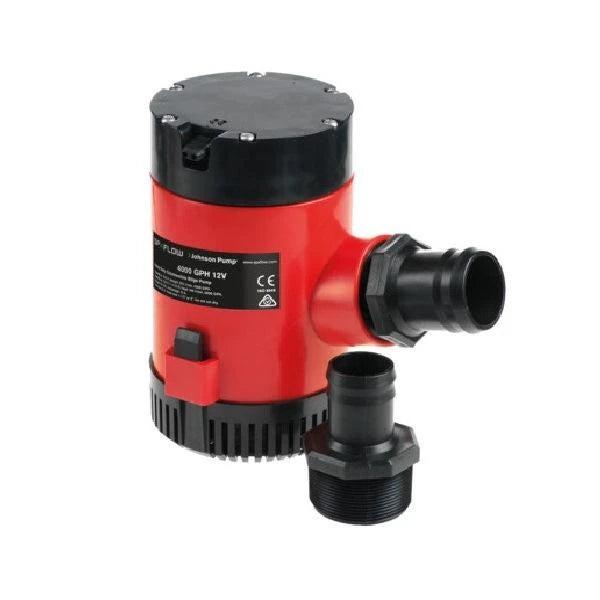

Johnson Pump 40004 Heavy Duty 4000GPH 12V Bilge Pump
The Johnson Pump Heavy Duty Bilge Pumps are designed to exceed commercial and recreational demands. Featuring a 12-pole motor with double ball bearings for an extended service life. The impeller is designed to maximize flow and head. A universal base plate allows for a choice between two different ports and easy installation. The 4000 GPH model features a durable motor design with a mechanical shaft seal, high impact ABS plastic & a unique threaded port design. The Johnson Heavy Duty Bilge Pump can be combined with an electronic float switch or Ultima switch for automatic operation.
Features:
Universal base plate
Removeable check valve included
Stainless steel shaft
Liquid cooled
Specifications:
Voltage: 12
Capacity Straight: 4000 GPH
Capacity 1.0 m head: 2600 GPH
Amperage: 15
Fuse size: 25A
Connection: 1-1/2" & 2"
Wire size: 16GA
Wire Length: 6ft
$79.19

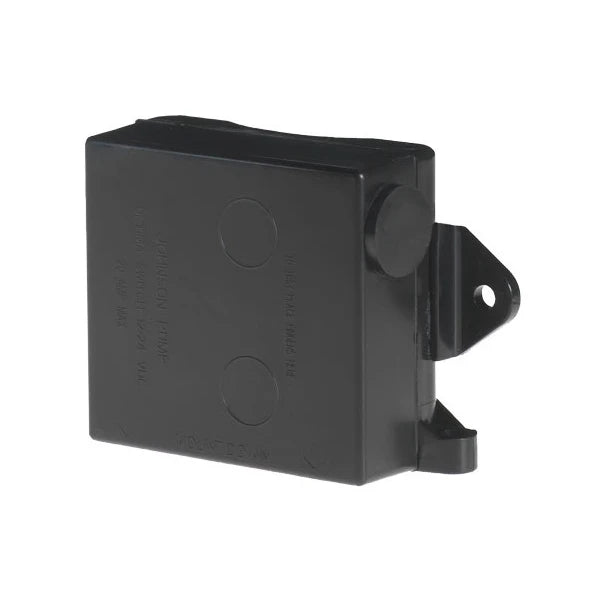

Johnson Ultima Automatic Bilge Pump Switch
The Johnson Ultima Switch uses the patented Mirus field effect detector cells, producing micro-electrical fields that detect disruptions caused by water and fluids. The detector cells are totally sealed and are never in contact with the water, will not corrode, and are not affected by oil for foreign debris. Johnson Ultima Switch activates at a 2" fluid level and deactivates at a 3/4" fluid level. An eight second delay prevents false starts.
The Ultima Switch is rated to handle bilge pumps up to 20A, at 12V or 24V.
No moving parts
Totally sealed solid state electronics and field detectors
No mercury
No exposed sensors eliminate corrosion possibilities
Unique 3-way switch disables piezo alarm while keeping warning LED lit
Environmentally sensitive
Click to Download Johnson Ultima Auto Switch Manual
Frequently Asked Questions
- What does the Johnson Ultima Automatic Bilge Pump Switch do? The Johnson Ultima Automatic Bilge Pump Switch is designed to automatically activate and deactivate a bilge pump based on fluid level. It uses patented field effect detector technology to sense water without relying on traditional moving float components.
- At what fluid levels does the Johnson Ultima Switch turn on and off? The Johnson Ultima Switch activates at a 2" fluid level and deactivates at a 3/4" fluid level. It also includes an 8-second delay to help prevent false starts.
- What makes the Johnson Ultima Switch different from a traditional float switch? This switch has no moving parts and uses sealed solid state electronics with field detectors instead of exposed sensors or a moving float. That design helps reduce corrosion concerns and improves reliability in marine environments.
- What pump and voltage capacity is the Johnson Ultima Switch rated for? The Johnson Ultima Switch is rated to handle bilge pumps up to 20 amps at either 12V or 24V.
- Does this switch have any built-in alarm or indicator features? Yes. It features a unique 3-way switch that disables the piezo alarm while keeping the warning LED lit.
$257.19

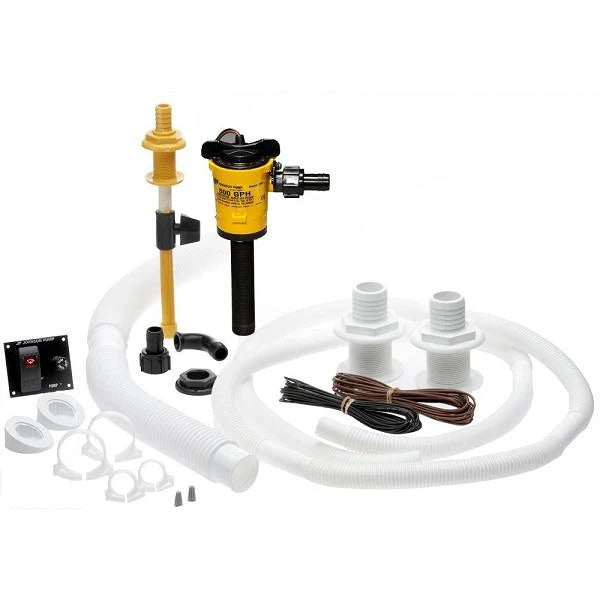

Johnson Pump Basspirator Livewell Aerator Kit
Johnson Pump Basspirator Livewell Aerator kit is designed for serious fisherman that need to keep the water fresh in their live or baitwells. The 500 GPH cartridge pump keeps clean water flowing through the livewell and allowing debris to pass through the overflow fitting.
Product Features:
12 Volt
1.4 Amp Draw
For Live or Baitwell
Circulates fresh water
Kit Includes:
2: 1" Overflow fittings and hose
500 GPH Cartridge Pump
Illuminated fuse switch
7' of hose
Hose Clamps
16' of 16-gauge wire
Instructions
Frequently Asked Questions
- What is the Johnson Pump Basspirator Livewell Aerator Kit used for? The Johnson Pump Basspirator Livewell Aerator Kit is designed for live or baitwells. Its 500 GPH cartridge pump circulates fresh water through the livewell while allowing debris to pass through the overflow fitting.
- What are the electrical specifications for the Johnson Pump Basspirator Livewell Aerator Kit? The Johnson Pump Basspirator Livewell Aerator Kit operates on 12 volts and has a 1.4-amp draw. The kit also includes an illuminated fuse switch and 16 feet of 16-gauge wire.
- What is included with the Johnson Pump Basspirator Livewell Aerator Kit? The kit includes a 500 GPH cartridge pump, two 1-inch overflow fittings and hose, an illuminated fuse switch, 7 feet of hose, hose clamps, 16 feet of 16-gauge wire, and instructions.
- What is the flow rate of the Johnson Pump Basspirator Livewell Aerator Kit? The Johnson Pump Basspirator Livewell Aerator Kit uses a 500 GPH cartridge pump to circulate fresh water through a live or baitwell.
- Does the Johnson Pump Basspirator Livewell Aerator Kit include the wiring and hose needed for installation? Yes. The kit includes 16 feet of 16-gauge wire, 7 feet of hose, hose clamps, and two 1-inch overflow fittings and hose. Instructions are also included with the kit.
From $76.59

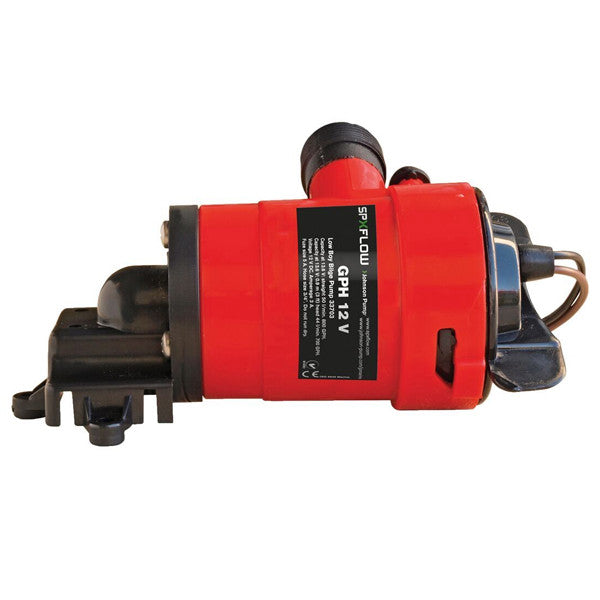

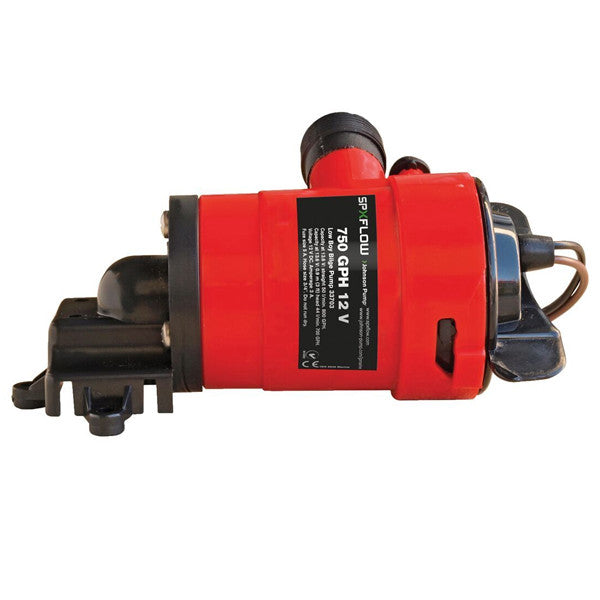

Johnson Low Boy Bilge Pump
Low Profile pump design for ease of mounting and removal in tight bilge areas. Perfect for vessels with bilge pumps mounted beneath inboard or I/O engines. Removable cartridge style.
For L550 LB we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps will be delivered including both a straight and a 90° smooth elbow Dura-Port.
Dimensions:
Max length 146 mm – 5.75”
Width 81 mm – 3.2”
Height 72 mm – 2.82”
Wire size 1.3 mm2 – 16 GA
Dura Port Discharge ports are NOT included with these models
Johnson Low Boy Bilge Pump
Frequently Asked Questions
- What is the Johnson Low Boy Bilge Pump designed for? The Johnson Low Boy Bilge Pump features a low-profile design for mounting and removal in tight bilge areas. It is suited for vessels where bilge pumps are mounted beneath inboard or I/O engines. The removable cartridge-style design also allows the pump to be removed when servicing is needed.
- Why is the low-profile design of the Johnson Low Boy Bilge Pump useful? The low-profile construction makes the Johnson Low Boy Bilge Pump suitable for confined bilge spaces where a larger pump may be difficult to mount or remove. Its compact dimensions are approximately 5.75 inches long, 3.2 inches wide, and 2.82 inches high.
- What are the dimensions and wire size of the Johnson Low Boy Bilge Pump? The Johnson Low Boy Bilge Pump measures a maximum of 5.75 inches in length, 3.2 inches in width, and 2.82 inches in height. It uses 16 GA wire, equivalent to 1.3 mm2. Check the available space and electrical requirements before selecting this pump for your boat.
- Does the Johnson Low Boy Bilge Pump include Dura-Port discharge ports? No. The Dura-Port discharge ports are not included with these models. The product description references easy-to-install Dura-Port discharge ports for the L550 LB, including straight and 90° smooth elbow options, but specifically states that Dura-Port discharge ports are not included with these models.
- How is the Johnson Low Boy Bilge Pump serviced or removed? The Johnson Low Boy Bilge Pump uses a removable cartridge-style design. This allows the pump cartridge to be removed from its mounting location when access is needed for servicing or removal, which can be useful in tight bilge areas beneath inboard or I/O engines.
From $133.99

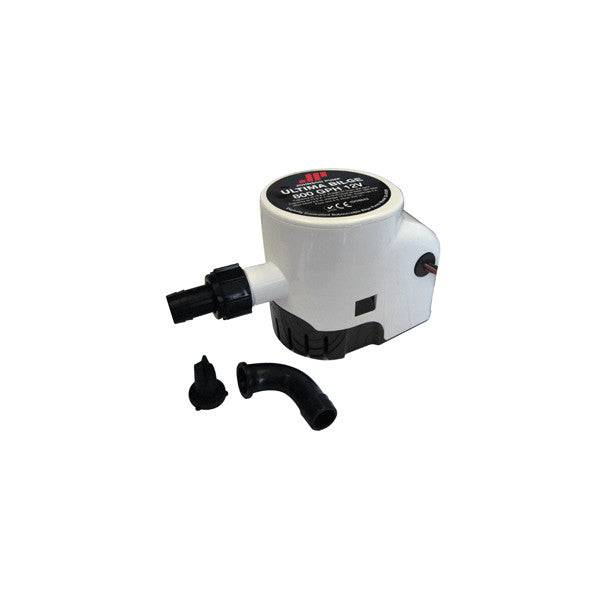

Johnson Ultima Automatic Submersible Bilge Pump w/ Integrated Switch
The Johnson Ultima Bilge Pump is a sleek, reliable and compact unit with an integrated switch ready to install and run for years. Ultima Bilge Pumps can be manually operated via the bilge control panel. Available in 600, 800, 1000 and 1250 GPH versions. For Ultima Bilge 600 GPH to 1000 GPH, there are easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. Pumps include both a straight and a 90° smooth elbow Dura-Port and a removable check valve.
**1250 GPH unit does not include Dura-Port Connection
Compact, all-in-one unit
Integrated Ultima Switch sensing right into the pump body
No Mercury
Removable clip on basket design
Removable impeller cover allows for easy clean out
3-wire device can be run in auto or manual override mode
No tools needed for maintenance
Extremely energy efficient
Water-cooled motor for long service intervals
Meets the international standard, ISO 8849 marine
Specifications:
600 GPH
Amperage: 2.5 A
Fuse Size: 5 A
Connection: 3/4"
800 GPH
Amperage: 3 A
Fuse Size: 5 A
Connection: 3/4"
1000 GPH
Amperage: 3.2 A
Fuse Size: 5 A
Connection: 3/4"
1250 GPH
Amperage: 3 A
Fuse Size: 5 A
Connection: 1-1/8" and 1-1/4"
Dimensions:
600, 800 & 1000 GPH
6" L x 3.2" W x 4.1" H
1250 GPH
6" L x 3.2" W x 4.6" H
Click to Download Johnson Ultima Auto Bulge Pump Manual
Frequently Asked Questions
- What is the Johnson Ultima Automatic Submersible Bilge Pump with Integrated Switch used for? The Johnson Ultima Automatic Submersible Bilge Pump with Integrated Switch is a compact bilge pump with an integrated Ultima Switch built into the pump body. It can operate automatically or be manually operated through a bilge control panel. The pump is available in 600, 800, 1000, and 1250 GPH versions.
- How does the integrated Ultima Switch work on the Johnson Ultima Bilge Pump? The integrated Ultima Switch provides automatic operation without a separate switch mounted externally. The pump uses a 3-wire design that can operate in automatic mode or manual override mode. The integrated switch is built directly into the pump body, providing an all-in-one bilge pump and switch assembly.
- What discharge connections are included with the Johnson Ultima Bilge Pump? The 600, 800, and 1000 GPH versions include both a straight and 90° smooth elbow Dura-Port discharge port along with a removable check valve. The 1250 GPH version does not include a Dura-Port connection and uses 1-1/8" and 1-1/4" connections.
- What are the capacity and electrical specifications for the Johnson Ultima Bilge Pump? The 600 GPH model draws 2.5 A and uses a 5 A fuse, while the 800 GPH model draws 3 A and the 1000 GPH model draws 3.2 A; both also use a 5 A fuse. The 1250 GPH model draws 3 A and uses a 5 A fuse. The 600 through 1000 GPH models have 3/4" connections.
- How is the Johnson Ultima Bilge Pump maintained? The Johnson Ultima Bilge Pump is designed for tool-free maintenance. Its removable clip-on basket and removable impeller cover provide access for cleaning, while the water-cooled motor is designed for long service intervals. The compact unit is also extremely energy efficient and contains no mercury.
- What are the dimensions of the Johnson Ultima Automatic Bilge Pump? The 600, 800, and 1000 GPH versions measure 6 inches long by 3.2 inches wide by 4.1 inches high. The 1250 GPH version measures 6 inches long by 3.2 inches wide by 4.6 inches high. Verify the available mounting space and selected model specifications before installation.
$70.59

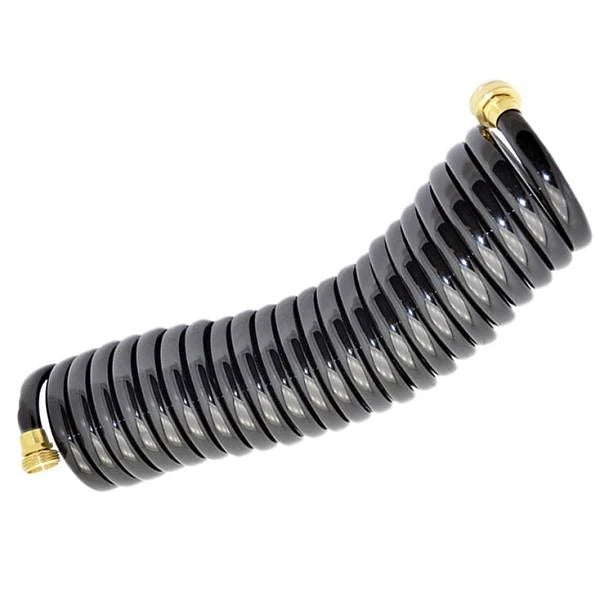

Johnson Pump 10615-00 Black Coiled Washdown Hose
The Johnson Pump 10615-00 is a replacement coiled washdown hose.
$312.79

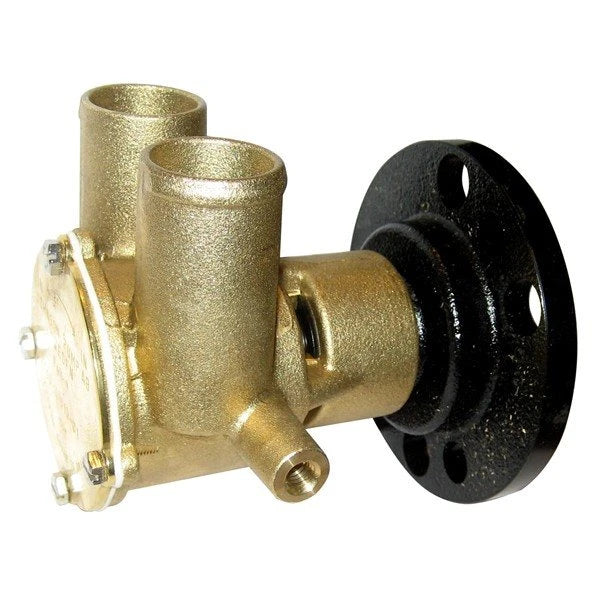

Johnson Pump 10-24946-01 F6B-9 Indmar 68-5001 Replacement Cooling Pump
The Johnson Pump 10-24946-01 F6B-9 is a genuine Johnson Pump impeller pump designed as an OEM replacement for Indmar 68-5001, 685001-2, and 685001-4. Built for select 5.7L Indmar LTR, LT2, and LT5 engines, this crankshaft pulley mount pump features a full 1/1 cam, lip seal design, and 1-1/4" hose port for reliable raw water cooling performance.
Features:
Genuine Johnson Pump F6B-9 impeller pump
OEM replacement for Indmar 68-5001, 685001-2, and 685001-4
Built for select 5.7L Indmar LTR, LT2, and LT5 engines
Crankshaft pulley mount
Full 1/1 cam with lip seal
1-1/4" hose port
Uses MC97 impeller kit 09-812BT-1
Uses service kit 09-45825
Replaces Johnson Pump 10-24930-01, 10-24915-01, 10-24805-01, and 10-24232-1
Replaces Jabsco EU 22740-0000
Johnson Pump is Original Manufacture of OEM cooling pump for Indmar
Fits Indmar Engines:
5.7L Indmar LTR
5.7L Indmar LT2
5.7L Indmar LT5
250, 285, and 285R11 applications
Frequently Asked Questions
- What is the Johnson Pump 10-24946-01 F6B-9 Indmar 68-5001 Replacement Cooling Pump used for? The Johnson Pump 10-24946-01 F6B-9 is a genuine Johnson Pump impeller pump designed as an OEM replacement for Indmar 68-5001, 685001-2, and 685001-4 cooling pumps. It is built for select 5.7L Indmar LTR, LT2, and LT5 engines and is designed for raw water cooling applications.
- Which Indmar engines does the Johnson Pump 10-24946-01 F6B-9 fit? This cooling pump is designed for select 5.7L Indmar LTR, LT2, and LT5 engines. The listed applications include 250, 285, and 285R11 applications. Verify your engine application before purchasing to confirm compatibility.
- What are the mounting and hose port specifications for this Indmar cooling pump? The Johnson Pump 10-24946-01 F6B-9 features a crankshaft pulley mount and a 1-1/4" hose port. It also uses a full 1/1 cam with a lip seal. These specifications can be compared with your existing pump to help verify the correct replacement.
- What parts are used to service the Johnson Pump 10-24946-01 F6B-9? The Johnson Pump 10-24946-01 F6B-9 uses the MC97 impeller kit 09-812BT-1 and service kit 09-45825. These are the service components specifically identified for this pump in the product description.
- What part numbers does the Johnson Pump 10-24946-01 F6B-9 replace? This pump is an OEM replacement for Indmar 68-5001, 685001-2, and 685001-4. It also replaces Johnson Pump 10-24930-01, 10-24915-01, and 10-24805-01, as well as Jabsco EU 22740-0000. Confirm your existing part number against the listed replacements before ordering.
- What should I verify before installing the Johnson Pump 10-24946-01 F6B-9? Verify that your engine is a listed 5.7L Indmar LTR, LT2, or LT5 application and that the pump's crankshaft pulley mount and 1-1/4" hose port match your application. The product description does not provide installation instructions, so follow the pump label and applicable equipment owner's manual for installation.
$443.39

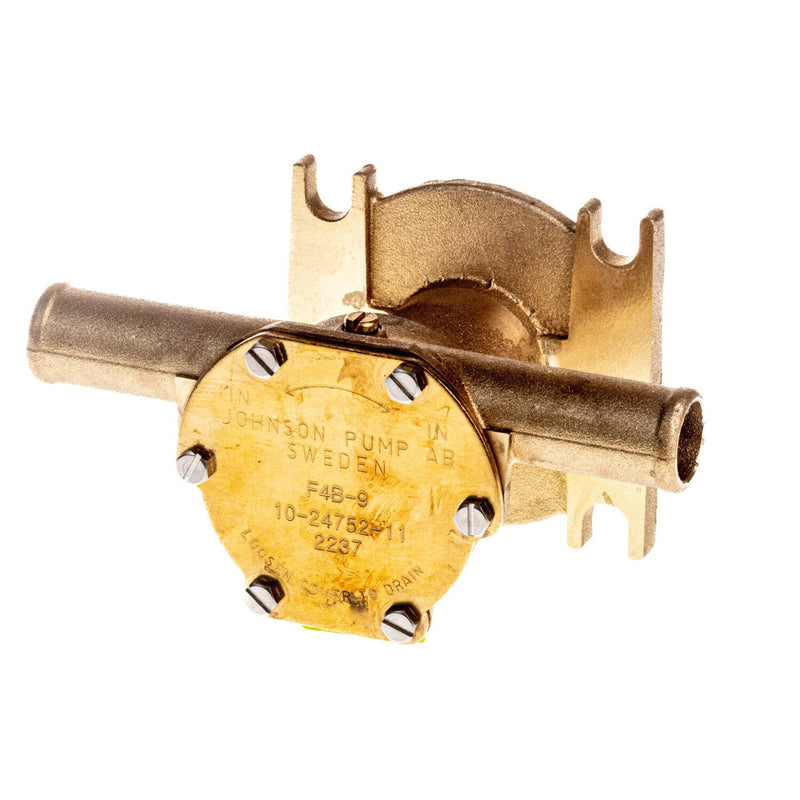

Johnson Pump 10-24752-11 F4B-9 Volvo Penta 3593655 Replacement Cooling Pump
The Johnson Pump 10-24752-11 F4B-9 is a genuine Johnson Pump engine cooling pump designed as an OEM replacement for Volvo Penta 3593655 and 3580945. Built for select Volvo Penta D1-30 and D2-40 engines, this flange-mounted pump features a full cam and lip seal design with a 3/4" port size for reliable raw water cooling performance.
Features:
Genuine Johnson Pump F4B-9 cooling pump
OEM replacement for Volvo Penta 3593655 and 3580945
Flange mounted with full cam and lip seal
Port size: 3/4"
Uses impeller kit 189-091026B1 and screw kit 189-0947553101
Replaces Johnson Pump 10-24752-01 and 10-24465-01
Replaces reproduction JMP JPR-VP0010DB
Replaces reproduction Jabsco 29450-1231
Johnson Pump is Original Manufacture of OEM cooling pump for Volvo Penta
Fits Volvo Penta Engines:
D1-30
D2-40
Click here for the Johnson Pump F4B Instruction Manual
Click here for the Johnson Pump F4B Diagram
$416.99

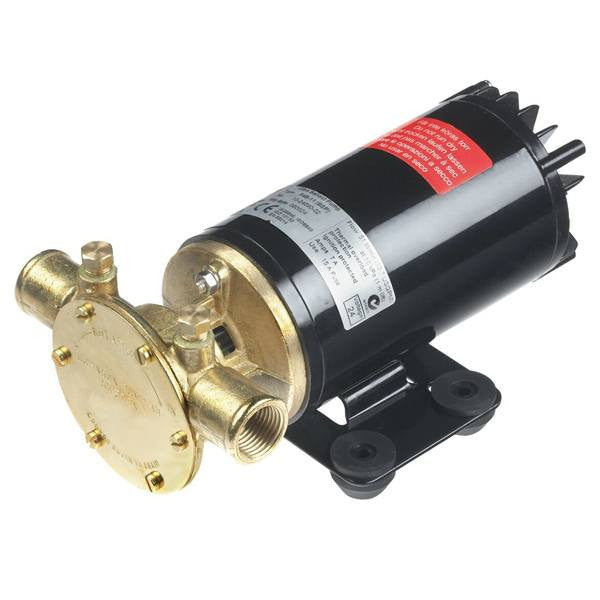

Johnson Talulah 13.5 GPM Ballast Pump
The Johnson Talulah Ballast Pump delivers high performance in a smaller package. This pump is designed to quickly fill or, when reversed, drain a ballast tank at a rate of more than 45 1/min (12GPM). Capable of pumping fresh or sea water, the pump's robust design can handle the rigors of continuous duty usage. This ballast pump is ideal for systems with tank monitoring for overfill and protection against dry-run while emptying. Pump is Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications.
Key Features:
Self-priming
Less Battery Draw
Ball Bearing Design with Bronze Head
Thermal Overload (Run Dry) Motor Protection
High performance and high output for intermittent duty cycles
Retrofit Ready for existing wake and watersport boats
Versatile High Volume Connection Options
3 Year Warranty
Complies with USCG 183.410 & ISO 8846 (Ignition Protection)
Specifications:
Flow: 13.5 GPM
Voltage: 13.6 VDC
Connection: External 1" standard hose, internal 1/2" NPT (female)
Minimum Hose Size: 1"
Wire Size: Min. 12 AWG
Fuse Size: 25 A
Amp Draw @ Pumping: 14A
Amp Draw @ Reversal: Up to 18A
Impeller Kit: 09-824P-2
Dimensions: 8"L x 4.72"W x 3.54"H
Click to Download Johnson Ultra Ballast Pump Installation Manual
Frequently Asked Questions
- What is the Johnson Talulah 13.5 GPM Ballast Pump designed for? The Johnson Talulah 13.5 GPM Ballast Pump is designed to quickly fill or drain ballast tanks when reversed. It can pump fresh or sea water and is intended for ballast systems on wake and watersport boats, including retrofit applications with approved electrical and plumbing specifications.
- How fast does the Johnson Talulah Ballast Pump fill or drain a ballast tank? The Johnson Talulah Ballast Pump has a listed flow rate of 13.5 GPM at 13.6 VDC. When reversed, it can drain a ballast tank, making the pump suitable for systems that require both filling and draining capabilities.
- Can the Johnson Talulah 13.5 GPM Ballast Pump handle fresh and sea water? Yes. The Johnson Talulah Ballast Pump is designed to pump both fresh water and sea water. Its robust construction is intended to handle continuous-duty usage, while the motor includes thermal overload protection for run-dry conditions.
- What electrical requirements does the Johnson Talulah Ballast Pump have? The Johnson Talulah Ballast Pump operates at 13.6 VDC and draws 14 amps while pumping, with up to 18 amps during reversal. The specified minimum wire size is 12 AWG, and the listed fuse size is 25 amps.
- What hose and connection sizes are required for the Johnson Talulah Ballast Pump? The Johnson Talulah Ballast Pump uses an external 1-inch standard hose connection and an internal 1/2-inch NPT female connection. The specified minimum hose size is 1 inch. Verify the electrical and plumbing specifications before installing the pump as a retrofit.
- Does the Johnson Talulah Ballast Pump have run-dry protection? Yes. The Johnson Talulah Ballast Pump features thermal overload motor protection for run-dry conditions. The product is also intended for systems with tank monitoring for overfill and protection against dry-running while emptying the ballast tank.
$618.29

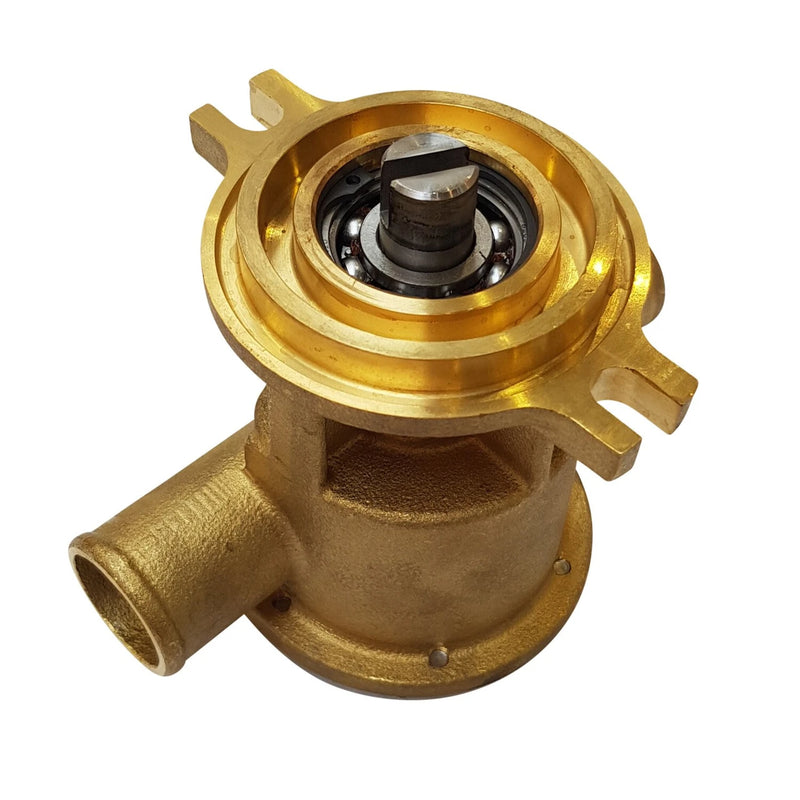

Johnson Pump 10-24524-12 F7B Volvo Penta 3583115 Replacement Cooling Pump
The Johnson Pump 10-24524-12 F7B is a genuine Johnson Pump engine cooling pump designed as an OEM replacement for Volvo Penta 3583115. Built for select Volvo Penta diesel engines, this cooling pump is used on D31, D41, D43, TAMD, KAD, KAMD, MD, and TMD engine applications for reliable raw water cooling performance.
Features:
Genuine Johnson Pump F7B cooling pump
OEM replacement for Volvo Penta 3583115
Built for select Volvo Penta D31/41/43, TAMD31/41/42, KAD32/42/43/44, KAMD42/43/44, MD31, and TMD31/41 engines
Uses impeller kit 189-091028BT1
Replaces Johnson Pump 10-24394-01 and 10-24524-02
Replaces reproduction JMP JPR-V1000
Johnson Pump is Original Manufacture of OEM cooling pump for Volvo Penta
Fits Volvo Penta Engines:
KAD42P-A, KAMD42P-A, HS1A
KAD32P
TAMD42WJ-A
KAD43P-A
KAMD43P, KAMD43P-A, KAMD43P-B
KAD44P, KAD44P-B, KAD44P-C
KAMD44P-A, KAMD44P-B, KAMD44P-C
KAD300-A, KAMD300-A
HS1A, HS1E-A
AD31L-A, AD31P-A
AD41L-A, AD41P-A
D41L-A
TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A
TAMD41H-A, TAMD41H-B, TAMD41P-A
TAMD41L-A, TAMD41M-A
TMD31L-A, TMD41L-A
TAMD31S, TAMD31L, TAMD31P
TAMD41P
MD31A
TMD31B, TAMD31B
AD31B
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
KAD42A, KAMD42A
MS5B
AD31D, AD31D-A, AD31XD
TAMD31D, TMD31D
AD41D, D41D, TAMD41D, TMD41D
KAD42B, KAMD42B, TAMD42B
Click here for the Johnson Pump Water Cooling Pump Instruction Manual
Click here for the Johnson Pump F7B Engine Cooling Pump Diagram
$230.39

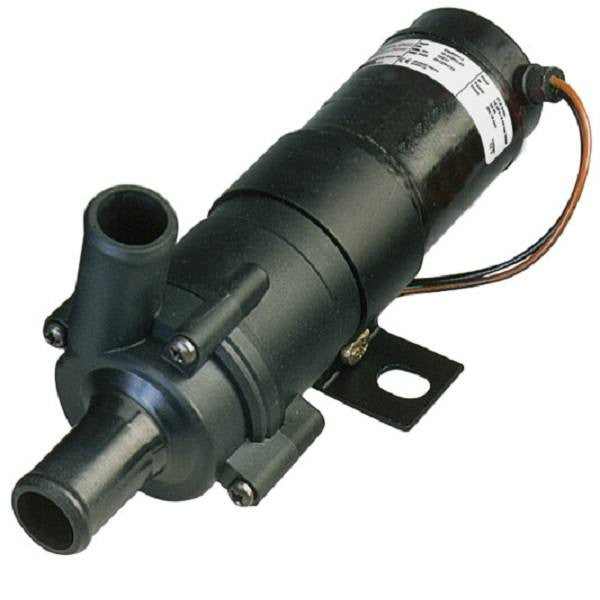

Johnson Pump CM30P7-1 Circulation Pump
The Johnson Pump CM30P7-1 is a heavy duty magnetically driven circulating pump. Compact but powerful, this is an ideal pump for circualtion duties such as water/antifreeze in heating systems or for circulating cooling fresh water. The CM series pumps by Johnson are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before switching on.
Features:
Pump Body: PPA, Thermoplastic
Shaft: Stainless Steel
Impeller: PPA, Thermoplastic
Specifications:
Voltage: 12
Port size: 5/8" or 3/4" hose
Minimum Liquid Temp: -40° F
Maximum Liquid Temp: 212° F
Dry running: 30 minutes max
Input Power: 27W Max
Mounting: Separate universal bracket for flat surfaces
Capacity: 5.3 GPM
Length: 6.97"
System Pressure: 2.5 bar max (36 psi)
Width: 2.68"
Height: 3.35
Frequently Asked Questions
- What is the Johnson Pump CM30P7-1 Circulation Pump used for? The Johnson Pump CM30P7-1 is a heavy-duty magnetic-drive circulation pump designed for duties such as circulating water or antifreeze in heating systems and circulating cooling fresh water.
- What is the flow capacity of the Johnson Pump CM30P7-1? The Johnson Pump CM30P7-1 has a capacity of 5.3 GPM and a maximum system pressure of 2.5 bar (36 psi).
- What hose sizes are compatible with the Johnson Pump CM30P7-1? The Johnson Pump CM30P7-1 has ports for 5/8-inch or 3/4-inch hose connections.
- What are the temperature limits for the Johnson Pump CM30P7-1? The Johnson Pump CM30P7-1 is specified for liquid temperatures from -40° F to 212° F.
- How long can the Johnson Pump CM30P7-1 run dry? The Johnson Pump CM30P7-1 has a maximum dry-running time of 30 minutes. Because it is a normal-priming centrifugal pump, it should be mounted so it remains flooded or be primed before switching it on.
- What are the materials and dimensions of the Johnson Pump CM30P7-1? The Johnson Pump CM30P7-1 has a PPA thermoplastic pump body and impeller with a stainless steel shaft. It measures 6.97 inches long, 2.68 inches wide, and 3.35 inches high, with a maximum input power of 27W.
$230.39

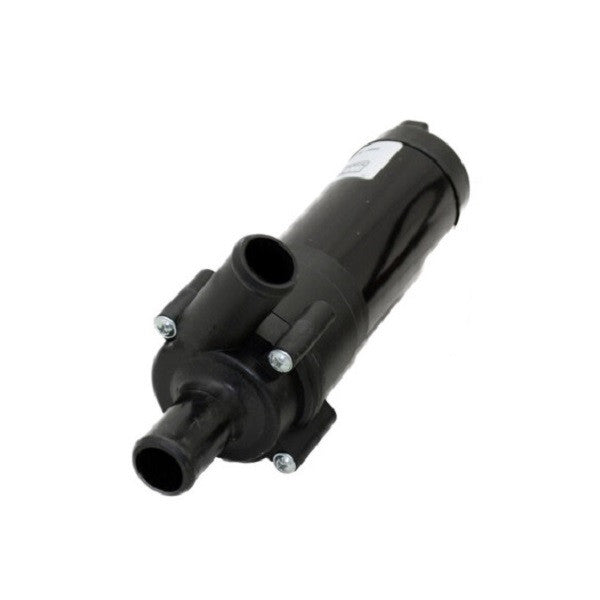

Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump
The Johnson Pump CM10P7-1 is a heavy duty magnetically driven circulating pump. Compact but powerful, this is an ideal pump for circualtion duties such as water/antifreeze in heating systems or for circulating cooling fresh water. The CM series pumps by Johnson are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before switching on.
Features:
Pump Body: PPA, Thermoplastic
Shaft: Stainless Steel
Impeller: PPA, Thermoplastic
Specifications:
Voltage: 12
Port size: 5/8" or 3/4" hose
Minimum Liquid Temp: -40° F
Maximum Liquid Temp: 212° F
Dry running: 30 minutes max
Input Power: 14W Max
Mounting: Separate universal bracket for flat surfaces
Capacity: 4 GPM
Length: 6.97"
System Pressure: 2.5 bar max (36 psi)
Width: 2.68"
Height: 3.35"
Frequently Asked Questions
- What is the Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump used for? The Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump is a heavy-duty magnetically driven centrifugal pump designed for circulation duties. Applications described for this pump include circulating water or antifreeze in heating systems and circulating cooling fresh water.
- What are the flow and pressure specifications of the Johnson Pump CM10P7-1 Circulation Pump? The Johnson Pump CM10P7-1 has a capacity of 4 GPM and a maximum system pressure of 2.5 bar (36 psi). It operates at 12V and has a maximum input power of 14W.
- What type of hose does the Johnson Pump 10-24486-03 CM10P7-1 use? The Johnson Pump CM10P7-1 is designed for use with 5/8-inch or 3/4-inch hose. Verify the hose size required for your circulation system before installation.
- What are the temperature limits for the Johnson Pump CM10P7-1? The Johnson Pump CM10P7-1 has a minimum liquid temperature rating of -40°F and a maximum liquid temperature rating of 212°F. These specifications define the listed liquid temperature range for the pump.
- Can the Johnson Pump CM10P7-1 run dry? The Johnson Pump CM10P7-1 can run dry for a maximum of 30 minutes. The pump is a normal-priming centrifugal pump and should be mounted so it remains flooded, or it should be primed before switching it on.
- What materials are used in the Johnson Pump 10-24486-03 CM10P7-1? The pump body and impeller are made from PPA thermoplastic, while the shaft is stainless steel. The pump uses a separate universal mounting bracket designed for installation on flat surfaces.
$230.39
Johnson Pump CM30P7-1 Circulation Pump
The Johnson Pump CM30P7-1 is a heavy duty magnetically driven circulating pump. Compact but powerful, this is an ideal pump for circualtion duties such as water/antifreeze in heating systems or for circulating cooling fresh water. The CM series pumps by Johnson are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before switching on.
Features:
Pump Body: PPA, Thermoplastic
Shaft: Stainless Steel
Impeller: PPA, Thermoplastic
Specifications:
Voltage: 12
Port size: 5/8" or 3/4" hose
Minimum Liquid Temp: -40° F
Maximum Liquid Temp: 212° F
Dry running: 30 minutes max
Input Power: 27W Max
Mounting: Separate universal bracket for flat surfaces
Capacity: 5.3 GPM
Length: 6.97"
System Pressure: 2.5 bar max (36 psi)
Width: 2.68"
Height: 3.35
Frequently Asked Questions
- What is the Johnson Pump CM30P7-1 Circulation Pump used for? The Johnson Pump CM30P7-1 is a heavy-duty magnetic-drive circulating pump designed for circulation duties such as water or antifreeze in heating systems and circulating cooling fresh water.
- What is the flow capacity of the Johnson Pump CM30P7-1? The Johnson Pump CM30P7-1 has a listed capacity of 5.3 GPM and a maximum system pressure of 2.5 bar (36 psi).
- What size hose does the Johnson Pump CM30P7-1 use? The Johnson Pump CM30P7-1 has ports designed for 5/8" or 3/4" hose connections.
- What are the temperature limits for the Johnson Pump CM30P7-1? The Johnson Pump CM30P7-1 has a minimum liquid temperature of -40° F and a maximum liquid temperature of 212° F.
- Can the Johnson Pump CM30P7-1 run dry? The Johnson Pump CM30P7-1 can run dry for a maximum of 30 minutes. Because it is a normal-priming centrifugal pump, it should be mounted so it remains flooded or be primed before switching it on.
- What are the construction materials and dimensions of the Johnson Pump CM30P7-1? The Johnson Pump CM30P7-1 has a PPA thermoplastic pump body and impeller with a stainless steel shaft. It measures 6.97 inches long, 2.68 inches wide, and 3.35 inches high, and has a maximum input power of 27W.
$230.39

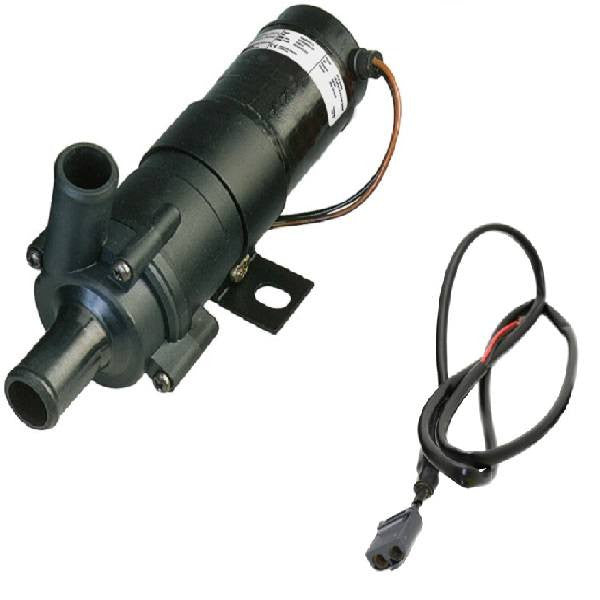

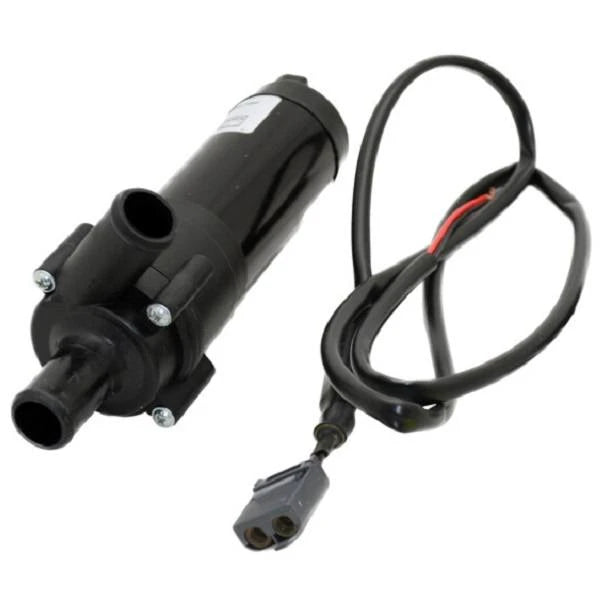

Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump with flexible cord
The Johnson Pump CM10P7-1 is a heavy duty magnetically driven circulating pump. Compact but powerful, this is an ideal pump for circualtion duties such as water/antifreeze in heating systems or for circulating cooling fresh water. The CM series pumps by Johnson are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before switching on.
Features:
Pump Body: PPA, Thermoplastic
Shaft: Stainless Steel
Impeller: PPA, Thermoplastic
Specifications:
Voltage: 12
Port size: 5/8" or 3/4" hose
Minimum Liquid Temp: -40° F
Maximum Liquid Temp: 212° F
Dry running: 30 minutes max
Input Power: 14W Max
Mounting: Separate universal bracket for flat surfaces
Capacity: 4 GPM
Length: 6.97"
System Pressure: 2.5 bar max (36 psi)
Width: 2.68"
Height: 3.35"
Frequently Asked Questions
- What is the Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump with flexible cord used for? The Johnson Pump 10-24486-03 CM10P7-1 is a heavy-duty magnetic-drive circulating pump designed for circulation duties such as water or antifreeze in heating systems and cooling fresh water.
- What size hose does the Johnson Pump CM10P7-1 use? The Johnson Pump CM10P7-1 has ports designed for 5/8" or 3/4" hose connections.
- What are the temperature limits for the Johnson Pump CM10P7-1? The Johnson Pump CM10P7-1 has a minimum liquid temperature of -40° F and a maximum liquid temperature of 212° F.
- Can the Johnson Pump CM10P7-1 run dry? The Johnson Pump CM10P7-1 can run dry for a maximum of 30 minutes. The pump should otherwise be mounted so it remains flooded or be primed before switching it on.
- What is the flow capacity of the Johnson Pump CM10P7-1? The Johnson Pump CM10P7-1 has a listed capacity of 4 GPM and a maximum system pressure of 2.5 bar (36 psi).
- What are the construction materials of the Johnson Pump CM10P7-1? The Johnson Pump CM10P7-1 has a PPA thermoplastic pump body and impeller, along with a stainless steel shaft. It has a maximum input power of 14W and operates at 12 volts.
$219.09

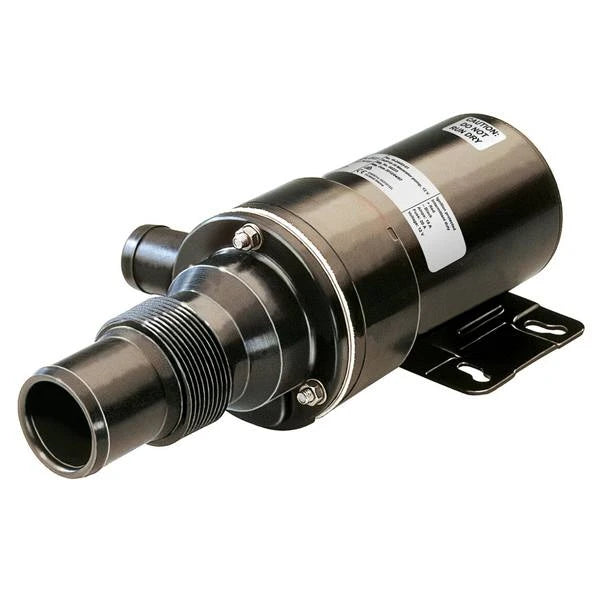

Johnson Pump TA3P10-19 Macerator Pump
This Johnson Pump macerator pump takes care of toilet waste. A rotary cutter shreds waste before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet or the bowl discharge outlet.
Features:
Motor: 12V DC
Body: Phenol Plastic (PF)
Impeller: Nitrile 09-1052S-9
Housing: Thermoplastic Polyester (PET)
Shaft: Stainless Steel
Seal: Lip Seal
Capacity at 0.2 bar: 10 GPM
Inlet Connection: 1-1/2" hose or 1-1/2" BSP
Amp: 15 Amp
Fuse Size: 20 Amp
Outlet Connection: 1" Hose
Dimensions:
Length: 9.06"
Width: 4.25"
Height: 3.23"
Weight: 4.2 lbs.
Click to Download Johnson Macerator Pump User Manual
Frequently Asked Questions
- What is the Johnson Pump TA3P10-19 Macerator Pump used for? The Johnson Pump TA3P10-19 Macerator Pump is designed to handle toilet waste by using a rotary cutter to shred waste before pumping it into or out of a holding tank. For installation, the pump should be connected as close as possible to the holding tank discharge outlet or bowl discharge outlet.
- What flow rate does the Johnson Pump TA3P10-19 Macerator Pump provide? The Johnson Pump TA3P10-19 Macerator Pump has a capacity of 10 GPM at 0.2 bar. It uses a 12V DC motor and has a listed current draw of 15 amps with a recommended fuse size of 20 amps.
- What hose connections does the Johnson Pump TA3P10-19 use? The Johnson Pump TA3P10-19 has a 1-1/2-inch inlet connection that accepts either 1-1/2-inch hose or 1-1/2-inch BSP. The outlet connection is designed for 1-inch hose.
- What materials are used in the Johnson Pump TA3P10-19 Macerator Pump? The Johnson Pump TA3P10-19 features a phenol plastic motor body, a thermoplastic polyester housing, a nitrile impeller, and a stainless steel shaft. It uses a lip seal as part of its construction.
- What are the dimensions of the Johnson Pump TA3P10-19 Macerator Pump? The Johnson Pump TA3P10-19 measures 9.06 inches long, 4.25 inches wide, and 3.23 inches high. The pump weighs 4.2 pounds.
$475.09

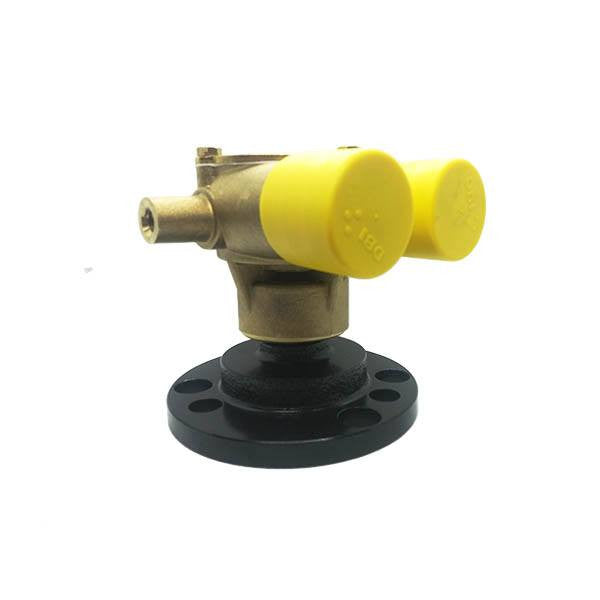

Johnson Pump 10-24228-1 F5B-9 Crankshaft Impeller Pump
The Johnson Pump 10-24228-1 is an Impeller Crankshaft Pump for F5B-9 pumps. The pump features a bronze body and a 1-1/4" hose port.
From $80.89

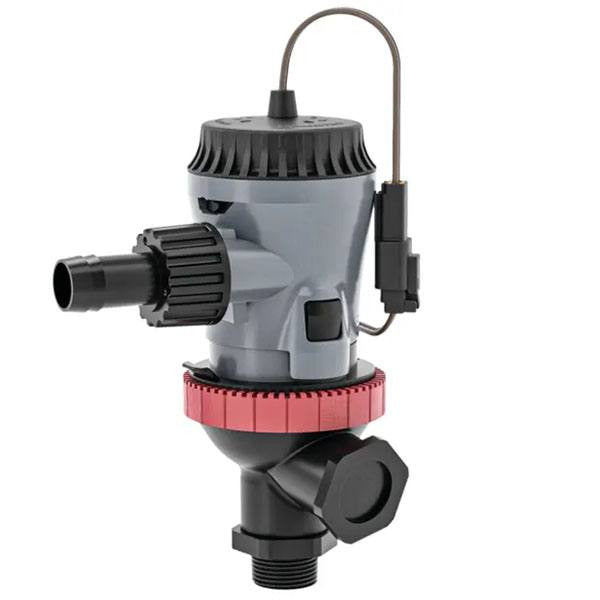

Johnson Pump Aqua O2 Twin Port Aerator Pump
Johnson Pump cartridge aerator pumps offer ease of convenience and years of reliable service. This pump has an improved design with an easy-to-change/replace motor cartridge.
Features:
All Aqua O2 Cartridge Aerator Pumps offer the convenience of using only one intake for both the livewell and washdown pump
Includes a 3/4 NPT seacock inlet
High-flow impeller design
Quick-change motor connection
360-degree pump discharge rotation
Switchless automatic bilge pump with low-amp resistance monitoring
Durable thermoplastic housing design commonality with removable motor cartridge
Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings
Upgradable motor cartridge
Dual-port inlet
Benefits:
Heightened efficiency and an increased flow rate
Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
Reorient discharge in any direction
The common body allows interchangeable motor cartridge replacement in the same or different size
Corrosion-resistant and extended life
Allows single transom intake for dual intake pump application
Can increase or decrease capacity according to the environment and flow needed
Choose the correct intake for the application
Competitive Advantages:
The most efficient and highest flow in the GPH capacity category
Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
Unmatched versatility for ease of installation
Specifications:
Pump Size: 500/800 GPH
Capacity Straight (12V): 585 GPH (37 I/min) / 810GPH (51 I/min)
Voltage: 12V
Amp: 2.7A / 3.7A
Fuse: 3.5A / 5A
Hose Connection: 3/4 in.
Wire Size: 16 GA, TINNED
Weight: 9.6 oz /10.4 oz
Body: ABS
Dura Port: PA66/GF - Nylon
Shaft: 316 Stainless Steel
Shaft Seal: Nitrile Rubber
Motor Cartridge: PC-ABS
From $80.89

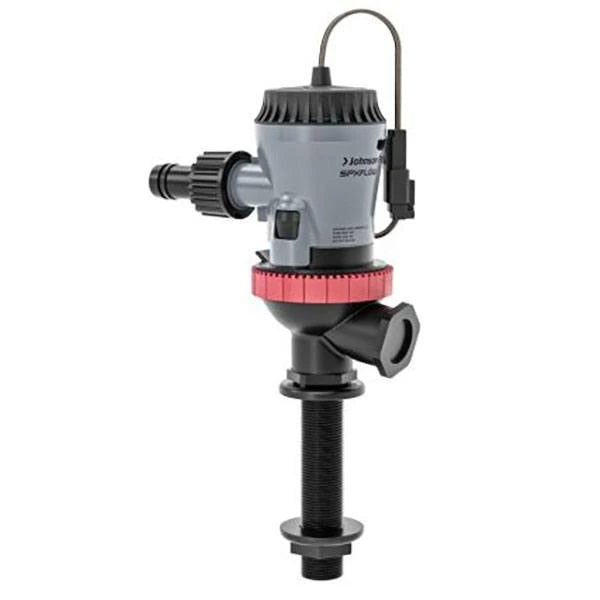

Johnson Pump Aqua O2 Flex Mount Aerator Pump
Johnson Pump cartridge aerator pumps offer ease of convenience and years of reliable service. This pump has an improved design with an easy-to-change/replace motor cartridge.
Features:
All Aqua O2 Cartridge Aerator Pumps offer the convenience of using only one intake for both the livewell and washdown pump
Includes a 3/4 NPSM thru-hull inlet that can be used straight or 90-degree
High-flow impeller design
Quick-change motor connection
360-degree pump discharge rotation
Switchless automatic bilge pump with low-amp resistance monitoring
Durable thermoplastic housing design commonality with removable motor cartridge
Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings
Upgradable motor cartridge
Dual-port inlet
Benefits:
Heightened efficiency and an increased flow rate
Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
Reorient discharge in any direction
The common body allows interchangeable motor cartridge replacement in the same or different size
Corrosion-resistant and extended life
Allows single transom intake for dual intake pump application
Can increase or decrease capacity according to the environment and flow needed
Choose the correct intake for the application
Competitive Advantages:
The most efficient and highest flow in the GPH capacity category
Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
Unmatched versatility for ease of installation
Specifications:
Pump Size: 500 GPH
Capacity Straight (12V): 585 GPH (37 I/min)
Voltage: 12V
Amp: 2.7A
Fuse: 3.5A
Hose Connection: 3/4 in.
Wire Size: 16 GA, TINNED
Weight: 9.6 oz
Body: ABS
Dura Port: PA66/GF - Nylon
Shaft: 316 Stainless Steel
Shaft Seal: Nitrile Rubber
Motor Cartridge: PC-ABS
$121.89

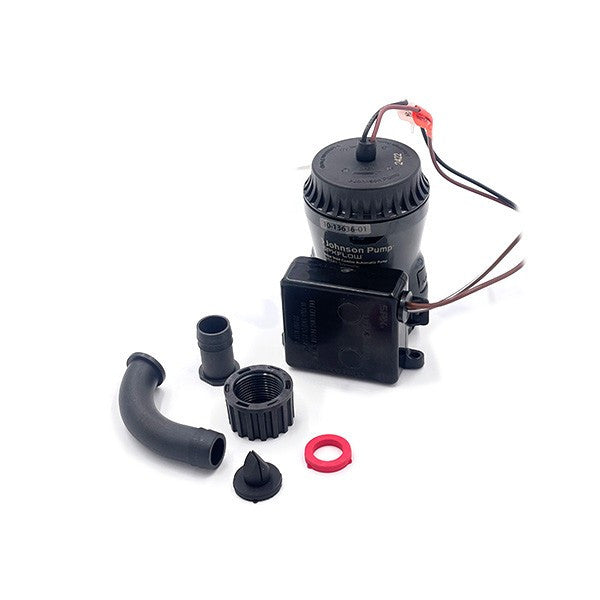

Johnson Pump Aqua Void Ultima Combo 800GPH 12v
With its industry-first quick-change motor connection and new reinforced click-in basket, this bilge pump simplifies cleaning and installation, and it's convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating with Aqua Void.
This pump is combined with the non-clogging electronic Ultima Switch for automatic operation. The electronic automatic Ultima Switch uses the patented Mirus field effect detector cells, which produce micro-electrical fields that detect disruptions caused by the level of water present in the bilge and automatically activate and deactivate the pump.
Experience the Industry-First Quick-Change Motor ConnectionJohnson Pump's groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.
Take Control of the Boating Experience with Unparalleled ConvenienceThe Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.
Enjoy Enhanced Efficiency and Higher Flow RatePowered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.
Trust in Reliable Performance Under Demanding ConditionsJohnson Pump Marine is renowned for its industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.
Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance the boating experience. Get the Aqua Void today!
Features:
Heightened efficiency with an increased flow rate - high-flow impeller design
Quick-change motor connection enjoy quick and hassle-free cartridge motor changes or capacity upgrades. Industry-first and only cartridge motor pump with included harness connection requiring no cutting and splicing of wires
Water-cooled motor for long service intervals
Compact, all-in-one motor/Impeller unit with stainless steel (316) Shaft
No tools are needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
Easy-to-install dura-port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
Include both a straight and a 90-degree smooth elbow dura-port as well as a removable check valve
Meets the international standard, ISO 8849 marine
Molded T-Slot - Easy Installation with Switches
This cartridge pump is combined with the Ultima switch for automatic operation
Specifications:
Pump Size: 800 GPH
Capacity Straight (12V): 795 GPH (50 I/min)
Voltage: 12V
Amp: 3.7A
Fuse: 5A
Hose Connection: 3/4 in.
Wire Size: 16 GA, TAC
Weight: 18.7oz
Body: ABS
Dura Port: PA66/GF - Nylon
Shaft: 316 Stainless Steel
Shaft Seal: Nitrile Rubber
Motor Cartridge: PC-ABS
Pump Dimensions (W x H x L): 3.5 x 4.69 x 6.1 inches (89 x 119 x 155 mm)
$105.59

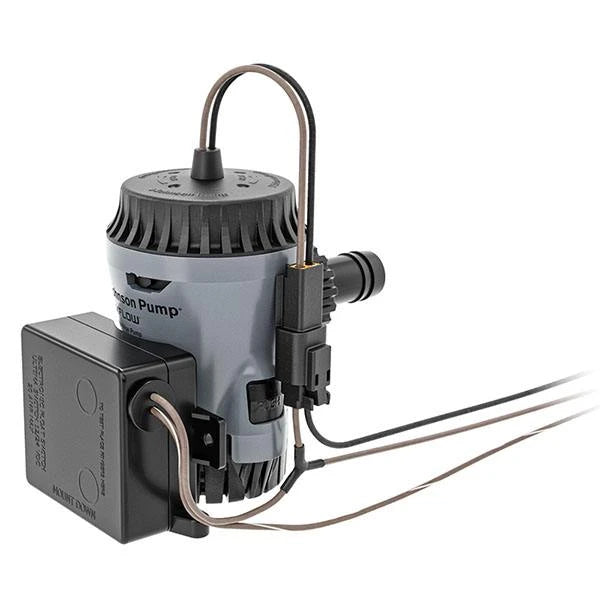

Johnson Pump Aqua Void Ultima Combo Bilge Pump 500GPH
With its industry-first quick-change motor connection and new reinforced click-in basket, this bilge pump simplifies cleaning and installation, and it's convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating with Aqua Void.
This pump is combined with the non-clogging electronic Ultima Switch for automatic operation. The electronic automatic Ultima Switch uses the patented Mirus field effect detector cells, which produce micro-electrical fields that detect disruptions caused by the level of water present in the bilge and automatically activate and deactivate the pump.
Experience the Industry-First Quick-Change Motor ConnectionJohnson Pump's groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.
Take Control of the Boating Experience with Unparalleled ConvenienceThe Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.
Enjoy Enhanced Efficiency and Higher Flow RatePowered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.
Trust in Reliable Performance Under Demanding ConditionsJohnson Pump Marine is renowned for its industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.
Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance the boating experience. Get the Aqua Void today!
Features:
Heightened efficiency with an increased flow rate - high-flow impeller design
Quick-change motor connection enjoy quick and hassle-free cartridge motor changes or capacity upgrades. Industry-first and only cartridge motor pump with included harness connection requiring no cutting and splicing of wires
Water-cooled motor for long service intervals
Compact, all-in-one motor/Impeller unit with stainless steel (316) Shaft
No tools are needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
Easy-to-install dura-port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
Include both a straight and a 90-degree smooth elbow dura-port as well as a removable check valve
Meets the international standard, ISO 8849 marine
Molded T-Slot - Easy Installation with Switches
This cartridge pump is combined with the Ultima switch for automatic operation
Specifications:
Pump Size: 500 GPH
Capacity Straight (12V): 600 GPH (38 I/min)
Voltage: 12V
Amp: 2.7A
Fuse: 3.5A
Hose Connection: 3/4 in.
Wire Size: 16 GA, TAC
Weight: 17.1 oz (0.48 kg)
Body: ABS
Dura Port: PA66/GF - Nylon
Shaft: 316 Stainless Steel
Shaft Seal: Nitrile Rubber
Motor Cartridge: PC-ABS
Pump Dimensions (W x H x L): 2.95 x 4.69 x 6.63 inches (75 x 120 x 168 mm)
From $47.49

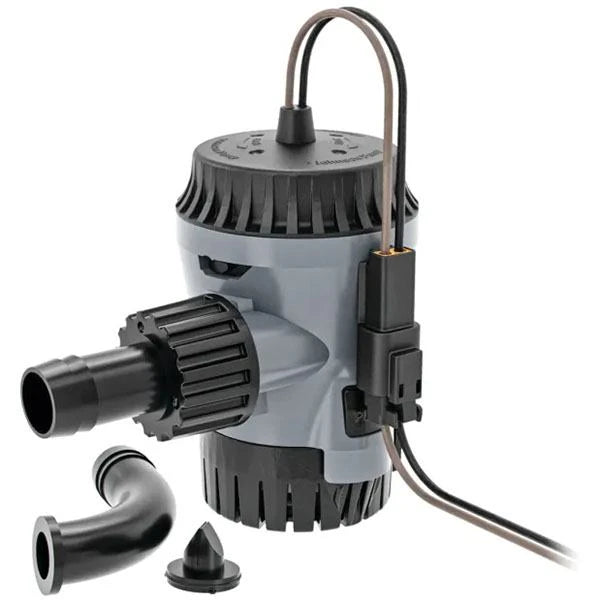

Johnson Pump Aqua Void Bilge Pump
Experience the Industry-First Quick-Change Motor ConnectionThis innovative product includes a rapid motor connection system, allowing for effortless changes of cartridge motors or upgrades in capacity.
Take Control of Your Boating Experience with Unparalleled Convenience The Aqua Void Cartridge Bilge Pump is engineered for single-handed operation, making it ideal for confined bilge areas. The pump's body allows for straightforward installation and removal, while a uniquely designed reinforced click-in basket facilitates easy installation, maintenance, and inspection.
Enjoy Enhanced Efficiency and Higher Flow Rate The Aqua Void utilizes an upgraded motor and a high-flow impeller, resulting in improved efficiency and a greater flow rate, all while minimizing energy usage.
Trust in Reliable Performance Under Demanding Conditions Johnson Pump Marine is recognized for its exceptional reliability within the industry. The Aqua Void exemplifies this standard through its durable design and precise engineering. Experience peace of mind while on the water and embrace Reliability On Board. The Aqua Void Bilge Pump represents a revolutionary advancement in bilge pump technology, establishing a new benchmark in the field. Seize this chance to elevate your boating experience. Acquire the Aqua Void today.
Features:
Limited 3-Year Warranty
Capacities 500 GPH and 800 GPH
Heightened Efficiency with an Increased Flow Rate - High Flow Impeller Design
Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires
Water-cooled motor for long service intervals
Compact, all-in-one motor/impeller unit with stainless steel (316) shaft
No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
Easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
Include both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
Meets the international standard, ISO 8849 marine
Molded T-Slot - Easy Installation with Switches
Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation
Showing 48/79
Related collections
Johnson Pump products currently published by All Marine World.
- Choosing a selection results in a full page refresh.
- Opens in a new window.
