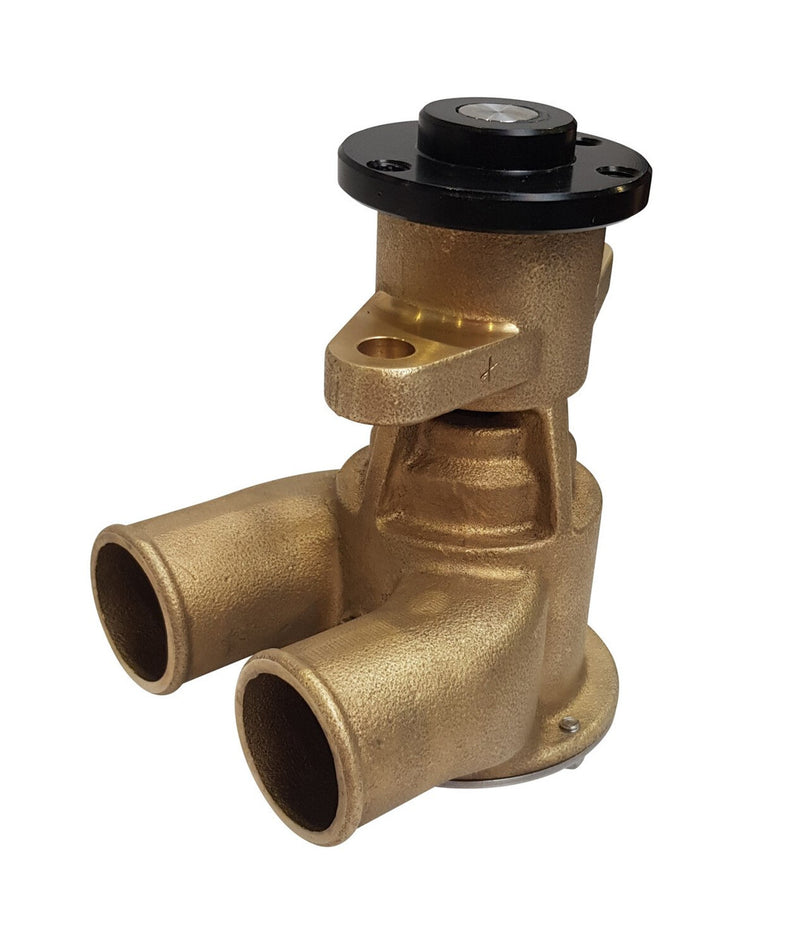

Johnson Pump 10-13614-02 F6B-9 Malibu M5Di & M6Di Replacement Impeller Pump

The Johnson Pump 10-13614-02 F6B-9 is a genuine Johnson Pump engine cooling pump designed for Malibu M5Di and M6Di marine engines. This OEM-style impeller pump is built for reliable raw water cooling performance and replaces Sherwood P1505.

Features:

Genuine Johnson Pump F6B-9 impeller pump

Designed for Malibu M5Di and M6Di marine engines

Replaces Sherwood P1505

Uses impeller 09-812BT-1

MC97 impeller material

Uses screw kit 09-47553-105

Built for dependable marine engine raw water cooling performance

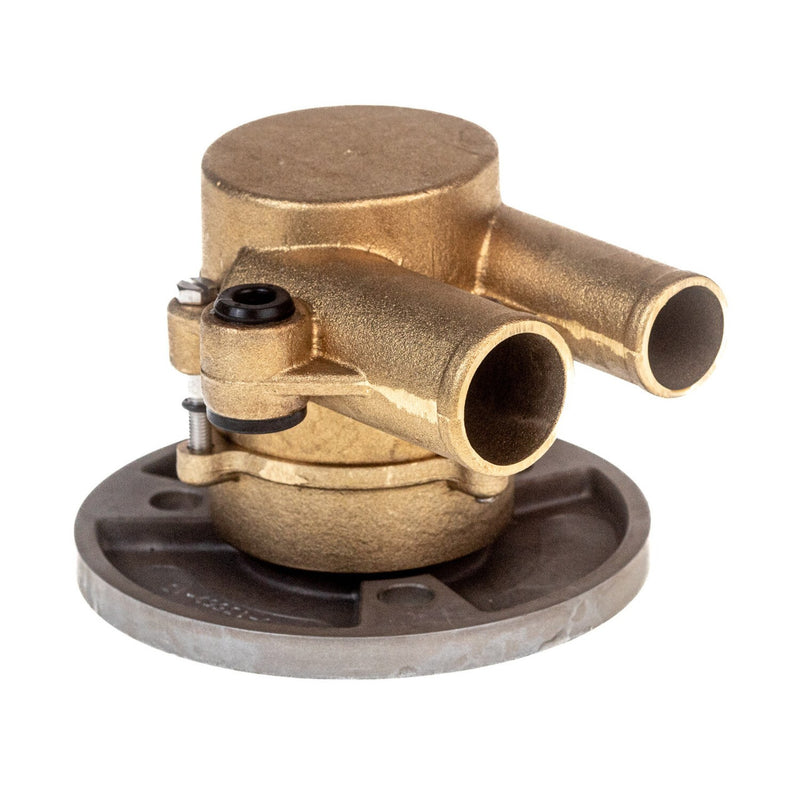

Johnson Pump 10-13569-13 F6B-9 Volvo Penta 21212800 Replacement Cooling Pump

The Johnson Pump 10-13569-13 F6B-9 is a genuine Johnson Pump engine cooling pump designed as an OEM replacement for Volvo Penta 21212800 and 3812518. Built for 8.1L V8 Volvo Penta engines, this beltless pulley crankshaft mounted pump features a mechanical seal for reliable raw water cooling performance.

Features:

Genuine Johnson Pump F6B-9 cooling pump

OEM replacement for Volvo Penta 21212800 and 3812518

Built for 8.1L V8 Volvo Penta engines

Beltless pulley crankshaft mounted pump

Mechanical seal

Uses impeller kit 189-091028BT1 and service kit 189-0945825

Replaces Johnson Pump 10-13569-03 and 10-13470-03

Replaces reproduction JMP JPR-VP2800G

Johnson Pump is Original Manufacture of OEM cooling pump for Volvo Penta

Click here for the Johnson Pump F6B Engine Cooling Pump Instruction Manual

Click here for the Johnson Pump F6B Water Cooling Pump Diagram

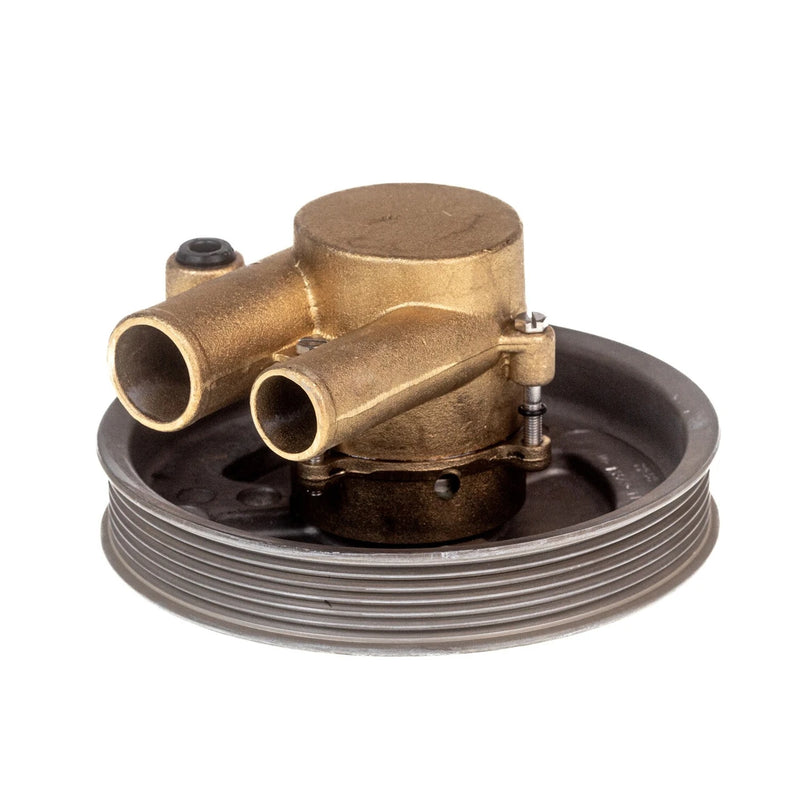

Johnson Pump 10-13569-11 F5B-9 Volvo Penta 21212799 Replacement Cooling Pump

The Johnson Pump 10-13569-11 F5B-9 is a genuine Johnson Pump engine cooling pump designed as an OEM replacement for Volvo Penta 21212799. Built for select Volvo Penta gasoline engines, this serpentine belt pulley mount pump features a lip seal design and 1-1/4" port size for reliable raw water cooling performance.

Features:

Genuine Johnson Pump F5B-9 cooling pump

OEM replacement for Volvo Penta 21212799

Serpentine belt pulley mount with lip seal

Port size: 1-1/4" / 32mm

Uses impeller kit 189-091028BT1

Replaces Johnson Pump 10-13470-01, 10-13593-01, and 10-13569-01

Replaces reproduction JMP JPR-VP2799G

Johnson Pump is Original Manufacture of OEM cooling pump for Volvo Penta

Fits Volvo Penta Engines:

4.3GXi, 4.3GL, 4.3OSi

5.0Gi, 5.0GXi, 5.0OSi, 5.0GL

5.7Gi, 5.7GXi, 5.7OSXi, 5.7GiI

V6-200, V6-225

V8-270, V8-300, V8-320, V8-225

Click here for the Johnson Pump F5B Engine Cooling Pump Instruction Manual

Click here for the Johnson Pump F5B-9 Water Cooling Pump Diagram

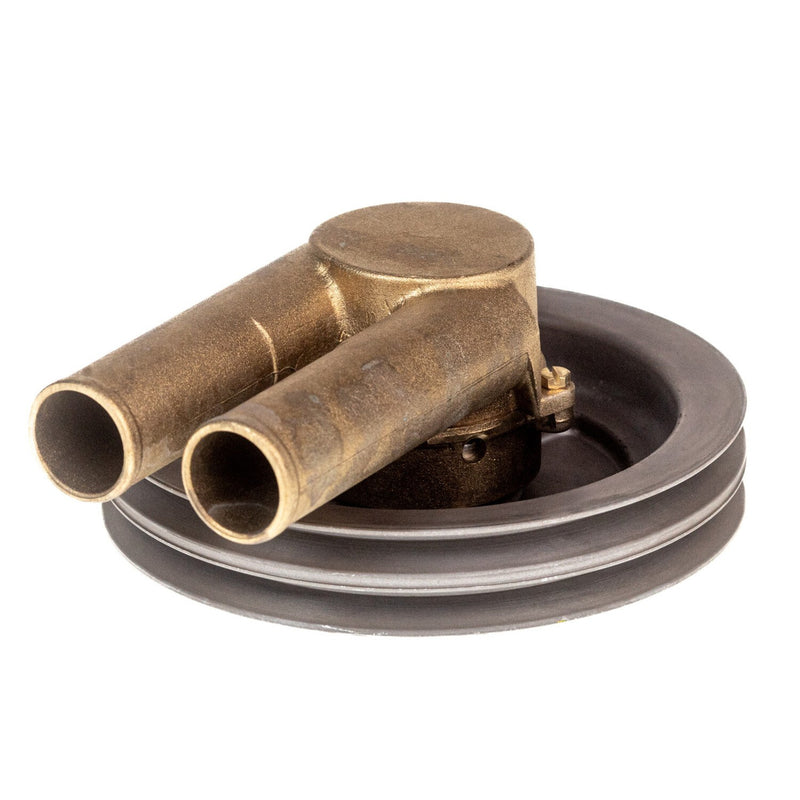

Johnson Pump 10-13568-11 F5B-9 Volvo Penta 21214596 Replacement Cooling Pump

The Johnson Pump 10-13568-11 F5B-9 is a genuine Johnson Pump engine cooling pump designed as an OEM replacement for Volvo Penta 21214596. Built for select Volvo Penta gasoline engines, this V-belt pulley mount pump features a lip seal design and 1-1/4" port size for reliable raw water cooling performance.

Features:

Genuine Johnson Pump F5B-9 cooling pump

OEM replacement for Volvo Penta 21214596

V-belt pulley mount with lip seal

Port size: 1-1/4" / 32mm

Uses impeller kit 189-091027B10

Replaces Johnson Pump 10-13469-01 and 10-13568-01

Replaces reproduction JMP JPR-VP4599G

Johnson Pump is Original Manufacture of OEM cooling pump for Volvo Penta

Fits Volvo Penta Engines:

4.3GL, 4.3GS, 4.3GI

5.0GLP, 5.0GiP

5.7GL, 5.7GS

4.3GL-A, 4.3GL-B, 4.3GL-C, 4.3GL-D

5.0GL-A, 5.0GL-B, 5.0GL-C, 5.0GL-D, 5.0GL-E

5.7GL-A, 5.7GL-B, 5.7GL-C, 5.7GL-D, 5.7GL-E

4.3GLPWTC, 4.3GLPWTR, 4.3GSPWTC, 4.3GSPWTR

4.3GIPWTC, 4.3GIPWTR, 4.3GIJWTR, 4.3GSJWTR

5.0GLPWTR, 5.0GiPWTR

5.7GSIPWTR, 5.7GSPWTR, 5.7GSiPWTRCE

4.3GLPEFS, 4.3GiPEFS

5.0GLPEFS, 5.0GiPEFS, 5.7GSPEFS, 5.7GSIPEFS

Click here for the Johnson Pump F5B Water Pump Instruction Manual

Click here for a Johnson Pump Johnson Pump F5B-9 Engine Cooling Pump Diagram

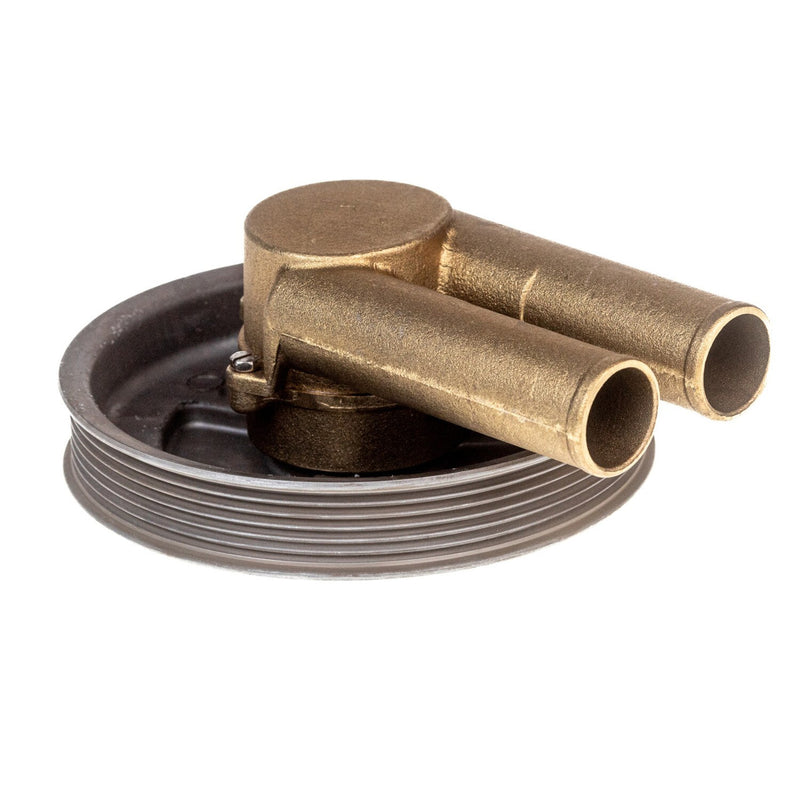

Johnson Pump 10-13567-11 F5B-9 Volvo Penta 21214599 Replacement Cooling Pump

The Johnson Pump 10-13567-11 F5B-9 is a genuine Johnson Pump engine cooling pump designed as an OEM replacement for Volvo Penta 21214599. Built for select Volvo Penta gasoline engines, this serpentine belt pulley mount pump features a lip seal design and 1-1/4" port size for reliable raw water cooling performance.

Features:

Genuine Johnson Pump F5B-9 cooling pump

OEM replacement for Volvo Penta 21214599

Serpentine belt pulley mount with lip seal

Port size: 1-1/4" / 32mm

Uses impeller kit 189-091027B10

Replaces Johnson Pump 10-13468-01 and 10-13567-01

Replaces reproduction JMP JPR-VP4599G

Johnson Pump is Original Manufacture of OEM cooling pump for Volvo Penta

Fits Volvo Penta Engines:

5.0GXi-C, 5.0GXi-CF, 5.0GXi-D, 5.0GXi-DF

5.0OSi-C, 5.0OSi-CF, 5.0OSi-D, 5.0OSi-DF

4.3GXi-B, 4.3GXi-BF, 4.3OSi-B, 4.3OSi-BF

5.0GXi-B, 5.0GXi-BF, 5.0OSi-B, 5.0OSi-BF

5.7Gi-B, 5.7Gi-BF, 5.7GXi-C, 5.7GXi-CF

5.7GiI-B, 5.7GXiI-C

5.7OSi-A, 5.7OSi-AF, 5.7OSXi-A, 5.7OSXi-AF

4.3GXi-A

5.0GXi-A

5.7Gi-A, 5.7GXi-A, 5.7GXi-B

5.7GiI-A, 5.7GSiI-A, 5.7GXiI-A, 5.7GXiI-B

4.3GXi-C, 4.3GXi-CF, 4.3GXi-D, 4.3GXi-DF

4.3OSi-C, 4.3OSi-CF, 4.3OSi-D, 4.3OSi-DF

5.7Gi-C, 5.7Gi-CF, 5.7Gi-D, 5.7Gi-DF

5.7GiI-C, 5.7GiI-D

5.7GXi-D, 5.7GXi-DF, 5.7GXi-E, 5.7GXi-EF

5.7GXiI-D, 5.7GXiI-E

5.7OSi-B, 5.7OSi-BF, 5.7OSi-C, 5.7OSi-CF

5.7OSXi-B, 5.7OSXi-BF, 5.7OSXi-C, 5.7OSXi-CF

5.0GXi-E, 5.0GXi-EF, 5.0OSi-E, 5.0OSi-EF

5.7Gi-E, 5.7Gi-EF, 5.7GiI-E

5.7GXi-F, 5.7GXi-FF, 5.7GXiI-F

5.7OSi-D, 5.7OSi-DF, 5.7OSXi-D, 5.7OSXi-DF

4.3GXi-E, 4.3GXi-EF, 4.3OSi-E, 4.3OSi-EF

3.0GSPBYCCE, 3.0GSPEFS, 3.0GSMEFS

4.3GLPEFS, 4.3GiPEFS

5.0GLPEFS, 5.0GiPEFS, 5.7GSPEFS, 5.7GSIPEFS

Click here for the Johnson Pump F5B Instruction Manual

Click here for the Johnson Pump 10-13567-11 Diagram

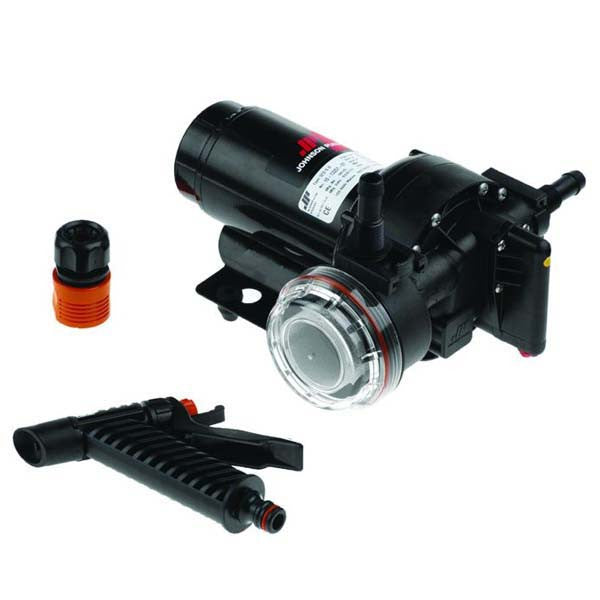

Mayfair Aqua Jet Wash Down Pump 5.2 GPM

Quiet and pulsation-free even at low speeds, the new Aqua Jet five-chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats.

Whisper quiet operation

Five-chamber construction

Self-priming

Easy, low cost maintenance

Inline strainer and trigger nozzle included as standard

Long service life

Pump Body: Nylon

Valve Housing: Polypropylene

Valves: Nitrile

Frequently Asked Questions

• What is the Mayfair Aqua Jet Wash Down Pump 5.2 GPM designed for? The Mayfair Aqua Jet Wash Down Pump 5.2 GPM is designed to provide a water pressure solution for small and medium-sized leisure and commercial boats. Its five-chamber diaphragm design delivers quiet, pulsation-free operation, including at low speeds.
• Is the Mayfair Aqua Jet Wash Down Pump self-priming? Yes. The Mayfair Aqua Jet Wash Down Pump is self-priming. The product description also highlights its easy, low-cost maintenance and long service life.
• What is included with the Mayfair Aqua Jet Wash Down Pump? The Mayfair Aqua Jet Wash Down Pump includes an inline strainer and trigger nozzle as standard. These components are supplied with the pump for its washdown application.
• What materials are used in the Mayfair Aqua Jet Wash Down Pump? The Mayfair Aqua Jet Wash Down Pump has a nylon pump body, a polypropylene valve housing, and nitrile valves. Its five-chamber construction is designed for quiet and pulsation-free operation.
• How does the five-chamber design of the Mayfair Aqua Jet Wash Down Pump affect operation? The Mayfair Aqua Jet Wash Down Pump uses a five-chamber diaphragm design for quiet, pulsation-free operation. The product description specifically notes that this performance is maintained even at low speeds.
• What type of boats is the Mayfair Aqua Jet Wash Down Pump intended for? The Mayfair Aqua Jet Wash Down Pump is intended for both small and medium-sized leisure and commercial boats. The product description identifies it as a water pressure solution for these marine applications.

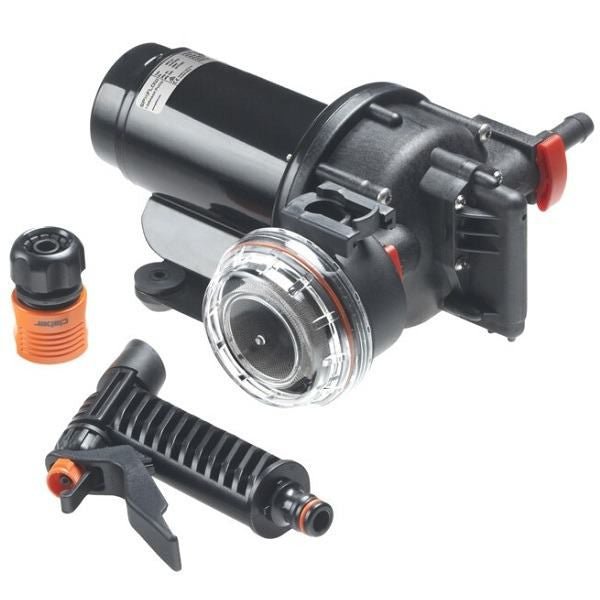

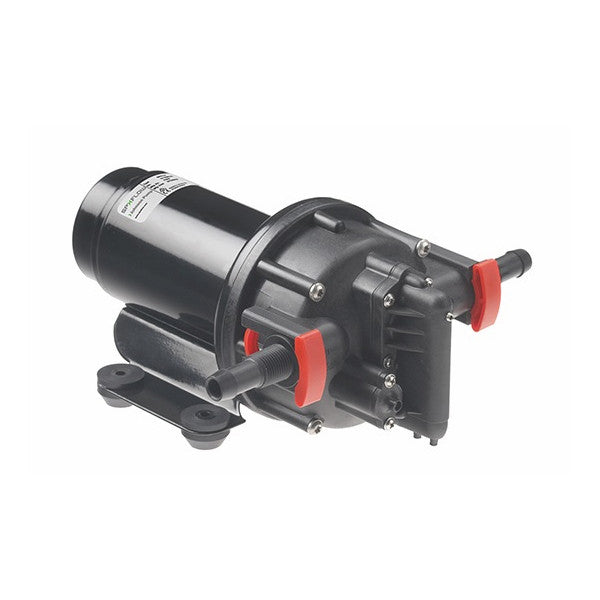

Johnson Pump 3.5GPM Aqua Jet Washdown Pump

The Johnson Pump 3.5GPM Aqua Jet is a pulsating washdown pump that allows for quiet cleaning of recreational equipment. The 5 bar high pressure allow for easier and fast clean up. The five chamber construction allows for smooth flowing of water with self-priming functionality. The pump offers low power consumption and the ability to run dry without damaging the pump. When the spray nozzle is opened and closed the integrated pressure switch automatically turns the pump on and off. A PUMProtector inlet strainer ,trigger spray nozzle, and 1/2" hose connections for both BSP & NSP included.

Features:

Inlet strainer & Nozzle included

1/2" hose BSP & NPT connections included

Self-Priming

Five chamber construction

quiet operation

Quick disconnect fitting

Specifications:

Motor: 120W, 12/24V DC

Body: PA/PPA

Valves: Nitrile

Diaphragm: Santoprene

Flow rate: 3.5 GPM

Pressure cut off: 5 bar - 70psi

Fuse size: 15A

Connection: 3/8" BSP x 1/2" barb

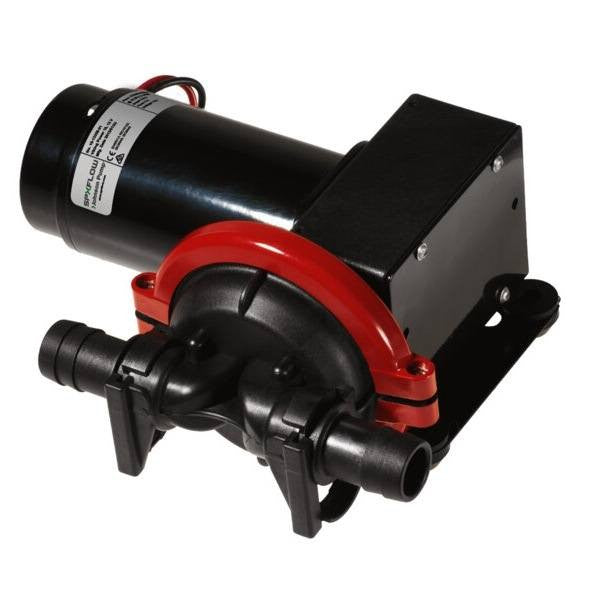

Johnson Pump 12V Viking Power 16 Waste Water Pump

The Johnson Pump Viking Power 16 is a modern single chamber waste water pump that offers set up in several different pump/motor configurations. The self-priming diaphragm is made of reinforced premium nitrile rubber and is able to be replaced without removing the pump from the system. Filters are unnecessary thanks to the non-choke valves. The quiet operating pump can be run dry and can handle a mixture of air and water without difficulty.

Features:

Robust single diaphragm

Reinforced nylon body

Quiet operation

Can be run dry

Low power consumption

Can pump air/water mixture

Non-Choke valves - no filters required

Easy to install even in tight spaces

Specifications:

Body: Nylon, glass-fiber reinforced

Valves: Nitrile rubber

Diaphragm: Reinforced nitrile rubber

Capacity, open flow: 4.2 GPM

Capacity at 0.1 bar: 4.0 GPM

Mas lift: 9.8 ft

Max head: 9.8 ft

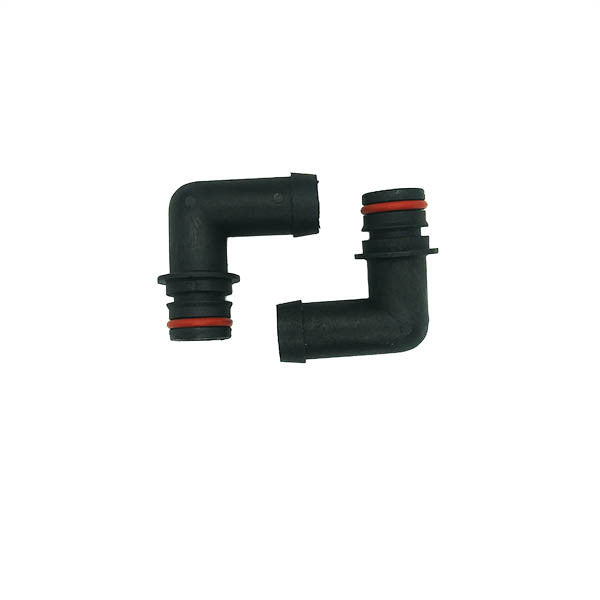

Connection: 1" & 3/4" KlickTite XL connectors, 90° (Optional)

Voltage: 12

Fuse: 8 Amp

Length: 7.3"

Width: 8.9"/7.1"

Height: 4.6"/8"

Click here for the Viking Power 16 Installation Instructions

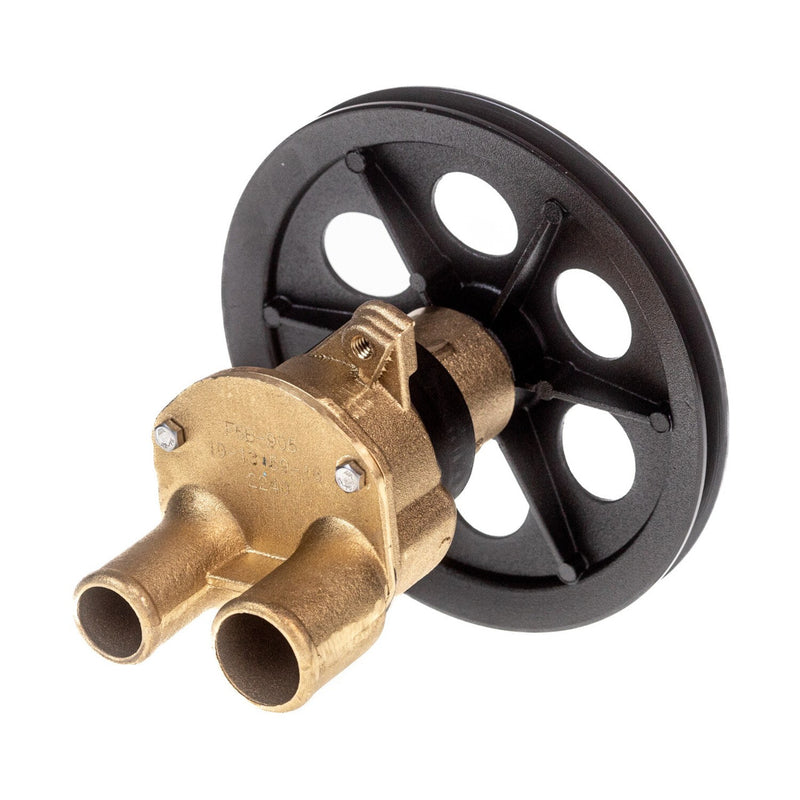

Johnson Pump 10-13159-17 F5B-905 Volvo Penta 3857794 Replacement Cooling Pump

The Johnson Pump 10-13159-17 F5B-905 is a genuine Johnson Pump impeller pump designed as an OEM replacement for Volvo Penta 3857794. Built for select Volvo Penta gasoline engines, this V-belt pulley mount pump features a 2/3 cam, lip seal design, 1" inlet, and 1-1/4" outlet for reliable raw water cooling performance.

Features:

Genuine Johnson Pump F5B-905 impeller pump

OEM replacement for Volvo Penta 3857794

Pulley V-belt mount

2/3 cam with lip seal

1" inlet and 1-1/4" outlet

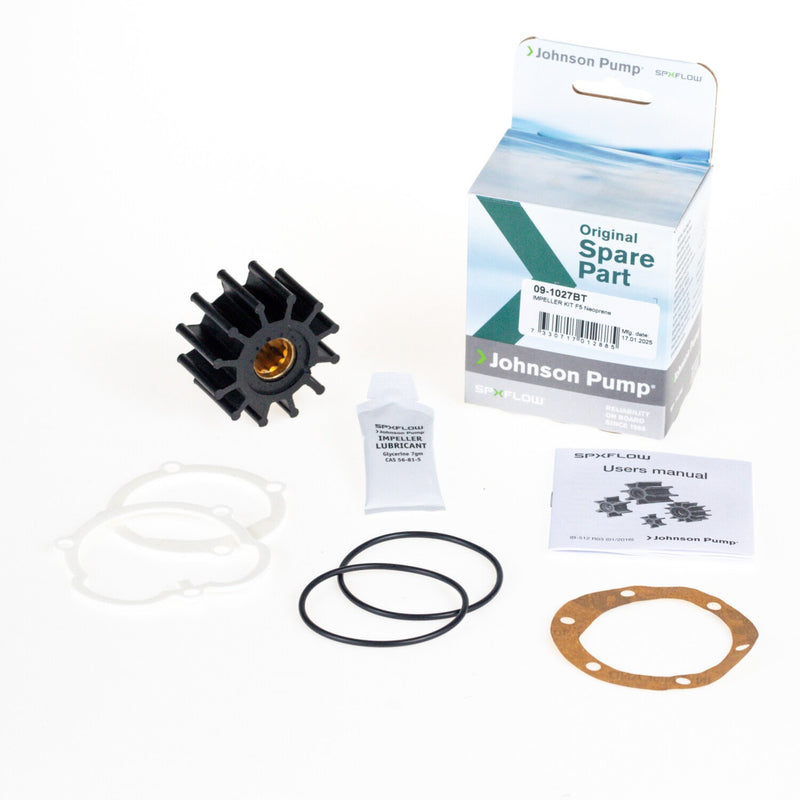

Uses neoprene impeller kit 09-1027BT

Replaces Johnson Pump 10-13159-07

Johnson Pump is Original Manufacture of OEM cooling pump for Volvo Penta

Fits Volvo Penta Engines:

3.0GLMMDA, 3.0GSPMDA

3.0GSMHUB, 3.0GSPHUB

3.0GSMNCA, 3.0GSMNCS, 3.0GSPNCA, 3.0GSPNCS

4.3GLPNCA, 4.3GLPNCB, 4.3GLPNCS

4.3GSJNCC, 4.3GSJNCS

4.3GSPNCA, 4.3GSPNCB, 4.3GSPNCM, 4.3GSPNCS

4.3GIPNCACE, 4.3GIPNCBCE, 4.3GIPNCMCE, 4.3GIPNCSCE

5.7GLPNCS

5.7GIPNCACE, 5.7GIPNCSCE, 5.7GIPNCMCE, 5.7GIPNCBCE

5.7GIINCCCE, 5.8FSIINCS

7.4GLPNCA, 7.4GLPNCS, 7.4GLPNCM, 7.4GLPNCB

7.4GIINCCCE, 7.4GIINCSCE

7.4GIPNCACE, 7.4GIPNCBCE, 7.4GIPNCMCE, 7.4GIPNCSCE

7.4GLINCC, 7.4GLINCS

7.4GSIINCC, 7.4GSIINCS

7.4GSIXNCB, 7.4GSIXNCM

8.2GSIXNCB

3.0GSMLKD, 3.0GSPLKD

4.3GLPLKD, 4.3GLPLKE

4.3GSPLKD, 4.3GSPLKE

4.3GIPLKDCE, 4.3GIPLKECE, 4.3GSJLKD

5.7GLPLKA, 5.7GLPLKD, 5.7GLPLKE, 5.7GLPLKR

5.7GSPLKD, 5.7GSPLKE

5.7GLIPLKDCE, 5.7GIPLKDCE, 5.7GIPLKECE

5.7GSICPLKD, 5.7GSiPLKD, 5.7GSIPLKE, 5.7GIILKRCE

7.4GLPLKD, 7.4GLPLKE

7.4GIPLKDCE, 7.4GIPLKECE

DPX385XLKE, DPX415XLKE

3.0GSMWTR, 3.0GSMWTS, 3.0GSPWTR, 3.0GSPWTS

3.0GSMBYMCE, 3.0GSPBYCCE

4.3GLPBYC, 4.3GSPBYC, 4.3GIPBYCCE

4.3GSJBYA, 4.3GIJBYA

5.0GLPBYC, 5.0GiPBYCCE

5.7GSPBYC, 5.7GSIPBYCCE

7.4GIPBYCCE, 7.4GIPBYDCE, 7.4GSIPBYCCE

8.2GSIPBYCCE

DPX385XBYDCE, DPX415XBYDCE

Click here for the Johnson Pump F5B Engine Cooling Pump Instruction Manual

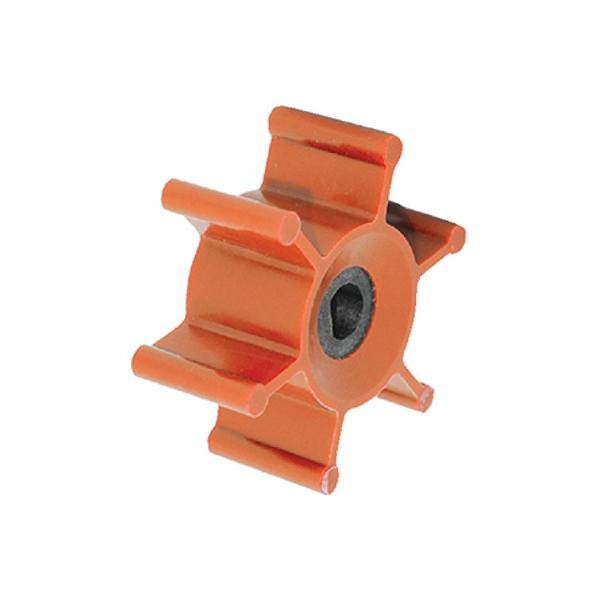

Johnson Pump F4 Ballast Impeller Kit 2.00"

The Johnson Pump F4 Ballast Impeller is made of polyurethane and is specifically designed for ski/wakeboard boats' ballast pumps. This impeller is suitable for Johnson 10-24690 series ballast pumps.

Features:

Includes 7gms impeller lubricant

Significantly longer service life

Run dry capable

Specifications:

Material: Polyurethane

Outer diameter: 2.00"

Inner diameter: Flat

Width: 0.87"

Application:

Johnson Pump

10-24690-03EZ Ballast Pump

10-24690-04EZ Ballast Pump

10-24690-09 Ballast Pump

10-24690-10 Ballast Pump

10-24690-11 Ballast Pump

10-24690-12 Ballast Pump

Jabsco

18220-1127

Interchangeable with:

Johnson Pump

09-824P-1EZ

Jabsco

0303-007-P (Green)

Frequently Asked Questions

• What is the Johnson Pump F4 Ballast Impeller Kit 2.00" used for? The Johnson Pump F4 Ballast Impeller Kit 2.00" is a polyurethane replacement impeller specifically designed for ski and wakeboard boat ballast pumps. It is suitable for Johnson Pump 10-24690 series ballast pumps and includes 7 grams of impeller lubricant.
• Which ballast pumps are compatible with the Johnson Pump F4 Ballast Impeller? The impeller is suitable for Johnson Pump 10-24690-03EZ, 10-24690-04EZ, 10-24690-09, 10-24690-10, 10-24690-11, and 10-24690-12 ballast pumps. It is also listed for the Jabsco 18220-1127. Verify your pump model before installation.
• What are the dimensions of the Johnson Pump F4 Ballast Impeller? The Johnson Pump F4 Ballast Impeller has a 2.00-inch outer diameter, 0.87-inch width, and a flat inner diameter. The impeller is made from polyurethane. Verify these dimensions against the existing impeller and pump before replacement.
• Can the Johnson Pump F4 Ballast Impeller run dry? Yes. The Johnson Pump F4 Ballast Impeller is specified as run-dry capable. It is also designed for significantly longer service life compared with the information provided for the previous impeller.
• What lubricant is included with the Johnson Pump F4 Ballast Impeller Kit? The Johnson Pump F4 Ballast Impeller Kit includes 7 grams of impeller lubricant. The lubricant is included as part of the replacement impeller kit.
• What replacement impeller numbers are interchangeable with the Johnson Pump F4 Ballast Impeller? The Johnson Pump F4 Ballast Impeller is listed as interchangeable with Johnson Pump 09-824P-1EZ and Jabsco 0303-007-P (Green). Confirm the existing pump and impeller identification before using an interchangeable part number.

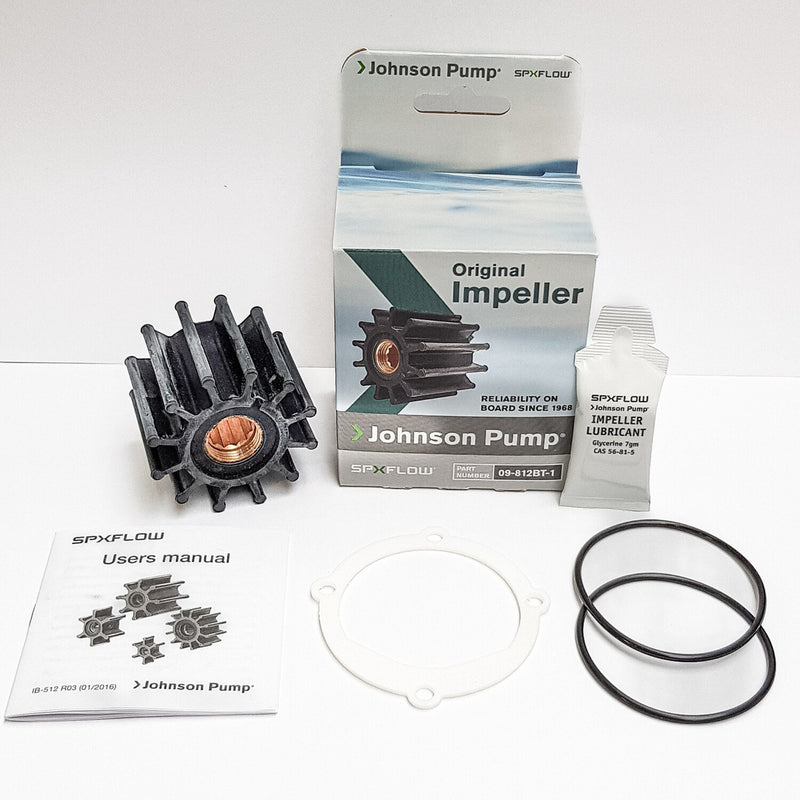

Johnson Pump 09-812BT-1 F6 MC97 Impeller Kit

The Johnson Pump 09-812BT-1 F6 MC97 Impeller Kit is designed for compatible marine raw water pumps. This 12-blade impeller features a spline drive, 2.25" outer diameter, and 1.90" width to help maintain proper cooling water flow through the engine cooling system.

Features:

Genuine Johnson Pump F6 impeller kit

MC97 impeller material

12-blade impeller design

Outer diameter: 2.25"

Width: 1.90"

Drive type: spline

Designed for compatible marine raw water pump applications

Cross References:

Jabsco 13554-0001

JMP 7136-01K

Globe 01-12-1100

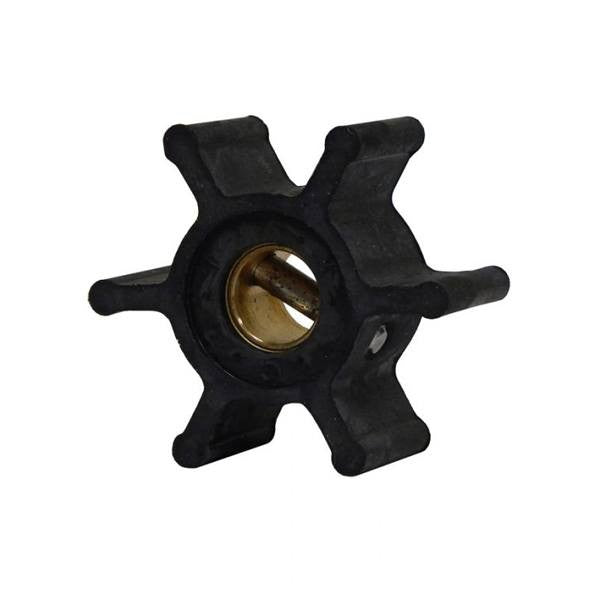

Johnson Pump F4 MC97 Impeller Kit 2.00"

SPX Flow Johnson Pump marine brand impellers are developed and manufactured for maximum flow and long life. Replaces Jabsco No 18653-001.

Features:

Includes o-ring, gasket, and 7gms impeller lubricant

Stable pressure delivery over time

Significantly longer service life

Excellent self-priming capability

Minimized swelling

Minimized failures due to fatigue

Correct impeller dimensions

Correct cooling flow & sufficient cooling directly at start up

Specifications:

Material: MC97 for cooling

Outer diameter: 2.00"

Inner diameter: 6 splines

Width: 0.87"

Application:

Westerbeke - 10 kW and up

Yanmar from model year 97 - 3GMF, 2 GM, 3 GM

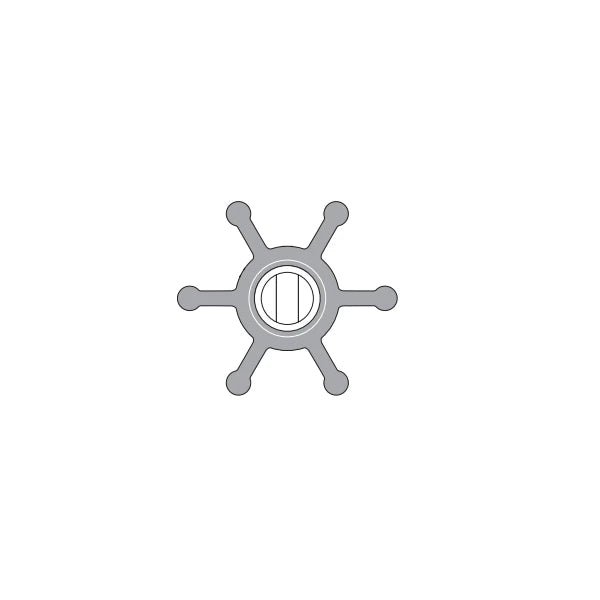

Johnson Pump F35 MC97 Impeller Kit 1.58"

SPX Flow Johnson Pump marine brand impellers are developed and manufactured for maximum flow and long life. Replaces Jabsco No 22405-0001.

Features:

Includes o-ring, gasket, and 7gms impeller lubricant

Stable pressure delivery over time

Significantly longer service life

Excellent self-priming capability

Minimized swelling

Minimized failures due to fatigue

Correct impeller dimensions

Correct cooling flow & sufficient cooling directly at start up

Specifications:

Material: MC97 for cooling

Outer diameter: 1.58"

Inner diameter: 6 splines

Width: 0.75"

Application:

Volvo Penta - MB, MD engines

Westerbeke - 8-10 kW

Onan - 5.0, 5.5, 6.0, 6.5, 7.5, 9.0

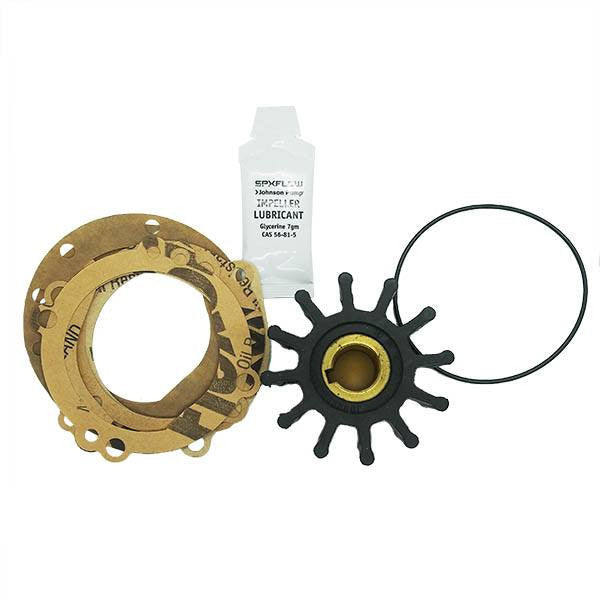

Johnson Pump MC97 10615K Sherwood Impeller Kit

The Johnson Pump MC97 Impeller Kit is a direct replacement for Sherwood 10615K and Jabsco 18948-0001. Constructed of MC97/EPDM and Neoprene for cooling traits along with Nitrile for oil resistance. This is a full kit including an Impeller, O-Ring, Lubricant, 2 3-Hole Gaskets, 1 4-Hole Gaskets, 2 6-Hole Gaskets, 2 8-Hole Gaskets.

Features:

Meets engine OM requirements

All in one kit

Nitrile for oil resistance

Self-Priming Capability

MC97/Neoprene for cooling

Specifications:

Material: MC97/EPDM

Outer Diameter: 2.57"

Width: 1.63"

Kit Includes

Impeller

O-Ring

Impeller Lubricant

Gasket x 7

Fits:

Crusader

97179

Chrysler

3675763

4142878

Cummins

4B

Onan

MDL6

Chris Craft

454

Pleasure Craft

454

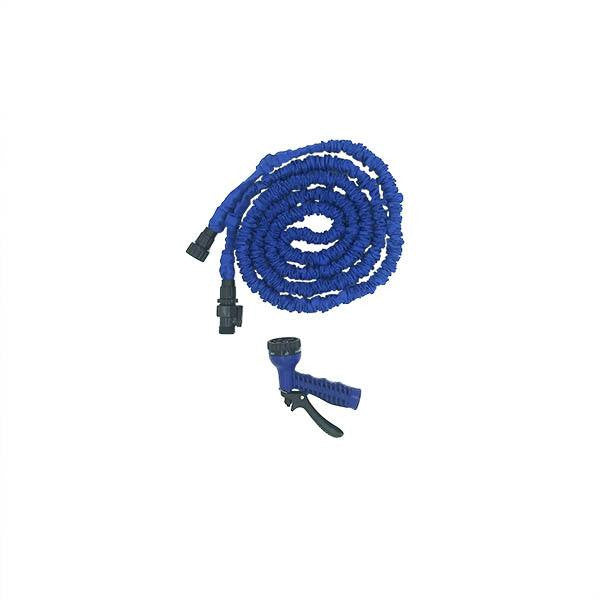

Johnson Pump 09-60616 Wash Down Flexible Hose w/Nozzle

The Johnson Pump 09-60616 is a replacement flexible hose with included spray nozzle for Johnson Pump Wash Down Kits. The hose is expandable up to 25'

Johnson Pump 09-46939 Klicktite 90° 3/4" Port Connectors - Pair

The Johnson Pump Klicktite Port Connectors are available for most common hose diameters and allow the removal of the entire unit for thorough cleaning wherever it's most convenient. Port Connectors make it possible to drain the system quickly when winterizing without the need for special tools.

Specifications:

90°

3/4" hose

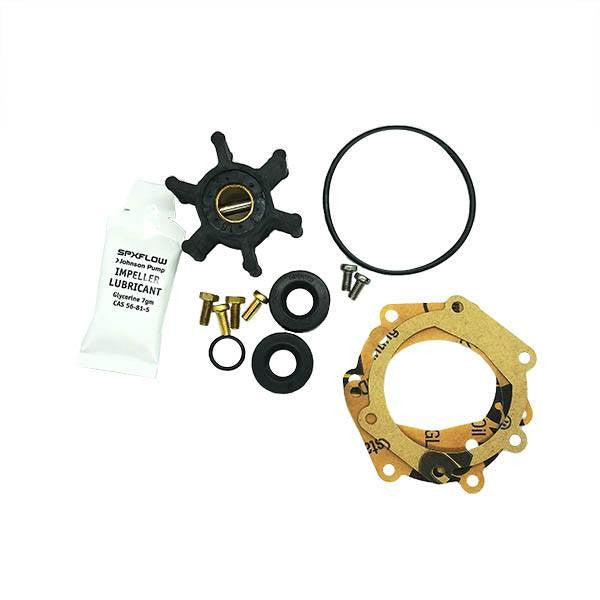

Johnson Pump F4B-8/9 Impeller Service Kit

This Johnson Pump Impeller Service kit is designed for F4B-8/9 Pumps.

Includes:

Impeller

Impeller Lubricant

O-Ring x 2

Gasket x 3

Brass flat head screw x 4

Stainless flat head screw x 2

Frequently Asked Questions

• What is the Johnson Pump F4B-8/9 Impeller Service Kit used for? The Johnson Pump F4B-8/9 Impeller Service Kit is designed to service F4B-8/9 pumps. The kit provides an impeller along with the lubricant, O-rings, gaskets, and screws specified for the service kit.
• What pumps is the Johnson Pump F4B-8/9 Impeller Service Kit designed for? This impeller service kit is specifically designed for Johnson Pump F4B-8/9 pumps. Verify that your pump is an F4B-8/9 model before purchasing or installing the kit.
• What is included in the Johnson Pump F4B-8/9 Impeller Service Kit? The kit includes one impeller, one container of impeller lubricant, two O-rings, three gaskets, four brass flat head screws, and two stainless flat head screws.
• Does the Johnson Pump F4B-8/9 kit include impeller lubricant? Yes. The Johnson Pump F4B-8/9 Impeller Service Kit includes impeller lubricant along with the replacement impeller and other service components.
• How many gaskets and O-rings are included in the Johnson Pump F4B-8/9 kit? The Johnson Pump F4B-8/9 Impeller Service Kit includes three gaskets and two O-rings. These components are supplied as part of the service kit along with the impeller, lubricant, and specified screws.
• What screws are included with the Johnson Pump F4B-8/9 Impeller Service Kit? The kit includes four brass flat head screws and two stainless flat head screws. Before installation, verify that your pump is an F4B-8/9 model and follow the applicable pump service instructions.

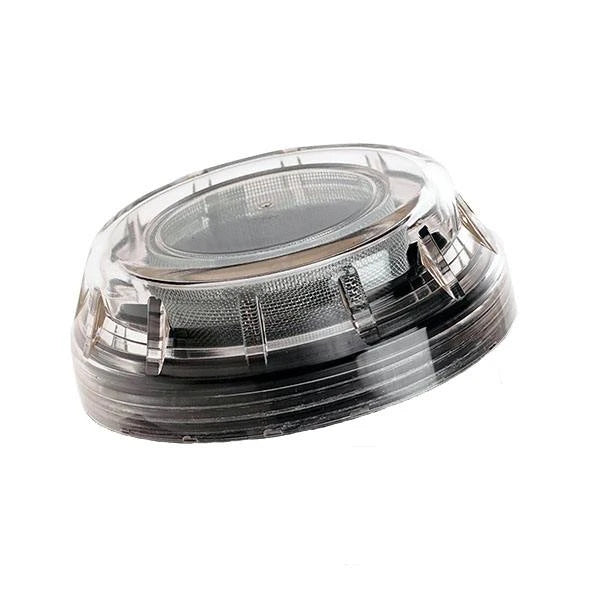

Johnson Pump Aqua Jet Inlet Strainer Cover

This universal clear inlet strainer cover is designed by Johnson Pump for use with their Aqua Jet Water System and washdown pumps.

Frequently Asked Questions

• What is the Johnson Pump Aqua Jet Inlet Strainer Cover used for? The Johnson Pump Aqua Jet Inlet Strainer Cover is a universal clear inlet strainer cover designed for use with Johnson Pump Aqua Jet Water System and washdown pumps.
• Is the Johnson Pump Aqua Jet Inlet Strainer Cover compatible with Aqua Jet pumps? Yes. The Johnson Pump Aqua Jet Inlet Strainer Cover is specifically designed for use with Aqua Jet Water System and washdown pumps. Verify your pump application before purchasing to ensure this cover is appropriate for your equipment.
• What type of strainer cover is the Johnson Pump Aqua Jet Inlet Strainer Cover? The Johnson Pump Aqua Jet Inlet Strainer Cover is a clear, universal inlet strainer cover. Its clear construction allows the cover to be visually inspected while installed.

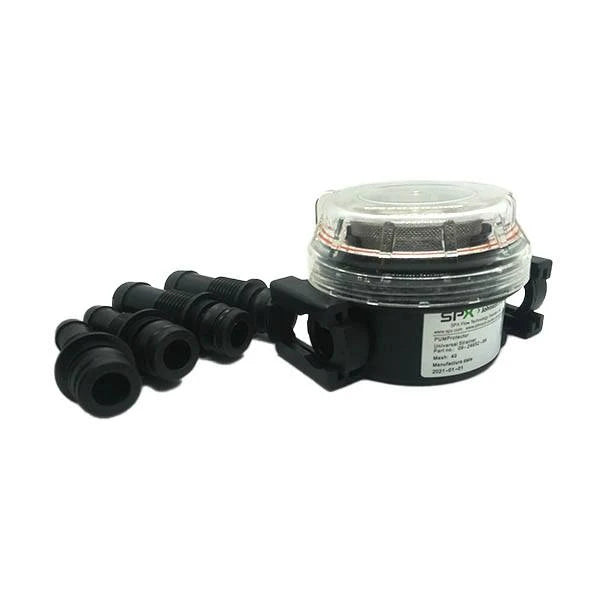

Johnson Pump 09-24652-02-CN Universal Strainer

The Johnson Pump Universal strainer is designed to work with a Water Pressure System to protect the pump from debris. Can be used in any pump system of relevant flow size. Able to me mounted between the water tank and pump and is easy to disassemble for cleaning. The clear acrylic cover allows for easy inspection.

Features:

Easy to maintain

Transparent cover

Variety of port connectors for simple installation

The design allows for removal of the entire unit for cleaning

Specifications

Mesh: 40

Strainer: Polyamide 66

Strainer Cover: Clear acrylic (Part # 09-36012)

Screen: 20 and 40 mesh stainless steel

O-rings: Silicone and EPDM

Max Liquid Temp: 120° F

Max Temp for drinking water: 85° F

KlickTite Connector: Built in KlickTite 2 x 1/2" hose / 3/8" BSP(NPT), 2 x 3/4" hose / 1/2" BSP (NPT)

Diameter: 3.15"

Height: 2.35"

Weigth: .33

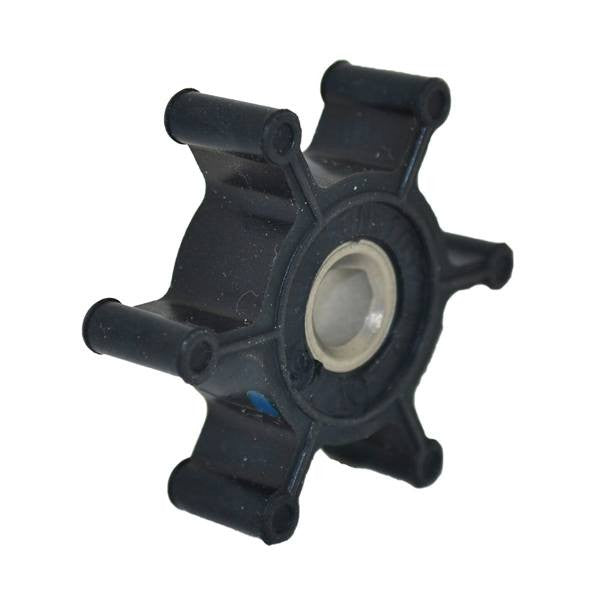

Johnson Pump 09-1052S-9 Macerator Impeller

Replacement Nitrile macerator pump impeller. Johnson Pump replacement impellers provide stable pressure delivery over time and have excellent self-priming capability.

Specifications:

For pump TA3P10

Material: Nitrile

Outer Diameter: 1.78"

Inner Diameter: 0.31" / FLAT

Width: 0.50"

Johnson Pump Macerator Impeller

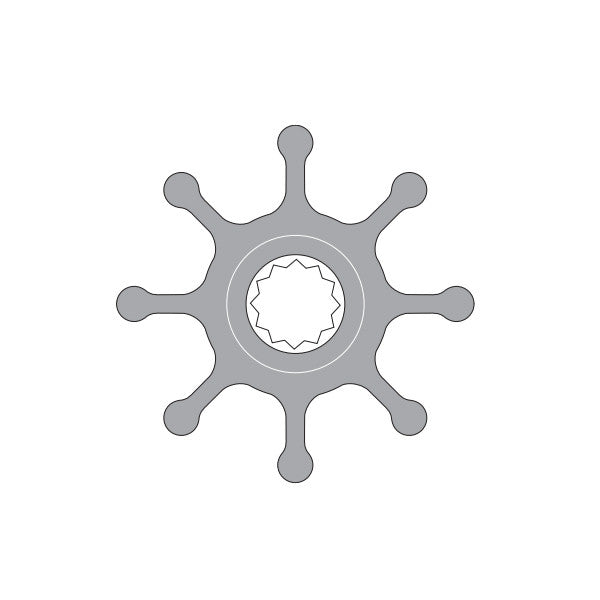

Johnson Pump F7 MC97 Impeller Kit 2.56"

SPX Flow Johnson Pump marine brand impellers are developed and manufactured for maximum flow and long life. Replaces Jabsco No 17937-0001.

Features:

Includes gasket, o-ring, and 7gms impeller lubricant

Stable pressure delivery over time

Significantly longer service life

Excellent self-priming capability

Minimized swelling

Minimized failures due to fatigue

Correct impeller dimensions

Correct cooling flow & sufficient cooling directly at start up

Specifications:

Material: MC97 for cooling

Outer diameter: 2.56"

Inner diameter: 8 splines

Width: 1.98"

Application:

Mercury Marine 4Cyl, 6Cyl engines

Volvo Penta

Yanmar

Kohler

Johnson Pump 09-1027BT F5 Neoprene Impeller Kit

The Johnson Pump 09-1027BT F5 Neoprene Impeller Kit is designed for use with compatible marine raw water pumps. This 12-blade neoprene impeller features a spline drive, 2.25" outer diameter, and 1.24" width to help maintain proper cooling water flow through the engine cooling system.

Features:

Genuine Johnson Pump F5 neoprene impeller kit

12-blade impeller design

Outer diameter: 2.25"

Width: 1.24"

Drive type: spline

Designed for compatible marine raw water pump applications

Cross References:

Jabsco 1210-0001

Sierra 18-3081

Yanmar 129470-42530, 129470-42531, 129470-42532, 129670-42530

Volvo Penta 860203, 3856039-7, 875811-2, 386257, 925940

CEF 500107

JMP 7100-01K

Westerbeke 302571

Globe 01-12-1030

Kohler 252882

Onan 132-0162, 131-0050

Ancor J050007

Northern Lights 25-12060

Perkins 460038

Vetus IMP00201

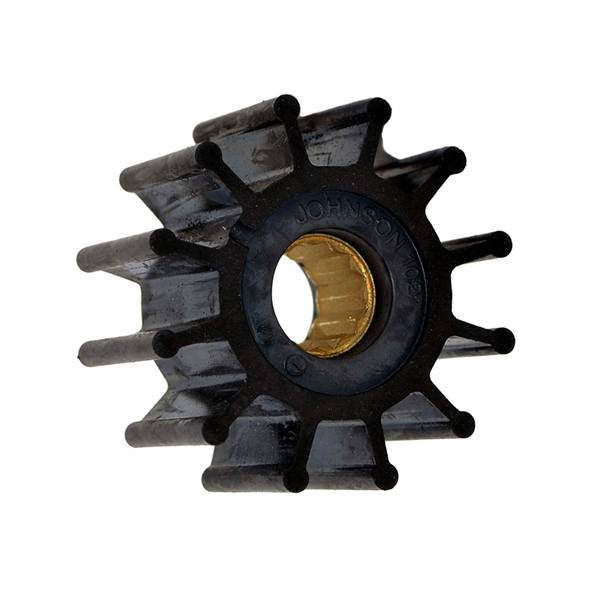

Johnson Pump 09-1027B-10 F5 MC97 Impeller Kit 2.25" Long Use in Volvo Penta

SPX Flow Johnson Pump marine brand impellers are developed and manufactured for maximum flow and long life. Replaces Jabsco No 1210-0001.

Features:

Includes gasket, o-ring, and 7gms impeller lubricant

Stable pressure delivery over time

Significantly longer service life

Excellent self-priming capability

Minimized swelling

Minimized failures due to fatigue

Correct impeller dimensions

Correct cooling flow & sufficient cooling directly at start up

Specifications:

Material: MC97 for cooling

Outer diameter: 2.25"

Inner diameter: 12 splines

Width: 1.24"

Application:

Volvo Penta 4.3, 5.0, 5.7, AQ

Indmar 200

Yanmar

The 09-1027B-10 Impeller also fits these selected Johnson Pumps:

10-13353-01

10-13353-04

10-13468-04

10-13354-01

10-13469-01

10-13354-02

10-13469-02

10-13468-01
