Jabsco

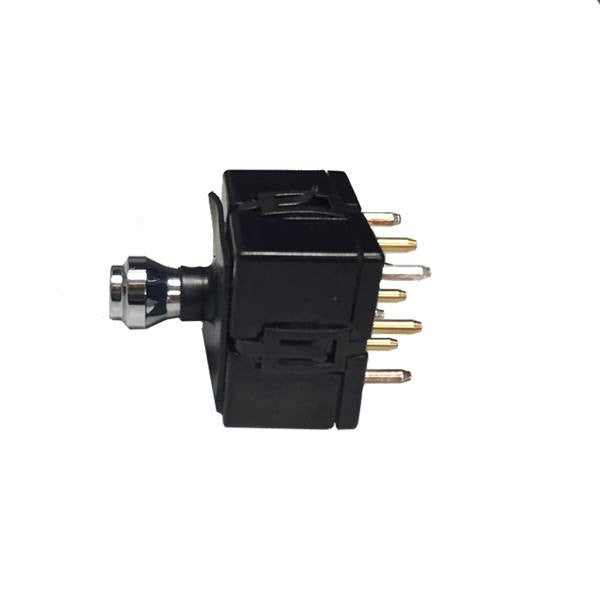

Jabsco Directional Switch For Spotlight

Jabsco Directional Switches are designed for use with remote control spotlights. Mounting hardware included. Easy installation. 8-way control operation. For 1986 and earlier Ray-Line® motor driven remote control spotlights.

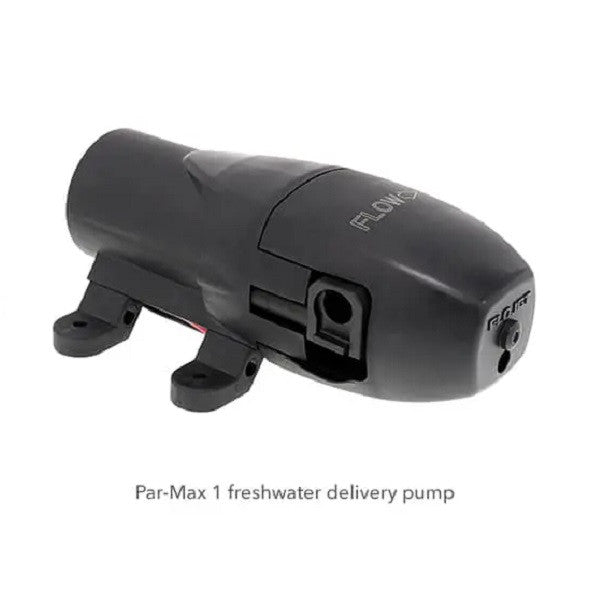

Jabsco Par-Max 1GPM 35PSI Fresh Water Pump

The Par-Max fresh water pump by Jabsco features a pressure controlled diaphragm to provide you with a freshwater system that is as easy to use as your homes. The self-priming capability and quick connect ports makes for easy installation and servicing. For on demand operation, this Jabsco model features an integrated sealed pressure switch. This fresh water pump is able to run dry without damage to the unit itself. This model features an enclosed motor for a long working life under high pressures. An integrated bypass module reduces cycling while providing a smoother flow. This fresh water pump utilizes dampening feet to eliminate vibration allowing for quiet running.

This fresh water pump comes equipped with 2 3/8" and 2 3/8" to 1/2" adapter quick connect straight hosebarbs

Product Features:

Enclosed Motor

Self-Priming

Sealed Pressure Switch

Can Run Dry

Quick-Connect Ports

On-Demand Operation

Quiet Operation

Specifications:

Open Flow: 1 GPM (3.8 LPM)

Voltage: 12V

Pressure: 35PSI

Straight Hosebarb Fittings: 2 x 3/8" & 2 3/8" to 1/2" adapters

Click here for Jabsco Par-Max 1 Fresh Water Pump Technical Data Sheet

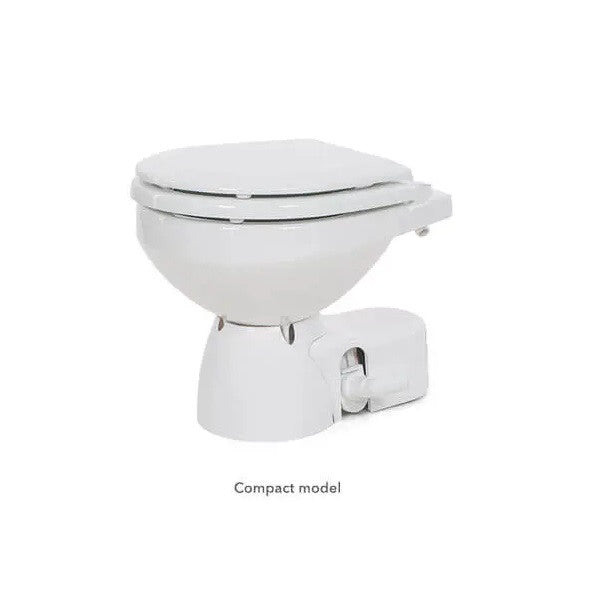

Jabsco Quiet Flush E2 Marine Toilet

The Jabsco E2 is a quiet flush electric marine toilet that is perfect for vessels of any size. The compact design with rotatable discharge pump allows for easy installation and servicing when needed. The rinse pump is able to accept sea, river, and lake water making this electric toilet ideal for vessels of any water. The flush switch is controlled by an easy to use touch panel.

Product Features:

Easy to Clean

Touch Sensor Panel

Compact Size

Rotatable Base and Discharge Pump

Product Specifications:

Bowl Size: Compact

Seat: Wood

Lid: Standard Close

Water Rinse Type: Sea/River/Lake Water

Device Rinse Type: Rinse Pump

Flush Control Panel: Touch Panel

Voltage DC: 12

Recommended Fuse Size: 25A

Jabsco E2 Marine Toilet Construction Details

Easy 2 Install

The compact toilet base can be rotated to the left, right or rear of the bowl for multiple installation options. To ensure pipework is routed to the rear of the toilet, the discharge pump can be rotated 180°. Straight and 90° discharge ports are available for easy install

Easy 2 Service

A quick release system allows for fast and easy removal of the discharge pump and hose when servicing is needed. A C-Clip design releases the pump assembly from the compact base without the need for tools.

Easy to Operate

The low profile design of the multi-function touch panel is engineered for wet room installations and allows for eco flush and full flush functions. Only 1 quart is used per flush on eco mode. The no spill "empty" function leaves the bowl dry for when the boat is in motion.

Flushing Options

For sea, lake, or river water flushing, this E2 marine toilet features a 12V 3GPM Jabsco Par-Max 3 rinse pump with a 40 mesh inline strainer and 1/2" hose barb ports. For on-board freshwater flushing, this marine toilet includes a solenoid valve, quick connect port fittings (1/2" inlet, 3/4" outlet) and an integral mesh filter. The double check valve protects against portable water contamination.

Click here for Jabsco Quiet Flush E2 Marine Toilet Owner's Manual

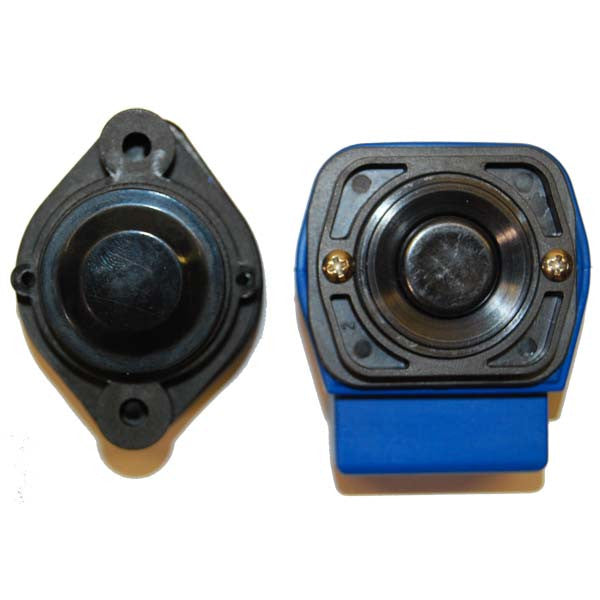

Replacement pressure switch for 36950 series water pump.

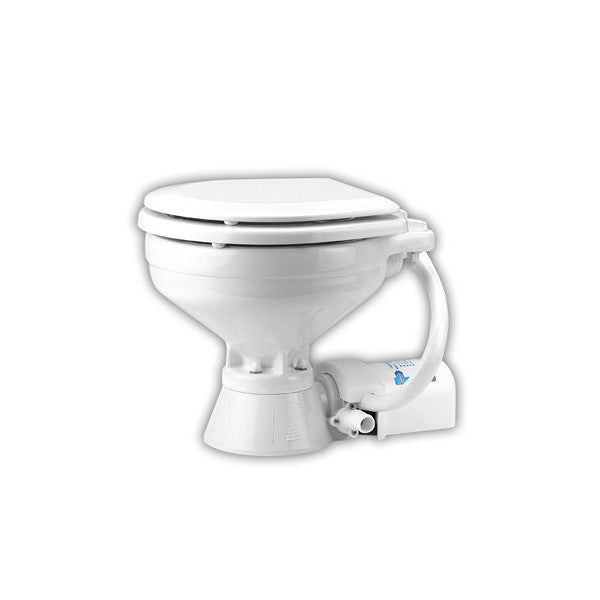

Jabsco Standard Electric Marine Toilet 12V

Jabsco Electric Marine Toilet, Household size. Features push button operation. All materials used for this toilet are corrosion resistant for marine use.

White Vitreous China Bowl

Baked enamel seat & cover

Flexible impeller flush pump

Permanent magnet type motor, fully enclosed, with stainless steel shaft

High capacity macerator and bowl scavenger pump

Built-in back flow preventer

12V

Installation Instructions:

The Jabsco electric toilet may be installed above or below the waterline. Flush pump is self-priming with a vertical lift up to 4 feet; discharge macerator pump can operate against a vertical head up to 4 feet.

Inlet and outlet seacocks should be easily accessible and be positive shut off valves. If seacocks cannot be conveniently operated from toilet location, install suitable shut off valves for inlet and discharge connections.

Note: Base assembly may be moved 90 degrees to accommodate connections and provide accessibility for servicing.

Note: Surface where toilet is mounted should be flat to prevent distortion of toilet base.

Plumbing Connections:

Connect inlet hose using either 5/8" or 3/4" ID hose. Make sure all inlet connections are airtight and free of sharp bends or restrictions.

Note: A sleeve is included to adapt pump inlet from 5/8" to 3/4"

Connect 1" or 1-1/2" hose to discharge port and make suitable connection to holding tank or other discharge system. Avoid sharp bends or restrictions.

Note: Adapter 98023-0080 is included to convert discharge port to 1-1/2" ID hose.

For above waterline installations, a check valve may have to be installed in the flush water intake line to ensure rapid pump priming. To retain water in bowl, make a loop in the discharge line about 8 inches above base of bowl. Do not connect inlet hose to a pressurized water system.

If toilet is, or can be, below waterline at any normal (including static) attitude of vessel heel and/or trim, a 3/4" Vented Loop Fitting must be installed in the length of hose connecting the flushing pump to the inlet seacock. The Vented Loop Fitting must be positioned so it remains slightly above the waterline at all angles of heel and trim.

Electrical Connections:

Select a location for the switch and instruction plate, making sure wire leads from both the toilet and the power source can be routed to the switch.

Ensure the panel where installing switch is no more than 1" thick. Drill a 5/8" mounting hole and install switch and instruction plate.

Use stranded copper wire of the correct size to connect one side of the switch to the positive power source. An appropriate size fuse or equivalent circuit breaker must be installed in the positive power lead within seven inches of the power source.

Connect the other side of the switch to the orange (positive) motor lead.

Connect the black (negative) motor lead to the negative side of the battery or grounded buss bar.

Frequently Asked Questions

• What is the Jabsco Standard Electric Marine Toilet 12V designed for? The Jabsco Standard Electric Marine Toilet 12V is a household-size marine toilet with a white vitreous china bowl and push-button operation. It uses corrosion-resistant materials for marine use and includes a flexible impeller flush pump, macerator and bowl scavenger pump, and built-in backflow preventer.
• Can the Jabsco Standard Electric Marine Toilet 12V be installed above or below the waterline? Yes. The Jabsco electric toilet may be installed above or below the waterline. If the toilet is or can be below the waterline at any normal vessel heel or trim, the installation instructions require a 3/4-inch vented loop fitting in the hose between the flushing pump and inlet seacock.
• What hose sizes are used for the Jabsco Standard Electric Marine Toilet? The inlet connection accepts either 5/8-inch or 3/4-inch ID hose, with an included sleeve adapting…

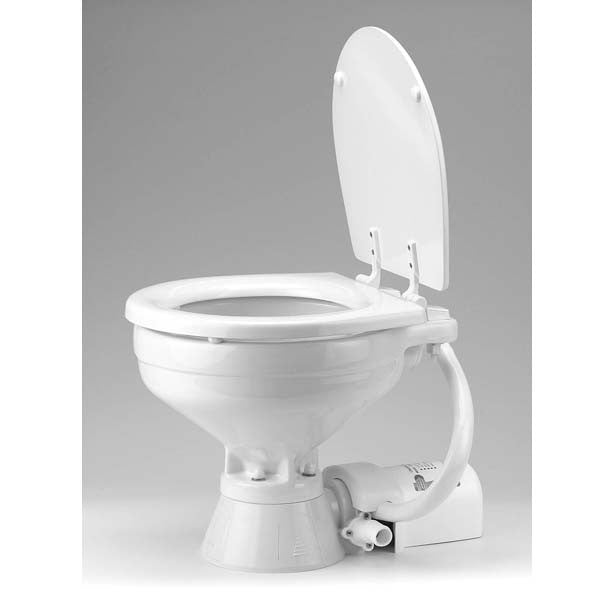

Jabsco Compact 12V Electric Marine Toilet

The Jabsco Compact Electric Marine Toilet is a traditional-style electric toilet with a compact white vitreous china bowl. This toilet is hygienic and easy to clean. Features an ergonomically designed seat lid and baked enamel seat. Stainless steel and bronze fastenings deliver reliable service and are corrosion resistant. The permanent magnet type motor is fully enclosed with a stainless steel shaft. The Jabsco toilet may be installed above or below the waterline and the flush pump is self-priming.

Features:

Flexible impeller flush pump

Permanent magnet type motor, fully enclosed, with stainless steel shaft

Flushing pump self-priming up to 6ft (1.9m) vertical lift.

High-capacity macerator and bowl scavenger pump

May be mounted 3ft (1m) below the waterline.

Built-in back flow preventer

Equally suitable for overboard or holding tank discharge.

All corrosion resistant material for marine use

Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection).

Base assembly may be moved 90° to accommodate connections and provide accessibility for servicing.

Specifications:

13 7/8" wide x 17 5/8" deep x 14" high

Voltage: 12 VDC

Frequently Asked Questions

• What is the Jabsco Compact 12V Electric Marine Toilet designed for? The Jabsco Compact 12V Electric Marine Toilet is a traditional-style electric marine toilet with a compact white vitreous china bowl. It is designed for marine use and can discharge either overboard or to a holding tank.
• How does the Jabsco Compact Electric Marine Toilet flush? The Jabsco Compact Electric Marine Toilet uses a flexible impeller flush pump and a high-capacity macerator and bowl scavenger pump. The flushing pump is self-priming up to 6 feet (1.9m) of vertical lift.
• Can the Jabsco Compact Electric Marine Toilet be installed below the waterline? Yes. The Jabsco Compact Electric Marine Toilet may be mounted 3 feet (1m) below the waterline. The product description also states that the toilet may be installed above or below the waterline.
• What materials and construction features does the Jabsco Compact Electric Marine Toilet have? The toilet has a compact white vitreous china bowl, an ergonomically designed seat lid, and a baked enamel seat. Stainless steel and bronze fastenings provide corrosion-resistant construction, while the fully enclosed permanent magnet motor has a stainless steel shaft.
• Does the Jabsco Compact Electric Marine Toilet have backflow protection? Yes. The Jabsco Compact Electric Marine Toilet includes a built-in backflow preventer. Its flushing pump is also self-priming, with a listed vertical lift capability of up to 6 feet (1.9m).
• What are the dimensions and voltage of the Jabsco Compact Electric Marine Toilet? The Jabsco Compact Electric Marine Toilet measures 13 7/8 inches wide, 17 5/8 inches deep, and 14 inches high. It operates on 12 VDC.
• Can the base assembly of the Jabsco Compact Electric Marine Toilet be repositioned? Yes. The base assembly can be moved 90 degrees to accommodate connections and provide accessibility for servicing. The toilet is also made with corrosion-resistant materials for marine use.

12 Volt Dc Model, Fuse 25 Amp

High Capacity Macerator and Bowl Scavenger Pump

Also converts most toilets with a 4 bolt screw pattern on a 3 3/4" (95mm) diameter bolt circle such as Groco, Raritan, Wilcox Crittenden, Mansfield and Sealand.

Flexible Impeller Flush Pump

Push button flushing for ease and simplicity of operation.

Flushing pump self-priming up to 6ft(1.9m) vertical lift.

Simple Push Button Switch included

Permanent Magnet Type Motor, Fully Enclosed, with Stainless Steel Shaft

Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps, hose and fastenings.

May be installed 3ft(1m) below the waterline.

All Corrosion Resistant Materials for Marine Use

Complies with USCG 183.410 and ISO 8846 MARINE for Ignition Protection

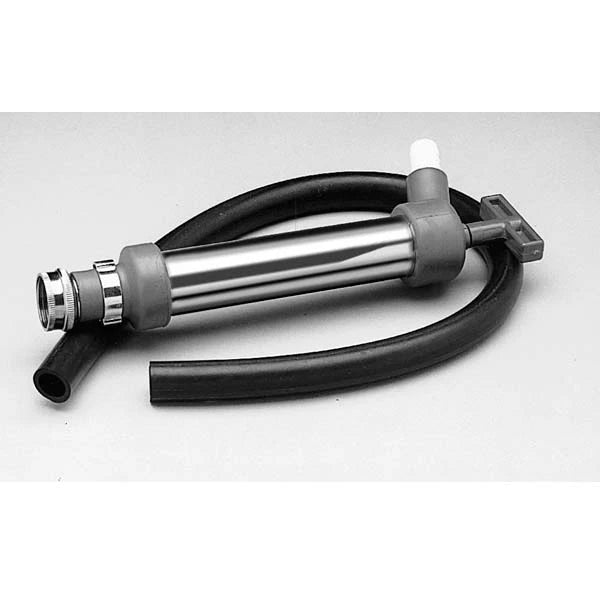

Jabsco Boat Engine Marine Oil Drain Pump

The Jabsco Boat Engine Marine Oil Drain Pump features intake and discharge caps, high-quality oil resistant plungers and long-life brass cylinders. This pump is perfect for any situation where draining is difficult and is the perfect way to speed up your oil change. This polished brass marine oil change pump connects directly to the engine oil dipstick tube on popular marine engines such as OMC and Mercruiser. With 40 strokes to 1 gallon and simple one-handed pumping, this marine oil drain pump is a top choice among many.

Note** Oil Temperature Should Not Exceed 140º F

Features:

Engine Oil Dipstick Tube

Polished Brass Hand Pump

Self-Priming

40 Strokes To 1 Gallon

Intake and Discharge Caps

High-Quality Oil Resistant Plungers

Long-Life Brass Cylinders

Simple One-Handed Pumping

Includes Pump With 3/4" Brass Fitting, Drain Hose 1/2" x 2'

Specifications:

Size: 10-1/4 in. L x 1-1/4 in. Diameter

Frequently Asked Questions

• What is the Jabsco Boat Engine Marine Oil Drain Pump used for? The Jabsco Boat Engine Marine Oil Drain Pump is designed to help drain engine oil when access is difficult. It connects directly to the engine oil dipstick tube and uses one-handed pumping to remove oil, providing a convenient option for marine engine oil changes.
• How does the Jabsco Boat Engine Marine Oil Drain Pump remove engine oil? The pump connects to the engine oil dipstick tube and uses a self-priming hand-pump design to draw out the oil. The pump is rated at approximately 40 strokes to remove 1 gallon and is designed for simple one-handed operation.
• What is included with the Jabsco Boat Engine Marine Oil Drain Pump? The pump includes a polished brass hand pump with a 3/4-inch brass fitting and a 1/2-inch x 2-foot drain hose. It also features intake and discharge caps, oil-resistant plungers, and brass cylinders.
• What oil temperature should be used with the Jabsco Boat Engine Marine Oil Drain Pump? The oil temperature should not exceed 140°F when using this pump. Follow this temperature limitation when removing engine oil to stay within the product's specified operating conditions.
• What are the specifications of the Jabsco Boat Engine Marine Oil Drain Pump? The pump measures 10-1/4 inches long by 1-1/4 inches in diameter. It features a polished brass construction, oil-resistant plungers, long-life brass cylinders, and a self-priming design for manual engine oil removal.

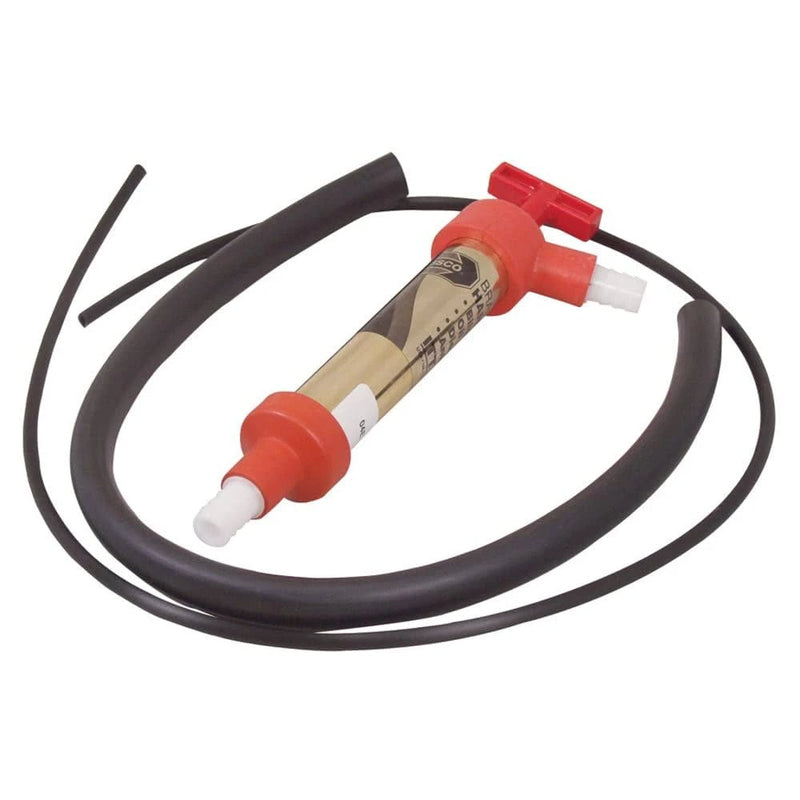

Jabsco Little Pal Marine Oil Change Pump

This Jabsco Little Pal Marine Oil Change Pump is a compact multi-purpose hand pump. Constructed of polish brass, it’s suitable for draining engine or gearbox oil through the dipstick hole. This Marine Oil Change Pump is manufactured with high-quality oil-resistant and corrosion-resistant brass. It’s a versatile pump that handles liquid draining and transfer jobs with ease.  Designed to fit in any toolbox, you’ll never have to cox or prime again. Upgrade to the Jabsco Little Pal Marine Oil Change Pump today. You’ll pump more liquid with a lot less effort.

Features:

Compact Polished Brass Multi-Purpose Hand Pump

Oil-Resistant Rubber

Corrosion-Resistant Brass

Self-Priming Brass Piston Type Hand Pump

Neoprene Construction

Up To 1 GPM Output

Small Enough To Fit Any Tool Box

Handles Many Liquid Draining and Transfer Jobs

Ideal For Small Engines and Gearbox Oil Drain

Includes 2 ft of 1/2" Hose and Draw Tube for Draining Crankcases Through Dipstick Tube

Available In Two Sizes With 1-3/4" and 1-1/4" Diameter Cylinders

Some Models Include Hose(s) Or Adjustable Mounting Brackets

Note** Oil Temperature Should Not Exceed 140° F

1 Year Warranty

Specifications:

Body: Brass

Elastomers: Nitrile

Port Type: 15mm (1/2") or 25mm (1") Depending On Model

Strokes Per Gallon: 40

Stroke Length: 4-5/8"

Hose Size ID: 1/2" Inches

Hose Connections: 13mm (½" Bore Hose)

Size: 10-1/4" x 1-1/4" Diameter

Power Requirements: Manual

Pump Type: Piston

Portability: Yes

Extraction Point: Dipstick Probe

Hose Length: 2' x 1/2" ID Hose, 3' x 1/4" OD Dipstick Probe

Output: 5 Liters/Minute (1 Gallon/Minute)

Frequently Asked Questions

• What is the Jabsco Little Pal Marine Oil Change Pump used for? The Jabsco Little Pal Marine Oil Change Pump is a compact, manual piston pump designed for draining engine or gearbox oil through the dipstick hole. It can also handle other liquid draining and transfer applications and is designed to provide up to 1 GPM of output.
• Can the Jabsco Little Pal Marine Oil Change Pump drain engine oil through the dipstick tube? Yes. The pump includes a draw tube designed to extract crankcase oil through the dipstick tube. It includes 2 feet of 1/2-inch ID hose and a 3-foot dipstick probe for oil extraction applications.
• What is the Jabsco Little Pal Marine Oil Change Pump made of? The pump has a brass body with corrosion-resistant brass construction and oil-resistant rubber components. Its elastomers are made from nitrile, and the pump uses a self-priming brass piston design for manual liquid transfer and draining.
• How much liquid can the Jabsco Little Pal Marine Oil Change Pump handle? The Jabsco Little Pal Marine Oil Change Pump has an output of up to 5 liters per minute, or 1 gallon per minute. It requires approximately 40 strokes per gallon and has a 4-5/8-inch stroke length.
• What hose and probe are included with the Jabsco Little Pal Marine Oil Change Pump? The pump includes 2 feet of 1/2-inch ID hose and a 3-foot, 1/4-inch OD dipstick probe. The hose connections accommodate 13mm (1/2-inch bore) hose, supporting the pump's dipstick-based oil extraction application.
• What temperature limit applies when using the Jabsco Little Pal Marine Oil Change Pump for oil? Oil temperature should not exceed 140°F when using the Jabsco Little Pal Marine Oil Change Pump. The pump is manually operated and features a compact design measuring 10-1/4 inches by 1-1/4 inches in diameter.

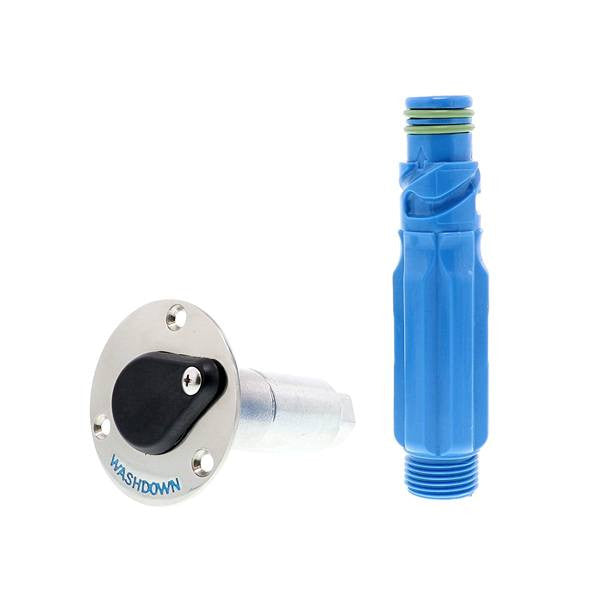

Jabsco 31911-0000 Flush Mount Water Hose Deck Fitting w/ Hose Connector

The Jabsco Water Hose Deck Fitting provides the perfect installation solution for your washdown or garden style hose. The quick-release, flush-fitting nozzle will quickly connect a Jabsco hose coil and trigger nozzle to the through-deck fitting of a pump and hose installed below decks. The quick-release installs easily on your boat and allows you to stow your hose out of the way. Thanks for positive bayonet locks, connection and disconnection can be made under pressure. Jabsco's quick connect deck nozzles are made of marine-grade stainless steel.

Features:

Connects and disconnects under full pressure

Double Viton O-Ring seals

Positive lock bayonet connector

316 stainless steel mount

Easy to install

Specifications:

Straight quick connector and hose connection

1/2" NPT to 3/4" garden hose thread (GHT) for US use

1 Year warranty

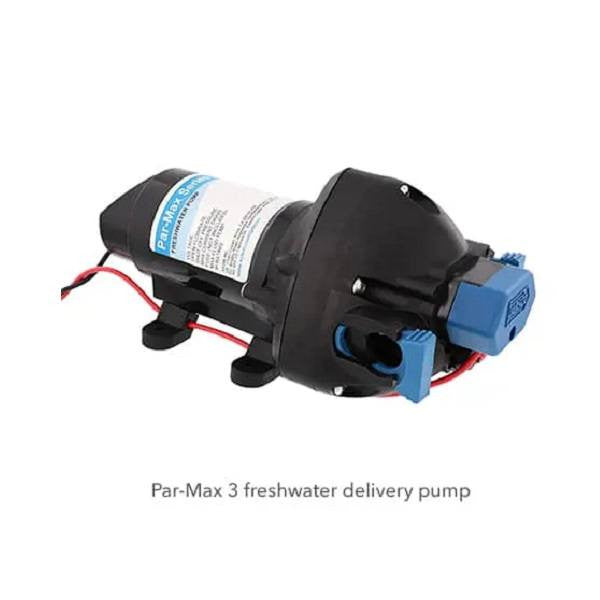

Jabsco Par-Max 3GPM 40PSI  Fresh Water Pump

The Par-Max fresh water pump by Jabsco features a pressure controlled diaphragm to provide you with a freshwater system that is as easy to use as your homes. The self-priming capability and quick connect ports makes for easy installation and servicing. For on demand operation, this Jabsco model features an integrated sealed pressure switch. This fresh water pump is able to run dry without damage to the unit itself. This model features an enclosed motor for a long working life under high pressures. An integrated bypass module reduces cycling while providing a smoother flow. This fresh water pump utilizes dampening feet to eliminate vibration allowing for quiet running.

This fresh water pump comes equipped with a Inline 40 mesh quick connect strainer and 2 1/2" quick connect straight hosebarbs

Product Features:

Enclosed Motor

Self-Priming

Sealed Pressure Switch

Can Run Dry

Quick-Connect Ports

On-Demand Operation

Quiet Operation

Specifications:

Open Flow: 3 GPM (7.6 LPM)

Voltage: 12V

Pressure: 40PSI

Quick Connect Strainer: Inline 40 Mesh

Straight Hosebarb Fittings: 2 x 1/2" adapters

Click here for Jabsco Par-Max 3 Fresh Water Pump Technical Data Sheet

Frequently Asked Questions

• What is the Jabsco Par-Max 3GPM 40PSI Fresh Water Pump used for? The Jabsco Par-Max 3GPM 40PSI Fresh Water Pump is designed for marine freshwater systems and uses a pressure-controlled diaphragm for on-demand operation. Its self-priming design, sealed pressure switch, and quick-connect ports help simplify installation and servicing.
• What are the flow, voltage, and pressure specifications of the Jabsco Par-Max 3GPM 40PSI Fresh Water Pump? The pump has an open flow of 3 GPM (7.6 LPM), operates at 12V, and provides 40 PSI of pressure. These specifications can help you verify that the pump matches the requirements of your freshwater system.
• Can the Jabsco Par-Max 3GPM 40PSI Fresh Water Pump run dry? Yes. The Jabsco Par-Max 3GPM 40PSI Fresh Water Pump is designed to run dry without damage to the unit itself. It also features an enclosed motor intended to provide a long working life under high pressures.
• What fittings and strainer are included with the Jabsco Par-Max 3GPM 40PSI Fresh Water Pump? The pump comes equipped with an inline 40-mesh quick-connect strainer and two 1/2-inch quick-connect straight hosebarb adapters. The quick-connect ports are designed to make installation and servicing easier.
• How does the Jabsco Par-Max 3GPM 40PSI Fresh Water Pump provide quiet operation? The pump uses dampening feet to reduce vibration for quieter operation. An integrated bypass module also reduces cycling while providing smoother water flow during operation.
• What features does the Jabsco Par-Max 3GPM 40PSI Fresh Water Pump have for on-demand freshwater operation? The pump features an integrated sealed pressure switch for on-demand operation. Its pressure-controlled diaphragm, self-priming capability, and integrated bypass module are designed to provide convenient freshwater system operation with reduced cycling.

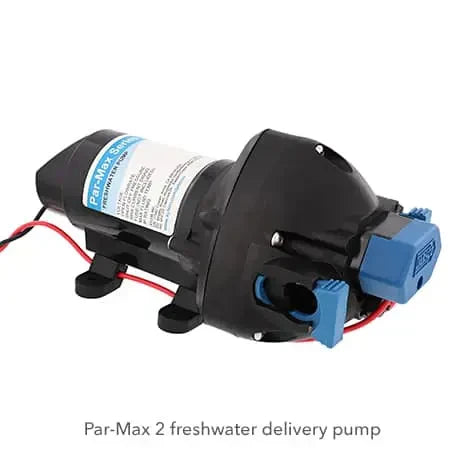

Jabsco Par-Max 2GPM 35PSI Fresh Water Pump

The Par-Max fresh water pump by Jabsco features a pressure controlled diaphragm to provide you with a freshwater system that is as easy to use as your homes. The self-priming capability and quick connect ports makes for easy installation and servicing. For on demand operation, this Jabsco model features an integrated sealed pressure switch. This fresh water pump is able to run dry without damage to the unit itself. This model features an enclosed motor for a long working life under high pressures. An integrated bypass module reduces cycling while providing a smoother flow. This fresh water pump utilizes dampening feet to eliminate vibration allowing for quiet running.

This fresh water pump comes equipped with a Inline 40 mesh quick connect strainer and 2 1/2" quick connect straight hosebarbs

Product Features:

Enclosed Motor

Self-Priming

Sealed Pressure Switch

Can Run Dry

Quick-Connect Ports

On-Demand Operation

Quiet Operation

Specifications:

Open Flow: 2 GPM (7.6 LPM)

Voltage: 12V

Pressure: 35PSI

Quick Connect Strainer: Inline 40 Mesh

Straight Hosebarb Fittings: 2 x 1/2"

Click here for Jabsco Par-Max 2 Fresh Water Pump Technical Data Sheet

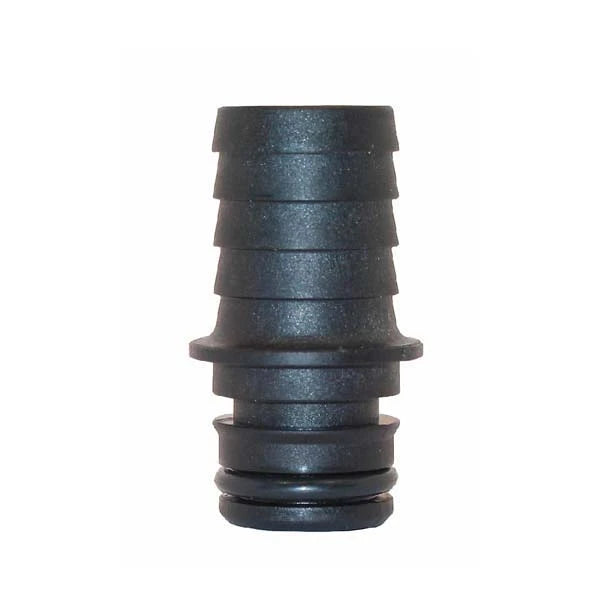

Jabsco Straight Barb 3/4" Port. Used for - 30600, 30700, 30710 Series Toilets.

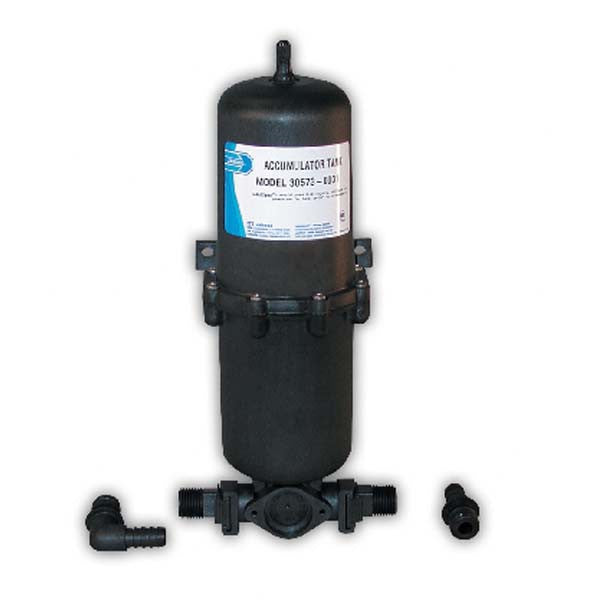

This Accumulator Tank is intended for installation in any pumped water system controlled by a pressure switch. For example, PAR-MATE 2.5 or any Jabsco pressure pumps as found in boats, RV's, motor caravans, coaches and similar applications. The Accumulator Tank smooths water flow and reduces on/off cycling of the pump by lessening the variation in pressure and flow between the pump and the outlets in the system. The even flow of water gives better control of hot water temperature especially noticeable with instantaneous gas water heaters and with showers. The reduced on/off cycling reduces noise from the pump motor, and from shock pressures (pipe hammer). It alsoreduces battery drain, and gives longer pump life.

Features:

Internal Bladder

Smoother and More Even Flow

Quieter Water System

Better Temperature Control

Longer Pump Life

Lower Battery Drain

Simply Fitted to New or Existing Systems

Compact Size

Snap-in Port Fittings include both:1/2" Barbed Hose Fittings and1/2" Threaded Hose Fittings

Tank: Hygienic, Light, Compact,Impact and Pressure ResistantPlastic Construction

Specifications:

Capacity: 1 Litre 33 fl oz

Regulated Pressure: 8.6 bar 125 psi

Pre-Charged Pressure: 0.7 bar 10 psi

Weight: 1.6 lb 0.7 kg

Dimensions: 33.7 x 11.9 cms 13-1/4 x 4-3/4 inches

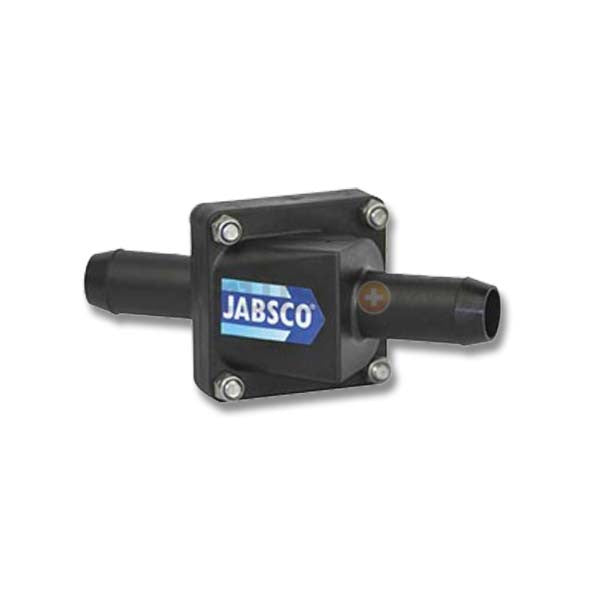

Jabsco INlet Non-Return Valve- 3/4" I.D.

A check valve give quicker and easier flushing response on many manual and 37010-Series electic toilet installations

For use with manual and electric toilets using sea water flush.

Simply fit in inlet suction hose, near seacock but just above waterline.

Prevents loss of prime in above waterline installations.

Retains water in bowl of 37010-Series electric toilets installed above waterline

Fitting: Connections for 3/4" I.D. Hose.

Size: 4-1/2"L X 2-1/8"W X 2"H

Jabsco 1.5" In-Line Non-Return Valve

Constructed from corrosion resistant materials, this Jabsco non return valve is designed to fit 1.5" connections and fit simply into suction hose. The main function of this valve is to fit in a pump's suction hose to aid in priming and prevent water from backflowing into the bilge.

Jabsco 1" In-Line Non-Return Valve

Constructed from corrosion resistant materials, this Jabsco non return valve is designed to fit 1" connections and fit simply into suction hose. The main function of this valve is to fit in a pump's suction hose to aid in priming and prevent water from backflowing into the bilge.

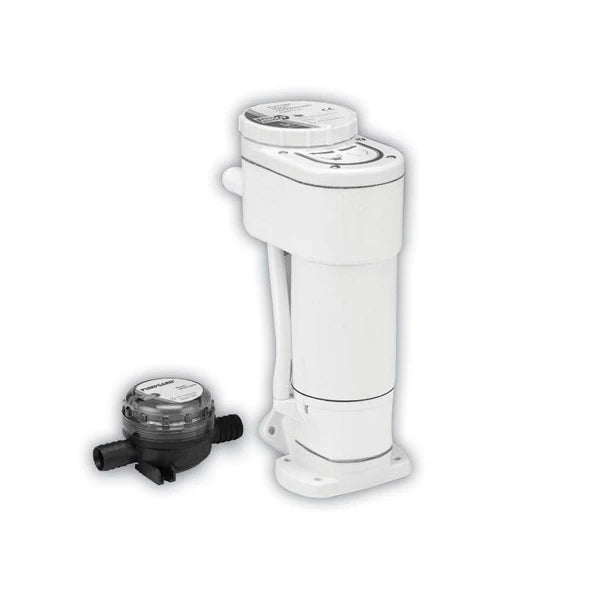

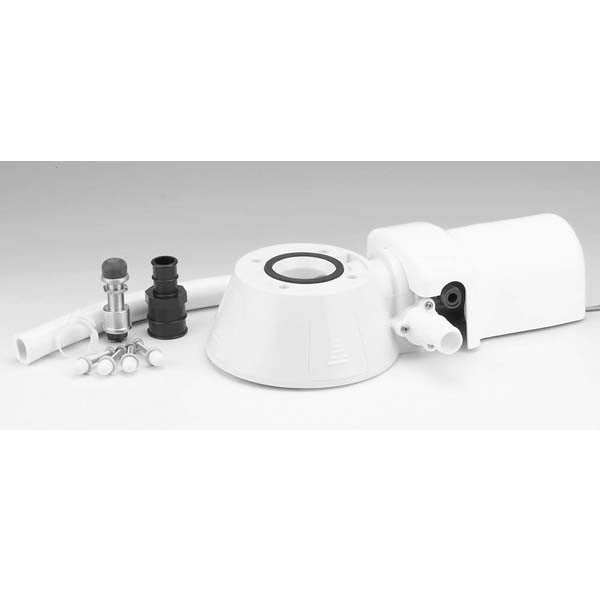

Jabsco Electric Toilet Conversion Kit 12V

This Jabsco Electric Toilet Conversion Kit is easy to install and simple to operate. This kit directly replaces the manual pump assembly for your marine toilet. Will fit all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Suitable for use in above or below waterline installations. This Conversion Kit meets ISO 8846 MARINE and USCG 183.410 for ignition protection. Waste pump discharges over an anti siphon loop up to 6 ft and out of a through hull fitting down to 3ft below the surface. Typical power consumption is less that 1.0 amp  / hour.

Specifications:

Voltage: 12V

Amp Draw: 24 Amp

Fuse Size: 25 Amp

Key Features:

Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets.

Suitable for use in above or below waterline installations

Built-in macerator with stainless steel chopper plate

Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection

Self priming up to 0.6m(2ft)

Waste pump discharges over an anti syphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface

Typical power consumption is less than 1.0 amp hour

Frequently Asked Questions

• What is the Jabsco Electric Toilet Conversion Kit 12V used for? The Jabsco Electric Toilet Conversion Kit 12V directly replaces the manual pump assembly on compatible marine toilets. It provides electric operation and includes a built-in macerator with a stainless steel chopper plate for waste discharge.
• Which toilets are compatible with the Jabsco Electric Toilet Conversion Kit 12V? This conversion kit fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Verify that your existing toilet is one of these listed models before purchasing or installing the conversion kit.
• Can the Jabsco Electric Toilet Conversion Kit 12V be installed above or below the waterline? Yes. The Jabsco Electric Toilet Conversion Kit 12V is suitable for both above- and below-waterline installations. Its waste pump can discharge over an anti-siphon loop up to 6 feet and through a hull fitting down to 3 feet below the surface.
• What are the electrical specifications for the Jabsco Electric Toilet Conversion Kit 12V? The conversion kit operates at 12V and has a listed amp draw of 24 amps. A 25-amp fuse is specified. The product description also states that typical power consumption is less than 1.0 amp hour.
• Does the Jabsco Electric Toilet Conversion Kit 12V include a macerator and self-priming pump? Yes. The Jabsco Electric Toilet Conversion Kit 12V includes a built-in macerator with a stainless steel chopper plate and is self-priming up to 0.6 meters (2 feet).
• What ignition-protection standards does the Jabsco Electric Toilet Conversion Kit 12V meet? The Jabsco Electric Toilet Conversion Kit 12V meets ISO 8846 MARINE and USCG 183.410 requirements for ignition protection, as specified in the product description.

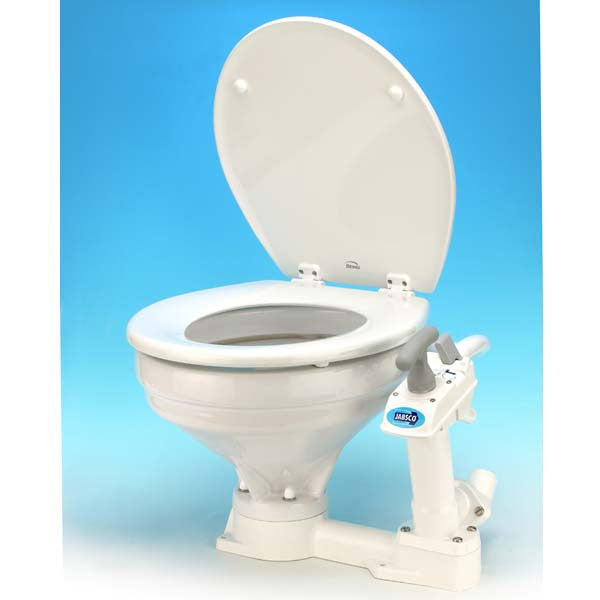

Jabsco Manual Standard Marine Toilet

The Jabsco Manual Marine Toilet is an intuitive, and simple to use Twist'n'Lock action handle that guards against syphonic flooding and waste backflow. With one easy 90 degree turn of the handle, the lock is applied. Turning the handle back to the natural operating position opens the lock again. This marine toilet features a luxury wooden seat and cover with tough baked enamel coating, and  an easy-to-clean hygienic white ceramic bowl.

Features:

Easy to clean white ceramic bowl

Sturdy wood seat with durable baked enamel finish

Forward angled pump for easy operation

Convenient top-mounted dry bowl selector

External seal housing/rod guide for easy replacement

Extra large seal housing allows piston rod assembly to be removed without removing valve cover

Smooth external surfaces with skirted base to maintain cleanliness

Base of pump and valve cover are skirted to conceal gasket/flap valves

Triadic full-flow joker valve to avoid accidental blockage

Multi-angle discharge port for versatility of plumbing connection

Aortic joker valve for automatic back-flow prevention.

All fastenings face front or top for ease of maintenance.

Flexible design for both overboard discharge and holding tanks.

Corrosion resistant materials throughout for reliable fresh or salt water service.

Specifications:

Dimensions: 18 1/2" wide x 19" deep x 13 3/4" high

Net Weight: 24lbs.

Flushing pump self-primes from dry up to 3' below the base.

Waste pump discharges up to 9' above the base.

Frequently Asked Questions

• What is the Jabsco Manual Standard Marine Toilet used for? The Jabsco Manual Standard Marine Toilet is a manually operated marine toilet with a white ceramic bowl, wooden seat and cover, and a Twist'n'Lock handle designed to guard against syphonic flooding and waste backflow. Its flexible design supports both overboard discharge and holding tank applications.
• How does the Twist'n'Lock handle work on the Jabsco Manual Standard Marine Toilet? The Twist'n'Lock handle uses a 90-degree turn to apply the lock, helping guard against syphonic flooding and waste backflow. Turning the handle back to its natural operating position releases the lock and returns the toilet to normal operation.
• How does the Jabsco Manual Standard Marine Toilet handle waste backflow? The toilet uses joker valves for automatic back-flow prevention. Its Triadic full-flow joker valve is designed to help avoid accidental blockage, while the Aortic joker valve provides automatic back-flow prevention as specified in the product description.
• What are the dimensions of the Jabsco Manual Standard Marine Toilet? The Jabsco Manual Standard Marine Toilet measures 18-1/2 inches wide, 19 inches deep, and 13-3/4 inches high. It has a net weight of 24 pounds. Verify these dimensions and the available installation space before mounting the toilet.
• What are the flushing and waste pump capabilities of the Jabsco Manual Standard Marine Toilet? The flushing pump can self-prime from dry up to 3 feet below the base of the toilet. The waste pump can discharge up to 9 feet above the base. These specifications describe the pump's stated self-priming and discharge capabilities.
• What type of water service can the Jabsco Manual Standard Marine Toilet handle? The Jabsco Manual Standard Marine Toilet uses corrosion-resistant materials throughout and is specified for reliable fresh or salt water service. It also has a multi-angle discharge port for flexible plumbing connections and can be configured for overboard discharge or holding tank applications.

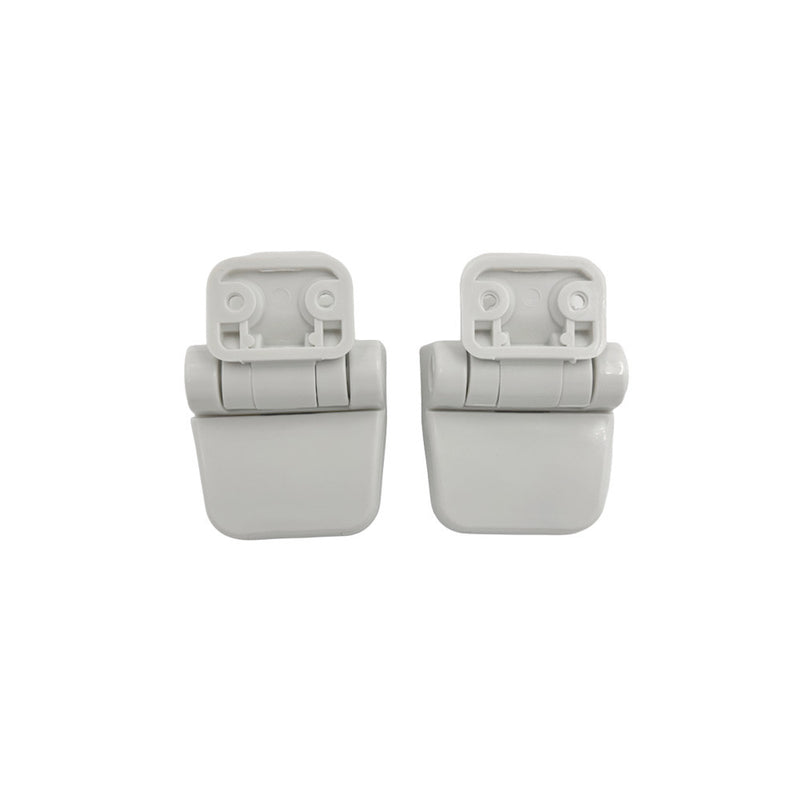

Jabsco 29098-2000 Regular Size Toilet Seat Hinge Kit

Jabsco 29098-2000 Marine Toilet Hinge Set is designed for regular bowl Jabsco marine toilets, providing a dependable replacement solution for maintaining proper seat function and stability. It ensures a secure connection between the toilet bowl and seat, helping improve comfort and reliable operation onboard.

Constructed from durable, corrosion-resistant materials, this hinge set is built to withstand harsh marine environments and everyday use. Its straightforward design allows for easy installation, making it an effective choice for replacing worn or damaged toilet seat hardware.

Features:

Designed for Jabsco regular bowl marine toilets

Provides secure seat-to-bowl connection

Corrosion-resistant construction for marine environments

Enhances seat stability and user comfort

Easy installation and replacement

Durable design for long-lasting performance

Kit Includes

2 Hinge

2 Bolt

2 Nylon wing Nuts/Washer

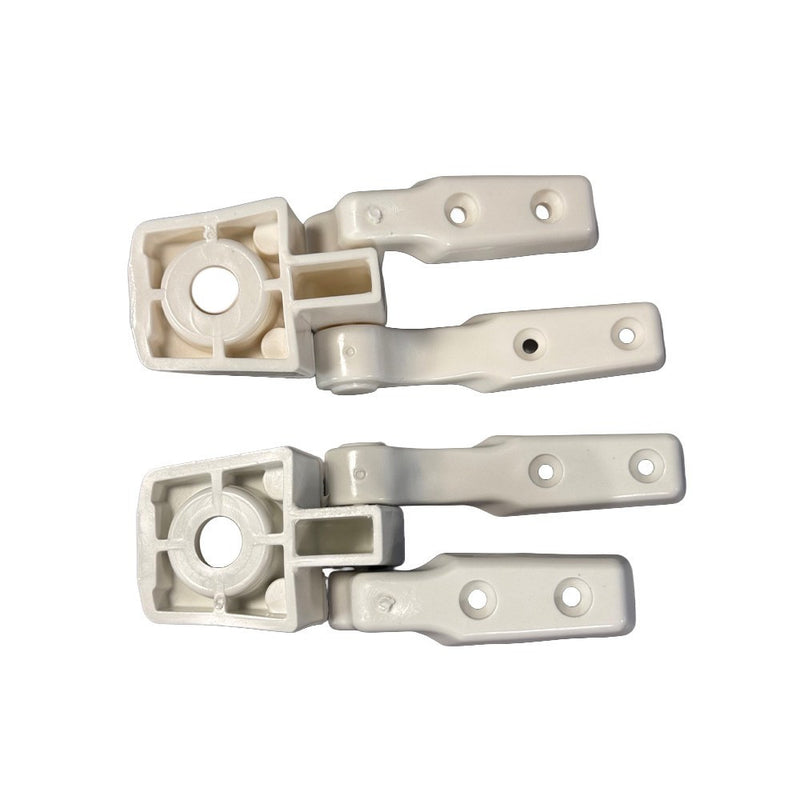

Jabsco 29098-1000 Compact Size Toilet Seat Hinge Kit

Jabsco Compact Size Toilet Seat Hinge Kit (29098-1000) is a replacement hardware set designed to securely attach wooden seat and lid assemblies on Jabsco Compact marine toilets. Built for reliable performance in marine environments, this hinge kit helps restore stable seat operation and smooth movement of the toilet seat and lid.

Ideal for maintaining or repairing compact marine toilets, this kit includes the necessary hinges and mounting hardware for a straightforward replacement. It is designed to support long-term durability and dependable everyday use onboard.

Features:

Replacement hinge set for Jabsco Compact toilet seats

Helps restore secure seat attachment and smooth operation

Durable construction suitable for marine environments

Easy replacement for worn or broken hinges

Supports reliable long-term toilet seat function

Specifications:

Model Number: 29098-1000

Compatible with Jabsco Compact bowl toilet systems

Includes hinge pair and mounting hardware (bolts/nuts depending on configuration)

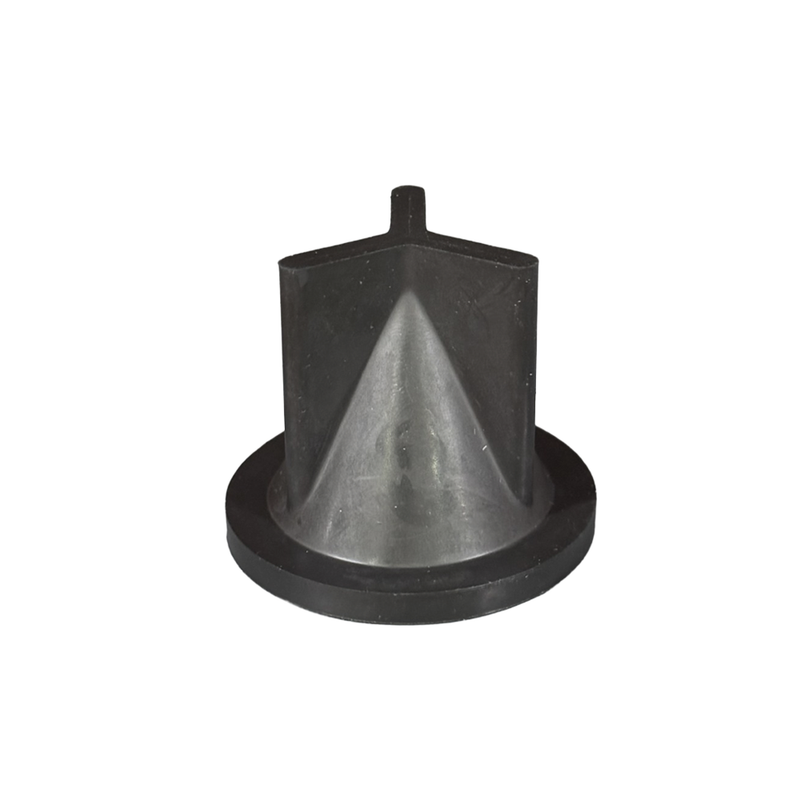

Jabsco Joker Valve 29090/120/59128

Jabsco 29092-1000 Joker Valve is a replacement component for select Jabsco marine toilet systems. Designed to help maintain proper waste flow, this joker valve supports reliable operation and helps prevent leaks within compatible marine sanitation systems.

It is designed for use with Jabsco 29090, 29120, and 29200 electric conversion kits, as well as 58500 Series marine toilets. Replacing a worn joker valve can help maintain waste system efficiency and dependable toilet operation.

Product Features

Jabsco 29092-1000 Joker Valve

Replacement valve for select Jabsco marine toilets

Designed for reliable, leak-free performance

Helps maintain proper waste flow

Supports efficient marine toilet system operation

Fits / Applications

Jabsco 29090 Electric Conversion Kit

Jabsco 29120 Electric Conversion Kit

Jabsco 29200 Electric Conversion Kit

Jabsco 58500 Series Marine Toilets

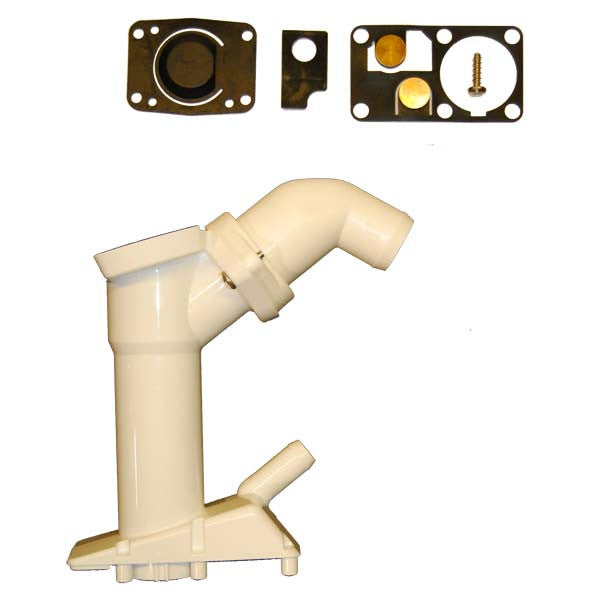

Pump cylinder assembly for 29090-2 and 29120-2 manual toilets 1998 and newer. Includes: Top Valve Seat Pump Cylinder 2 - Screws Discharge Flange Joker Valve Discharge Elbow Valve Spring

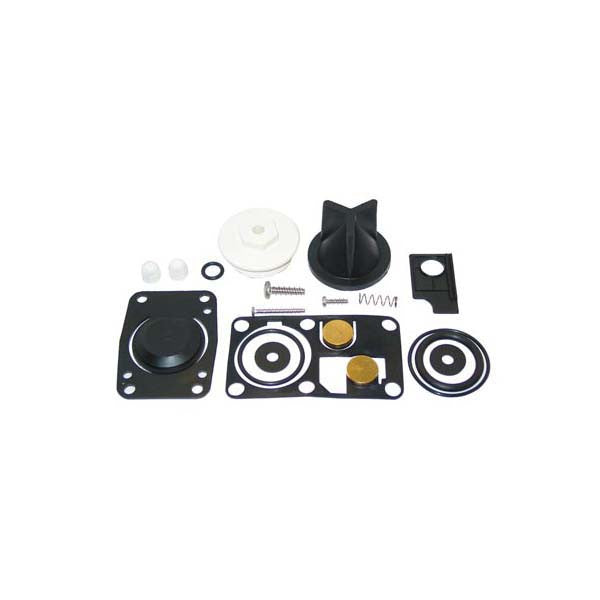

Service Kit For -3000 'Twist n' Lock' Series Toilets. Includes: Seals & gaskets 2 caps Plug o-ring Base valve gasket Handle with bumper washer Seal assembly Top valve seat Top valve gasket Flush lever o-ring Flush lever screw Joker valve Valve cover screw Piston o-ring Pump cylinder screw
