Hinge

TACO Ball & Socket Deck Hinge w/ Pin and Lanyard

TACO Polished Stainless Steel Type 316 Deck Hinge with Pin and Lanyard. Delrin insert provides smooth, rattle-free canvas top operation.

Patented ball and socket pivot design offers full rotation

Delrin insert provides tight, rattle-free fit and smooth operation

Deck hinge fits flat windshield headers

Quick release pull and D-ring pin

Polished Finish

Secure fit

Five year limited warranty

Fastener: #8 Flat Head Screw

Click here for TACO Ball & Socket Deck Hinge w/ Pin and Lanyard Spec Sheet

Frequently Asked Questions

• What is the TACO Ball & Socket Deck Hinge w/ Pin and Lanyard used for? The TACO Ball & Socket Deck Hinge w/ Pin and Lanyard is designed for canvas top applications with flat windshield headers. Its patented ball and socket pivot design offers full rotation, while the Delrin insert provides smooth, rattle-free operation.
• What is the TACO Ball & Socket Deck Hinge w/ Pin and Lanyard made from? This deck hinge is made from polished Type 316 stainless steel and features a Delrin insert. The polished finish and secure-fit design make it suitable for compatible marine canvas top applications.
• Does the TACO Ball & Socket Deck Hinge provide full rotation? Yes. The patented ball and socket pivot design offers full rotation. The Delrin insert provides a tight, rattle-free fit and smooth operation during canvas top movement.
• What type of windshield header does the TACO Ball & Socket Deck Hinge fit? The TACO Ball & Socket Deck Hinge w/ Pin and Lanyard is designed to fit flat windshield headers. Verify that your application uses a flat windshield header before installation.
• What fastener does the TACO Ball & Socket Deck Hinge w/ Pin and Lanyard use? The TACO Ball & Socket Deck Hinge w/ Pin and Lanyard uses a #8 flat head screw. It also features a quick-release pull and D-ring pin for the canvas top connection.

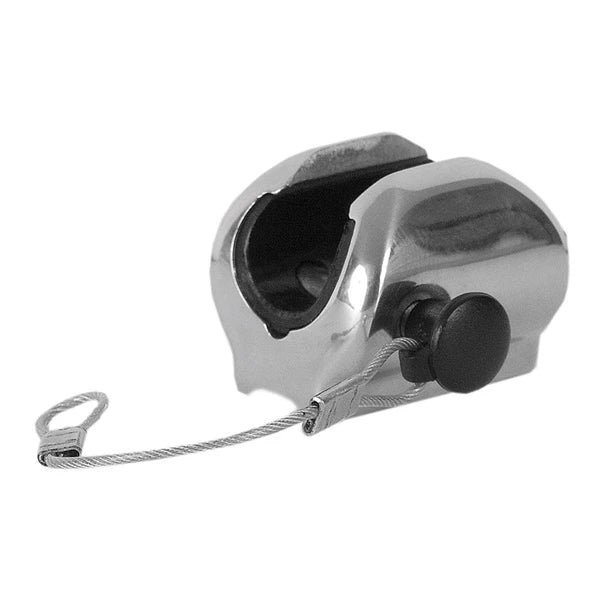

TACO Ball & Socket Concave Deck Hinge

TACO Polished Stainless Steel Type 316 Deck Hinge with Pin and Lanyard. Delrin insert provides smooth, rattle-free canvas top operation.

Patented ball and socket pivot design offers full rotation

Delrin insert provides tight, rattle-free fit and smooth operation

Deck hinges fit 7/8" tube and concave windshield headers

Quick release pull and D-ring pin

Polished Finish

Secure fit

Five year limited warranty

Tube Size: 7/8"

Fastener: #8 Flat Head Screw

Click here for TACO Ball & Socket Concave Deck Hinge Spec Sheet

Frequently Asked Questions

• What is the TACO Ball & Socket Concave Deck Hinge used for? The TACO Ball & Socket Concave Deck Hinge is a polished stainless steel Type 316 deck hinge designed for canvas top operation. Its ball and socket pivot design provides full rotation, while the Delrin insert provides a tight, rattle-free fit and smooth operation.
• What size tubing does the TACO Ball & Socket Concave Deck Hinge fit? The TACO Ball & Socket Concave Deck Hinge fits 7/8" tube and concave windshield headers. Verify your tube size and windshield header configuration before installation.
• What features does the TACO Ball & Socket Concave Deck Hinge have? The TACO deck hinge features a patented ball and socket pivot for full rotation, a Delrin insert for smooth and rattle-free operation, and a quick-release pull and D-ring pin for a secure fit.
• What type of fastener does the TACO Ball & Socket Concave Deck Hinge use? The TACO Ball & Socket Concave Deck Hinge uses a #8 flat head screw. Verify the mounting surface and installation requirements before installing the hinge.
• What material is the TACO Ball & Socket Concave Deck Hinge made from? The TACO Ball & Socket Concave Deck Hinge is made from polished Type 316 stainless steel and includes a Delrin insert. The hinge has a polished finish and is designed for smooth canvas top operation.
• Does the TACO Ball & Socket Concave Deck Hinge have a warranty? Yes. The TACO Ball & Socket Concave Deck Hinge includes a five-year limited warranty.

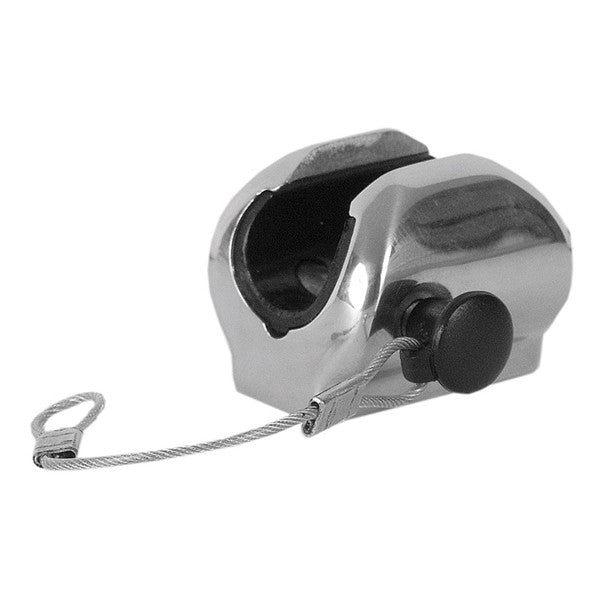

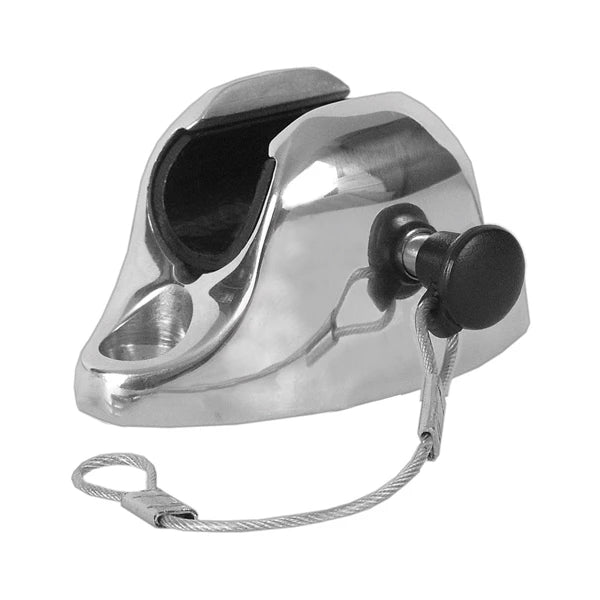

TACO Ball & Socket Flat Deck Hinge

TACO Polished Stainless Steel Type 316 Deck Hinge with Pin and Lanyard. Delrin insert provides smooth, rattle-free canvas top operation.

Patented ball and socket pivot design offers full rotation

Delrin insert provides tight, rattle-free fit and smooth operation

Deck hinge fits flat windshield headers

Quick release pull and D-ring pin

Polished Finish

Secure fit

Five year limited warranty

Fastener: #8 Flat Head Screw

Click here for TACO Ball & Socket Flat Deck Hinge Spec Sheet

Frequently Asked Questions

• What is the TACO Ball & Socket Flat Deck Hinge used for? The TACO Ball & Socket Flat Deck Hinge is designed for canvas top applications with flat windshield headers. Its patented ball and socket pivot provides full rotation, while the Delrin insert helps provide smooth, rattle-free operation.
• What is the TACO Ball & Socket Flat Deck Hinge made from? The hinge is constructed from polished Type 316 stainless steel and features a Delrin insert. It has a polished finish and is designed to provide a secure fit for compatible canvas top applications.
• Does the TACO Ball & Socket Flat Deck Hinge provide full rotation? Yes. Its patented ball and socket pivot design offers full rotation. The Delrin insert provides a tight, rattle-free fit and smooth operation during canvas top movement.
• What type of windshield header does the TACO Flat Deck Hinge fit? The TACO Ball & Socket Flat Deck Hinge is designed to fit flat windshield headers. Verify that your application has a flat windshield header before installation.
• What fastener does the TACO Ball & Socket Flat Deck Hinge use? The TACO Ball & Socket Flat Deck Hinge uses a #8 flat head screw. It also includes a quick-release pull and D-ring pin for the canvas top connection.

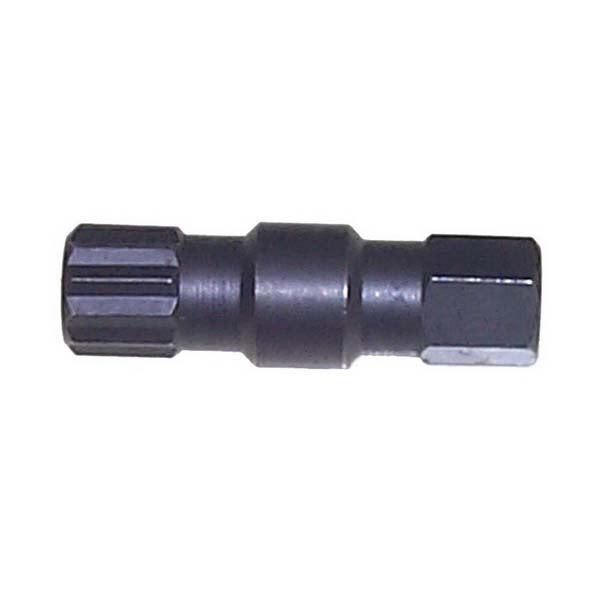

Sierra 18-9861 MerCruiser Hinge Pin Tool Replaces 78310

This Sierra hinge pin tool is designed to remove and install hinge pins from all MerCruiser drive units.

Interchangeable With:

Mercury

91-78310

Mallory

9-79805

GLM

90200

Frequently Asked Questions

• What is the Sierra 18-9861 MerCruiser Hinge Pin Tool used for? The Sierra 18-9861 MerCruiser Hinge Pin Tool is designed to remove and install hinge pins from all MerCruiser drive units.
• What MerCruiser drive units is the Sierra 18-9861 Hinge Pin Tool compatible with? The Sierra 18-9861 Hinge Pin Tool is designed for use with all MerCruiser drive units, according to the product description.
• Does the Sierra 18-9861 replace Mercury 91-78310? Yes. The Sierra 18-9861 MerCruiser Hinge Pin Tool is interchangeable with Mercury 91-78310.
• What other hinge pin tools interchange with the Sierra 18-9861? The Sierra 18-9861 is interchangeable with Mallory 9-79805 and GLM 90200, in addition to Mercury 91-78310.

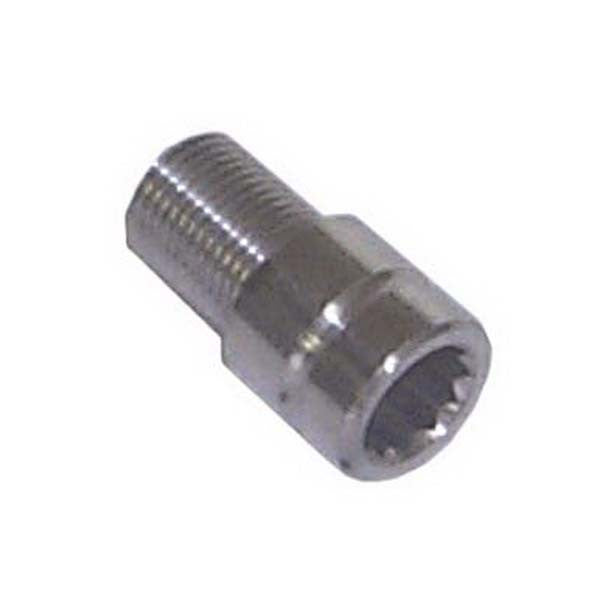

Sierra 18-1705 Alpha Gimbal Housing Hinge Pin Replaces 77123

This Sierra gimbal housing hinge pin is designed for use with MerCruiser Alpha Gen I & II drives with a grease port.

Fits:

MerCruiser Alpha One Gen I drives from 1983-1991 with serial numbers 06225577 thru 0D469858

MerCruiser Alpha One Gen II drives from 1990-Present with serial numbers 0D469859 & Up

Interchangeable with:

Mallory

9-73130

MerCruiser Stern Drive

77123A1

65547

77123

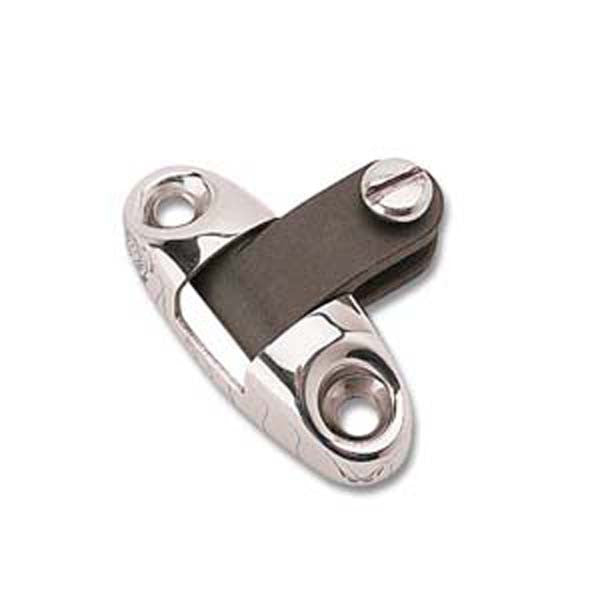

Sea Dog 180 Degree Adjustable Angle Deck Hinge - Stainless Steel

Sea Dog deck hinges are designed to mount horizontally and attach an eye end in Bimini top applications. This 180 degree adjustable deck hinge allows universal mounting at almost any angle, including vertical mounting. Constructed of corrosion resistant investment cast 316 stainless steel. Installs with (2) #10 FH fasteners (not included).

Investment Cast 316 Stainless

Horizontal or Vertical mounting

Adjustable

Dimensions:

Base: 1" X 2-3/4"

Pin Size: 1/4"

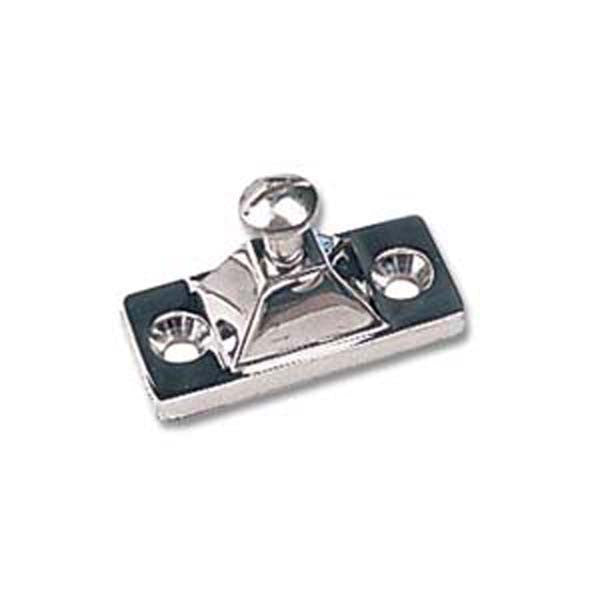

Sea Dog Side Mount Deck Hinge- Stainless Steel

Investment Cast 216 Stainless

Side Mount Deck Hinge

Pin/Screw Part # 0P27006

#10 FH Fastener

Dimensions:

Base 7/8" X 2"

Pin Size 1/4"

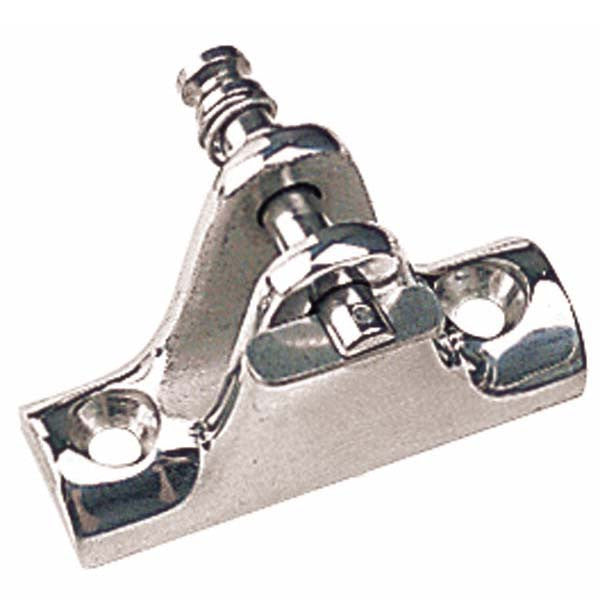

Sea-Dog Bimini - Canopy Top 1" Concave Deck Hinge - Stainless Steel

Sea Dog deck hinges are designed to mount horizontally and attach an eye end in Bimini top applications. Constructed of corrosion resistant, investment cast 316 stainless steel. These concave hinges are designed to rail mount on 1" tubing. Features a spring loaded quick-release pin for easy top removal.

Removable pin

1" Concave Base Deck Hinge

Pin/screw Part # 0P27002

Installs with (2) #10 FH Fasteners (not included)

Dimensions:

Base: 3/4" X 2-1/4"

Pin Size: 1/4"

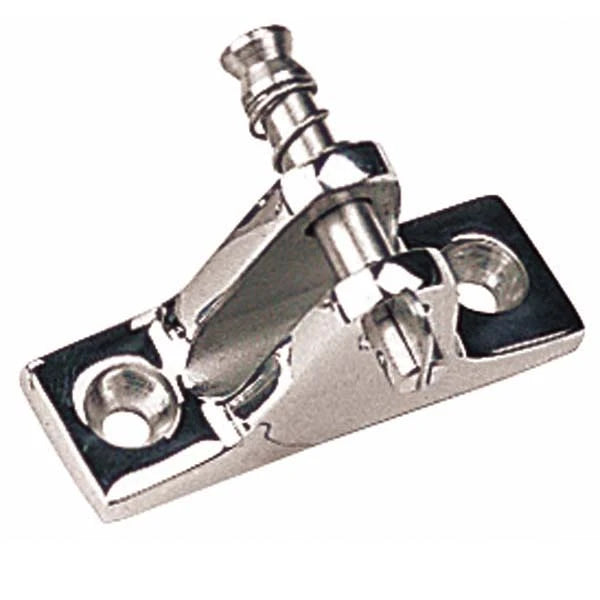

Sea-Dog Heavy Duty Bimini/Canopy Top Angled Deck Hinge

Sea Dog deck hinges are designed to mount horizontally and attach an eye end in Bimini top applications. Constructed of corrosion resistant investment cast 316 stainless steel for heavy duty applications. This hinge installs with (2) #10 fasteners (not included). Angled deck hinges are used for mounting items on slanted surfaces such as sloped gunwales.

Spring-loaded quick release pin for easy top removal

10 Degree Angle

Installs with (2) #10 fasteners (not included)

Specifications:

Base: 3/4" X 2-1/4"

Pin Size: 1/4"

Frequently Asked Questions

• What is the Sea-Dog Heavy Duty Bimini/Canopy Top Angled Deck Hinge used for? The Sea-Dog Heavy Duty Bimini/Canopy Top Angled Deck Hinge is designed for Bimini and canopy top applications where a deck hinge mounts horizontally and attaches an eye end. Its 10-degree angle is intended for mounting on slanted surfaces such as sloped gunwales.
• What is the Sea-Dog Heavy Duty Bimini/Canopy Top Angled Deck Hinge made from? This heavy-duty deck hinge is constructed from corrosion-resistant investment cast 316 stainless steel. The hinge is designed for heavy-duty Bimini and canopy top applications.
• What angle is the Sea-Dog Heavy Duty Bimini/Canopy Top Angled Deck Hinge? The hinge has a 10-degree angle. This angled design is intended for mounting items on slanted surfaces such as sloped gunwales.
• How is the Sea-Dog angled deck hinge installed? The hinge installs with two #10 fasteners, which are not included. It has a 3/4" x 2-1/4" base and uses a 1/4" pin.
• Does the Sea-Dog angled deck hinge have a quick-release pin? Yes. The hinge features a spring-loaded quick-release pin designed to make removal of the Bimini or canopy top easier.

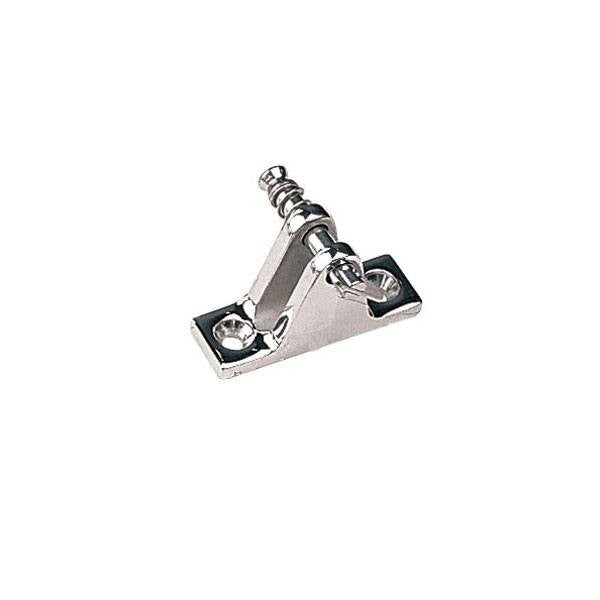

Sea-Dog 90 Degree Deck Hinge w/ Removable Pin

Sea Dog deck hinges are designed to mount horizontally and attach an eye end in Bimini top applications. Constructed of corrosion resistant investment cast 316 stainless steel. Angled deck hinges are used for mounting items on slanted surfaces such as sloped gunwales. Features a spring loaded quick-release pin for easy top removal.

Investment Cast 316 Stainless Steel

Removable Pin

Installs with (2) #10 FH Fasteners (not included)

Dimensions:

Base: 3/4" X 2-1/4"

Pin Size: 1/4"

Frequently Asked Questions

• What is the Sea-Dog 90 Degree Deck Hinge w/ Removable Pin used for? The Sea-Dog 90 Degree Deck Hinge w/ Removable Pin is designed for Bimini top applications where the deck hinge mounts horizontally and attaches an eye end. Its angled design is also intended for mounting items on slanted surfaces such as sloped gunwales.
• What is the Sea-Dog 90 Degree Deck Hinge made from? The Sea-Dog 90 Degree Deck Hinge is constructed from corrosion-resistant investment cast 316 stainless steel. It has a 3/4" x 2-1/4" base and a 1/4" pin size.
• Does the Sea-Dog 90 Degree Deck Hinge have a removable pin? Yes. This Sea-Dog deck hinge features a spring-loaded quick-release pin that allows easy removal of the Bimini top.
• How is the Sea-Dog 90 Degree Deck Hinge installed? The Sea-Dog 90 Degree Deck Hinge installs with two #10 flat-head fasteners, which are not included. Verify the mounting surface and hardware requirements before installation.

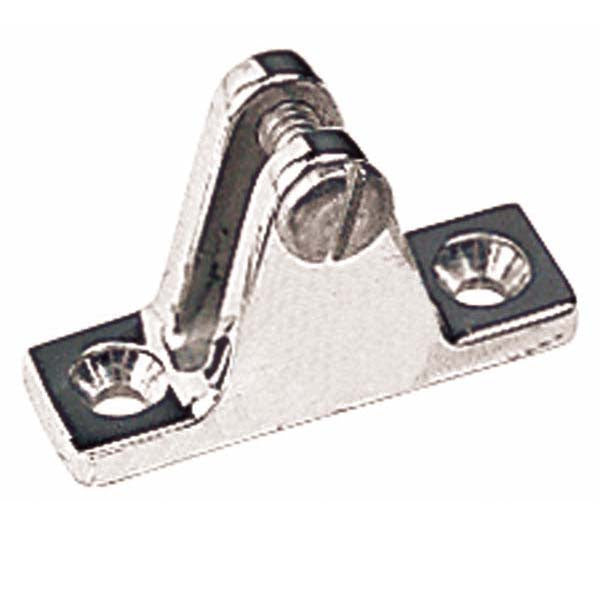

Sea-Dog Top Mount Deck Hinge

Sea Dog Deck hinges are designed to mount horizontally and attach an eye end in Bimini top applications. Constructed of investment cast 316 stainless steel for corrosion resistance and durability. These hinges install with (2) #10 FH fasteners (not included).

Bimini-Canopy Top 90 Degree Deck Hinge

Investment Cast 316 Stainless

Installs with (2) #10 FH Fasteners (not included)

Dimensions:

Base: 3/4" X 2-1/4"

Pin size: 1/4"

Pin/Screw Part #: 0P2701

Frequently Asked Questions

• What is the Sea-Dog Top Mount Deck Hinge used for? The Sea-Dog Top Mount Deck Hinge is designed for horizontal mounting in Bimini top and canopy applications. It attaches an eye end to provide a deck mounting point for the Bimini top system.
• What is the Sea-Dog Top Mount Deck Hinge made from? The Sea-Dog Top Mount Deck Hinge is constructed from investment cast 316 stainless steel. This material provides the hinge with corrosion resistance and durability for marine applications.
• What size pin does the Sea-Dog Top Mount Deck Hinge use? The Sea-Dog Top Mount Deck Hinge has a 1/4" pin size. The pin and screw part number listed for this hinge is 0P2701.
• What are the dimensions of the Sea-Dog Top Mount Deck Hinge? The base of the Sea-Dog Top Mount Deck Hinge measures 3/4" x 2-1/4". The hinge has a 1/4" pin size and is designed as a 90-degree deck hinge for Bimini-canopy top applications.
• What fasteners are required to install the Sea-Dog Top Mount Deck Hinge? The Sea-Dog Top Mount Deck Hinge installs with two #10 flat head fasteners. The required fasteners are not included with the hinge, so verify the appropriate installation hardware before mounting.

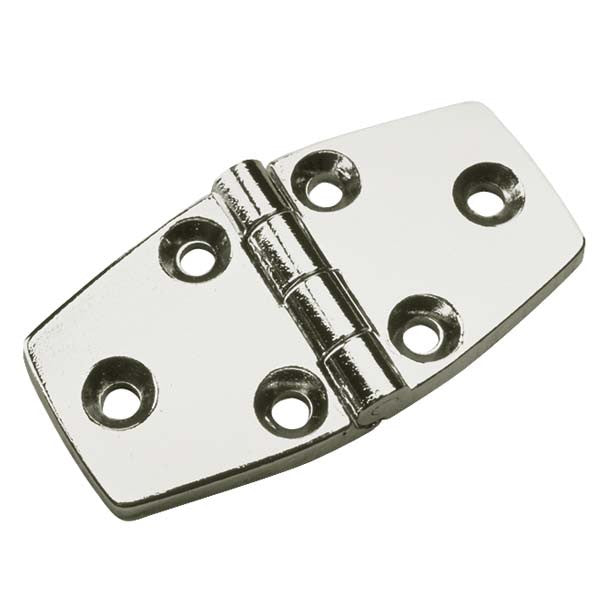

Sea-Dog Chrome Plated Door Hinge

Die Cast Zinc Chrome Plated

#8 FH Fastener

Sold in pairs

Part #

A

B

C

D

E

Fastener

206530-1

2-7/8"

1-7/16"

1-7/16"

1-1/2"

3/16"

#8 FH

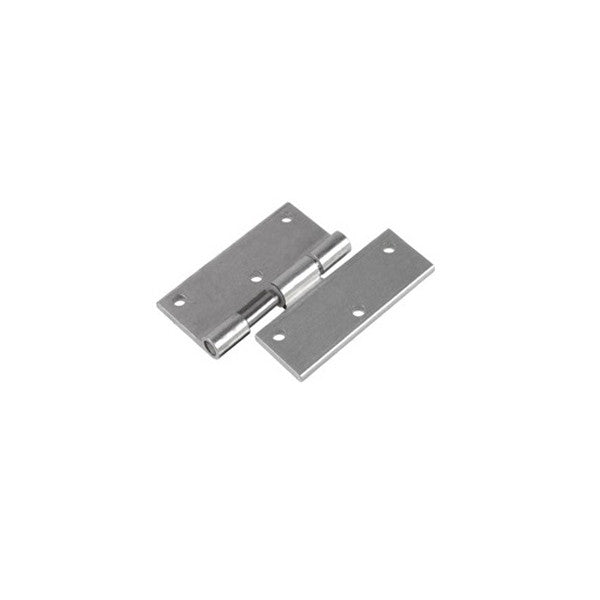

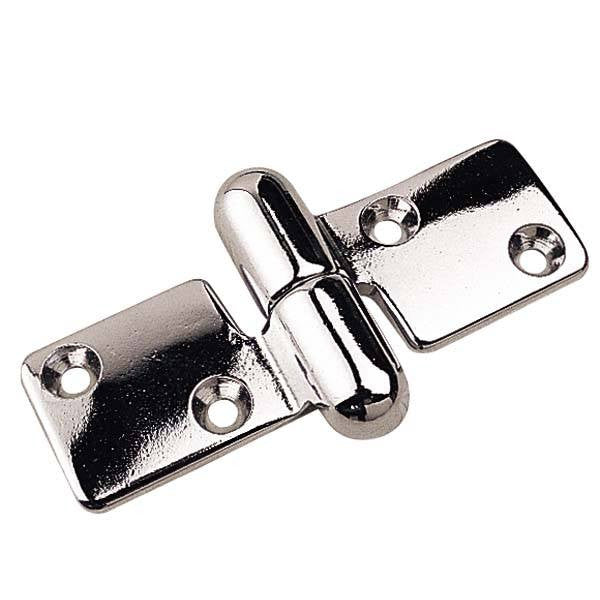

Sea Dog Chrome Plated Take Apart Hinge - Pair

Sea Dog take-apart hinges allow a door or or lid to be removed, after installation, without having to remove the fasteners. These hinges are designed for applications where occasional removal may be required for easy stowing or cleaning.

Chrome-plated forged brass

Left Side Hinge

Installs with (4) #10 fasteners (not included)

Can be used vertically or horizontally

Sold in Pairs

Dimensions:

A: 3-7/8"

B: 1-15/16"

C: 1-15/16"

D: 2"

E: 3/16"

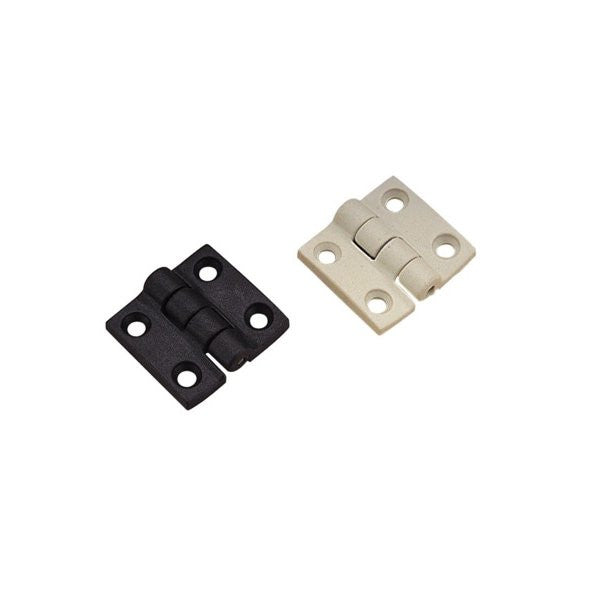

Sea-Dog Nylon Cabinet Door Butt Hinge

Butt hinges consist of two rectangular leaves that attach to the abutting surfaces of a door and door jamb. Usually mortised or recessed into both surfaces they are joined together by a hinge pin. These butt hinges are constructed of UV resistant injection molded fiberglass nylon with a corrosion resistant stainless-steel pin. Installs with four #8 FH fasteners (not included).

Injection Molded Fiberglass Nylon

Stainless Steel Pin

Sold in pairs

Dimensions:

A - 1-1/2"

B - 3/4"

C - 3/4"

D - 1-3/8"

E - 1-3/8"

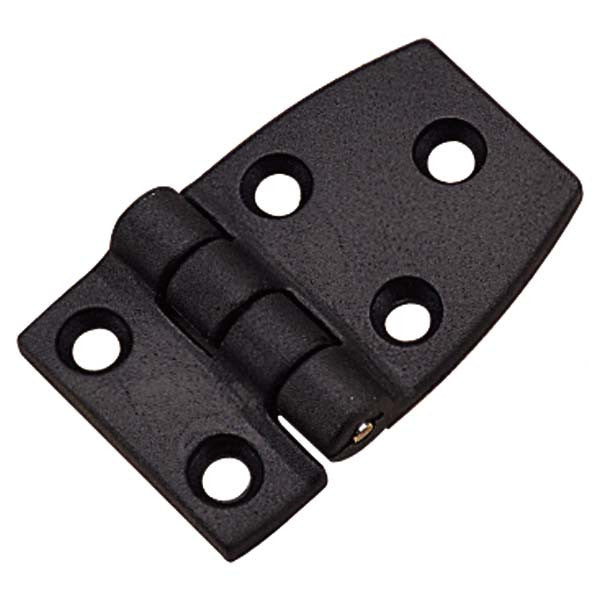

Sea-Dog Short Side Nylon Door Hinge

These glass-filled injection molded nylon hinges feature a stainless steel pin and are practically indestructible. UV and corrosion resistant, these hinges are an economical choice for all interior applications. These hinges are great for cabinets, hatches, folding tables, or seats where mounting space is tight.

Injected Molded Fiberglass Nylon

Installs with (5) #8 FH Fastener

Backing plate 202539 can be used w/hinges

Sold in pairs

Dimensions:

A: 2-1/4"

B: 3/4"

C: 1-1/2"

D: 1-3/8"

E: 3/16"

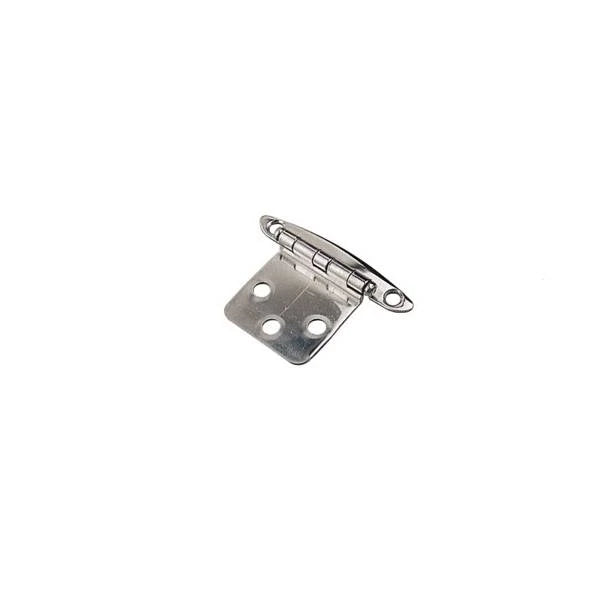

Sea-Dog Flush Mount Concealed Hinge

Sea Dog Flush Mount Concealed Hinges are constructed of corrosion resistant 304 stainless steel. They are designed to keep the hinge out of sight when the door is closed.

Stamped 304 Stainless

Installs with (5) #6 FH Fasteners

Sold in pairs

Dimensions:

A: 1-7/8"

B: 2-3/4"

C: 1/16"

D: 1-1/2"

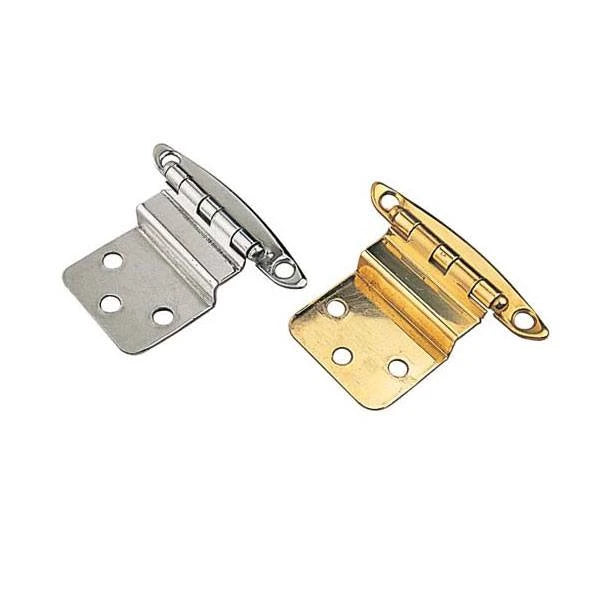

Sea-Dog Stainless Semi-Concealed Hinge

Stamped 304 Stainless

Designed to be mounted on the back surface of door with corresponding 3/8" offset mortised into edge of door

#6 FH Fastener

Part #

A

B

C

D

E

Material

Fastener

201914-1

2-3/16"

2-3/4"

1/16"

1-1/2"

3/8"

Stainless

#6 FH

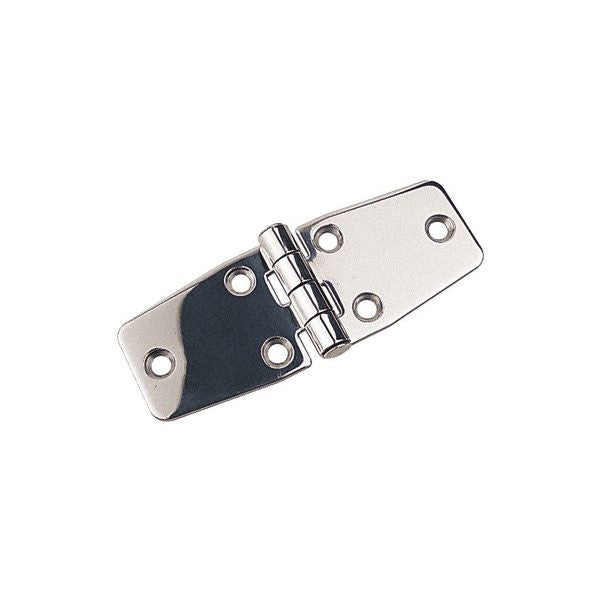

Sea Dog Stamped Stainless Steel Door Hinge

Constructed of stamped 304 stainless steel. These door hinges are corrosion-resistant to withstand the harsh marine environment. Installs with six #8 FH fasteners (not included). Sold in pairs.

Dimensions:

A - 2-7/8"

B - 1-7/16"

C - 1-7/16"

D - 1-1/2"

E - 1/16"

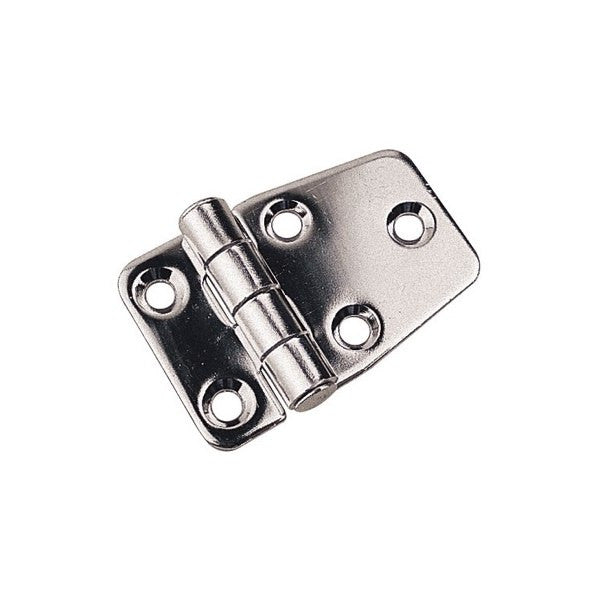

Sea Dog Stainless Steel Short Side Door Hinge

These Sea Dog stamped 304 stainless steel short side hinges are corrosion resistant. Great for all interior and exterior applications such as cabinets, hatchets, folding tables or seats where mounting space is tight. Installs with five #8 FH fasteners (not included).

Dimensions:

A - 2-1/8"

B - 11/16"

C - 1-7/16"

D - 1-1/2"

E - 1-1/2"
