Hinge

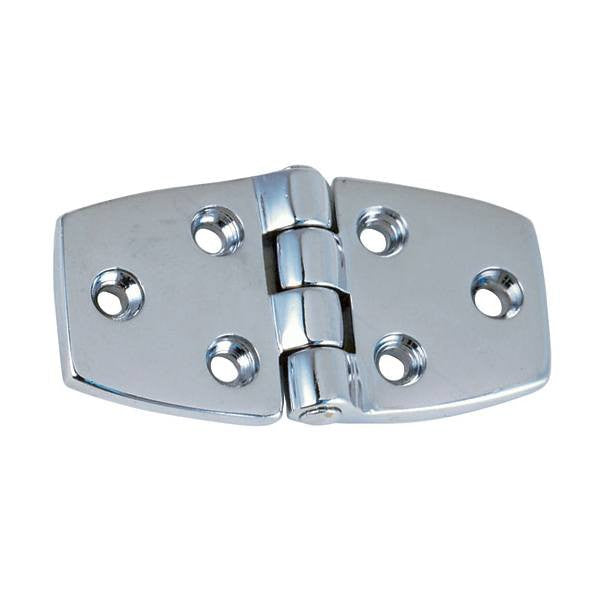

Perko Chrome Plated Cuddy Door Hinge - Pair

Pair of Perko Chrome Plated Zinc Alloy hinges for use on cabinets, doors, and more.

Height pin: 1-1/2"

Width open: 3"

Screw size: #8

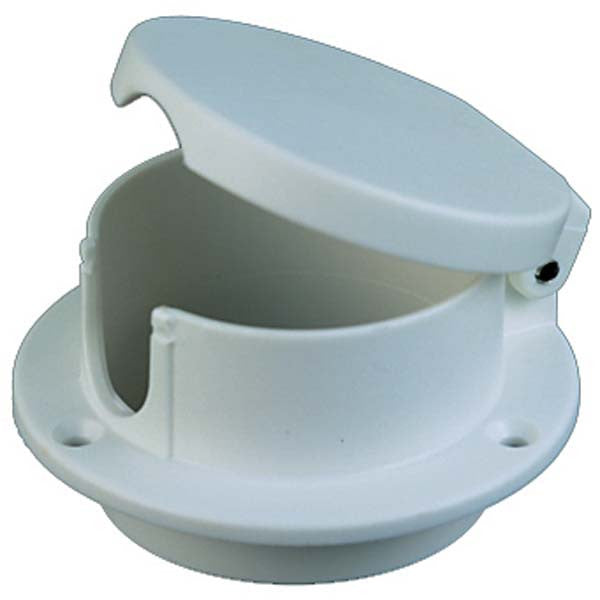

Perko White Hinge Lid Rope Deck Pipe

Rope Deck Pipe. High impact white plastic. UV stablized, fiber reinforced. Hinged snap down cover. Improved hinge design allows open cover to lay flat.

Max. rope size 7/8"

O.D. flange 3.75"

Frequently Asked Questions

• What is the Perko White Hinge Lid Rope Deck Pipe designed for? The Perko White Hinge Lid Rope Deck Pipe is a rope deck pipe made from high-impact white plastic that is UV stabilized and fiber reinforced. It features a hinged snap-down cover designed to provide convenient access to the rope deck pipe.
• What is the maximum rope size for the Perko Rope Deck Pipe? The Perko White Hinge Lid Rope Deck Pipe accommodates rope up to 7/8" in size. Verify that your rope does not exceed this maximum size before installation.
• What are the dimensions of the Perko White Hinge Lid Rope Deck Pipe? The Perko White Hinge Lid Rope Deck Pipe has an outside flange diameter of 3.75". It is designed to accommodate rope up to 7/8" in size.
• What is the Perko Rope Deck Pipe made from? The Perko White Hinge Lid Rope Deck Pipe is constructed from high-impact white plastic. The material is UV stabilized and fiber reinforced for the product's specified construction.
• How does the hinge work on the Perko White Hinge Lid Rope Deck Pipe? The deck pipe has a hinged snap-down cover. Its improved hinge design allows the cover to open and lay flat, providing convenient access when using the rope deck pipe.

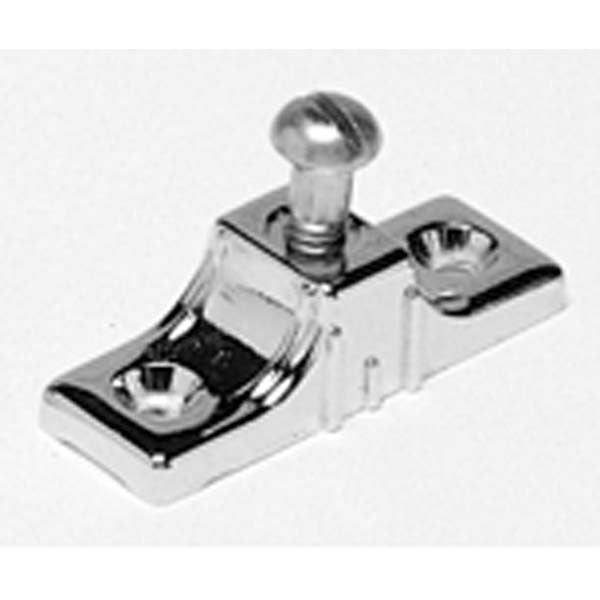

Bimini - Canopy Top Side Mount Deck Hinge, Chromed Zamak

Bimini top chromed zamak deck hinge mounts vertically on side walls. Sold in pairs.

Bimini - Canopy Top Deck Hinge, Chromed Zamak

One pair, designed to mount horizontally.

Replacement hardware for Bimini tops.

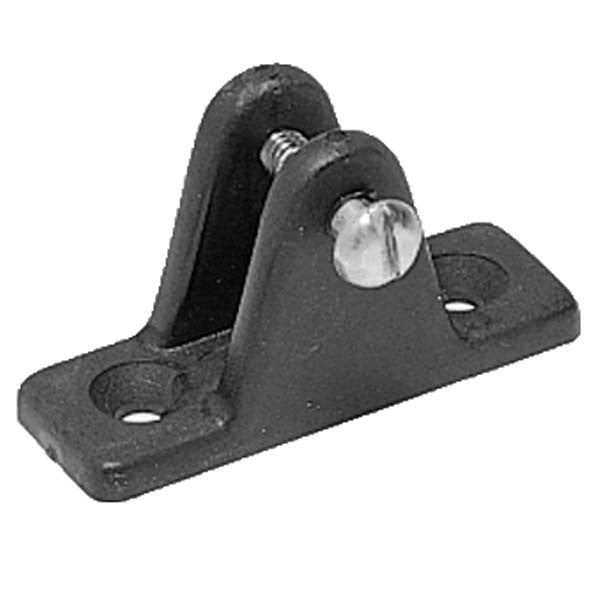

Taylor Made Bimini - Canopy Top Deck Hinge

Bimini top deck hinge designed to mount horizontally. Available in black or white.

One pair

Frequently Asked Questions

• What is the Taylor Made Bimini - Canopy Top Deck Hinge used for? The Taylor Made Bimini - Canopy Top Deck Hinge is designed for bimini and canopy top applications. It mounts horizontally to provide a deck hinge connection for a bimini or canopy top.
• How is the Taylor Made Bimini - Canopy Top Deck Hinge mounted? This bimini top deck hinge is designed to mount horizontally. Verify the mounting arrangement of your bimini or canopy top before selecting this hinge.
• What colors are available for the Taylor Made Bimini - Canopy Top Deck Hinge? The Taylor Made Bimini - Canopy Top Deck Hinge is available in black or white, allowing you to select the color that best matches your bimini or canopy top hardware.
• How many Taylor Made Bimini - Canopy Top Deck Hinges are included? The Taylor Made Bimini - Canopy Top Deck Hinge is sold as one pair, providing two deck hinges for a bimini or canopy top installation.

Lenco 10030-001D Trim Tab Hinge and Upper Bracket Mounting Screws - 44 Pk

Replacement Hinge and Upper Bracket Mounting Screws. Sold as a pack of 44 screws.

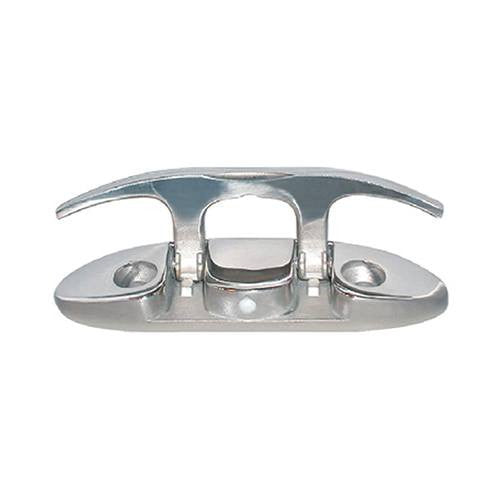

JIF Marine 4.5" Stainless Steel Pop Up Hinge

Features:

Pop up hinge

Material: Stainless Steel

Size: 4.5

Produced with the highest grade materials

Jabsco 29098-2000 Regular Size Toilet Seat Hinge Kit

Jabsco 29098-2000 Marine Toilet Hinge Set is designed for regular bowl Jabsco marine toilets, providing a dependable replacement solution for maintaining proper seat function and stability. It ensures a secure connection between the toilet bowl and seat, helping improve comfort and reliable operation onboard.

Constructed from durable, corrosion-resistant materials, this hinge set is built to withstand harsh marine environments and everyday use. Its straightforward design allows for easy installation, making it an effective choice for replacing worn or damaged toilet seat hardware.

Features:

Designed for Jabsco regular bowl marine toilets

Provides secure seat-to-bowl connection

Corrosion-resistant construction for marine environments

Enhances seat stability and user comfort

Easy installation and replacement

Durable design for long-lasting performance

Kit Includes

2 Hinge

2 Bolt

2 Nylon wing Nuts/Washer

Jabsco 29098-1000 Compact Size Toilet Seat Hinge Kit

Jabsco Compact Size Toilet Seat Hinge Kit (29098-1000) is a replacement hardware set designed to securely attach wooden seat and lid assemblies on Jabsco Compact marine toilets. Built for reliable performance in marine environments, this hinge kit helps restore stable seat operation and smooth movement of the toilet seat and lid.

Ideal for maintaining or repairing compact marine toilets, this kit includes the necessary hinges and mounting hardware for a straightforward replacement. It is designed to support long-term durability and dependable everyday use onboard.

Features:

Replacement hinge set for Jabsco Compact toilet seats

Helps restore secure seat attachment and smooth operation

Durable construction suitable for marine environments

Easy replacement for worn or broken hinges

Supports reliable long-term toilet seat function

Specifications:

Model Number: 29098-1000

Compatible with Jabsco Compact bowl toilet systems

Includes hinge pair and mounting hardware (bolts/nuts depending on configuration)

Bennett CC3003P Trim Tab Actuator Hinge w/ Coil - Port Red

Bennett Actuator upper hinge for use with Bennett Trim Tabs.

Bennett A-1115 Actuator Lower Hinge Pin

Bennett actuators are strong but flexible nylon/fiberglass hydraulic cylinders. The piston-like arms push tabs into position. Fluid flows through a concealed hole in the upper hinge at the top of the actuator thus eliminating external hoses subject to damage. A1101A is the standardA1101EX is an external line connection used in cases of total inaccessibility inside the transomA1200S designed for installations where space is limited « less

Bennett A-1114 Actuator Lower Hinge W/Pin Bennett Actuator lower hinge with stainless steel lower hinge pin. Replacement part for Bennett Actuator.Frequently Asked Questions

• What is the Bennett A-1114 Actuator Lower Hinge with Pin used for? The Bennett A-1114 Actuator Lower Hinge with Pin is a replacement part used on Bennett trim tab actuators. It serves as the lower hinge connection point for the actuator assembly.
• Is this a replacement part or a complete actuator? This product is a replacement lower hinge with pin, not a complete actuator. Review your current trim tab setup and replacement needs before ordering.
• Does the Bennett A-1114 include the hinge pin? Yes. The Bennett A-1114 includes the lower hinge along with a stainless steel lower hinge pin.
• What material is the hinge pin made from? The lower hinge pin is made from stainless steel for corrosion-resistant performance in marine environments.
• What trim tab systems is this part designed for? The Bennett A-1114 is designed as a replacement part for Bennett actuators. Check your existing actuator model and trim tab setup to confirm compatibility before ordering. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Bennett A-1114 Actuator Lower Hinge with Pin used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett A-1114 Actuator Lower Hinge with Pin is a replacement part used on Bennett trim tab actuators. It serves as the lower hinge connection point for the actuator assembly." } }, { "@type": "Question", "name": "Is this a replacement part or a complete actuator?", "acceptedAnswer": { "@type": "Answer", "text": "This product is a replacement lower hinge with pin, not a complete actuator. Review your current trim tab setup and replacement needs before ordering." } }, { "@type": "Question", "name": "Does the Bennett A-1114 include the hinge pin?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The Bennett A-1114 includes the lower hinge along with a stainless steel lower hinge pin." } }, { "@type": "Question", "name": "What material is the hinge pin made from?", "acceptedAnswer": { "@type": "Answer", "text": "The lower hinge pin is made from stainless steel for corrosion-resistant performance in marine environments." } }, { "@type": "Question", "name": "What trim tab systems is this part designed for?", "acceptedAnswer": { "@type": "Answer", "text": "The Bennett A-1114 is designed as a replacement part for Bennett actuators. Check your existing actuator model and trim tab setup to confirm compatibility before ordering." } } ] }

Bennett A-1103 Actuator Upper Hinge

Replacement actuator upper hinge for Bennett Marine trim tab actuators.

How to Replace an Actuator Upper Hinge

With trim tabs in full up position, locate the trim tab hydraulic line inside the transom.

Detach the tubing from brass elbow. Note: Some oil will drip out.

While holding pipe nipple with vise grips, unscrew brass elbow.

Outside the transom, snap white plastic clip on shaft protruding from the bottom of the cylinder.

Grab the body of the cylinder with both hands and unscrew counter clockwise from actuator cap.

Screw new cap onto cylinder. Tighten cap hand tight. Remove plastic cap. The white plastic clip can now be discarded.

Detach old cap from transom. Remove pipe nipple.

Screw pipe nipple back into new actuator cap. Tighten hand tight.

Tighten on full turn past hand tight, but no more.

Cover end of pipe nipple with masking tape. Apply sealant on actuator cap surface around pipe nipple and screw holes.

Secure actuator cap to transom with mounting screws.

Grasp cylinder with both hands and tighten (clockwise) securely.

Inside transom, wrap Teflon around male thread of pipe nipple protruding from inside of transom.

Hold pipe nipples stationary with vise grips and attach 90 degree elbow.

Re-attach hydraulic tubing with a 1/2" wrench.

Test actuator before launching boat.

Information sourced from Bennett Marine.

Click to Download Bennett Actuator Upper Hinge Replacement Instructions
