Uflex USA 1500 PSI HI-PERF OB SYS FM V1

Uflex SilverSteer Universal Outboard Hydraulic Steering System

The Uflex SilverSteer hydraulic steering system is designed for high horsepower and toque applications. Coming equipped with a 1500 psi helm that offers high relief settings to offer precise steering at all torque loads. The included Silver Steer cylinder utilizes a keyed bullhorn design for maximum rigidity when dealing with peak torque loads. Constructed with stainless steel connection bolts for extreme resistance in marine environments. This high performance hydraulic boat steering system is ideal for bass boats, flat boats, and tournament fishing boats.

Product Features:

Ultrabolt

High HP/Torque Application

Hardware Included

Integrated Relief Valve

Hydraulic Cylinder Specifications:

Volume: 120cc - 7.3 cu. in.

Output Force: 992 lbs (450 kg)

Internal Diameter: 1.37" (35 mm)

Stroke: 7.28" (185mm)

High Pressure Hose Fittings: 3/8"

Bleed Fittings: DN5 Quick Connect

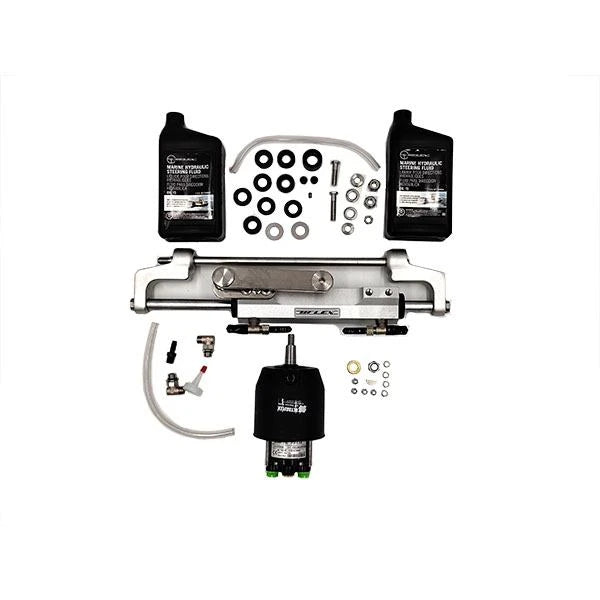

Includes:

UC128-SVS/1 Hydraulic Cylinder

2 Quarts Hydraulic Steering Oil

UP25F-SVS Helm

Application:

Mercury/Mariner

115/125/150 EFI 2S 1990 - 2007

225/250 EFI 2S 2000 - 2007

135/150/175 Optimax 1999 - 2018

200/225/250 Optimax 1999 - 2018

Racing 300 Optimax 1999 - 2011

250 Saltwater EFI 4S 2007 -2011

135/150/175/200 Verado L4 2004 - 2012

175/200 V6 4S 2018 - Present

225/300 V6 4S 2018 - Present

Yamaha

F115/F150 EFI 4S 2000 - 2008

F115/F150/F75/F200 L4 2002 - 2007

F350 V8 4S 2006 - Present

Honda

BF135/BF150 2005 - Present

BF150 V-Tec 4S 2001 - Present

BF175/BF200/BF225/BF250 4S 2001 - Present

Suzuki

DF100/115/140 4S 2008 - Present

DF150/175/DF2200 L4 4S 2006 - Present

Tohatsu

70/90/115 TLDI 4S 2004 - Present

BFT 115/150/200/225/250 4S 2014 - Present

BFT60/75/90 2015 - Present

Johnson

BJ90/115/140 4S 2001 - 2007

Frequently Asked Questions

• What is the Uflex SilverSteer Universal Outboard Hydraulic Steering System? The Uflex SilverSteer Universal Outboard Hydraulic Steering System is a high-performance hydraulic boat steering system designed for high horsepower and torque applications. It includes a 1500 psi helm with high relief settings, a Silver Steer hydraulic cylinder with a keyed bullhorn design, and stainless steel connection bolts for resistance in marine environments.
• What boats is the Uflex SilverSteer hydraulic steering system designed for? The Uflex SilverSteer hydraulic steering system is designed for high horsepower and torque applications and is ideal for bass boats, flat boats, and tournament fishing boats. Its listed applications cover selected outboard engines from Mercury/Mariner, Yamaha, Honda, Suzuki, Tohatsu, and Johnson.
• Which outboard engines are compatible with the Uflex SilverSteer system? The listed applications include selected Mercury/Mariner, Yamaha, Honda, Suzuki, Tohatsu, and Johnson outboards. Coverage varies by engine model and year, including engines such as Mercury Verado, Optimax, Yamaha F-Series, Honda BF-Series, Suzuki DF-Series, Tohatsu BFT models, and Johnson BJ models. Verify your exact engine model and year against the application list before purchase.
• What hydraulic cylinder is included with the Uflex SilverSteer system? The system includes a UC128-SVS/1 hydraulic cylinder with 120cc (7.3 cu. in.) volume, 992 lbs. (450 kg) output force, a 1.37-inch (35 mm) internal diameter, and a 7.28-inch (185 mm) stroke. It uses 3/8-inch high-pressure hose fittings and DN5 quick-connect bleed fittings.
• What is included with the Uflex SilverSteer hydraulic steering system? The Uflex SilverSteer system includes one UC128-SVS/1 hydraulic cylinder, two quarts of hydraulic steering oil, and one UP25F-SVS helm. Hardware is also listed as included, and the system features an integrated relief valve and Ultrabolt.
• What features does the Uflex SilverSteer system provide for high-torque steering applications? The system uses a 1500 psi helm with high relief settings for precise steering a…
