Uflex USA G86 Single Standard Rack Steering Helm

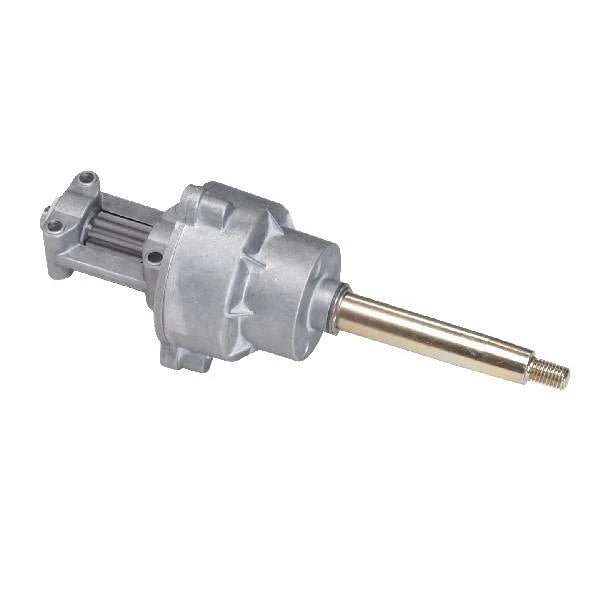

UFlex G86 Single Standard Rack Steering Helm

This single cable rotary steering helm is designed for easy installation and minimal feedback. Constructed with stainless steel cable output ends and corrosion resistant materials for a long working life. The G86 is not for use on boats where the engines equipped exceed the max horsepower rating of the boat.

UFlex rack and pinion steering systems are generally used on boats where the space between the steering helm and drivers knees is limited. Particularly common on ski boats where the freeboard of the boats tend to be smaller. RackTech is also ideal for boats with minimal clearance behind the dash recommended for power assisted sterndives and other applications with minimal rudder torque.

Product Features:

3/4" Tapered Shaft

RackTech

Stainless Steel Cable Output Ends

Corrosion Resistant Materials

Exceeds EN 28848 & ABYC P17 Safety Standards

Specifications:

Installation: 90° or 20°

TM86 Stroke: 8.2"

Lock-to-Lock Steering Wheel Turns: Approx. 3.5

Max. Steering Wheel Diameter: 16.52"

Min. Steering Cable Bend Radius: 7.9"
