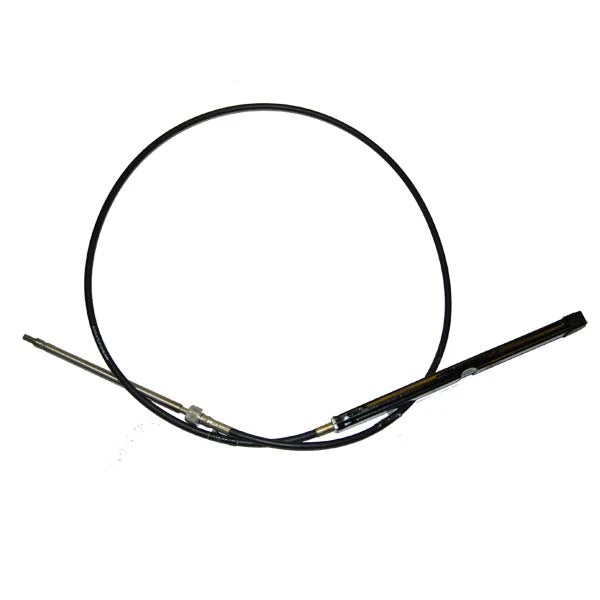

Teleflex Marine Rack SSC134 Back Mount Mechanical Steering Cable

SeaStar Rack SSC134 Back Mount Mechanical Steering Cable by Dometic

Upgrade the new back mount rack to dual cable steering with only a single cable change. Upgrading your steering cable allows for improved control, reduced cable play, and a more enjoyable captaining experience. This SeaStar steering cable is a natural option at an economical price through Wholesale Marine.

Direct replacement for Teleflex Marine SSC134 series original factory steering cables. SeaStar Solutions replaced Teleflex Marine and has been acquired by Dometic Group.

Fits: SH5210P, SH5230P (NFB), SH91610P, & SH91630P (NFB). Does NOT fit SH5097/SH5098

How to Measure Steering Cables “Measure Twice. Order Once.”

Replacement of Existing Cable: If possible, find the part number stamped on the plastic jacket of the old cable. If you removed the old cable, measure for the replacement cable as follows:

For Rack Steering Cable Replacement, Measure Existing Cable as follows: Measure plastic cable jacket (“Y” dimension shown in above drawing) in inches, add 30″, and round up to next foot. Order that length cable.

New Installation: Measure cable routing path from wheel center line to engine connection, as follows: A = Center line of wheel to gunwale (or deck, if routed downward), B = Dash to transom, C = Gunwale to centerline of cable connection at centered tiller.

For Cable Installations through the Engine Tilt Tube: Add A, B & C + 6″, then round up to the next foot. Order that length cable.

For Cables Mounted to Transom, Splashwell or Stringer: Add A, B & C, then subtract 6″ and round up to the next foot. Order that length cable.

TYPICAL SINGLE STATION ROUTING

A single-cable, starboard drive push-pull mechanical cable system is shown in this diagram. If your mechanical system is different than the one depicted and/or you have any questions about mechanical steering after reviewing this guide, please contact Dometic (Mechanical) Technical Service at (610)-495-7011 or www.dometic.com

Cable routings (such as those found on pontoon boats) may vary from this drawing. Confirm length by laying a garden hose or similar object) along cable path and measure run from wheel to engine connection point.

Frequently Asked Questions

• What is the SeaStar Rack SSC134 Back Mount Mechanical Steering Cable by Dometic used for? The SeaStar Rack SSC134 Back Mount Mechanical Steering Cable is a replacement steering cable for compatible back-mount rack steering systems. It can also be used to upgrade a new back-mount rack to dual cable steering with a single cable change, helping reduce cable play and improve steering control.
• What steering systems does the SeaStar SSC134 steering cable fit? The SeaStar SSC134 cable fits the SH5210P, SH5230P NFB, SH91610P, and SH91630P NFB back-mount rack helm systems. It does not fit the SH5097 or SH5098. Verify your helm model before ordering to confirm compatibility.
• Is the SeaStar Rack SSC134 a replacement for Teleflex SSC134 series cables? Yes. The SeaStar Rack SSC134 Back Mount Mechanical Steering Cable is identified as a direct replacement for Teleflex Marine SSC134 series original factory steering cables. SeaStar Solutions replaced Teleflex Marine and was subsequently acquired by Dometic Group.
• How do I determine the correct length for a replacement SeaStar SSC134 steering cable? For an existing rack cable, measure the plastic cable jacket in inches, add 30 inches, and round up to the next foot. For a new installation, measure dimensions A, B, and C along the cable route. Add 6 inches for tilt-tube installations or subtract 6 inches for transom, splashwell, or stringer-mounted cables, then round up to the next foot.
• How should I measure a SeaStar SSC134 cable for a new installation? Measure from the steering wheel center line to the engine connection. Dimension A runs from the wheel center line to the gunwale or deck, B measures from the dash to the transom,…
