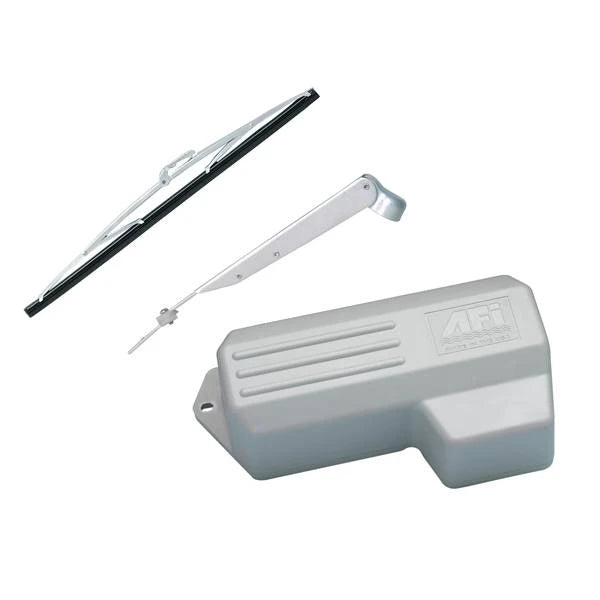

AFI 1000 Wiper Kit 2.5"/80 Deg-12V

AFI 1000 Wiper Kit - 80 Degree Sweep Set

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree

0.625" diameter shaft (16 mm)

12 volt heavy-duty motor with anti-rotation drive shaft

Knurled drive shaft and solid brass arm drive nut

Coast to park with adjustable right or left self parking

Retail version includes 5 amp fuse and holder (on/off switch not included)

RF shielded circuitry

Weight: 1.75 lbs

Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)

Measures approximately 6.625" L x 3.375"W x 2" D

Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)

Stall current: 9.8-10.0 amps

No load current: 0.8-1.2 amps

Frequently Asked Questions

• What is the AFI 1000 Wiper Kit - 80 Degree Sweep Set used for? The AFI 1000 Wiper Kit - 80 Degree Sweep Set is a 12-volt marine wiper motor system designed to power 18-inch Deluxe arm and blade combinations at an 80-degree or smaller sweep. It can also operate 16-inch Deluxe arm and blade combinations with a 110-degree sweep.
• What sweep angles can the AFI 1000 Wiper Motor use? The AFI 1000 Wiper Motor comes factory preset for an 80-degree or 110-degree sweep and can be adjusted to 50, 65, 80, or 110 degrees. The 80-degree configuration is designed for an 18-inch Deluxe arm and blade combination, while the 110-degree setting supports a 16-inch combination.
• What are the electrical specifications of the AFI 1000 Wiper Kit? The AFI 1000 Wiper Motor operates on 12 volts and has a stall torque of 55 in-lbs, stall current of 9.8 to 10.0 amps, and no-load current of 0.8 to 1.2 amps. The retail version also includes a 5-amp fuse and holder, but an on/off switch is not included.
• Does the AFI 1000 Wiper Motor have adjustable parking? Yes. The AFI 1000 Wiper Motor features coast-to-park operation with adjustable right- or left-side self-parking. This allows the motor's parking position to be configured for the desired side.
• What shaft lengths are available for the AFI 1000 Wiper Kit? The AFI 1000 Wiper Kit is available with either a 1.5-inch or 2.5-inch shaft length. The listed shaft length includes 0.5 inch of knurled arm fitting. The motor has a 0.625-inch (16 mm) diameter shaft and measures approximately 6.625 inches long by 3.375 inches wide by 2 inches deep.
