Maxwell Windlass Vert Windlass 5/16 & 5/8" Rode To 33'

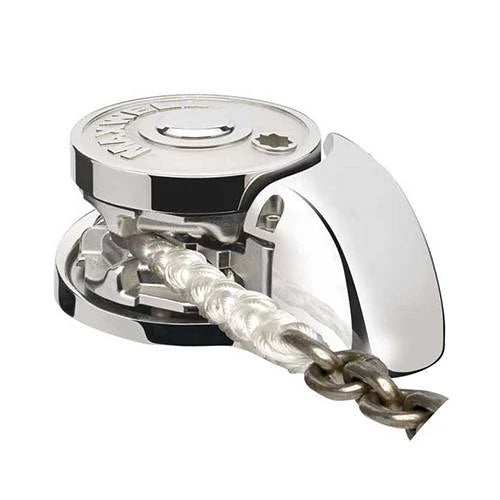

Maxwell Marine RC8 Vertical Windlass

The all new stainless steel RC8 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 6mm/7mm (1/4”) chain spliced to 12mm (1/2”) three strand or 8-brait (plait) rope. The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters.

Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.

The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the RC8 Series. This patented rope. Chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

The RC8 features Maxwell’s revolutionary, and patented, new Wave Design™ chainwheel.

The RC8 works just as effectively with all-chain rodes.

Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Full disassembly capability of the topworks, utilizing only the handle provided and an Allen key.

Manual override and Free Fall, using the emergency crank/clutch handle provided.

Sealed oil bath and marine-grade hard anodized alloy gearbox provides maximum output via a precision worm and worm wheel.

Specifications:

Maximum Pull  1320 lbs.

Static Hold  2640 lbs.

Chain Short Link  8 mm – 5/16’’

Rope Size (3 strand or 8 plait)  14 mm - 9/16’’ 16 mm – 5/8’’

Chain Speed  92 ft/min

Rope Speed  105 ft/min

Power Supply  12V, 24V, or 48 VDC

Motor Power  1000W

Kit Includes:

RC8 Windlass

Dual direction solenoid pack

Circuit breaker / isolator panel

Up/down remote control panel

Emergency crank / clutch release handle

Frequently Asked Questions

• What is the Maxwell Marine RC8 Vertical Windlass used for? The Maxwell Marine RC8 Vertical Windlass is a fully automatic rope and chain windlass designed to retrieve and deploy anchor rode. It is designed for 6mm/7mm (1/4") chain spliced to 12mm (1/2") three-strand or 8-plait rope, while also working effectively with all-chain rodes.
• What chain and rope sizes does the Maxwell Marine RC8 Vertical Windlass support? The RC8 is specified for 8mm (5/16") short-link chain and 14mm (9/16") to 16mm (5/8") three-strand or 8-plait rope. The product description also describes operation with 6mm/7mm (1/4") chain spliced to 12mm (1/2") rope.
• What is the Wave Design chainwheel on the Maxwell Marine RC8? The patented Wave Design chainwheel is designed to accommodate a range of chain pitch differences within the specified chain sizes. Its angled outer ribs help guide the rope and chain smoothly into the wheel during anchor retrieval, improving handling of the rope and chain splice.
• Does the Maxwell Marine RC8 have manual override and free fall? Yes. The RC8 features manual override and free fall using the supplied emergency crank and clutch handle. The topworks can also be fully disassembled using the provided hand…
