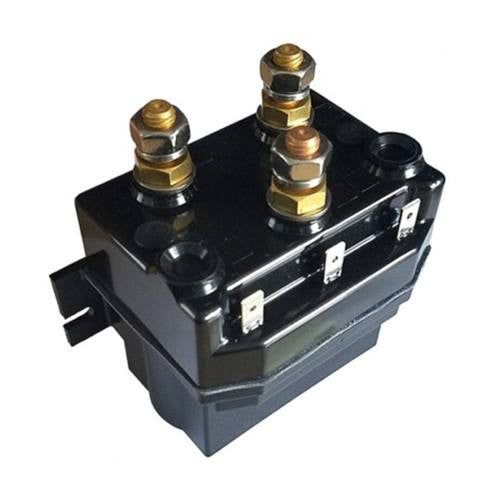

Maxwell Marine SP5104 Reversing Solenoid 12V

Used in conjunction with remote up/down panel, Auto Anchor™ 500C/RC, roving hand held remote control and/or foot switches to switch the motor in the required direction.

Features:

Dual direction solenoid

Heavy-duty solenoids, rated at more than 200 amps continuous

Optional ignition protected solenoids available

Sealed in a weather proof box

Installation in a dry area is always recommended

Formerly part # P19045

Maxwell Marine SP5104 Reversing Solenoid

Frequently Asked Questions

• What is the Maxwell Marine SP5104 Reversing Solenoid 12V used for? The Maxwell Marine SP5104 Reversing Solenoid 12V is used to switch a motor in the required direction. It is designed for use with a remote up/down panel, Auto Anchor 500C/RC, roving handheld remote control, and/or foot switches.
• What type of solenoid is the Maxwell SP5104? The Maxwell SP5104 is a dual-direction solenoid designed to switch the motor between its required operating directions. Its heavy-duty solenoids are rated at more than 200 amps continuous.
• Is the Maxwell SP5104 Reversing Solenoid weatherproof? Yes. The Maxwell SP5104 is sealed in a weatherproof box. Despite the sealed enclosure, the product description recommends installing the solenoid in a dry area whenever possible.
• Are ignition-protected solenoids available for the Maxwell SP5104? Optional ignition-protected solenoids are available for the Maxwell SP5104. The supplied product description does not provide additional specifications or application details for the optional ignition-protected versions.
• What controls can be used with the Maxwell SP5104 Reversing Solenoid? The Maxwell SP5104 can be used in conjunction with a remote up/down panel, Auto Anchor 500C/RC, roving handheld remote control, and/or foot switches. These controls are used to switch the motor in the required direction.
• What was the previous part number for the Maxwell SP5104? The Maxwell Marine SP5104 Reversing Solenoid 12V was formerly identified as part number P19045. Verify the part number and compatibility with your equipment before selecting this component.

Maxwell PM 12V Solenoid Pack

Maxwell Marine 12V heavy duty solenoid pack.

Frequently Asked Questions

• What is the Maxwell PM 12V Solenoid Pack? The Maxwell PM 12V Solenoid Pack is a heavy-duty 12-volt solenoid pack from Maxwell Marine. It is designed for applications requiring a 12V solenoid pack, with the product description specifically identifying it as a heavy-duty component.
• What voltage does the Maxwell PM 12V Solenoid Pack use? The Maxwell PM 12V Solenoid Pack is designed for 12-volt applications. Verify that your marine equipment or electrical system requires a 12V solenoid before purchasing or installing this component.
• Is the Maxwell PM 12V Solenoid Pack a heavy-duty component? Yes. The product description identifies the Maxwell PM 12V Solenoid Pack as a heavy-duty solenoid pack. No additional performance ratings, compatibility information, or application specifications are provided in the description.
• What should I verify before using the Maxwell PM 12V Solenoid Pack? Verify that your application requires a 12V solenoid pack and that the component is appropriate for your specific marine equipment. The supplied product description does not provide equipment compatibility, installation instructions, electrical ratings, or other fitment details, so consult the applicable equipment documentation before installation.

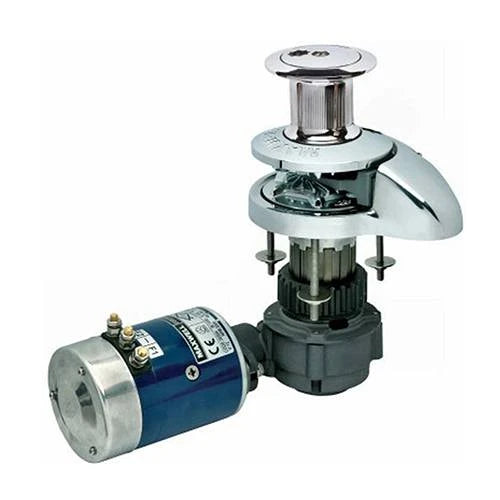

Maxwell Marine RC8 Windlass w/ Capstan - 5/16" & 5/8" Rode - Up to 33'

The all new stainless steel RC8 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 69/16" chain spliced to 5/8" three strand or 8-brait (plait) rope. The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters.

Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.

The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the RC8 Series. This patented rope. Chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

The RC8 features Maxwell’s revolutionary, and patented, new Wave Design™ chainwheel.

The RC8 works just as effectively with all-chain rodes.

Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Full disassembly capability of the top works utilizing only the handle provided and an Allen key.

Manual override and Free Fall, using the emergency crank/clutch handle provided.

Sealed oil bath and marine-grade hard anodized alloy gearbox provides maximum output via a precision worm and worm wheel.

Specifications:

Maximum Pull  1320lbs.

Static Hold  2640 lbs.

Chain Short Link  5/16"" (8mm)

Rope Size (3 strand or 8 plait)  9/16" - 5/8"  (14mm-16mm)

Chain Speed  105 ft/min

Rope Speed  92 ft/min

Power Supply  12V or 24V

Motor Power  1000W

Frequently Asked Questions

• What is the Maxwell Marine RC8 Windlass w/ Capstan designed for? The Maxwell Marine RC8 Windlass w/ Capstan is a fully automatic rope/chain windlass designed for boats up to 33 feet. It is built to retrieve and deploy a rope/chain spliced rode and features a stainless steel pressure arm, Wave Design™ chainwheel, and marine-grade hard anodized alloy gearbox.
• What rope and chain sizes are compatible with the Maxwell Marine RC8 Windlass? The RC8 is specified for 5/16-inch (8mm) short-link chain and 9/16- to 5/8-inch (14-16mm) three-strand or 8-plait rope. Its Wave Design™ chainwheel is designed to accommodate a range of chain pitch differences within the specified chain size.
• Can the Maxwell Marine RC8 Windlass be used with an all-chain rode? Yes. The product description states that the RC8 works effectively with all-chain rodes as well as rope/chain spliced rodes. Its large through-deck hawse pipe throat is designed to provide easy entry of the rode into and out of the anchor locker.
• Does the Maxwell Marine RC8 have manual override and free-fall operation? Yes. The RC8 includes manual override and free-fall capability using the supplied emergency crank/clutch handle. The topworks can also be fully disassembled using the provided handle and an Allen key.
• What are the pulling and operating specifications of the Maxwell Marine RC8 Windlass? The RC8 has a maximum pull of 1,320 lb and a static hold of 2,640 lb. Its cha…

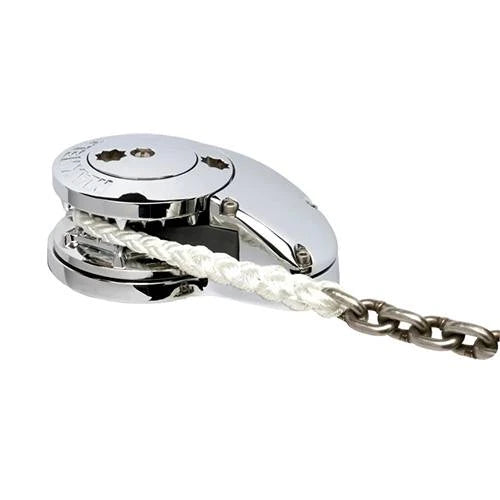

Maxwell Marine RC8 Vertical Windlass

The all new stainless steel RC8 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 6mm/7mm (1/4”) chain spliced to 12mm (1/2”) three strand or 8-brait (plait) rope. The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters.

Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.

The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the RC8 Series. This patented rope. Chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

The RC8 features Maxwell’s revolutionary, and patented, new Wave Design™ chainwheel.

The RC8 works just as effectively with all-chain rodes.

Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Full disassembly capability of the topworks, utilizing only the handle provided and an Allen key.

Manual override and Free Fall, using the emergency crank/clutch handle provided.

Sealed oil bath and marine-grade hard anodized alloy gearbox provides maximum output via a precision worm and worm wheel.

Specifications:

Maximum Pull  1320 lbs.

Static Hold  2640 lbs.

Chain Short Link  8 mm – 5/16’’

Rope Size (3 strand or 8 plait)  14 mm - 9/16’’ 16 mm – 5/8’’

Chain Speed  92 ft/min

Rope Speed  105 ft/min

Power Supply  12V, 24V, or 48 VDC

Motor Power  1000W

Kit Includes:

RC8 Windlass

Dual direction solenoid pack

Circuit breaker / isolator panel

Up/down remote control panel

Emergency crank / clutch release handle

Frequently Asked Questions

• What is the Maxwell Marine RC8 Vertical Windlass used for? The Maxwell Marine RC8 Vertical Windlass is a fully automatic rope and chain windlass designed to retrieve and deploy anchor rode. It is designed for 6mm/7mm (1/4") chain spliced to 12mm (1/2") three-strand or 8-plait rope, while also working effectively with all-chain rodes.
• What chain and rope sizes does the Maxwell Marine RC8 Vertical Windlass support? The RC8 is specified for 8mm (5/16") short-link chain and 14mm (9/16") to 16mm (5/8") three-strand or 8-plait rope. The product description also describes operation with 6mm/7mm (1/4") chain spliced to 12mm (1/2") rope.
• What is the Wave Design chainwheel on the Maxwell Marine RC8? The patented Wave Design chainwheel is designed to accommodate a range of chain pitch differences within the specified chain sizes. Its angled outer ribs help guide the rope and chain smoothly into the wheel during anchor retrieval, improving handling of the rope and chain splice.
• Does the Maxwell Marine RC8 have manual override and free fall? Yes. The RC8 features manual override and free fall using the supplied emergency crank and clutch handle. The topworks can also be fully disassembled using the provided hand…

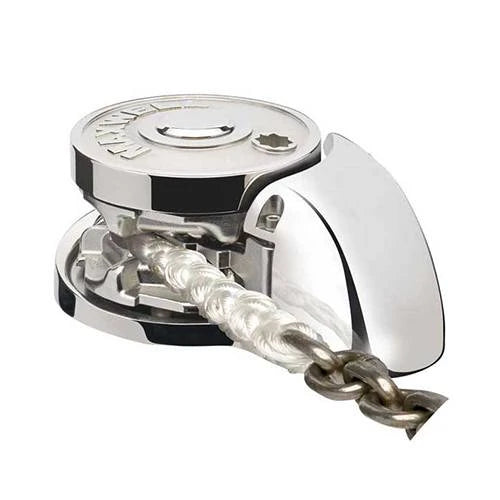

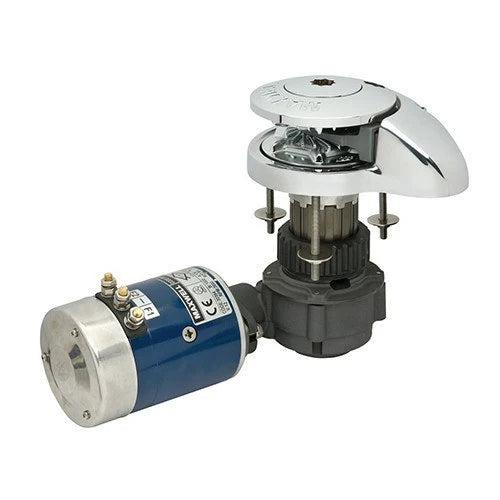

Maxwell Marine RC8 Windlass - 1/4" & 1/2" Rode - Up to 32'

The all new stainless steel RC8 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 6mm/7mm (1/4”) chain spliced to 12mm (1/2”) three strand or 8-brait (plait) rope. The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters.

Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.

The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the RC8 Series. This patented rope. Chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

The RC8 features Maxwell’s revolutionary, and patented, new Wave Design™ chainwheel.

The RC8 works just as effectively with all-chain rodes.

Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Full disassembly capability of the topworks, utilizing only the handle provided and an Allen key.

Manual override and Free Fall, using the emergency crank/clutch handle provided.

Sealed oil bath and marine-grade hard anodized alloy gearbox provides maximum output via a precision worm and worm wheel.

Specifications:

Maximum Pull  770lbs.

Static Hold  2640 lbs.

Chain Short Link  1/4" (6mm/7mm)

Rope Size (3 strand or 8 plait)  1/2"  (12mm)

Chain Speed  92 ft/min

Rope Speed  79 ft/min

Power Supply  12V or 24V

Motor Power  600W

Kit Includes:

RC8 Windlass

Dual direction solenoid pack

Circuit breaker / isolator panel

Up/down remote control panel

Emergency crank / clutch release handle

Frequently Asked Questions

• What is the Maxwell Marine RC8 Windlass designed for? The Maxwell Marine RC8 Windlass is a fully automatic rope/chain windlass designed to deploy and retrieve anchor rode. It handles 6mm/7mm (1/4-inch) chain spliced to 12mm (1/2-inch) three-strand or 8-plait rope and is specified for boats up to 32 feet.
• What rope and chain sizes does the Maxwell Marine RC8 Windlass accommodate? The RC8 is designed for 1/4-inch (6mm/7mm) short-link chain and 1/2-inch (12mm) three-strand or 8-plait rope. Its Wave Design™ chainwheel accommodates a range of chain pitch differences within the specified chain diameters and is designed to improve handling of rope/chain spliced rode.
• Can the Maxwell Marine RC8 Windlass be used with an all-chain rode? Yes. The Maxwell Marine RC8 works with all-chain rodes as well as rope/chain spliced rode. Its through-deck hawse pipe throat provides an opening for the rode to move into and out of the anchor locker.
• Does the Maxwell Marine RC8 Windlass have manual override and free-fall capability? Yes. The RC8 includes manual override and free-fall functionality using the supplied emergency crank/clutch release handle. The kit also includes a dual-direction solenoid pack, circuit breaker/isolator panel, and up/down remote control panel. What a…

Maxwell Marine RC6 Vertical Windlass

The all new stainless steel RC6 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 6mm/7mm (1/4”) chain spliced to 12mm (1/2”) three strand or 8-brait (plait) rope. An inexpensive, high performance and great looking windlass; the RC6 is built for durability and years of trouble free use.

The RC6 has been designed with the smaller, trailer boat market in mind. The RC6 is a Low Profile unit.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the RC8 Series. This patented rope. Chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

The RC6 features Maxwell’s revolutionary, and patented, new Wave Design™ chainwheel.

The RC8 works just as effectively with all-chain rodes.

Every Maxwell automatic rope/chain windlass comes complete with all the necessary components for fully automatic dual direction control in a competitively priced package.

Specifications:

Maximum Pull - 770lbs.

Static Hold - 1540 lbs.

Chain Short Link - 1/4" (6mm/7mm)

Rope Size (3 strand or 8 plait) - 1/2"  (12mm)

Chain Speed - 79 ft/min

Rope Speed - 69 ft/min

Power Supply - 12V or 24V

Motor Power - 500W

Kit Includes:

RC6 Windlass

Dual direction solenoid pack

Circuit breaker / isolator panel

Up/down remote control panel

Emergency crank / clutch release handle

Maxwell Marine RC6 Vertical Windlass

Frequently Asked Questions

• What is the Maxwell Marine RC6 Vertical Windlass designed for? The Maxwell Marine RC6 Vertical Windlass is a fully automatic rope/chain windlass designed for smaller trailer boats. Its low-profile design provides powered deployment and retrieval of 1/4-inch (6mm/7mm) chain spliced to 1/2-inch (12mm) three-strand or 8-plait rope.
• What rope and chain sizes are compatible with the Maxwell Marine RC6 Windlass? The RC6 is designed for 1/4-inch (6mm/7mm) short-link chain and 1/2-inch (12mm) rope in either three-strand or 8-plait construction. Its Wave Design™ chainwheel is designed to accommodate a range of chain pitch differences within the specified chain size.
• Can the Maxwell Marine RC6 Vertical Windlass be used with an all-chain rode? Yes. The supplied product information states that the RC6 works effectively with all-chain rodes. The windlass is also designed for rope/chain spliced rode using the specified 1/4-inch chain and 1/2-inch rope sizes.
• What is the Wave Design™ chainwheel on the Maxwell Marine RC6? The Wave Design™ chainwheel is a patented Maxwell design intended to improve handling and control of rope/chain spliced rode. Its outer ribs are angled slightly forward to help guide the rope and chain smoothly into the wheel during anchor retrieval.
• What are the power and performance specifications of the Maxwell Marine RC6? The RC6 has a maximum pull of 770 lb and a static hold of 1,540 lb. Its chain speed is 79 feet per minute and rope speed is 69 feet per minute. The windlass uses a 500W motor and operates with either a 12V or 24V power supply.
• What is included with the Maxwell Marine RC6 Vertical Windlass? The RC6 kit includes the windlass, dual-direction solenoid pack, circuit breaker/isolator panel, up/down remote control panel, and emergency crank/clutch release handle. Maxwell states that its automatic rope/chain windlasses include the components needed for fully automatic dual-direction control.

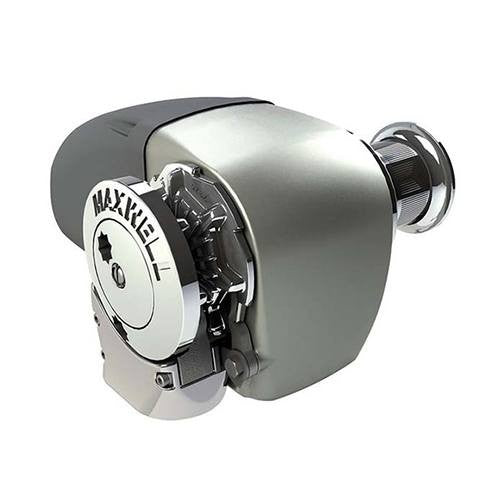

Maxwell Marine RC10 Windlass w/ Capstan - 5/16" & 5/8" - Up to 47'

Maxwell's all new HRC10 Horizontal Series represents yet another breakthrough in performance and anchor handling excellence. These horizontal, fully automatic rope/chain windlasses have been designed to meet the demands for use on larger vessels up to 52 feet, which require a completely above deck installation system. HRC10's flawlessly handle rope up to 5/8" (16 mm) and chain up to 3/8" (10 mm) in size, including the thick rope to chain splice.

The modern appearance of the HRC10 Series retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.

The two part case consists of a die cast, marine-grade hard anodized alloy front section and a rugged and easily removable composite motor cover aft section. This two piece watertight case allows for quick and easy, on-deck, routine maintenance.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series. This patented rope chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

Simple bolt down installation ensures effortless and rapid on-deck installation and set up.

The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).

The unique Maxwell wrap around™ horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.

The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.

The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Cone type clutch/brake mechanism permits manual, free fall™ anchoring and emergency crank recovery of the rode and anchor if required.

The sealed oil bath and marine-grade hard anodized, alloy gearbox provides high efficiency output drive via precision worm and worm wheel.

Specifications:

Maximum Pull 1540 lbs.

Static Hold 3300 lbs.

Chain Short Link 5/16" (8mm)

Chain Speed 79ft/min.

Rope Speed 66ft/min.

Power Supply 12V or 24V

Motor Power 1000W

Kit Includes:

RC10 Windlass w/ Capstan

Dual direction solenoid pack

Circuit breaker / isolator panel

Up/down remote control panel

Emergency crank / clutch release handle

Maxwell Marine RC10 Vertical Windlass

The all new stainless steel RC10 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 8mm (5/16”) chain and 10mm (3/8") short link chain and 14mm and 16mm (5/8") three strand or 8-brait (plait) rope. The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters. The RC10 is manufacturered from marine-grade 316 stainless steel and chromed bronze for long term durability.

Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.

The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble free bearing, thereby exerting maximum control pressure on the rode and splice.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the RC10 Series. This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

The RC10 features Maxwell’s revolutionary, and patented, new Wave Design™ chainwheel.

The RC10 works just as effectively with all-chain rodes.

Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Full disassembly capability of the top works utilizing only the handle provided and an Allen key.

Manual override and Free Fall, using the emergency crank/clutch handle provided.

Sealed oil bath and marine-grade hard anodized alloy gearbox provides maximum output via a precision worm and worm wheel.

Specifications:

Maximum Pull - 1320lbs.

Static Hold - 2640 lbs.

Chain Short Link - 5/16" (8mm)

Rope Size (3 strand or 8 plait) - 9/16" - 5/8" (14mm - 16mm)

Chain Speed - 105 ft/min

Rope Speed - 92 ft/min

Power Supply - 12V or 24V

Motor Power - 1000W

Kit Includes:

RC10 Windlass

Dual direction solenoid pack

Circuit breaker / isolator panel

Up/down remote control panel

Emergency crank / clutch release handle

Frequently Asked Questions

• What is the Maxwell Marine RC10 Vertical Windlass designed for? The Maxwell Marine RC10 Vertical Windlass is a fully automatic rope/chain windlass designed to deploy and retrieve anchor rode. It is manufactured from marine-grade 316 stainless steel and chromed bronze and is designed for use with the specified chain and rope sizes.
• What rope and chain sizes are compatible with the Maxwell Marine RC10 Windlass? The RC10 is specified for 5/16-inch (8mm) short-link chain and 9/16- to 5/8-inch (14mm-16mm) three-strand or 8-plait rope. The product description also references 10mm (3/8-inch) short-link chain, so verify your specific chain size before installation.
• Can the Maxwell Marine RC10 Vertical Windlass be used with an all-chain rode? Yes. The Maxwell Marine RC10 is designed to work with all-chain rodes as well as rope/chain spliced rode. Its large through-deck hawse pipe throat is designed to provide easy entry and exit for the rope/chain rode into and o…

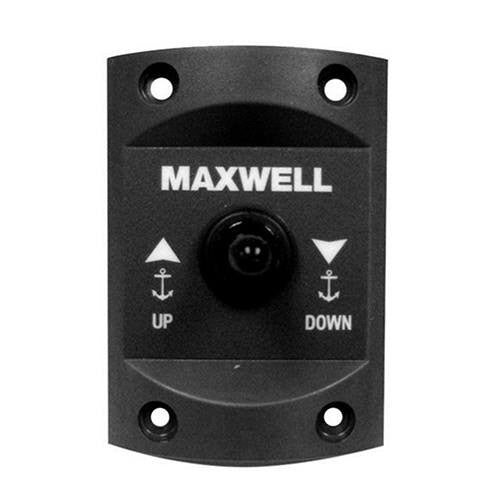

Maxwell Marine Up/Down Anchor Switch

Easy to use panel-mounted Up/Down switch for remote windlass operation from the helm, flying bridge or cockpit. Available for use with dual-directional solenoids.

Features:

Manufactured from marine-grade materials.

Splash proof.

Includes power indicator light and back lighting.

Suitable for use with DC 12V or 24V dual-directional solenoids.

Maxwell Marine Up/Down Anchor Switch

Maxwell Marine Up/Down Anchor Switch

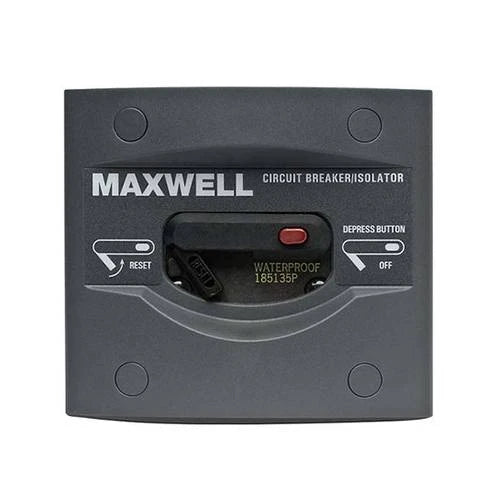

Maxwell Marine 135 AMP Breaker/Isolator Panel

Maxwell circuit breaker/isolator panels are available to suit a wide range of windlasses and capstans.

Features:

For protection of the main conductor circuit for DC winches

Mount as close as possible to the battery power source to ensure protection against short circuit and to reduce the risk of DC motor burn-out in the event of winch overloading

Enables the battery, or electrical supply, to be isolated when winch is not in use

Suitable for 12V or 24V DC systems

Maxwell Marine 135 AMP Breaker/Isolator Panel

Maxwell Marine 135 AMP Breaker/Isolator Panel

Maxwell Marine 80 AMP Breaker/Isolator Panel

Maxwell circuit breaker/isolator panels are available to suit a wide range of windlasses and capstans.

Features:

For protection of the main conductor circuit for DC winches

Mount as close as possible to the battery power source to ensure protection against short circuit and to reduce the risk of DC motor burn-out in the event of winch overloading

Enables the battery, or electrical supply, to be isolated when winch is not in use

Suitable for 12V or 24V DC systems

Maxwell Marine 80 AMP Breaker/Isolator Panel

Maxwell Marine 80 AMP Breaker/Isolator Panel

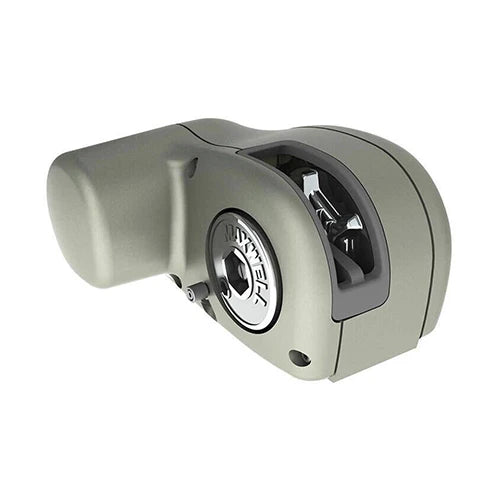

Maxwell Marine HRC FF-8 Horizontal Windlass

The new HRC FF are packed with original and proven features including patented rode management technology developed by Maxwell. Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance. Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design.

Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection. Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation.

Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass Free Fall lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the free fall device automatically disengages allowing you to power up your anchor. Emergency free fall function in the event of onboard power failure. Activated by the supplied, emergency Free Fall lever.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series. This patented rope/ chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.

Simple bolt down installation ensures effortless and rapid on-deck installation and set up.

High efficiency spur gearbox incorporating a robust non-backwind mechanism.

High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch.

Revolutionary new chainwheel.

Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation.

Specifications:

Maximum Pull 900 lbs.

Static Hold 1540 lbs.

Chain Short Link 5/16" (8mm)

Line Speed  108 ft/min

Power Supply 12V or 24V

Motor Power 600W

Kit Includes:

Windlass

Dual direction solenoid pack

Circuit breaker / isolator panel

Up/down remote control panel

Emergency crank / clutch release handle

Motor & Gearbox

Frequently Asked Questions

• What is the Maxwell Marine HRC FF-8 Horizontal Windlass designed for? The Maxwell Marine HRC FF-8 Horizontal Windlass is designed for powered deployment and retrieval of rope and chain anchor rode. Its above-deck design houses the motor and drive in a watertight case, while the enclosed pressure arm system is designed to provide smooth rope-to-chain rode transition.
• What chain size is compatible with the Maxwell Marine HRC FF-8? The Maxwell Marine HRC FF-8 is specified for 5/16-inch (8mm) short-link chain. Its Wave Design™ chainwheel is designed to accommodate a range of chain pitch differences within the specified chain diameter while helping guide the rope and chain smoothly during anchor retrieval.
• How does the automatic free-fall feature work on the Maxwell Marine HRC FF-8? To use automatic free-fall, activate the windlass Free Fall lever and operate the down control from the helm station or footswitch. When the up control is activated, the free-fall device automatically disengages so the anchor can be powered up. An emergency free-fall function is also provided for onboard power failure.
• What are the pulling and line-speed specifications of the Maxwell Marine HRC FF-8? The HRC FF-8 has a maximum pull of 900 lb and a static hold of 1,540 lb. Its specified line speed is 108 feet per minute. The windlass uses a 600W motor and can operate with either a 12V or 24V power supply. How is the…

Maxwell Marine HRC10-10 Horizontal Windlass

Maxwell's all new HRC10 Horizontal Series represents yet another breakthrough in performance and anchor handling excellence. These horizontal, fully automatic rope/chain windlasses have been designed to meet the demands for use on larger vessels up to 52 feet, which require a completely above deck installation system. HRC10's flawlessly handle rope up to 5/8" (16 mm) and chain up to 3/8" (10 mm) in size, including the thick rope to chain splice.

The modern appearance of the HRC10 Series retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.

The two part case consists of a die cast, marine-grade hard anodized alloy front section and a rugged and easily removable composite motor cover aft section. This two piece watertight case allows for quick and easy, on-deck, routine maintenance.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series. This patented rope chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

Simple bolt down installation ensures effortless and rapid on-deck installation and set up.

The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).

The unique Maxwell wrap around™ horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.

The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.

The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Cone type clutch/brake mechanism permits manual, free fall™ anchoring and emergency crank recovery of the rode and anchor if required.

The sealed oil bath and marine-grade hard anodized, alloy gearbox provides high efficiency output drive via precision worm and worm wheel.

Specifications:

Maximum Pull - 1870 lbs.

Static Hold - 3300 lbs.

Chain Short Link - 3/8" (10mm)

Chain Speed - 79ft/min.

Rope Speed - 66ft/min.

Power Supply - 12V or 24V

Motor Power - 1200W

Kit Includes:

Windlass

Circuit Breaker

Helm Switch

Dual Solenoid

Emergency Crank

Important: Maxwell windlasses must be used in conjunction with a chain stopper or alternative snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.

Frequently Asked Questions

• What is the Maxwell Marine HRC10-10 Horizontal Windlass designed for? The Maxwell Marine HRC10-10 Horizontal Windlass is a fully automatic rope/chain windlass designed for larger vessels up to 52 feet that require a completely above-deck installation. It is designed to handle rope up to 5/8 inch (16mm) and chain up to 3/8 inch (10mm), including the rope-to-chain splice.
• What rope and chain sizes are compatible with the Maxwell Marine HRC10-10? The HRC10-10 is designed for rope up to 5/8 inch (16mm) and 3/8-inch (10mm) short-link chain. Its Wave Design™ chainwheel is designed to accommodate a range of chain pitch differences within the specified chain diameters and helps guide the rope and chain during retrieval.
• Can the Maxwell Marine HRC10-10 be used with an all-chain anchor rode? Yes. The Maxwell Marine HRC10-10 works with all-chain rodes as well as r…
