Lighting

Attwood Replacement Stern Light Frosted Globe

This replacement stern light frosted globe is designed as an easy way to replace a broken or discolored globe stern light.

Attwood LED Docking Lights

These Attwood docking lights feature ultra bright LED lights that cast light in a 120° beam. Ideal for docking, spotting dock cleats, and safely traversing the dock at night these lights produce super bright light while remaining cool to touch. Constructed from high grade stainless steel housing with a black powder coat for outstanding corrosion resistance in marine environments. All electrical components are fully sealed to ensure the light is completely watertight. Less than 1" thick these lights are intended to be mounted directly to the surface of the hull with only a small hole for the 4" lead wires. Each light requires 5W at 12VDC, a fraction of the power required by other lights.

Product Features:

Bright LED Lights

Sold in Pair

4" Lead Wires

Easy to Install

Black Powder Coat

Watertight

120° Light Beam

Attwood Stainless LED Docking Lights

These Attwood docking lights feature ultra bright LED lights that cast light in a 120° beam. Ideal for docking, spotting dock cleats, and safely traversing the dock at night these lights produce super bright light while remaining cool to touch. Constructed from high grade stainless steel housing with aluminum components for outstanding corrosion resistance in marine environments. All electrical components are fully sealed to ensure the light is completely watertight. Less than 1" thick these lights are intended to be mounted directly to the surface of the hull with only a small hole for the 4" lead wires. Each light requires 5W at 12VDC, a fraction of the power required by other lights.

Product Features:

Bright LED Lights

4" Lead Wires

Sold in Pair

Easy to Install

Watertight

120° Light Beam

Attwood Vertical Boat Transom Navigation Light w/ Flush Mount

This Attwood Vertical Boat Transom Navigation Light w/ Flush Mount features a translucent body made up of 304 stainless steel with a plastic body and watertight lamp socket. It provides 2-mile, 135 degree transom visibility and includes one 7.5-watt lamp and two stainless steel #10 screws. Designed for pleasure craft up to 164 ft. (50 meters) in length, this boat transom navigation light features a rubber gasket that seals the lens and body to the mounting surface.

Features:

304 Stainless Steel With A Plastic Body and Watertight Lamp Socket

Translucent Body

Rubber Gasket Seals Lens and Body To Mounting Surface

Provides 2-Mile, 135 Degree Transom Visibility

Includes One 7.5-Watt Lamp and Two Stainless Steel #10 Screws

For Pleasure Craft Up To 164 ft. (50 Meters) In Length

Meets USCG CFR 183.810, ABYC A-16 Requirements, and All Applicable Standards

Specifications:

3" Diameter

Click to Download Attwood 6356D7 Installation Instructions

Attwood 4" LED Utility Light

This Attwood utility light is 4" long and features six ultra bright white LED's. The 12V cabin light is ideal for marine environments boasting water resistance and a low power draw. This easy to install boat light features a surface mount design and comes with the required hardware for installation.

Product Features:

6 Ultra Bright White LEDs

Water Resistant

Low Power Draw

Surface Mount Design

Attwood LightArmor All-Round Navigation Light

Designed for installation on wakeboard tower, radar arch, hard top, poling platform, tuna tower or other fixed structure. Direct LED replacement for Attwood's incandescent 5940 series. For pleasure craft up to 39.4 ft (12m).

1.8 watts watt draw at 12VDC - the lowest power draw of any two-mile all-round light on the market today

Two-mile, 360° visibility

Fully sealed electronics

Tab release

2 1/4" W x 2"H

Attwood Folding All-Round Anti-Glare Boat Navigation Light

This Attwood Folding Anti-Glare Boat Navigation Light is built to last in the harsh marine environments with its non-corrosive materials and glass-filled polymer bases. It features a fold-down base that allows the light to swing 180° and can be mounted on both horizontal and vertical mounts. All of the wiring is concealed and protected within the pivoting base. In extreme conditions, if a 12ft./lb. force hits the base, the cam lock releases and allows base to swing down, reducing the chance of breakage to the base or pole. With a two mile, 360° light visibility, this anti-glare boat navigation light is for use on boats up to 39.4 ft.

Features:

Fold-Down Base That Allows The Light To Swing 180°

All Wiring Is Concealed and Protected Within The Pivoting Base

Has Two Mile, 360° Visibility

For Use On Boats Up To 39.4 ft.

Comes With A 12" Black Plastic Pole

Built To Last In Harsh Marine Environments

Can Be Mounted On Both Horizontal and Vertical Mounts

Non-Corrosive Materials

Glass-Filled Polymer Base

Includes a 9-Watt Wedge Base Lamp

Includes Mounts

Specifications:

Visibility: Two Mile, 360° Visibility

Installation Instructions

HOW TO INSTALL ATTWOOD FOLDING ALL-ROUND ANTI-GLARE LIGHT

Installation

Choose a position near the transom that is accessible to wiring and has clearance below deck.

Place base on the gunwale or deck. At desired location, be sure there I room to rotate the cover. Mark position for the 1-3/8” socket hole.

Remove base and drill the 1-3/8” diameter socket hole, being careful not to crack the gel coat finish around the hole.

Fit base into socket hole so it is parallel to boat centerline. Mark position and drill the three screw holes.

Remove base and connect wires through socket hole. Connect one wire to the battery ground (-). Attach other wire to the 1-amp fused, positive (+) switched wire from the navigation light switch.

Apply sealant between deck and light base. Fasten base with three #10 stainless steel screws. Do not overtighten screws.

Replacing Light Poles without a Locking Collar

Align pole screw with slot in the existing base. Insert pole into base.

Press down firmly to engage electrical connectors.

To remove pole, pull straight up.

Replacing Light Poles with Locking Collar

Align pole screw with slot in the base. Insert pole into base.

Press down firmly to engage electrical connectors.

Slide locking collar down to base, rotate until you can insert lower ring inside top of base.

Press collar down into base and rotate until it tightens between pole and base.

To remove light, rotate locking collar in opposite direction until it loosens, then pull up on pole.

Removing Locking Collar

For bases that do not accept locking collar, remove screw at bottom of pole. Slide locking collar off end of pole.

Replace screw in the upper screw hole.

Replacing Bulb

Unscrew frosted globe counter-clockwise and remove.

Pull bulb straight up. Replace with #906 9-Watt Wedge Base Replacement Bulb.

Screw lens clockwise onto pole.

Clean the light with a mild soap and warm water solution. Never use solvents or abrasives that may damage the lens or housing of the light.

Attwood All-Round Boat Stern Light w/ Fixed Base

This Attwood All-Round Boat Stern Light w/ Fixed Base features a two-mile, 360° light visibility with an included 9-watt wedge base lamp. It installs with required #10 fasteners and is great for use on pontoons, hard tops, and rader arches. Rated for 50,000+ hours of use, this boat stern light is for use on boats up to 39.4 ft. (12 meters) and provides exceptional satisfaction.

Features:

Rated For 50,000+ Hours Of Use

Two-Mile, 360° Light Visibility

For Use On Pontoons, Hard Tops, and Radar Arches

Installs With Two Required #10 Fasteners

Includes 9-Watt Wedge Base Lamp

For Use On Boats Up To 39.4 ft. (12 Meters)

Specifications:

Base Dimensions: 2-1/2" Long x 1" Wide

8" Tall

Click to download Attwood All-Round Boat Stern Light w/ Fixed Base Installation Instructions

Attwood Frosted Globe All-Round Boat Navigation Light

This Attwood Frosted Globe All-Round Boat Navigation Light uses a standardized lamp that is commonly available in marine, auto, and convenience stores. It provides a 2-mile 360 degree illumination for boats up to 65.6' (20m), with its clean and translucent lens. With a 9-watt wedge-base lamp, this boat navigation light offers a universal fit so it can be used with a wide variety of 2-pin straight or angled bases.

Features:

2-Pin Standard Pole

.75" Diameter

Fits All Attwood Standard 2-Pin Contact Bases

Clean, Translucent Lens

Provides A 2-Mile 360 Degree Illumination For Boats Up To 65.6' (20m)

Standardized Lamp

Includes 9-Watt Wedge-Base Lamp

Specifications:

Voltage: 12V

24"

Installation Tips:

• When installing, position the All-Round light so its bulb is not less than one meter above sidelights. If replacing an existing pole light, replace with a pole at least as long as the existing. Mount the light in a position that will allow the light to shine 360 degrees, unobstructed.
• Click to download Attwood 5100 Frosted Globe Boat Navigation Light Installation Instructions
• Frequently Asked Questions
• What is the Attwood Frosted Globe All-Round Boat Navigation Light designed for? The Attwood Frosted Globe All-Round Boat Navigation Light provides 360-degree illumination for boats up to 65.6 feet (20 meters) in length. It features a clean, translucent lens and a 24-inch pole with a 2-pin standard connection.
• What type of bulb does the Attwood Frosted Globe All-Round Boat Navigation Light use? This Attwood all-round navigation light uses a standardized 9-watt wedge-base lamp. The included lamp operates at 12V and is commonly available in marine, automotive, and convenience stores.
• Which bases are compatible with the Attwood Frosted Globe All-Round Boat Navigation Light? The Attwood Frosted Globe All-Round Boat Navigation Light fits all Attwood standard 2-pin contact bases. Its universal design also allows use with a wide variety of 2-pin straight or angled bases.
• How far can the Attwood Frosted Globe All-Round Boat Navigation Light be seen? The Attwood Frosted Globe All-Round Boat Navigation Light provides 2-mile, 360-degree illumination for boats up to 65.6 feet (20 meters) in length.
• What are the installation requirements for the Attwood Frosted Globe All-Round Boat Navigation Light? Position the all-round light so its bulb is at least one meter above the sidelights. If replacing an existing pole light, use a pole at least as long as the existing one. Mount the light where it can shine 360 degrees without obstruction.

Attwood Bi-Color Boat Navigation Light

This Attwood Bi-Color Boat Navigation Light is composed of anodized aluminum that raises the light head for visibility above the trolling motor, anchor, or other equipment on the bow. The 14" straight 2-pin locking collar pole offers a "universal fit" so it can be used with a wide variety of Attwood 2-pin and 3-pin straight or angled bases. This boat navigation light is designed for boats up to 38.4 ft. (12 meters) with its 1-mile 225° red/green light visibility. When not in use, the lights can be removed from the base and stowed to prevent interference with fishing or anchoring.

Features:

Composed Of Anodized Aluminum

1-Mile, 225° Red/Green Light Visibility

14" Straight 2-Pin Locking Collar Pole Offers A "Universal Fit"

For Boats Up To 38.4 ft. (12 Meters)

Raises The Light Head For Visibility Above The Trolling Motor, Anchor, Or Other Equipment On The Bow

Available In Straight Or Angled Pole

Includes 8-Watt Wedge Base Lamp

Can Be Removed From Base and Stowed

Specifications:

Length: 14"

Visibility: 1-Mile, 225°

Locking Collar: 2-Pin

Attwood Pulsar 14" Angled Bi-Color Navigation Side Lights

The Pulsar series combo sidelights feature an anodized aluminum pole and dual 9W wedge base lamp. This durable stowaway bi-color lights are designed for bow mounting and provide 225° of light up to 1 nautical mile in distance. When not in use this navigation light can be removed from its base to not interfere with fishing or anchoring. This combo sidelight is designed for boats up to 39.4' in length.

Product Features:

1 Nautical Mile Visibility

2-Pin Standard

12° Angled 14" Post

Anodized Aluminum Construction

9W Wedge Base Lamp

Attwood Bi-Color Navigation Light

This Attwood Bi-Color side navigation light features a red and green lens sitting in a black housing. The housing is made of an impact resistant and UV stable polycarbonate material. Constructed to provide 225° of visibility up to 1 nautical mile. The bayonet lock design allows this light to securely sit in the base. A 7" wire lead connects to a 12V DC power supply. The light installs directly to the deck with two #10 fasteners. When properly installed the cover and lens conceal all signs of installation and seal water out of the lamp and hull. This bi-color navigation light is designed for use on bow of boats up to 39.4ft.

Sidelights should be mounted to a smooth surface on the gunwale, deck, or superstructure where the light beam will not be obstructed.

Product Features:

For Boats up to 39.4'

Impact Resistant Housing

1 Nautical Mile 225° Visibility

Bi-Color Lens

Attwood Port Side Navigation Light

This Attwood side navigation light features a red lens sitting in a black housing. The housing is made of an impact resistant and UV stable polycarbonate material. Constructed to provide 112.5° of visibility up to 1 nautical mile. The bayonet lock design allows this light to securely sit in the base. A 7" wire lead connects to a 12V DC power supply. The light installs directly to the deck with two #10 fasteners. When properly installed the cover and lens conceal all signs of installation and seal water out of the lamp and hull. This navigation light is designed for use on the port (left side) of boats up to 39.4ft.

Sidelights should be mounted to a smooth surface on the gunwale, deck, or superstructure where the light beam will not be obstructed.

Product Features:

For Boats up to 39.4'

Impact Resistant Housing

1 Nautical Mile 112.5° Visibility

Red Lens

Port/Left Side Light

Attwood Starboard Side Navigation Light

This Attwood side navigation light features a green lens sitting in a black housing. The housing is made of an impact resistant and UV stable polycarbonate material. Constructed to provide 112.5° of visibility up to 1 nautical mile. The bayonet lock design allows this light to securely sit in the base. A 7" wire lead connects to a 12V DC power supply. The light installs directly to the deck with two #10 fasteners. When properly installed the cover and lens conceal all signs of installation and seal water out of the lamp and hull. This navigation light is designed for use on the starboard (right side) of boats up to 39.4ft.

Sidelights should be mounted to a smooth surface on the gunwale, deck, or superstructure where the light beam will not be obstructed.

Product Features:

For Boats up to 39.4'

Impact Resistant Housing

1 Nautical Mile 112.5° Visibility

Green Lens

Starboard/Right Side Light

Attwood Telescoping Portable Clamp-On Boat Bow & Stern Light

These Attwood Telescoping Clamp-On Boat Bow & Stern Lights are composed of sealed, shock-proof composite housing that is built to last in harsh conditions. They feature a water-resistant, shatter-proof polycarbonate lens and a heavy-duty C-Clamp. Providing 150+ hours of run-time on three AAA batteries, this boat bow and boat stern light will ensure long lasting use and durability.

Features:

Water-Resistant

Shatter-Proof Polycarbonate Lens

150+ Hours Run-Time On Three AAA Batteries (Not Included)

Heavy-Duty C-Clamp

Sealed, Shock-Proof Composite Housing, Built To Last In Harsh Conditions

Portable LED Navigation Light Engines

Includes Red/Green LED Bow Light, White LED Stern Light, Quick-Release Mount, Pole and Hardware

Specifications:

Mounting Style: C-Clamp

Pole Style: Telescoping

Finish: Marine Gray

Attwood Portable Clamp-On Boat Bow and Stern Lights w/Realtree® Max-5 Camouflage

The Attwood Portable Clamp-On Boat Bow and Stern Lights feature a water-resistant, shatterproof polycarbonate lens. They are composed of shock-proof composite housing and have durable, portable LED navigation light engines. With a heavy-duty C-Clamp and Kayak Pad mounting option, these clamp-on boat lights and stern lights are built to last in the harshest marine conditions.

Features:

Water-Resistant Bow and Stern Navigation Lights

Shatterproof Polycarbonate Lens

Heavy-Duty C-Clamp and Kayak Pad Mounting Options

Sealed Electronics, Built To Last In Harsh Conditions

Telescoping and Threaded Pole

Sealed, Shock-Proof Composite Housing

Durable, Portable LED Navigation Light Engines

150+ Hour Run-Time On Three AAA Batteries (Not Included)

Includes Red/Green LED Bow Light, White LED Stern Light, Quick-Release Mount, Pole and Hardware

Realtree® Max-5 Camouflage design

Specifications:

Mounting Style: C-Clamp

Finish: Marine Gray

Pole Style: Threaded

Pole Length: 21-3/4"

Attwood Portable Clamp-On Boat Bow and Stern Lights

The Attwood Portable Clamp-On Boat Bow and Stern Lights feature a water-resistant, shatterproof polycarbonate lens. They are composed of shock-proof composite housing and have durable, portable LED navigation light engines. With a heavy-duty C-Clamp and Kayak Pad mounting option, these clamp-on boat lights and stern lights are built to last in the harshest marine conditions.

Features:

Water-Resistant Bow and Stern Navigation Lights

Shatterproof Polycarbonate Lens

Heavy-Duty C-Clamp and Kayak Pad Mounting Options

Sealed Electronics, Built To Last In Harsh Conditions

Telescoping and Threaded Pole

Sealed, Shock-Proof Composite Housing

Durable, Portable LED Navigation Light Engines

150+ Hour Run-Time On Three AAA Batteries (Not Included)

Includes Red/Green LED Bow Light, White LED Stern Light, Quick-Release Mount, Pole and Hardware

Specifications:

Mounting Style: C-Clamp

Finish: Marine Gray

Pole Style: Threaded

Pole Length: 21-3/4"

Frequently Asked Questions

• What are the Attwood Portable Clamp-On Boat Bow and Stern Lights designed for? The Attwood Portable Clamp-On Boat Bow and Stern Lights provide portable bow and stern navigation lighting. The set includes a red/green LED bow light, white LED stern light, quick-release mount, pole, and hardware for portable installation.
• How are the Attwood Portable Clamp-On Boat Bow and Stern Lights mounted? These Attwood boat navigation lights use a heavy-duty C-clamp and also include a kayak pad mounting option. The set features a quick-release mount and a 21-3/4-inch threaded pole for installation.
• How long do the Attwood Portable Clamp-On Boat Bow and Stern Lights run? The Attwood Portable Clamp-On Boat Bow and Stern Lights provide more than 150 hours of run-time on three AAA batteries. The batteries are not included.
• What type of housing and lens do the Attwood portable navigation lights have? The lights feature a sealed, shock-proof composite housing and a shatterproof polycarbonate lens. Their electronics are sealed for use in harsh marine conditions, and the navigation light engines are designed for portability and durability.
• What is included with the Attwood Portable Clamp-On Boat Bow and Stern Lights? The set includes a red/green LED bow light, white LED stern light, quick-release mount, telescoping and threaded pole, and mounting hardware. The finish is marine gray, and the mounting style is a C-clamp.

Attwood Camo XFS Multi-Function LED Light

Attwood's Camo XFS Multi-Function LED Light is a durable, multi-purpose light that can be used as a bright 300 Lumen flood light or 50 Lumen red beam for improved night vision. Also has a UV mode for charging fishing lures and line.

Ideal for fishing, boating, hunting, camping and more. This light has four different mounting options and 360° rotation. Includes an adapter for use with the Attwood Rod Holder Mount.

Requires six AAA batteries (not included).

Attwood XFS Multi-Function LED Light - Gray

Attwood's XFS Multi-Function LED Light - Gray is a durable, multi-purpose light that can be used as a bright 300 Lumen flood light or 50 Lumen red beam for improved night vision. Also has a UV mode for charging fishing lures and line.

Ideal for fishing, boating, hunting, camping and more. This light has four different mounting options and 360° rotation. Includes an adapter for use with the Attwood Rod Holder Mount.

Requires six AAA batteries (not included).

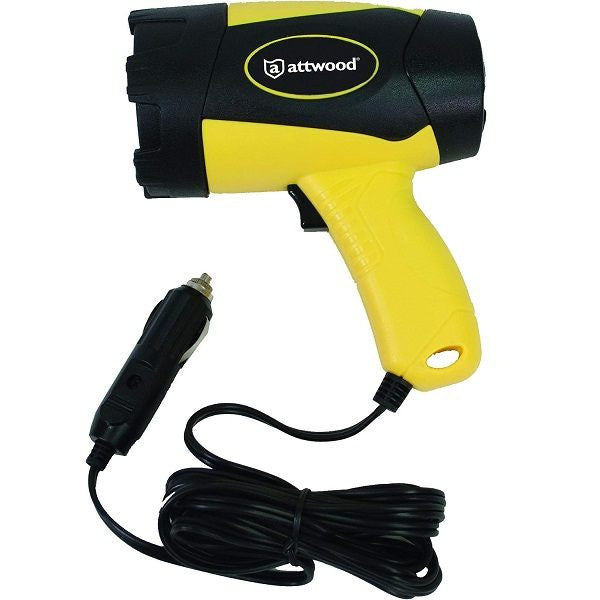

Attwood 12V Handheld Spotlight

This portable spot light by Attwood feature 5 watt LED that put out 400 lumens of bright light. The tough thermoplastic shell is yellow and black for easy locating in emergency situations. This hand held spot light includes a 12V accessory/cigarette style adapter plug with a 10' power cord. The ultra bright LED lights make this portable spot light perfect for locating the shore, boat launch, shallow water, and obstacles.

Product Features:

12V Accessory Style Plug

10' Power Cord

50,000 Hours of Life

400 Lumen

5 Watt LED Lights
