Garelick

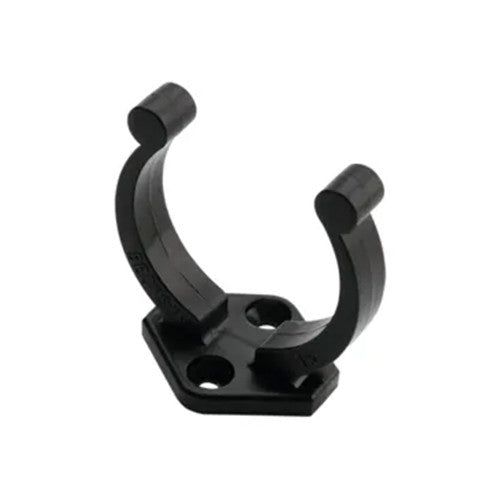

Sport Diver Storage Brackets

Specifications:

1 3/4" diameter storage bracket for 19833, 19834 (3 clips per package)

Installation Instructions

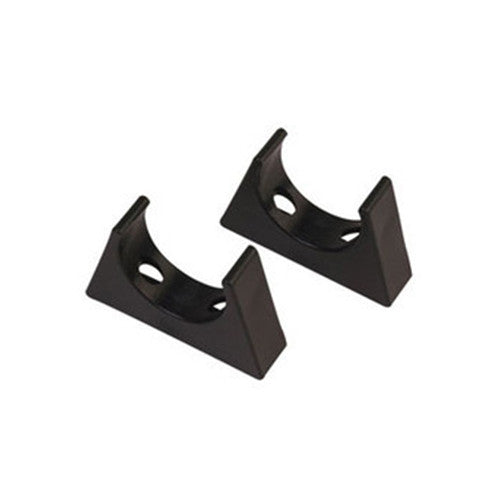

Sport Diver Storage Brackets

Features:

Mount to side coaming or transom for storing table pedestals

High density black delrin

Specifications:

2 1/4" diameter storage bracket for 19802, 19803, 19804, 19812 (sold in pairs)

Garelick 99191 Replacement Seat Shock Absorbers

The Garelick 99191 replacement seat shock absorbers are genuine OEM parts designed to minimize shock, jolt, and vibrations caused by boat movement. These marine-grade shock absorbers help maintain a comfortable ride in rough water conditions. Built to withstand harsh marine environments, they feature UV and saltwater resistant treatment for long-lasting durability. Compatible with Garelick seat pedestals, these replacement shock absorbers restore your boat seating system to optimal performance, reducing fatigue during extended time on the water.

Frequently Asked Questions

• What are the Garelick 99191 Replacement Seat Shock Absorbers used for? The Garelick 99191 Replacement Seat Shock Absorbers are genuine OEM replacement parts designed to minimize shock, jolts, and vibrations caused by boat movement. They are intended for compatible Garelick seat pedestals and help restore the performance of the boat seating system.
• How do Garelick 99191 seat shock absorbers help during boat use? These marine-grade shock absorbers are designed to reduce shock, jolts, and vibrations from boat movement. By minimizing these effects, they help provide a more comfortable ride, particularly when operating in rough water conditions.
• Are the Garelick 99191 Replacement Seat Shock Absorbers compatible with Garelick seat pedestals? Yes. The supplied description identifies the Garelick 99191 Replacement Seat Shock Absorbers as compatible with Garelick seat pedestals. Before purchasing, verify that your specific seat pedestal uses the 99191 replacement shock absorbers.
• Are the Garelick 99191 seat shock absorbers suitable for marine environments? Yes. The Garelick 99191 shock absorbers are described as marine-grade and are built to withstand harsh marine environments. They feature UV- and saltwater-resistant treatment for long-lasting durability.
• What should I verify before purchasing Garelick 99191 Replacement Seat Shock Absorbers? Verify that your boat seating system uses compatible Garelick seat pedestals and that the 99191 replacement shock absorbers are the correct parts for your installation. These are genuine OEM replacement parts intended to restore the seating system's shock-absorbing performance.

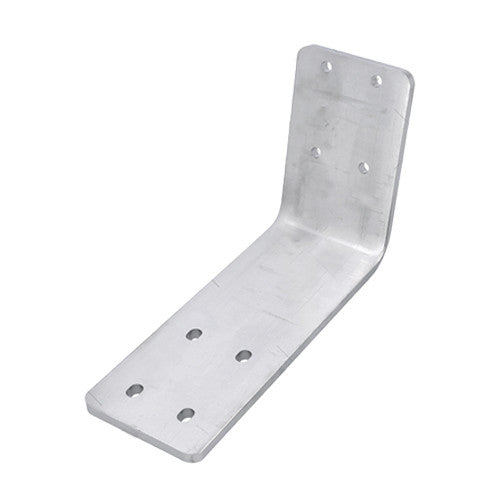

Platform Ladder Mount Bracket

Specifications:

W: 6.25" (16cm) H: 4" (10cm) D: 10" (25cm)

Specially designed for use on built-in platforms and euro-style boats

Utilizes 99180 included with ladder

Made of Stainless Steel

15 degree angle

Installation Instructions

Frequently Asked Questions

• What is the Platform Ladder Mount Bracket used for? The Platform Ladder Mount Bracket is specially designed for use on built-in platforms and euro-style boats. It provides a mounting solution for compatible ladder installations and features a 15-degree angle.
• What is the Platform Ladder Mount Bracket made from? The Platform Ladder Mount Bracket is made of stainless steel. Its stainless steel construction is specified in the product description.
• What are the dimensions of the Platform Ladder Mount Bracket? The Platform Ladder Mount Bracket measures 6.25 inches wide, 4 inches high, and 10 inches deep. It also features a 15-degree angle.
• What type of boats is the Platform Ladder Mount Bracket designed for? The Platform Ladder Mount Bracket is specially designed for use on built-in platforms and euro-style boats. Verify that the bracket dimensions and mounting configuration are suitable for your intended ladder installation.
• What does the Platform Ladder Mount Bracket utilize? The Platform Ladder Mount Bracket utilizes the 99180 component, which is included with the ladder. The product description does not specify additional ladder models or compatibility details.

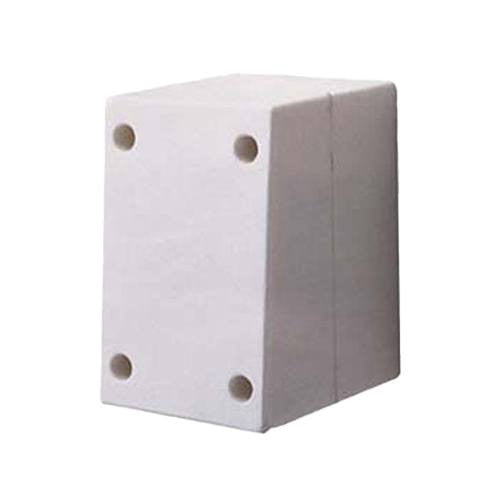

Universal Transom Mounting Ext Shim used with Garelick Sport Dive Ladders

Specifications:

W: 3.62" (9cm) H: 2.75" (7cm) D: 3" (7.5cm)

Solid poly block that can be custom cut at the angle necessary to allow the ladder to be mounted at 15 degrees off vertical in special applications.

Used with stainless face plate included with ladder.

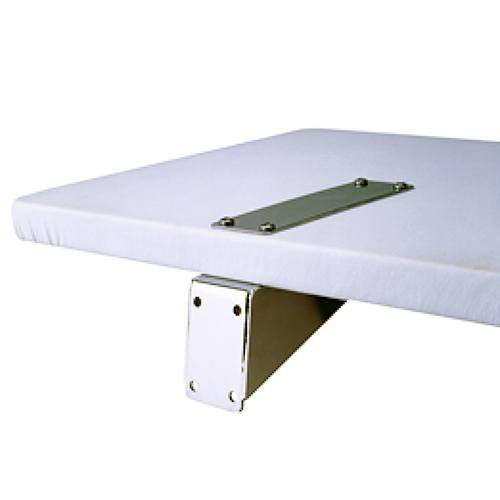

Under Platform Mounting Bracket for the Garelick Sport/Dive Ladders

Specifications:

W: 3.18" (8cm) H: 9.75" (25cm)

Allows ladder to be mounted on any poly, teak, fiberglass, or aluminum platform.

Mounts underneath platform and includes a top plate which sandwiches platform in between brackets.

Used with face plate and 10 deg poly spacer (99180) included with ladder.

Installation Instructions

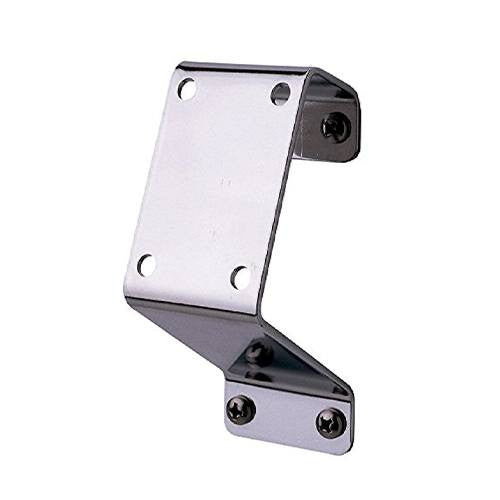

Garelick Sport Ladder Transom Mounting Extension Shim

Used with Garelik sport/diver ladders.

Specifications:

W: 2" (5cm) H: 3.62" (9cm) D: 2.75" (7cm)

Extends ladder 2" farther from the transom.

Used with face plate and 10 degree poly spacer (99180) included with ladder.

Made of stainless steel, 2.75" W x 3.62" H (7x9cm)

Installation Instructions

Frequently Asked Questions

• What is the Garelick Sport Ladder Transom Mounting Extension Shim used for? The Garelick Sport Ladder Transom Mounting Extension Shim is used with Garelick sport/diver ladders to extend the ladder 2" farther from the transom.
• How far does the Garelick Sport Ladder Transom Mounting Extension Shim extend the ladder? The Garelick Sport Ladder Transom Mounting Extension Shim extends the ladder 2" farther from the transom, providing additional spacing between the ladder and transom.
• What components is the Garelick Sport Ladder Transom Mounting Extension Shim used with? The Garelick Sport Ladder Transom Mounting Extension Shim is used with the face plate and 10-degree poly spacer (99180) included with the ladder.
• What is the Garelick Sport Ladder Transom Mounting Extension Shim made from? The Garelick Sport Ladder Transom Mounting Extension Shim is made of stainless steel and measures 2.75" wide by 3.62" high, with a depth of 2" as specified for the extension.

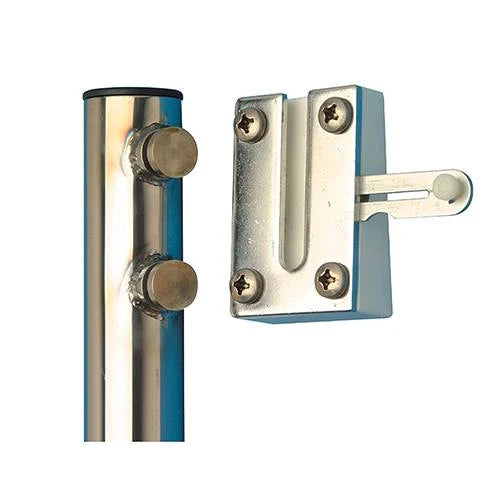

Garelick Standard Transom Mounting Bracket for Sport Dive Ladders

Features:

Width: 2.75" (7cm)

Height: 3.62" (9cm)

Mounting hole diameter: 5/16" (1cm)

Included with all sport/diver series ladders.

1" (3cm) thick poly spacer 10 degree angle, with lock and stainless steel face plate mounting bracket

Installation Instructions

Frequently Asked Questions

• What is the Garelick Standard Transom Mounting Bracket for Sport Dive Ladders used for? The Garelick Standard Transom Mounting Bracket is designed for mounting Sport/Diver Series ladders to a boat transom. It includes a poly spacer with a 10-degree angle, a lock, and a stainless steel face plate mounting bracket.
• What are the dimensions of the Garelick Standard Transom Mounting Bracket? The Garelick Standard Transom Mounting Bracket measures 2.75" wide by 3.62" high. The mounting holes have a diameter of 5/16".
• What is included with the Garelick Standard Transom Mounting Bracket? The bracket includes a 1" thick poly spacer with a 10-degree angle, a lock, and a stainless steel face plate mounting bracket. These components are part of the transom mounting bracket assembly.
• Is the Garelick Standard Transom Mounting Bracket included with Sport/Diver Series ladders? Yes. The Garelick Standard Transom Mounting Bracket is included with all Sport/Diver Series ladders.
• What size mounting holes does the Garelick Standard Transom Mounting Bracket have? The Garelick Standard Transom Mounting Bracket has mounting holes with a 5/16" diameter. The bracket is 2.75" wide and 3.62" high.

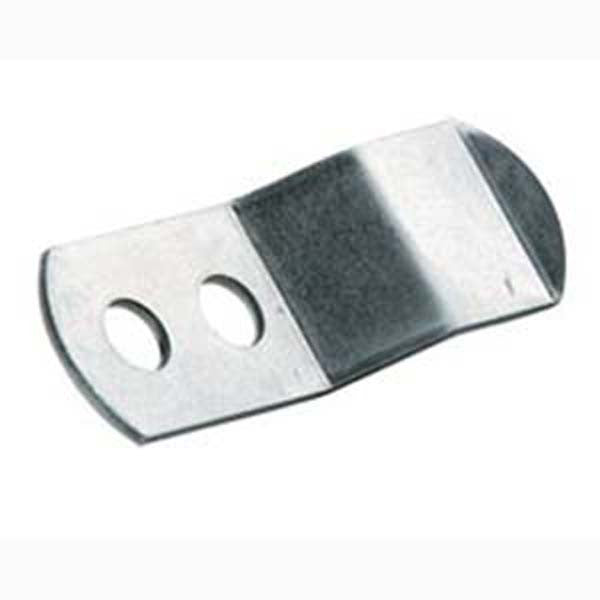

Garelick Upholstery Clips 99136

Features:

Stainless steel upholstery clip

Flexible PVC substrates

1/4" offset

2" L x 1/2" W

Frequently Asked Questions

• What are the Garelick Upholstery Clips 99136 used for? The Garelick Upholstery Clips 99136 are stainless steel upholstery clips designed for use with flexible PVC substrates. They feature a 1/4" offset and a compact 2" length, making them suitable for upholstery applications that require these specific clip dimensions.
• What material are Garelick Upholstery Clips 99136 made from? Garelick Upholstery Clips 99136 are made from stainless steel. The product description identifies them as upholstery clips intended for flexible PVC substrates.
• What are the dimensions of Garelick Upholstery Clips 99136? Each Garelick Upholstery Clip 99136 measures 2" long by 1/2" wide and has a 1/4" offset. Verify these dimensions against your upholstery application to ensure the clips meet your specific requirements.
• Are Garelick Upholstery Clips 99136 designed for flexible PVC substrates? Yes. The Garelick Upholstery Clips 99136 are specified for use with flexible PVC substrates. Before using them, verify that your upholstery substrate and application are suitable for the clip's 1/4" offset and 2" x 1/2" dimensions.
• What is the offset of Garelick Upholstery Clips 99136? Garelick Upholstery Clips 99136 have a 1/4" offset. This measurement is an important specification to verify when determining whether the clips will fit the intended upholstery application.

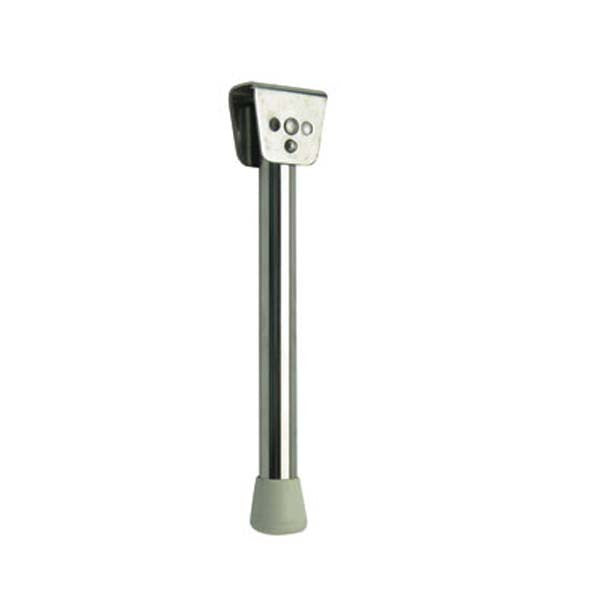

Garelick Stainless Steel Seat Support Swing Leg - 13"

Garelick's 13-inch stainless steel seat support swing leg provides reliable support for fold-down boat seating. This versatile mount features a 1-inch diameter stainless steel leg with a white rubber tip and can swing for either right or left folding configurations. The leg locks securely in both down and storage positions using a stainless button lock system. You can cut it to your desired height for custom installations. The mounting bracket measures 2.25 inches deep by 1.375 inches wide, making it compatible with most marine seating applications. Built from corrosion-resistant stainless steel for long-lasting durability in harsh marine environments.

Features:

Provides support for fold-down seating

Designed to swing for right or left folding

Can be cut to length for desired height

Locks in down or storage position

Dimensions & Specifications:

13" Height Seat Support Swing Leg 1" (3cm) diameter stainless leg with white rubber tip

Stainless button lock and mounting bracket

2.25" D x 1.375" W (6 x 4cm). 13" (33cm) H

Installation Instructions

Frequently Asked Questions

• What is the Garelick Stainless Steel Seat Support Swing Leg - 13" used for? The Garelick Stainless Steel Seat Support Swing Leg - 13" provides support for fold-down boat seating. Its swing-leg design allows it to accommodate either right- or left-folding configurations, while the locking mechanism secures the leg in both the down and storage positions.
• Can the Garelick 13" Seat Support Swing Leg be cut to a custom height? Yes. The 13-inch stainless steel seat support swing leg can be cut to length for the desired height. This allows the support to be adjusted for custom boat seating installations while retaining its swing and locking functions.
• How does the Garelick 13" Seat Support Swing Leg lock into position? The Garelick seat support swing leg uses a stainless steel button lock system. The leg locks securely in both the down position for seating support and the storage position when the seat is folded.
• What are the dimensions of the Garelick Stainless Steel Seat Support Swing Leg - 13"? The Garelick seat support swing leg is 13 inches high and uses a 1-inch diameter stainless steel leg with a white rubber tip. The stainless steel mounting bracket measures 2.25 inches deep by 1.375 inches wide.
• What is the Garelick 13" Seat Support Swing Leg made of? The leg is made from stainless steel and includes a stainless steel button lock and mounting bracket. It also has a white rubber tip. The supplied description identifies the stainless steel construction as corrosion-resistant for durability in marine environments.

Garelick Stainless Steel Seat Support Swing Leg - 28.25"

Features:

Provides support for fold-down seating

Designed to swing for right or left folding

Can be cut to length for desired height

Locks in down or storage position

Dimensions & Specifications:

28 1/4" Height - Seat Support Swing Leg 1" (3cm) diameter stainless leg with white rubber tip.

Stainless button lock and mounting bracket.

2.25" D x 1.375" W (6 x 4cm). 28.25" (72cm) H

Installation Instructions

Frequently Asked Questions

• What is the Garelick Stainless Steel Seat Support Swing Leg - 28.25"? The Garelick Stainless Steel Seat Support Swing Leg is designed to provide support for fold-down boat seating. The 28.25" support leg features a 1" diameter stainless steel leg with a white rubber tip and can be cut to length for the desired height.
• Can the Garelick seat support swing leg be used for right- or left-folding seats? Yes. The Garelick seat support swing leg is designed to swing for either right- or left-folding seating. This allows the support to accommodate fold-down seating configurations in either direction.
• Can the Garelick Stainless Steel Seat Support Swing Leg be cut to size? Yes. The 28.25" seat support swing leg can be cut to length to achieve the desired height. The supplied description does not specify a minimum or maximum cut length, so determine the appropriate finished height before modifying the leg.
• How does the Garelick seat support leg stay in position? The Garelick seat support swing leg locks in both the down position and the storage position. A stainless steel button lock and mounting bracket are included as part of the support assembly.
• What are the dimensions of the Garelick Stainless Steel Seat Support Swing Leg? The support leg measures 28.25" high and has a 1" diameter stainless steel leg with a white rubber tip. The listed dimensions for the assembly are 2.25" D x 1.375" W x 28.25" H.
• What is the Garelick seat support swing leg made of? The support leg uses stainless steel construction, including a 1" diameter stainless steel leg and stainless steel button lock. It also includes a white rubber tip and mounting bracket for the fold-down seating support assembly.

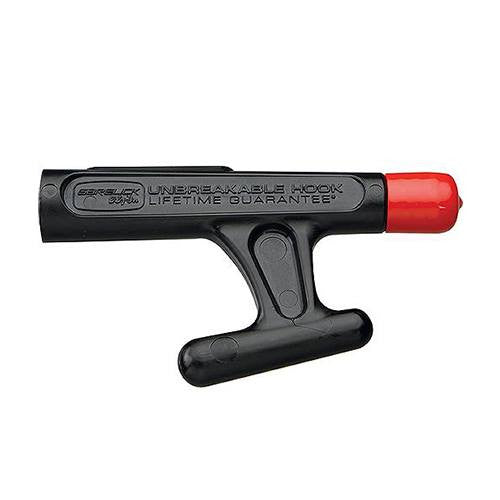

Garelick 99046 Replacement Boat Hook Head

Garelick replacement boat hook head made of non-corrosive UV resistant marine composite.

Features:

Wide gap to grab large objects or cleats - push or pull

3/4" acme threaded head (under red cap) for screw on brush, broom, or map

Accepts Wichard 4" snap hook

Non-corrosive UV resistant marine composite

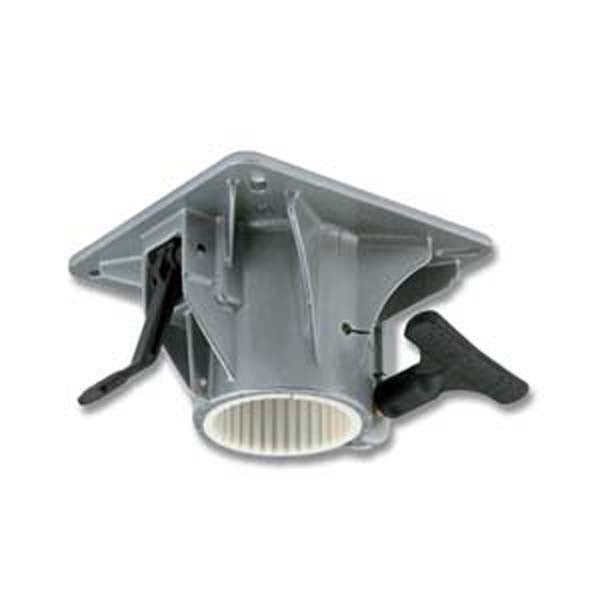

Garelick Millinium Series Swivel Seat Mount Top

The Garelick Millennium Series Swivel Seat Mount Top features a low profile design with 360° rotation capability. Built with heavy duty anodized aluminum, the slide plate includes a standard 5"x12" hole pattern for easy installation. The dual locking system offers precise control—lift the positive lock lever to rotate and drop it to secure in 10° increments. A secondary twist control provides variable drag adjustment for customized positioning. The internal Delrin bearing cup ensures smooth, gaul-free operation during use. Finished in silver powder coat, this mount fits all smooth 2 7/8" diameter bases and works with standard seat mounting configurations.

Features:

Low profile design allows 360° of rotation

Heavy duty anodized aluminum slide plate has standard 5"x12" hole pattern to accommodate standard seat mounting holes

360° rotation is regulated by dual locking devices - lift the positive lock lever to rotate. Drop the lever to lock in place in 10° increments. Secondary twist control offers variable drag adjustment and can be tightened down to lock in place.

Internal Delrin Bearing Cup provides smooth, gaul-free operation

360 degree Positive Lock Swivel Spider Mount Silver Powder Coat Finish

Fits all smooth 2 7/8" diameter bases

Installation & Operating Instructions

Garelick Bearing Set for 99023 Spider

Bearing set only

Assembly & Installation Instructions

Frequently Asked Questions

• What is the Garelick Bearing Set for 99023 Spider used for? The Garelick Bearing Set for 99023 Spider is a replacement bearing set intended for the Garelick 99023 Spider. The product description identifies this item specifically as a bearing set, making it suitable when replacing the bearing components associated with that assembly.
• Is the Garelick Bearing Set compatible with the 99023 Spider? Yes. The product is identified as a bearing set for the Garelick 99023 Spider. The supplied description does not provide additional compatibility information or specific model details beyond the 99023 Spider designation.
• Does the Garelick Bearing Set for 99023 Spider include the complete Spider assembly? No. This product is the bearing set only. The description does not indicate that the complete Garelick 99023 Spider or any additional components are included.

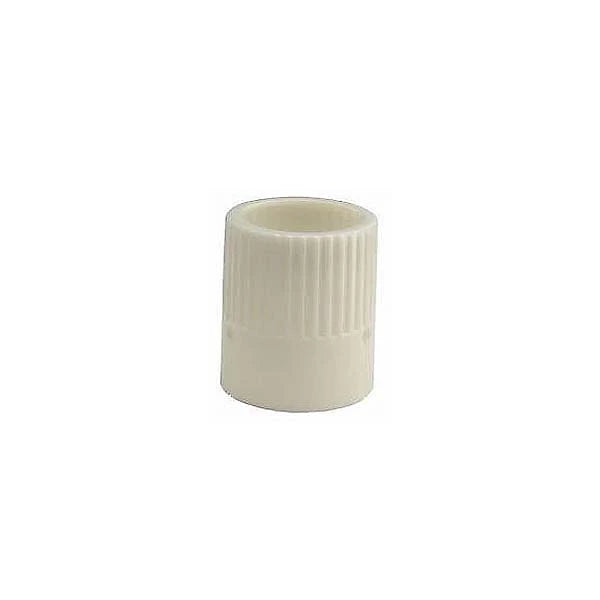

Garelick Internal Bearing Cup - Ribbed

Internal Delrin Bearing Cup for 20000, 20001, 21000, 21001, 99026

Installation & Operating Instructions

Frequently Asked Questions

• What is the Garelick Internal Bearing Cup - Ribbed? The Garelick Internal Bearing Cup - Ribbed is an internal Delrin bearing cup designed as a replacement component for specified Garelick seating hardware. It is compatible with Garelick parts 20000, 20001, 21000, 21001, and 99026.
• Which Garelick parts are compatible with this internal bearing cup? The Garelick Internal Bearing Cup - Ribbed is specified for use with Garelick parts 20000, 20001, 21000, 21001, and 99026. Verify your existing component's part number before purchasing to ensure this bearing cup matches your application.
• What material is the Garelick Internal Bearing Cup made from? The Garelick Internal Bearing Cup - Ribbed is made from Delrin. The supplied product description identifies it as an internal bearing cup for the specified Garelick components.
• Is the Garelick Internal Bearing Cup - Ribbed a replacement part? Yes. The Garelick Internal Bearing Cup - Ribbed is an internal bearing cup intended for the listed Garelick components. When replacing a bearing cup, verify that your existing hardware is one of the compatible part numbers: 20000, 20001, 21000, 21001, or 99026.
• What should I verify before purchasing the Garelick Internal Bearing Cup - Ribbed? Confirm that your existing Garelick hardware is part number 20000, 20001, 21000, 21001, or 99026. These are the specific compatible applications provided in the product description. The description does not provide dimensions or additional fitment information.

Garelick Millennium Series Swivel Seat Top Mount

Low profile design allows 360° of rotation

360° rotation is regulated by dual locking devices - lift the positive lock lever to rotate. Drop the lever to lock in place in 10° increments. Secondary twist control offers variable drag adjustment and can be tightened down to lock in place.

Internal Delrin Bearing Cup provides smooth, gaul-free operation

Plain or powder coated finish

Powder Coat Finish

Installation & Operating Instructions

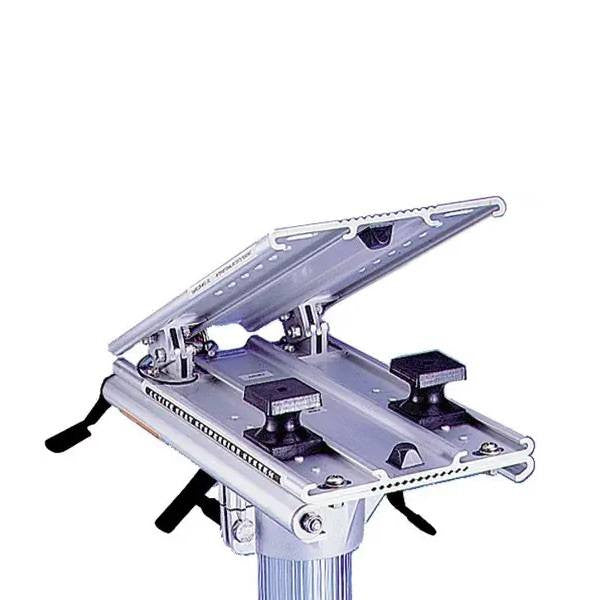

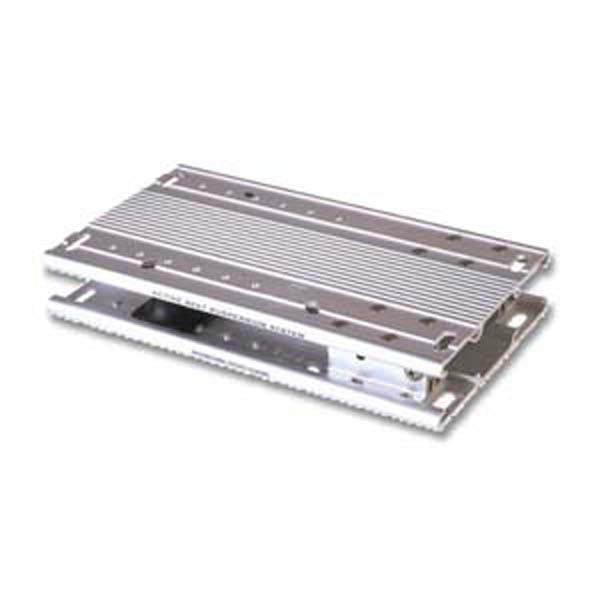

Garelick Active Seat Suspension System

Features:

Active Seat Suspension Systems absorb and minimize up to 75% of the shock, jolt, and vibration transmitted to the passenger from the forces of roll, pitch, and yaw.

Active Seat Suspensions Systems reduce the feelings of seasickness and nausea by absorbing excessive movement with 1" of damped vertical travel.

These systems are CAD designed, FEA proven, and precision engineered and tooled.

Components are saltwater spray 77000ed and UV stable; to help endure harsh marine environments.

Made from rugged, high-tensile, anodized aluminum with stainless steel hardware.

Standard bolt hole pattern allows for mounting on top of pedestal and beneath any individual seat

Features heavy duty forward hinge system allowing shock absorption to occur in the vertical plane only, eliminates sway and side tipping

U.S. PATENT #6,042,093

Includes provisions for mounting seats with 6" center hole pattern.

Easily mounts to almost any current seat.

Standard bolt hole pattern allows for easy mounting beneath seat to the deck, a box, or the floor of a boat

Perfect for mounting beneath seat greater than 20" (51cm)

Includes provisions for mounting seats with 6" center hole pattern

Compact size and low profile design adds only 2" (5cm) of height. The outline is 13" x 7" (33 x 18cm) with standard 5" x 12 1/8" (13 x 31cm) slotted mounting hole pattern.

Installation & Operating Instructions

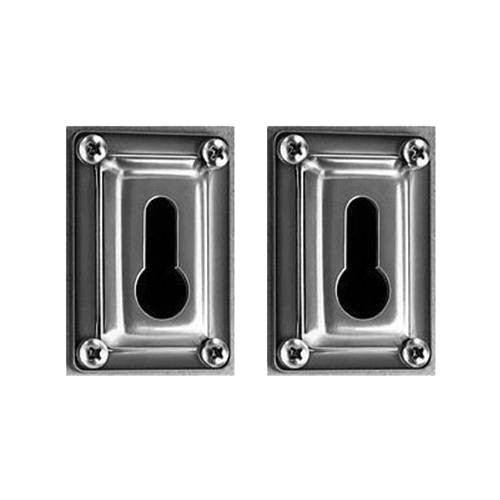

Garelick Shur-Loc Ladder Catches

Features:

Bracket mounts to hull or deck for attaching Garelick latch type boarding ladders and cockpit steps

Allows permanent or temporary mounting

Stamped stainless steel self-locking design

Packaged in pairs

2.5" high by 1.75" wide

Pontoon Installation Instructions

Standoff Brackets

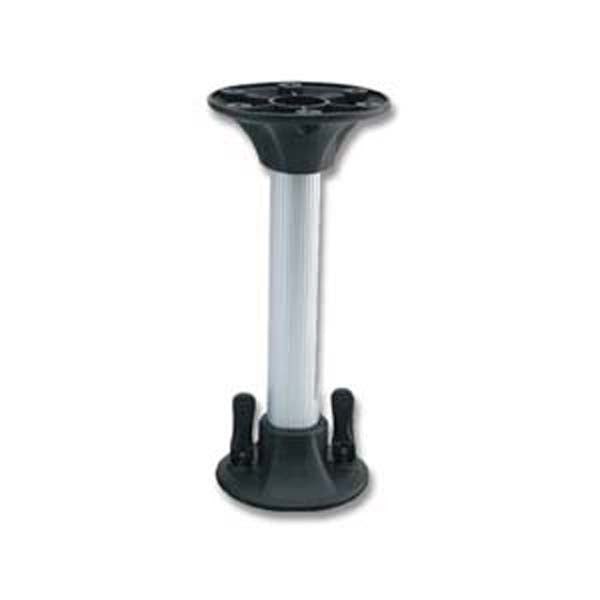

Garelick Quick Release Table Pedestal System

Features:

Quick release levers allow effortless take-down of table system for storage

Simple to use, simple to install

Deck ring mounts nearly flush with deck for minimal interference when table is stowed

No need to drill large center hole in deck as commonly required with other table hardware systems

Marine grade polymer components resist corrosion

Stanchion post is 2 1/4" Anodized aluminum w/ ribbed finish and tapered at both ends

System height is 27" from deck surface to underside of table top

9 1/4" and 13" stanchion posts available for converting dinette into bunk use

Individual components available if additional mounting locations are desired

Patented, revolutionary table hardware system (US Patent #7,013,831)

Complete system includes: deck ring, socket base, table mounting socket, stanchion tube

Installation Instructions

Frequently Asked Questions

• What is the Garelick Quick Release Table Pedestal System used for? The Garelick Quick Release Table Pedestal System is a marine table hardware system designed to provide a simple way to install and remove a table. Quick release levers allow the table system to be taken down for storage, while the deck ring mounts nearly flush with the deck when the table is stowed.
• What is included with the Garelick Quick Release Table Pedestal System? The complete system includes a deck ring, socket base, table mounting socket, and stanchion tube. Individual components are also available if additional mounting locations are desired.
• What is the height of the Garelick Quick Release Table Pedestal System? The Garelick Quick Release Table Pedestal System has a height of 27" from the deck surface to the underside of the table top. Optional 9 1/4" and 13" stanchion posts are available for converting a dinette into bunk use.
• What is the Garelick Quick Release Table Pedestal stanchion post made from? The stanchion post is made from 2 1/4" anodized aluminum and features a ribbed finish with tapered ends. The system also incorporates marine grade polymer components that resist corrosion.
• Does the Garelick Quick Release Table Pedestal require a large center hole in the deck? No. The Garelick Quick Release Table Pedestal System does not require a large center hole in the deck as commonly required with other table hardware systems. The deck ring mounts nearly flush with the deck to minimize interference when the table is stowed.
• How does the quick release feature work on the Garelick Table Pedestal System? The system uses quick release levers to allow effortless take-down of the table system for storage. This makes the system simple to use while allowing the table to be removed when it is no longer needed.

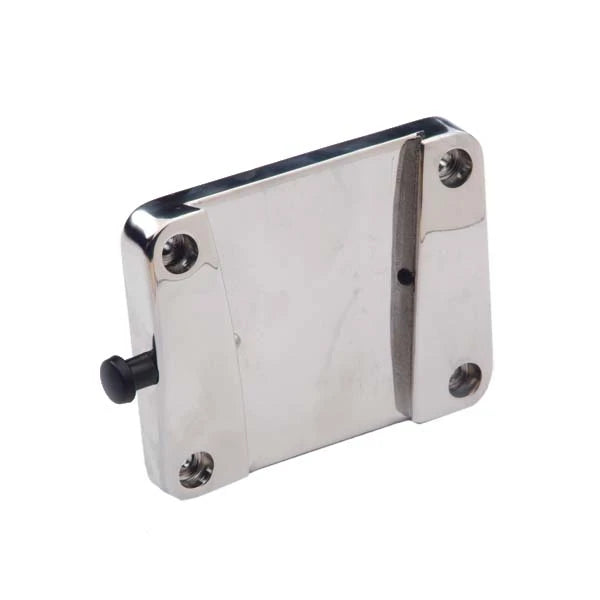

Garelick Side Mount Table Bracket

Allows installation of table system to any vertical surface (coaming)

Consists of mounting bracket only

Mounting bracket is polished 304 stainless steel. Mounting holes are spaced 4" W x 3" T.

Overall outside dimensions of mounting bracket are 5" W x 4" T, 1/4" thick.

Instructions

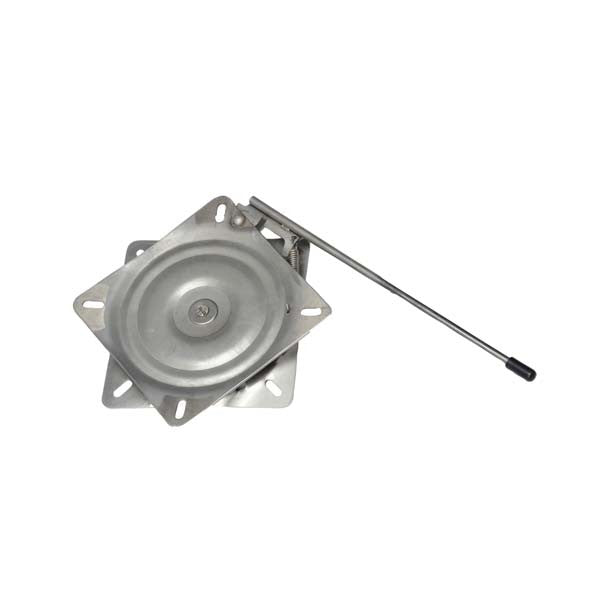

Garelick Locking Stainless Steel Seat Swivel

Rotates 360 degrees; 12 position lock at 30 degree increments

Heavy duty for offshore market

Fits most standard seat hole patterns

Self-lubricating non-corrosive poly swivel bearing Stainless steel

7” x 7” (18x18cm)

Frequently Asked Questions

• What is the Garelick Locking Stainless Steel Seat Swivel used for? The Garelick Locking Stainless Steel Seat Swivel provides 360-degree rotation for boat seating while allowing the seat to be locked into position. It is designed for heavy-duty use and fits most standard boat seat hole patterns.
• How does the locking mechanism work on the Garelick Locking Stainless Steel Seat Swivel? The swivel rotates a full 360 degrees and provides 12 locking positions at 30-degree increments. This allows the boat seat to be positioned at specific intervals and securely locked in place.
• What type of seats is the Garelick Locking Stainless Steel Seat Swivel compatible with? The Garelick Locking Stainless Steel Seat Swivel fits most standard seat hole patterns. Verify the mounting pattern of your existing boat seat before installation to confirm compatibility.
• Is the Garelick Locking Stainless Steel Seat Swivel designed for heavy-duty use? Yes. The Garelick Locking Stainless Steel Seat Swivel is designed for the offshore market and features stainless steel construction for its heavy-duty boat seating application.
• What type of bearing does the Garelick Locking Stainless Steel Seat Swivel use? The swivel uses a self-lubricating, non-corrosive poly swivel bearing. This bearing is part of the swivel's design for boat seating applications.
• What are the dimensions of the Garelick Locking Stainless Steel Seat Swivel? The Garelick Locking Stainless Steel Seat Swivel measures 7 inches by 7 inches, or approximately 18 by 18 centimeters.

Garelick 8 Position Locking Seat Swivel

8" W x 7" L (20 x 18cm)

Overall height: 3 3/4" (9cm)

6" travel

standard size for wooden/plastic seats.

Assembly & Installation Instructions

Garelick Low Profile Seat Slide

Allows helm or boat seats to adjust fore and aft

Slide mounts under seat in between seat and pedestal base

Convenient handle provides solid locking at any position

Compatible with most 360° spiders

Wobble-Free Design/Operation

Anodized aluminum with stainless steel hardware

Spider swivel casting (99023, 99036) not included

Full Length Size for roto-molded seats 5" (13cm) Fore and Aft Travel

8.5" W x 13" L x 1.63" H (22cm x 33cm x 4cm)

For Low Profile installations where slide mounts directly to deck.

Lock handle is angled upward

Assembly & Installation Instructions
