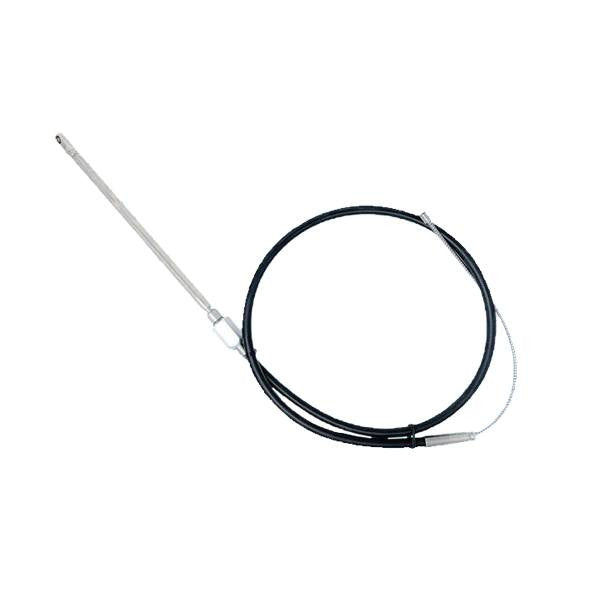

EZY-Glide EZY-Stik Replacement Cable

When it's time to replace the cable on your EZY-Glide EZY-Stik mechanical steering system, getting the right fit matters. These replacement cables work specifically with EZY-Stik II 840 and EZY-Stik III 870 systems. To determine the correct length, measure from your helm's center to the engine's center, add 8 inches, then round up to the nearest half foot. These cables are kept in stock for same-day shipping, getting you back on the water quickly. Note that these cables are designed exclusively for EZY-Glide EZY-Stik systems and aren't compatible with other steering brands.

How to Measure a Replacement Cable Length from EZY-Glide:

Measure from the center of the helm position to the center of the engine.

Add 8" to this measurement.

Round up your system length measurement to the nearest 1/2 foot. (For example, a 12'2" measurement would order a 12-1/2' cable)

Frequently Asked Questions

• What steering systems is this cable compatible with? This cable is for the EZY-Glide EZY-Stik II Model 840 and EZY-Stik III Model 870 mechanical steering systems. It will not work with any other steering brand or model. If you have a different stick steering system or a standard rotary/rack helm, this is not the correct cable. Check the model designation on your helm before ordering.
• How do I measure for the correct cable length? EZY-Glide uses a different measurement method than most other steering cable brands. Measure from the center of your helm position to the center of the engine, add 8 inches to that measurement, then round up to the nearest half foot. For example, a measurement of 12 feet 2 inches becomes a 12.5-foot cable order. Cables are available in half-foot increments from 7 to 15 feet.
• Why does this cable use a different measurement method than standard steering cables? The EZY-Stik is a stick-steering system mounted forward of the operator rather than at a conventional wheel helm, so the cable routing geometry differs from a typical rotary or rack-and-pinion setup. The 8-inch add-on accounts for the connection geometry specific to the EZY-Stik design. Using a standard steering cable measurement method on this system will result in an incorrectly sized cable.
• What engine sizes are the EZY-Stik systems this cable fits rated for? The EZY-Stik II Model 840 and EZY-Stik III Model 870 are for outboard engines up to 70 HP and jet drives up to 90 HP. If your engine exceeds these ratings, the EZY-Stik mechanical system, and by extension this replacement cable, is not appropriate for your application.
• Can I use a SeaStar, Teleflex, or other brand cable as a substitute? No. This cable is engineered for EZY-Glide EZY-Stik systems and uses proprietary end connections that are not interchangeable with SeaStar, Dometic, Quicksilver, or other standard marine cable types. Using a non-EZY-Glide cable on an EZY-Stik helm will result in improper fitment and potentially unsafe steering.

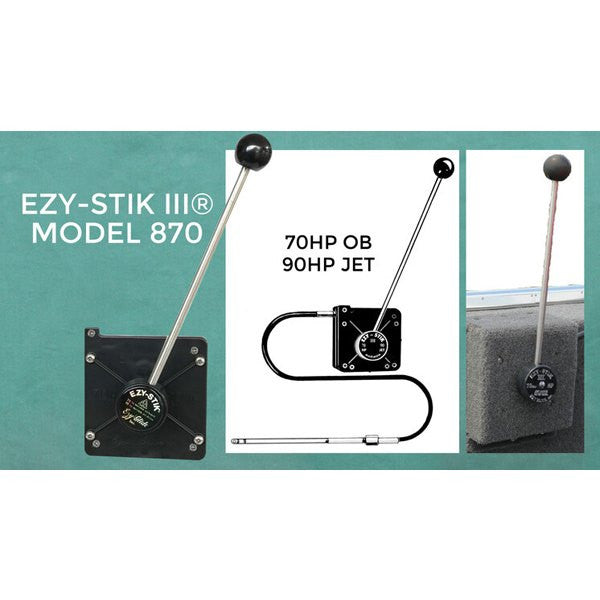

EZY-Glide EZY-Stik III Model 870 Mechanical Steering Kit

The Ezy-Stik III has incorporated many of the outstanding and time proven features of the Model 840. These great features include a one piece stainless steel drive spool, and reinforced composite housing. The Model 870 has been developed due to the increased demand for a system with quicker response and shorter lock-to-lock travel distance. The quicker turning ratio provides a faster response and a shorter travel distance from lock to lock.

Due to the fact that 4-stroke engines transfer more negative torque feedback to the operator, if the engine is a 4-stroke over 40 HP, the Ezy-Stik II Model 840 should be considered over the Model 870. Although the 870 has a horsepower rating of 70HP/90HP Jet, it is not recommended for 4-stroke engines over 40 HP.

This system is rated for:

Outboard engines not to exceed 70 HP

Jet drives not to exceed 90 HP

Specifications:

Total lever movement: 44.8 inches/161 degrees

Steering ratio: 5.0/1

Housing dimensions: Approx. 7-1/2" x 7-1/2"

Lever length: 16"

How to Measure a New System or Replacement Cable Length from EZY-Glide

Measure from the center of the helm position to the center of the engine.

Add 8" to this measurement.

Round up your system length measurement to the nearest 1/2 foot. (For example, a 12'2" measurement would order a 12-1/2' cable)

Click to Download EZY-Stik III Model 870 Installation Instructions

Frequently Asked Questions

• What is the EZY-Glide EZY-Stik III Model 870 Mechanical Steering Kit used for? The EZY-Glide EZY-Stik III Model 870 is a mechanical steering system designed for outboard engines up to 70 HP and jet drives up to 90 HP. Its quicker steering ratio provides faster response and shorter lock-to-lock travel compared with systems designed with a slower turning ratio.
• What horsepower engines are compatible with the EZY-Glide EZY-Stik III Model 870? The Model 870 is rated for outboard engines not exceeding 70 HP and jet drives not exceeding 90 HP. However, it is not recommended for 4-stroke engines over 40 HP because these engines transfer more negative torque feedback to the operator.
• Why does the EZY-Glide Model 870 provide quicker steering response? The Model 870 was developed with a quicker turning ratio to provide faster steering response and a shorter travel distance from lock to lock. Its steering ratio is 5.0:1, with total lever movement of 44.8 inches and 161 degrees.
• What are the main construction features of the EZY-Glide EZY-Stik III Model 870? The EZY-Stik III Model 870 incorporates a one-piece stainless steel drive spool and reinforced composite housing. The housing measures approximately 7-1/2 inches by 7-1/2 inches, and the lever length is 16 inches.
• How do I determine the correct cable length for the EZY-Glide Model 870? Measure from the center of the helm position to the center of the engine, then add 8 inches. Round the resulting system length up to the nearest 1/2 foot. For example, a measurement of 12 feet 2 inches would require ordering a 12-1/2-foot cable.
• What should I consider before choosing the EZY-Glide Model 870 for a 4-stroke engine? If the outboard is a 4-stroke engine over 40 HP, the Model 870 is not recommended even though its overall rating reaches 70 HP. The product description recommends considering the Ezy-Stik II Model 840 instead for 4-stroke engines over 40 HP.
